Schema GAEB_DA_XML_86ZE_3.2_2014-03.xsd

schema location:	..\GAEB_DA_XML_86ZE_3.2_2014-03.xsd
attributeFormDefault:	unqualified
elementFormDefault:	qualified
targetNamespace:	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2

Elements	Complex types	Simple types
GAEB	tgAward (r)	tgBoQBkdnType (r)
	tgAwardInfo (r)	tgDP (r)
	tgBoQ (r)
	tgBoQBkdn (r)
	tgBoQBody (r)
	tgBoQCtgy (r)
	tgBoQInfo (r)
	tgCnstSite (r)
	tgCTR (r)
	tgDescription (r)
	tgGAEB (r)
	tgGAEBInfo (r)
	tgHourItem (r)
	tgItem (r)
	tgItemlist (r)
	tgMarkupItemCTR (r)
	tgMarkupItemOWN (r)
	tgMaterialItem (r)
	tgOWN (r)

schema location:	..\GAEB_DA_XML_Lib_3.2_2014-03.xsd
attributeFormDefault:	unqualified
elementFormDefault:	qualified
targetNamespace:	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2

Complex types	Simple types
tgAddress	tgAccepted
tgAddText	tgALNGroupNo
tgArticle	tgALNSerNo
tgAward	tgAlterBidStatus
tgAwardInfo	tgAttAlign
tgBank	tgAttAlignTable
tgBoQ	tgAttBorder
tgBoQBkdn	tgAttCellpadding
tgBoQBody	tgAttClass
tgBoQCtgy	tgAttColspan
tgBoQInfo	tgAttFrame
tgBoQText	tgAttHeight
tgCashDiscDays	tgAttKind
tgCashDiscount	tgAttOrg
tgCheckNote	tgAttRowspan
tgCnstSite	tgAttStyle
tgCOInfo	tgAttValign
tgComplBodyDec	tgAttWidth
tgComplBodyInt	tgBidUpDownPct
tgCompleteText	tgBoQBkdnLength
tgContrValCode	tgBoQBkdnType
tgCostApproach	tgbr
tgCostType	tgCat
tgCPVCode	tgCertific
tgCtlg	tgCheckNoteState
tgCtlgAssign	tgCntryName
tgCTR	tgCntryType
tgCustomerInfo	tgCONo
tgDeliveryPlaceInfo	tgCOPhase
tgDescription	tgCOStatus
tgDimension	tgCtlgID

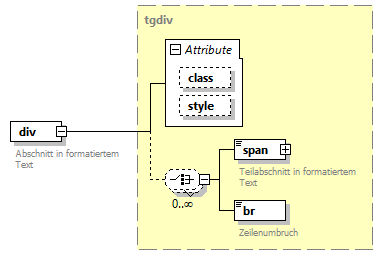

tgdiv	tgCtlgName
tgdivTC	tgCtlgType
tgFText	tgCur
tgFTextTC	tgCurLbl
tgGAEB	tgDate
tgGAEBInfo	tgDecimal
tgHourItem	tgDecimal_10_2
tgImage	tgDecimal_11_3
tgIndivAgrInfo	tgDecimal_13_0
tgInsAs	tgDecimal_13_2
tgInvoice	tgDecimal_13_3
tgInvoiceCreator	tgDecimal_5_2
tgInvoiceHeader	tgDecimal_6_4
tgInvoiceInfo	tgDecimal_9_6
tgInvoiceMadeOut	tgDP
tgInvoiceRecipient	tgGAEBVersDate
tgInvoiceShare	tgGUID
tgISOCur	tgHoldOutType
tgItem	tgHourIt
tgItemlist	tgIBAN
tgLblUpComp	tgInteger
tgli	tgInvoiceShareType

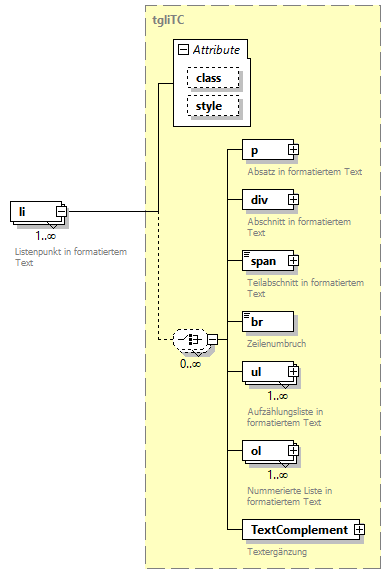

tgliTC	tgInvoiceType
tgLotGrp	tgKeyIt
tgMaintInfo	tgLeftRight
tgMarkupItem	tgMarkupType
tgMarkupItemCTR	tgNonNegativeInteger
tgMarkupItemOWN	tgNormalizedString
tgMarkupSubQty	tgNormalizedString10
tgMastAgrInfo	tgNormalizedString100
tgMastAgrItems	tgNormalizedString12
tgMaterialItem	tgNormalizedString120
tgMetalResources	tgNormalizedString13
tgMLText	tgNormalizedString15
tgNotifSite	tgNormalizedString20
tgol	tgNormalizedString256
tgolTC	tgNormalizedString3
tgOrder	tgNormalizedString30
tgOrderInfo	tgNormalizedString4
tgOrderItem	tgNormalizedString40
tgOrderTotals	tgNormalizedString5
tgOutlineText	tgNormalizedString55
tgOutlTxt	tgNormalizedString60
tgOWN	tgNormalizedString8
tgp	tgNormalizedString80
tgPaymentMade	tgNotAppl
tgPerfDescr	tgNoUPComps
tgPlannerInfo	tgOutlCompl

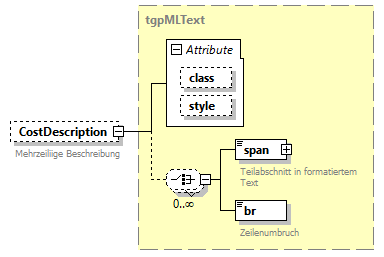

tgpMLText	tgpage
tgPriceModification	tgPerfNo
tgPrjInfo	tgPositiveInteger
tgProduct	tgPrefBidType
tgpTC	tgPriceInfo
tgQDetermItem	tgProvis
tgQtyDeterm	tgQTakeoffRow

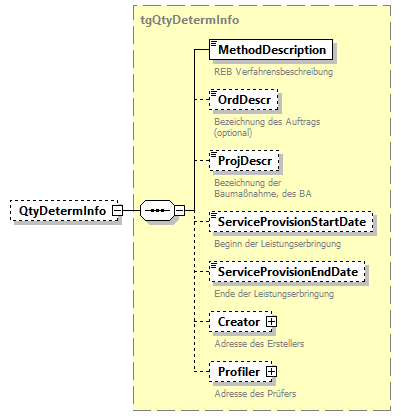

tgQtyDetermInfo	tgQUHour
tgQtySplit	tgRefDescr
tgQuotation	tgRNoIndex
tgRefBoQ	tgRNoPart
tgRefBoQCtgy	tgSCType
tgRefItem	tgSectorType
tgRefItems	tgSpecialType
tgRefLotGrp	tgStLNoText
tgRemark	tgString
tgRequester	tgSubDNo
tgspan	tgTime
tgSTLBBau	tgUpCompType
tgSTLBBauCtlg	tgUPFracDig
tgSTLBBauID	tgUseDurLblTime
tgStLNo	tgVersDate
tgStyle	tgVersion
tgSubDescr	tgWarrDur
tgSupplierInfo	tgWarrUnit
tgtable	tgWeek
tgtableTC	tgYes
tgtd	tgYesNo
tgtdTC

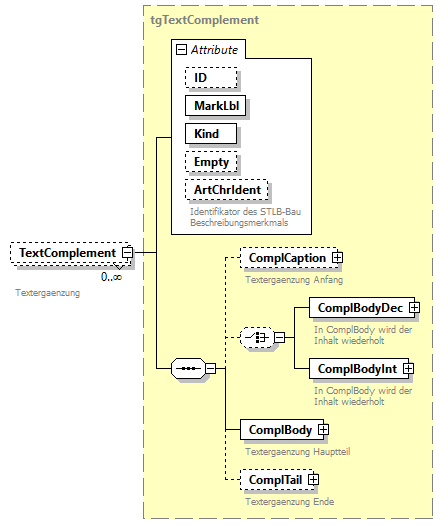

tgTextComplement
tgth
tgTotalNetUpComp
tgTotals
tgtr
tgtrTC
tgul
tgulTC
tgUserValue
tgVATPart
tgWeightPart

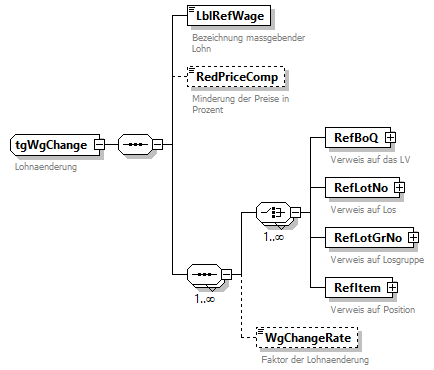

tgWgChange

element GAEB

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgGAEB
properties	content  complex
children	GAEBInfo Award

redefinition of complexType tgAward

diagram
type	restriction of tgAward
properties	base  tgAward
children	DP AwardInfo IndivAgrInfo OWN CnstSite BoQ
used by	element  tgGAEB/Award

element tgAward/DP

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDP
properties	content  simple
facets	Kind  Value  Annotation enumeration  86ZE documentation LV Katalog
annotation	documentation GAEB-Datenaustauschphase

element tgAward/AwardInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAwardInfo
properties	content  complex
children	CnstStart CnstEnd ContrNo ContrDate
annotation	documentation Informationen zur Vergabe

element tgAward/IndivAgrInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgIndivAgrInfo
properties	content  complex
children	InfoPerson AttestPerson CnstSiteLoc
annotation	documentation GAEB-Datenaustauschphase

element tgAward/OWN

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgOWN
properties	content  complex
children	AwardNo AcctRecNo
annotation	documentation Informationen zum Auftraggeber

element tgAward/CnstSite

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCnstSite
properties	content  complex
children	Address
annotation	documentation Informationen zum Ausfuehrungsort

element tgAward/BoQ

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQ
properties	content  complex
children	BoQInfo BoQBody
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Leistungsverzeichnis

redefinition of complexType tgAwardInfo

diagram
type	restriction of tgAwardInfo
properties	base  tgAwardInfo
children	CnstStart CnstEnd ContrNo ContrDate
used by	element  tgAward/AwardInfo

element tgAwardInfo/CnstStart

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Voraussichtlicher Beginn der Ausfuehrungszeit

element tgAwardInfo/CnstEnd

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Voraussichtliches Ende der Ausfuehrungszeit

element tgAwardInfo/ContrNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Auftragsnummer

element tgAwardInfo/ContrDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple
annotation	documentation Auftragsdatum

redefinition of complexType tgBoQ

diagram
type	restriction of tgBoQ
properties	base  tgBoQ
children	BoQInfo BoQBody
used by	elements  tgInvoice/BoQ tgAward/BoQ
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required

element tgBoQ/BoQInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQInfo
properties	content  complex
children	Name LblBoQ Date BoQBkdn
annotation	documentation Informationen zum LV

element tgBoQ/BoQBody

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQBody
properties	content  complex
children	BoQCtgy Itemlist
annotation	documentation LV-Hauptteil

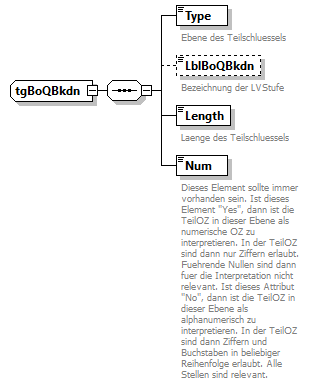

redefinition of complexType tgBoQBkdn

diagram
type	restriction of tgBoQBkdn
properties	base  tgBoQBkdn
children	Type LblBoQBkdn Length Num
used by	elements  tgBoQInfo/BoQBkdn tgOrderInfo/CustomerBoQBkdn tgOrderInfo/SupplierBoQBkdn

element tgBoQBkdn/Type

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQBkdnType
properties	content  simple
facets	Kind  Value  Annotation enumeration  BoQLevel enumeration  Item
annotation	documentation Ebene des Teilschluessels

element tgBoQBkdn/LblBoQBkdn

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Bezeichnung der LVStufe

element tgBoQBkdn/Length

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQBkdnLength
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  14
annotation	documentation Laenge des Teilschluessels

element tgBoQBkdn/Num

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYes
properties	content  simple
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Dieses Element sollte immer vorhanden sein. Ist dieses Element "Yes", dann ist die TeilOZ in dieser Ebene als numerische OZ zu interpretieren. In der TeilOZ sind dann nur Ziffern erlaubt. Fuehrende Nullen sind dann fuer die Interpretation nicht relevant. Ist dieses Attribut "No", dann ist die TeilOZ in dieser Ebene als alphanumerisch zu interpretieren. In der TeilOZ sind dann Ziffern und Buchstaben in beliebiger Reihenfolge erlaubt. Alle Stellen sind relevant.

redefinition of complexType tgBoQBody

diagram
type	restriction of tgBoQBody
properties	base  tgBoQBody
children	BoQCtgy Itemlist
used by	elements  tgBoQ/BoQBody tgBoQCtgy/BoQBody

element tgBoQBody/BoQCtgy

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQCtgy
properties	content  complex
children	BoQBody
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ
annotation	documentation LV-Bereich

element tgBoQBody/Itemlist

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgItemlist
properties	content  complex
children	Item MastAgrItems
annotation	documentation Positionsliste

redefinition of complexType tgBoQCtgy

diagram
type	restriction of tgBoQCtgy
properties	base  tgBoQCtgy
children	BoQBody
used by	element  tgBoQBody/BoQCtgy
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ

element tgBoQCtgy/BoQBody

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQBody
properties	minOcc  0 maxOcc  1 content  complex
children	BoQCtgy Itemlist
annotation	documentation LV-Hauptteil

redefinition of complexType tgBoQInfo

diagram
type	restriction of tgBoQInfo
properties	base  tgBoQInfo
children	Name LblBoQ Date BoQBkdn
used by	element  tgBoQ/BoQInfo

element tgBoQInfo/Name

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Name des Leistungsverzeichnisses

element tgBoQInfo/LblBoQ

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Bezeichnung des Leistungsverzeichnisses

element tgBoQInfo/Date

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple
annotation	documentation Datum

element tgBoQInfo/BoQBkdn

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQBkdn
properties	minOcc  1 maxOcc  7 content  complex
children	Type LblBoQBkdn Length Num
annotation	documentation Informationen zur Gliederung des LV

redefinition of complexType tgCnstSite

diagram
type	restriction of tgCnstSite
properties	base  tgCnstSite
children	Address
used by	elements  tgInvoice/CnstSite tgAward/CnstSite

element tgCnstSite/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddress
properties	content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Ausfuehrungsortes

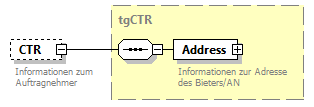

redefinition of complexType tgCTR

diagram
type	restriction of tgCTR
properties	base  tgCTR
children	Address
used by	element  tgInvoice/CTR

element tgCTR/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddress
properties	content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Bieters/AN

redefinition of complexType tgDescription

diagram
type	restriction of tgDescription
properties	base  tgDescription
children	WICNo
used by	elements  tgRemark/Description tgPerfDescr/Description tgSubDescr/Description tgMarkupItem/Description tgOrderItem/Description tgHourItem/Description tgItem/Description tgMarkupItemCTR/Description tgMarkupItemOWN/Description tgMaterialItem/Description
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:NCName   prohibited         documentation Die ID muss in 83 - > 84 Austausch erhalten bleiben. Damit können Descriptions eindeutig Identifiziert werden.

attribute tgDescription/@ID

type	xs:NCName
properties	use  prohibited
annotation	documentation Die ID muss in 83 - > 84 Austausch erhalten bleiben. Damit können Descriptions eindeutig Identifiziert werden.

element tgDescription/WICNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString40
properties	content  simple
facets	Kind  Value  Annotation maxLength  40 pattern  \d+(\.\d+)*
annotation	documentation Katalognummer (Mutter-LV)

redefinition of complexType tgGAEB

diagram
type	restriction of tgGAEB
properties	base  tgGAEB
children	GAEBInfo Award
used by	element  GAEB
annotation	documentation Aufgestellt vom Gemeinsamen Ausschuss Elektronik im Bauwesen (GAEB) © 2002 - 2012 by DIN Deutsches Institut fuer Normung e. V.

element tgGAEB/GAEBInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgGAEBInfo
properties	content  complex
children	Version VersDate Date Time ProgSystem ProgName Certific
annotation	documentation Informationen zum GAEB-Datenaustausch

element tgGAEB/Award

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAward
properties	content  complex
children	DP AwardInfo IndivAgrInfo OWN CnstSite BoQ
annotation	documentation Vergabe In diesem Objekt werden die Informationen des Vergabeverfahrens abgelegt. Das Objekt kann in den Datenaustauschphasen D81-D88 verwendet werden.

redefinition of complexType tgGAEBInfo

diagram
type	restriction of tgGAEBInfo
properties	base  tgGAEBInfo
children	Version VersDate Date Time ProgSystem ProgName Certific
used by	element  tgGAEB/GAEBInfo

element tgGAEBInfo/Version

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgVersion
properties	content  simple
facets	Kind  Value  Annotation maxLength  10 enumeration  3.2
annotation	documentation Version des GAEB DA XML

element tgGAEBInfo/VersDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgGAEBVersDate
properties	content  simple
facets	Kind  Value  Annotation enumeration  2014-03
annotation	documentation Datum der Ausgabe der GAEB-DA-XML  Schnittstellendefinition

element tgGAEBInfo/Date

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple
annotation	documentation Datum

element tgGAEBInfo/Time

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgTime
properties	content  simple
annotation	documentation Erstellungszeit der Datenaustauschdatei

element tgGAEBInfo/ProgSystem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Programmsystem

element tgGAEBInfo/ProgName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Umsetzprogramm

element tgGAEBInfo/Certific

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCertific
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Available
annotation	documentation Pruefzertifikat der benutzten Version GAEB DA XML liegt vor

redefinition of complexType tgHourItem

diagram
type	restriction of tgHourItem
properties	base  tgHourItem
children	Qty Description
used by	element  tgMastAgrItems/HourItem
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex

element tgHourItem/Qty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_11_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Menge

element tgHourItem/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDescription
properties	content  complex
children	WICNo
annotation	documentation Textorganisation

redefinition of complexType tgItem

diagram
type	restriction of tgItem
properties	base  tgItem
children	Qty Description
used by	element  tgItemlist/Item
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex

element tgItem/Qty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_11_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Menge

element tgItem/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDescription
properties	content  complex
children	WICNo
annotation	documentation Textorganisation

redefinition of complexType tgItemlist

diagram
type	restriction of tgItemlist
properties	base  tgItemlist
children	Item MastAgrItems
used by	element  tgBoQBody/Itemlist

element tgItemlist/Item

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgItem
properties	content  complex
children	Qty Description
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex
annotation	documentation Position

element tgItemlist/MastAgrItems

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMastAgrItems
properties	content  complex
children	HourItem MaterialItem MarkupItemOWN MarkupItemCTR

redefinition of complexType tgMarkupItemCTR

diagram
type	restriction of tgMarkupItemCTR
properties	base  tgMarkupItemCTR
children	RefItem Description
used by	element  tgMastAgrItems/MarkupItemCTR
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex

element tgMarkupItemCTR/RefItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRefItem
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Position

element tgMarkupItemCTR/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDescription
properties	content  complex
children	WICNo
annotation	documentation Textorganisation

redefinition of complexType tgMarkupItemOWN

diagram
type	restriction of tgMarkupItemOWN
properties	base  tgMarkupItemOWN
children	RefItem Description
used by	element  tgMastAgrItems/MarkupItemOWN
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex

element tgMarkupItemOWN/RefItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRefItem
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Position

element tgMarkupItemOWN/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDescription
properties	content  complex
children	WICNo
annotation	documentation Textorganisation

redefinition of complexType tgMaterialItem

diagram
type	restriction of tgMaterialItem
properties	base  tgMaterialItem
children	PredIT Description
used by	element  tgMastAgrItems/MaterialItem
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex

element tgMaterialItem/PredIT

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Gesamtbetrag incl. Nachlass

element tgMaterialItem/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDescription
properties	content  complex
children	WICNo
annotation	documentation Textorganisation

redefinition of complexType tgOWN

diagram
type	restriction of tgOWN
properties	base  tgOWN
children	AwardNo AcctRecNo
used by	elements  tgInvoice/OWN tgAward/OWN

element tgOWN/AwardNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Vergabenummer

element tgOWN/AcctRecNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Debitoren-Nummer

redefinition of simpleType tgBoQBkdnType

type	restriction of tgBoQBkdnType
properties	base  tgBoQBkdnType
used by	element  tgBoQBkdn/Type
facets	Kind  Value  Annotation enumeration  BoQLevel enumeration  Item

redefinition of simpleType tgDP

type	restriction of tgDP
properties	base  tgDP
used by	element  tgAward/DP
facets	Kind  Value  Annotation enumeration  86ZE documentation LV Katalog

complexType tgAddress

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
used by	elements  tgRequester/Address tgNotifSite/Address tgProduct/Address tgSupplierInfo/Address tgCustomerInfo/Address tgDeliveryPlaceInfo/Address tgPlannerInfo/Address tgOrderItem/Address tgInvoiceCreator/Address tgInvoiceRecipient/Address tgCnstSite/Address tgCTR/Address tgMastAgrInfo/AwardAgencyAdr tgQtyDetermInfo/Creator tgQtyDetermInfo/Profiler
annotation	documentation Informationen zur Adresse

element tgAddress/Name1

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString40
properties	content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Name Zeile 1

element tgAddress/Name2

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Name Zeile 2

element tgAddress/Name3

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Name Zeile 3

element tgAddress/Name4

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Name Zeile 4

element tgAddress/Street

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString40
properties	content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Strasse und Hausnummer oder "Postfach" und -Nr

element tgAddress/PCode

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Postleitzahl

element tgAddress/City

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString40
properties	content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Ort

element tgAddress/Country

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Laenderbezeichnung

element tgAddress/ILN

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation ILN-Nummer der Adresse

element tgAddress/CtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCtlgAssign
properties	minOcc  1 maxOcc  unbounded content  complex
children	CtlgID CtlgCode
annotation	documentation Katalogzuordnung

element tgAddress/Contact

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Ansprechpartner

element tgAddress/Phone

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Telefonnummer

element tgAddress/Fax

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Faxnummer

element tgAddress/Email

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString256
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  256
annotation	documentation Email-Adresse

element tgAddress/VATID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString80
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Umsatzsteuer-Identnummer

element tgAddress/Bank

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBank
properties	minOcc  0 maxOcc  unbounded content  complex
children	LblBank BRNo AcctNo BIC IBAN
annotation	documentation Informationen zur Bankverbindung

complexType tgAddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	OutlineAddText DetailAddText
used by	elements  tgPrjInfo/AddText tgRequester/AddText tgNotifSite/AddText tgProduct/AddText tgArticle/AddText tgOrderInfo/AddText tgInvoiceInfo/AddText tgInvoice/AddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

element tgAddText/OutlineAddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMLText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für mehrzeiligen Text textWidth   tgNormalizedString

element tgAddText/DetailAddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgFText
properties	content  complex mixed  false
children	p div span ul ol table br page Image
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für formatierten Text textWidth   tgNormalizedString

complexType tgArticle

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Brand ArtNo Qty QU ArtOutline AddText
used by	element  tgProduct/Article
annotation	documentation Informationen zu einem Artikel

element tgArticle/Brand

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Markenname des Produktes bzw. Markenbezeichnung von Serien

element tgArticle/ArtNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15
annotation	documentation Artikelnummer

element tgArticle/Qty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_11_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Menge

element tgArticle/QU

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString4
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Mengeneinheit

element tgArticle/ArtOutline

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMLText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für mehrzeiligen Text textWidth   tgNormalizedString
annotation	documentation Kurzbeschreibung des Artikels

element tgArticle/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

complexType tgAward

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	DP AwardInfo IndivAgrInfo OWN Requester CTR CnstSite NotifSite AddText BoQ WgChange
used by	complexType  tgAward
annotation	documentation Vergabe

element tgAward/DP

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDP
properties	content  simple
facets	Kind  Value  Annotation enumeration  86ZE documentation LV Katalog
annotation	documentation GAEB-Datenaustauschphase

element tgAward/AwardInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAwardInfo
properties	minOcc  0 maxOcc  1 content  complex
children	CnstStart CnstEnd ContrNo ContrDate
annotation	documentation Informationen zur Vergabe

element tgAward/IndivAgrInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgIndivAgrInfo
properties	minOcc  0 maxOcc  1 content  complex
children	InfoPerson AttestPerson CnstSiteLoc

element tgAward/OWN

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgOWN
properties	minOcc  0 maxOcc  1 content  complex
children	AwardNo AcctRecNo
annotation	documentation Informationen zum Auftraggeber

element tgAward/Requester

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRequester
properties	minOcc  0 maxOcc  unbounded content  complex
children	Address RequestIDNo RequestName AddText
annotation	documentation Informationen zum Bedarfstraeger

element tgAward/CTR

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCTR
properties	minOcc  0 maxOcc  1 content  complex
children	Address
annotation	documentation Informationen zum Bieter/Auftragnehmer

element tgAward/CnstSite

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCnstSite
properties	content  complex
children	Address
annotation	documentation Informationen zum Ausfuehrungsort

element tgAward/NotifSite

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNotifSite
properties	minOcc  0 maxOcc  1 content  complex
children	Address NotifSiteIDNo NotifSiteName AddText
annotation	documentation Informationen zum Benachrichtigungsort

element tgAward/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

element tgAward/BoQ

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQ
properties	minOcc  0 maxOcc  1 content  complex
children	BoQInfo BoQBody
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Leistungsverzeichnis

element tgAward/WgChange

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgWgChange
properties	minOcc  0 maxOcc  1 content  complex
children	LblRefWage RedPriceComp RefBoQ RefLotNo RefLotGrNo RefItem WgChangeRate
annotation	documentation Lohnaenderung

complexType tgAwardInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	BoQID Cat SpecialType Cur CurLbl BidDate OpenDate OpenTime EvalEnd SubmLoc CnstStart CnstEnd ContrNo ContrDate AcceptType AcceptDate WarrDur WarrUnit WarrEnd PerformPcnt WarrantPcnt COInfo MaintInfo MastAgrInfo CashDiscount
used by	complexType  tgAwardInfo
annotation	documentation Informationen zur Vergabe

element tgAwardInfo/BoQID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgGUID
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  36
annotation	documentation GUID für das LV

element tgAwardInfo/Cat

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCat
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  OpenProc documentation Offenes Verfahren enumeration  ClosedProc documentation Nichtoffenes Verfahren enumeration  NegProc documentation Verhandlungsverfahren documentation Neu: Verhandlungsverfahren ohne Vergabebekanntmachung enumeration  OpenCall documentation Oeffentliche Ausschreibung enumeration  SelectCall documentation Beschraenkte Ausschreibung documentation Neu: Beschränkte Ausschreibung ohne öffentlichen Teilnahmewettbewerb enumeration  NegCont documentation Freihaendige Vergabe enumeration  IntNATO documentation Internationale NATO-Ausschreibung enumeration  SelectCallPostOpen documentation Beschränkte Ausschreibung nach öffentlichen Teilnahmewettbewerb enumeration  NegProcOpen documentation Verhandlungsverfahren mit Vergabebekanntmachung enumeration  CompetDialog documentation Wettbewerblicher Dialog
annotation	documentation Vergabeart

element tgAwardInfo/SpecialType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgSpecialType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Maint documentation Instandhaltung enumeration  MastAgree documentation Rahmenvertrag enumeration  MastMaintAgree documentation Rahmenvertrag fuer Instandhaltung
annotation	documentation Besondere Vergabeart

element tgAwardInfo/Cur

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCur
properties	content  simple
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Waehrung

element tgAwardInfo/CurLbl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCurLbl
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  50
annotation	documentation Bezeichnung der Waehrung

element tgAwardInfo/BidDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Angebotsdatum

element tgAwardInfo/OpenDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple
annotation	documentation Datum des Eroeffnungstermins

element tgAwardInfo/OpenTime

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Uhrzeit des Eroeffnungstermins

element tgAwardInfo/EvalEnd

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Ende der Zuschlagsfrist

element tgAwardInfo/SubmLoc

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Ort der Abgabe

element tgAwardInfo/CnstStart

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Voraussichtlicher Beginn der Ausfuehrungszeit

element tgAwardInfo/CnstEnd

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Voraussichtliches Ende der Ausfuehrungszeit

element tgAwardInfo/ContrNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Auftragsnummer

element tgAwardInfo/ContrDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Auftragsdatum

element tgAwardInfo/AcceptType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Art der Abnahme

element tgAwardInfo/AcceptDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Datum der Abnahme

element tgAwardInfo/WarrDur

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgWarrDur
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxInclusive  99
annotation	documentation Dauer der Gewaehrleistung

element tgAwardInfo/WarrUnit

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgWarrUnit
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Years enumeration  Months
annotation	documentation Einheit der Gewaehrleistung

element tgAwardInfo/WarrEnd

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Ende der Gewaehrleistung

element tgAwardInfo/PerformPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6
annotation	documentation Ausfuehrungsbuergschaft als Anteil der Auftragssumme einschl. Nachtraege in Prozent

element tgAwardInfo/WarrantPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6
annotation	documentation Gewaehrleistungsbuergschaft als Anteil der Abrechnungssumme in Pro-zent

element tgAwardInfo/COInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCOInfo
properties	minOcc  0 maxOcc  unbounded content  complex
children	CONo COPhase COStatus COInit COReas RefBoQCOInfo CODate
annotation	documentation Informationen zum Nachtrag

element tgAwardInfo/MaintInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMaintInfo
properties	minOcc  0 maxOcc  1 content  complex
children	MaintType ProcessType ContrTransDate ContrTransTime ContrLaw Deadline
annotation	documentation Nur bei Instandhaltung: Informationen zur Instandhaltung

element tgAwardInfo/MastAgrInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMastAgrInfo
properties	minOcc  0 maxOcc  1 content  complex
children	BidUpDown MastAgrLbl MastAgrNo Descrip MastAgrBeg MastAgrDur MastAgrEnd MastAgrDate MastAgrVers TotContrVal MinContrVal MinContrAwd MaxContrVal ContrValCode AwardAgencyAdr CostResponsible
annotation	documentation Nur bei Rahmenvertrag: Informationen zum Rahmenvertrag

element tgAwardInfo/CashDiscount

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCashDiscount
properties	minOcc  0 maxOcc  3 content  complex
children	CashDiscDays CashDiscDate DiscountPcnt
annotation	documentation Skonto

complexType tgBank

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	LblBank BRNo AcctNo BIC IBAN
used by	element  tgAddress/Bank
annotation	documentation Informationen zur Bankverbindung

element tgBank/LblBank

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString80
properties	content  simple
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Bezeichnung des Geldinstituts

element tgBank/BRNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString30
properties	content  simple
facets	Kind  Value  Annotation maxLength  30
annotation	documentation Bankleitzahl des Geldinstituts

element tgBank/AcctNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Kontonummer

element tgBank/BIC

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString12
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  12

element tgBank/IBAN

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgIBAN
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  34 pattern  [a-zA-Z0-9]*

complexType tgBoQ

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	BoQInfo BoQBody LotGrp
used by	complexType  tgBoQ
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Leistungsverzeichnis

attribute tgBoQ/@ID

type	xs:ID
properties	use  required

element tgBoQ/BoQInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQInfo
properties	content  complex
children	Name LblBoQ Date BoQBkdn
annotation	documentation Informationen zum LV

element tgBoQ/BoQBody

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQBody
properties	content  complex
children	BoQCtgy Itemlist
annotation	documentation LV-Hauptteil

element tgBoQ/LotGrp

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgLotGrp
properties	minOcc  0 maxOcc  unbounded content  complex
children	LotGrNo RefLotNo Totals
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Losgruppe

complexType tgBoQBkdn

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Type LblBoQBkdn Length Num Alignment
used by	complexType  tgBoQBkdn
annotation	documentation Informationen zur Gliederung des LV

element tgBoQBkdn/Type

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQBkdnType
properties	content  simple
facets	Kind  Value  Annotation enumeration  BoQLevel enumeration  Item
annotation	documentation Ebene des Teilschluessels

element tgBoQBkdn/LblBoQBkdn

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Bezeichnung der LVStufe

element tgBoQBkdn/Length

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQBkdnLength
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  14
annotation	documentation Laenge des Teilschluessels

element tgBoQBkdn/Num

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Dieses Element sollte immer vorhanden sein. Ist dieses Element "Yes", dann ist die TeilOZ in dieser Ebene als numerische OZ zu interpretieren. In der TeilOZ sind dann nur Ziffern erlaubt. Fuehrende Nullen sind dann fuer die Interpretation nicht relevant. Ist dieses Attribut "No", dann ist die TeilOZ in dieser Ebene als alphanumerisch zu interpretieren. In der TeilOZ sind dann Ziffern und Buchstaben in beliebiger Reihenfolge erlaubt. Alle Stellen sind relevant.

element tgBoQBkdn/Alignment

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgLeftRight
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  left enumeration  right
annotation	documentation Dieses Element dokumentiert die Absicht des Senders, wie alphanumerische TeilOZs innerhalb des zur Verfuegung stehenden Platzes auszurichten sind. Ist das Attribut Num="Yes", dann hat dieses Element keine Bedeutung und es wird immer rechts ausgerichtet. Ist das Element Num="No", dann soll die Ausrichtung in Abhaengigkeit von diesem Element erfolgen.

complexType tgBoQBody

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Remark PerfDescr BoQCtgy Itemlist
used by	complexType  tgBoQBody
annotation	documentation LV-Hauptteil

element tgBoQBody/Remark

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRemark
properties	content  complex
children	Description CONo AlterBidStatus
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Hinweistext

element tgBoQBody/PerfDescr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgPerfDescr
properties	content  complex
children	PerfNo PerfLbl Description CONo AlterBidStatus
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Ausfuehrungsbeschreibung

element tgBoQBody/BoQCtgy

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQCtgy
properties	content  complex
children	BoQBody
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ
annotation	documentation LV-Bereich

element tgBoQBody/Itemlist

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgItemlist
properties	content  complex
children	Item MastAgrItems
annotation	documentation Positionsliste

complexType tgBoQCtgy

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	LblTx CPVCode CONo COStatus ALNBGroupNo ALNBSerNo Accepted NotApplBoQ CtlgAssign BoQBody Totals AlterBidStatus BidUpDownReq BidUpDownPct
used by	complexType  tgBoQCtgy
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ
annotation	documentation LV-Bereich

attribute tgBoQCtgy/@ID

type	xs:ID
properties	use  required

attribute tgBoQCtgy/@RNoPart

type	tgRNoPart
properties	use  required
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,14}
annotation	documentation Teil-OZ

element tgBoQCtgy/LblTx

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMLText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für mehrzeiligen Text textWidth   tgNormalizedString
annotation	documentation Bezeichnung des LV-Bereichs

element tgBoQCtgy/CPVCode

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCPVCode
properties	minOcc  0 maxOcc  unbounded content  complex
children	CPVNo CPVText
annotation	documentation CPV-Nomenklatur

element tgBoQCtgy/CONo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCONo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Nachtragsnummer

element tgBoQCtgy/COStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCOStatus
properties	content  simple
facets	Kind  Value  Annotation enumeration  Recog documentation erkannt enumeration  Filed documentation angemeldet enumeration  Offered documentation angeboten enumeration  Withdrawn documentation zurückgezogen enumeration  Rejected documentation abgelehnt enumeration  ObjToRecj documentation Widerspruch zur Ablehnun enumeration  FormAckn documentation sachlich anerkannt enumeration  Approved documentation genehmigt
annotation	documentation Status des Nachtrags

element tgBoQCtgy/ALNBGroupNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgALNGroupNo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Gruppennummer der Zuordnungszahl zur Kennzeichnung zusammengehoerender Grund- und alternativer Ausfuehrungen

element tgBoQCtgy/ALNBSerNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgALNSerNo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  9
annotation	documentation Laufende Nummer der Zuordnungszahl

element tgBoQCtgy/Accepted

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAccepted
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  AltAccept enumeration  BasReject
annotation	documentation Beauftragt

element tgBoQCtgy/NotApplBoQ

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNotAppl
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation LV-Bereich entfaellt

element tgBoQCtgy/CtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCtlgAssign
properties	minOcc  0 maxOcc  unbounded content  complex
children	CtlgID CtlgCode
annotation	documentation Katalogzuordnung

element tgBoQCtgy/BoQBody

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQBody
properties	minOcc  0 maxOcc  1 content  complex
children	BoQCtgy Itemlist
annotation	documentation LV-Hauptteil

element tgBoQCtgy/Totals

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgTotals
properties	minOcc  0 maxOcc  1 content  complex
children	Total DiscountPcnt DiscountAmt TotAfterDisc TotalLSUM VAT TotalNet TotalNetUpComp VATPart VATAmount TotalGross
annotation	documentation LV-Bereich-Summen

element tgBoQCtgy/AlterBidStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAlterBidStatus
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Identical documentation Gleich enumeration  N/A documentation Entfällt enumeration  Modified documentation Modifiziert enumeration  New documentation Neu
annotation	documentation NebenangebotStatus; Bei new und modified werden die kompletten Positionen übertragen. Bei N/A wird nur die TeilOZ und dieses Kennzeichen übertragen.

element tgBoQCtgy/BidUpDownReq

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Anfoderung Auf-/Abgebot

element tgBoQCtgy/BidUpDownPct

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBidUpDownPct
properties	content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6
annotation	documentation Auf- oder Abgebot (in %)

complexType tgBoQInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Name LblBoQ CPVCode CONo COStatus Date OutlCompl BoQBkdn NoUPComps LblUPComp1 LblUPComp2 LblUPComp3 LblUPComp4 LblUPComp5 LblUPComp6 LblTime CtlgAssign Totals Ctlg CostType QtyDetermInfo
used by	complexType  tgBoQInfo
annotation	documentation Informationen zum LV

element tgBoQInfo/Name

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Name des Leistungsverzeichnisses (Lesbarer Identifikator)

element tgBoQInfo/LblBoQ

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Bezeichnung des Leistungsverzeichnisses

element tgBoQInfo/CPVCode

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCPVCode
properties	minOcc  0 maxOcc  unbounded content  complex
children	CPVNo CPVText
annotation	documentation CPV-Nomenklatur

element tgBoQInfo/CONo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCONo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Nachtragsnummer

element tgBoQInfo/COStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCOStatus
properties	content  simple
facets	Kind  Value  Annotation enumeration  Recog documentation erkannt enumeration  Filed documentation angemeldet enumeration  Offered documentation angeboten enumeration  Withdrawn documentation zurückgezogen enumeration  Rejected documentation abgelehnt enumeration  ObjToRecj documentation Widerspruch zur Ablehnun enumeration  FormAckn documentation sachlich anerkannt enumeration  Approved documentation genehmigt
annotation	documentation Status des Nachtrags

element tgBoQInfo/Date

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Datum

element tgBoQInfo/OutlCompl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgOutlCompl
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  AllTxt enumeration  OutTxt enumeration  DetailTxt
annotation	documentation Kurz- und Langtext

element tgBoQInfo/BoQBkdn

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQBkdn
properties	minOcc  1 maxOcc  7 content  complex
children	Type LblBoQBkdn Length Num
annotation	documentation Informationen zur Gliederung des LV

element tgBoQInfo/NoUPComps

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNoUPComps
properties	content  simple
facets	Kind  Value  Annotation enumeration  0 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6
annotation	documentation Anzahl der Einheitspreisanteile

element tgBoQInfo/LblUPComp1

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgLblUpComp
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation maxLength  20
attributes	Name   Type   Use   Default   Fixed   Annotation Type   tgUpCompType   required
annotation	documentation Bezeichnung des 1. EP-Anteils

element tgBoQInfo/LblUPComp2

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgLblUpComp
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation maxLength  20
attributes	Name   Type   Use   Default   Fixed   Annotation Type   tgUpCompType   required
annotation	documentation Bezeichnung des 2. EP-Anteils

element tgBoQInfo/LblUPComp3

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgLblUpComp
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation maxLength  20
attributes	Name   Type   Use   Default   Fixed   Annotation Type   tgUpCompType   required
annotation	documentation Bezeichnung des 3. EP-Anteils

element tgBoQInfo/LblUPComp4

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgLblUpComp
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation maxLength  20
attributes	Name   Type   Use   Default   Fixed   Annotation Type   tgUpCompType   required
annotation	documentation Bezeichnung des 4. EP-Anteils

element tgBoQInfo/LblUPComp5

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgLblUpComp
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation maxLength  20
attributes	Name   Type   Use   Default   Fixed   Annotation Type   tgUpCompType   required
annotation	documentation Bezeichnung des 5. EP-Anteils

element tgBoQInfo/LblUPComp6

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgLblUpComp
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation maxLength  20
attributes	Name   Type   Use   Default   Fixed   Annotation Type   tgUpCompType   required
annotation	documentation Bezeichnung des 6. EP-Anteils

element tgBoQInfo/LblTime

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Bezeichnung der Zeiteinheit

element tgBoQInfo/CtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCtlgAssign
properties	minOcc  0 maxOcc  unbounded content  complex
children	CtlgID CtlgCode
annotation	documentation Katalogzuordnung

element tgBoQInfo/Totals

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgTotals
properties	minOcc  0 maxOcc  1 content  complex
children	Total DiscountPcnt DiscountAmt TotAfterDisc TotalLSUM VAT TotalNet TotalNetUpComp VATPart VATAmount TotalGross
annotation	documentation LV-Summen

element tgBoQInfo/Ctlg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCtlg
properties	minOcc  0 maxOcc  unbounded content  complex
children	CtlgID CtlgType CtlgName
annotation	documentation Katalog

element tgBoQInfo/CostType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCostType
properties	minOcc  0 maxOcc  unbounded content  complex
children	CostDescription CostTypeUnit Markup
attributes	Name   Type   Use   Default   Fixed   Annotation Key   tgNormalizedString   required         documentation eindeutiger Schlüssel
annotation	documentation Kostenarten

element tgBoQInfo/QtyDetermInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgQtyDetermInfo
properties	minOcc  0 maxOcc  1 content  complex
children	MethodDescription OrdDescr ProjDescr ServiceProvisionStartDate ServiceProvisionEndDate Creator Profiler

complexType tgBoQText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	Style Text TextComplement attachment
used by	element  tgCompleteText/DetailTxt
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für den Langtext
annotation	documentation Langtext

attribute tgBoQText/@style

type	tgAttStyle
annotation	documentation Oberster Style für den Langtext

element tgBoQText/Style

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgStyle
properties	minOcc  0 maxOcc  1 content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation type   derived by: tgNormalizedString
annotation	documentation Definitionen für styles

element tgBoQText/Text

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgFTextTC
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	p div span ul ol table br page Image TextComplement
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für formatierten Text textWidth   tgNormalizedString
annotation	documentation Textbeschreibung ohne Einschraenkungen

element tgBoQText/TextComplement

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgTextComplement
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	ComplCaption ComplBodyDec ComplBodyInt ComplBody ComplTail
attributes	Name   Type   Use   Default   Fixed   Annotation ID   tgGUID   optional         MarkLbl   tgInteger   required         Kind   tgAttKind   required         Empty   tgYes   optional         ArtChrIdent   tgInteger            documentation Identifikator des STLB-Bau Beschreibungsmerkmals
annotation	documentation Textergaenzung

element tgBoQText/attachment

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  unbounded content  simple
annotation	documentation Anhang ( URI )

complexType tgCashDiscDays

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
used by	element  tgCashDiscount/CashDiscDays
attributes	Name   Type   Use   Default   Fixed   Annotation TypeOfDays   derived by: tgNormalizedString            Days   tgPositiveInteger

attribute tgCashDiscDays/@TypeOfDays

type	restriction of tgNormalizedString
facets	Kind  Value  Annotation enumeration  work days documentation Werktage enumeration  week days documentation Wochentage enumeration  calendar days documentation Kalendertage

attribute tgCashDiscDays/@Days

type	tgPositiveInteger

complexType tgCashDiscount

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	CashDiscDays CashDiscDate DiscountPcnt
used by	elements  tgOrderInfo/CashDiscount tgInvoiceInfo/CashDiscount tgInvoice/Terms

element tgCashDiscount/CashDiscDays

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	extension of tgCashDiscDays
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation TypeOfDays   derived by: tgNormalizedString            Days   tgPositiveInteger
annotation	documentation Zahlungsfrist in Tagen

element tgCashDiscount/CashDiscDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple
annotation	documentation Zahlungsziel

element tgCashDiscount/DiscountPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6

complexType tgCheckNote

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	State CheckDate Annotation
used by	elements  tgMarkupItem/CheckNote tgInvoice/CheckNote
annotation	documentation Prüfvermerk

element tgCheckNote/State

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCheckNoteState
properties	content  simple
facets	Kind  Value  Annotation enumeration  approved enumeration  partially approved enumeration  unapproved

element tgCheckNote/CheckDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple

element tgCheckNote/Annotation

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString256
properties	content  simple
facets	Kind  Value  Annotation maxLength  256

complexType tgCnstSite

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Address CnstSiteIDNo CnstSiteName AddText
used by	complexType  tgCnstSite
annotation	documentation Informationen zum Ausfuehrungsort

element tgCnstSite/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddress
properties	minOcc  0 maxOcc  1 content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Ausfuehrungsortes

element tgCnstSite/CnstSiteIDNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Identifizierungs-Nummer Ausfuehrungsort

element tgCnstSite/CnstSiteName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Name Ausfuehrungsort (LiegenschaftsVerzeichnis)

element tgCnstSite/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

complexType tgCOInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	CONo COPhase COStatus COInit COReas RefBoQCOInfo CODate
annotation	documentation Informationen zum Nachtrag

element tgCOInfo/CONo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCONo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Nachtragsnummer

element tgCOInfo/COPhase

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCOPhase
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  CallChangOrder enumeration  SupplBid enumeration  SupplAgree
annotation	documentation Datenaustauschphase bei Nachtraegen

element tgCOInfo/COStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCOStatus
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Recog documentation erkannt enumeration  Filed documentation angemeldet enumeration  Offered documentation angeboten enumeration  Withdrawn documentation zurückgezogen enumeration  Rejected documentation abgelehnt enumeration  ObjToRecj documentation Widerspruch zur Ablehnun enumeration  FormAckn documentation sachlich anerkannt enumeration  Approved documentation genehmigt
annotation	documentation Status des Nachtrags

element tgCOInfo/COInit

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Owner documentation Auftraggeber enumeration  Contractor documentation Auftragnehmer
annotation	documentation Ersteller des Nachtrags

element tgCOInfo/COReas

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgFText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	p div span ul ol table br page Image
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für formatierten Text textWidth   tgNormalizedString
annotation	documentation Erlaeuterungen zur Begruendung des Nachtrags

element tgCOInfo/RefBoQCOInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Bezeichnung des Auftrags-Leistungsverzeichnisses

element tgCOInfo/CODate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Datum der Beauftragung des Nachtrages

complexType tgComplBodyDec

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
used by	element  tgTextComplement/ComplBodyDec
attributes	Name   Type   Use   Default   Fixed   Annotation Value   tgDecimal

attribute tgComplBodyDec/@Value

type

tgDecimal

complexType tgComplBodyInt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
used by	element  tgTextComplement/ComplBodyInt
attributes	Name   Type   Use   Default   Fixed   Annotation Value   tgInteger

attribute tgComplBodyInt/@Value

type

tgInteger

complexType tgCompleteText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	ComplTSA ComplTSB DetailTxt OutlineText
annotation	documentation Kurz- und Langtext

element tgCompleteText/ComplTSA

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Textergaenzung des Ausschreibenden im Langtext

element tgCompleteText/ComplTSB

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Textergaenzung des Bieters im Langtext

element tgCompleteText/DetailTxt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQText
properties	content  complex mixed  false
children	Style Text TextComplement attachment
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für den Langtext
annotation	documentation Langtext

element tgCompleteText/OutlineText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgOutlineText
properties	minOcc  0 maxOcc  1 content  complex
children	OutlTSA OutlTxt
annotation	documentation Kurztext

complexType tgContrValCode

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Percent Number
used by	element  tgMastAgrInfo/ContrValCode
annotation	documentation AuftragsWertSchluessel

element tgContrValCode/Percent

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6
annotation	documentation Auftragsanteil je Rahmenvertrag in Prozent

element tgContrValCode/Number

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgPositiveInteger
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  99999
annotation	documentation Anzahl

complexType tgCostApproach

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	CostApproachQty CostApproachQU Performance Value
attributes	Name   Type   Use   Default   Fixed   Annotation Key   tgNormalizedString   required         documentation Schlüssel der Kostenart
annotation	documentation Kostenansatz

attribute tgCostApproach/@Key

type	tgNormalizedString
properties	use  required
annotation	documentation Schlüssel der Kostenart

element tgCostApproach/CostApproachQty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation Menge

element tgCostApproach/CostApproachQU

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString4
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Mengeneinheit; wenn nicht vorhanden gilt die Mengeneinheit der Kostenart

element tgCostApproach/Performance

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation Leistung; Die Leistung kann als Devisor der kalkulierten Kosten (Value) verwendet werden.

element tgCostApproach/Value

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation Wert in Währung des Leistungsverzeichnisses

complexType tgCostType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	CostDescription CostTypeUnit Markup
attributes	Name   Type   Use   Default   Fixed   Annotation Key   tgNormalizedString   required         documentation eindeutiger Schlüssel
annotation	documentation Kostenart

attribute tgCostType/@Key

type	tgNormalizedString
properties	use  required
annotation	documentation eindeutiger Schlüssel

element tgCostType/CostDescription

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgpMLText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Mehrzeiliige Beschreibung

element tgCostType/CostTypeUnit

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString4
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Einheit der Kostenart

element tgCostType/Markup

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6
annotation	documentation Zuschlag in %

complexType tgCPVCode

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	CPVNo CPVText
annotation	documentation CPV-Nomenklatur

element tgCPVCode/CPVNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString12
properties	content  simple
facets	Kind  Value  Annotation maxLength  12
annotation	documentation Schluesselnummer der CPV-Nomenklatur

element tgCPVCode/CPVText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString100
properties	content  simple
facets	Kind  Value  Annotation maxLength  100
annotation	documentation Text der CPV-Nomenklatur

complexType tgCtlg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	CtlgID CtlgType CtlgName
used by	element  tgOrderInfo/Ctlg

element tgCtlg/CtlgID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCtlgID
properties	content  simple
facets	Kind  Value  Annotation maxLength  100

element tgCtlg/CtlgType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCtlgType
properties	content  simple
facets	Kind  Value  Annotation enumeration  cost group DIN 276-81 enumeration  cost group DIN 276-93 enumeration  cost group DIN 276-06 enumeration  cost group DIN 276-1 2008-12 enumeration  locality enumeration  work category enumeration  cost unit enumeration  miscellaneous

element tgCtlg/CtlgName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCtlgName
properties	content  simple
facets	Kind  Value  Annotation maxLength  80

complexType tgCtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	CtlgID CtlgCode
used by	elements  tgAddress/CtlgAssign tgQtySplit/CtlgAssign tgMarkupItem/CtlgAssign tgQDetermItem/CtlgAssign
annotation	documentation Katalogzuordnung

element tgCtlgAssign/CtlgID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString100
properties	content  simple
facets	Kind  Value  Annotation maxLength  100
annotation	documentation Identifikator des Kataloges

element tgCtlgAssign/CtlgCode

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString100
properties	content  simple
facets	Kind  Value  Annotation maxLength  100
annotation	documentation Schluessel der Zuordnung

complexType tgCTR

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Address DPNo AwardNo AcctsPayNo BidderNo CntryType CntryName SectorType PrefBidType SCType InsAs AddText
used by	complexType  tgCTR
annotation	documentation Informationen zum Bieter/Auftragnehmer

element tgCTR/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddress
properties	minOcc  0 maxOcc  1 content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Bieters/AN

element tgCTR/DPNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation DV-Nummer

element tgCTR/AwardNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Vergabenummer

element tgCTR/AcctsPayNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Kreditoren-Nummer

element tgCTR/BidderNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString8
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  8
annotation	documentation Bieternummer

element tgCTR/CntryType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCntryType
properties	content  simple
facets	Kind  Value  Annotation enumeration  EEA enumeration  Other
annotation	documentation Art des Staates

element tgCTR/CntryName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCntryName
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  3
annotation	documentation Name des Staates (internationales Kfz-Kennzeichen)

element tgCTR/SectorType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgSectorType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Crafts enumeration  Industry enumeration  Dealer enumeration  UtilityComp enumeration  Other
annotation	documentation Branche

element tgCTR/PrefBidType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgPrefBidType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  DisplPers enumeration  Refugee enumeration  Persecutee enumeration  WrkShopForDis enumeration  WrkShopForBli enumeration  Other
annotation	documentation Bevorzugter Bewerber

element tgCTR/SCType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgSCType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  InHouseWrk enumeration  DespInHouseCap enumeration  LackOfInHouseCap
annotation	documentation Art der Leistung

element tgCTR/InsAs

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInsAs
properties	minOcc  0 maxOcc  1 content  complex
children	InsAsName InsAsDate InsAsNo
annotation	documentation Informationen zur Berufsgenossenschaft

element tgCTR/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

complexType tgCustomerInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	IDNo Address
used by	element  tgOrder/CustomerInfo
annotation	documentation Informationen zum Besteller (Kunden)

element tgCustomerInfo/IDNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Kunden-Nummer beim Lieferanten

element tgCustomerInfo/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddress
properties	content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Kunden

complexType tgDeliveryPlaceInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	IDNo Address
used by	element  tgOrder/DeliveryPlaceInfo
annotation	documentation Informationen zum Lieferort

element tgDeliveryPlaceInfo/IDNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation ID-Nummer für Lieferort

element tgDeliveryPlaceInfo/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddress
properties	content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Lieferort

complexType tgDescription

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	STLBBau StLNo WICNo CompleteText OutlineText SubmissionComment
used by	complexType  tgDescription
attributes	Name   Type   Use   Default   Fixed   Annotation ID   tgGUID            documentation Die ID muss in 83 - > 84 Austausch erhalten bleiben. Damit können Descriptions eindeutig Identifiziert werden.
annotation	documentation Textorganisation

attribute tgDescription/@ID

type	tgGUID
facets	Kind  Value  Annotation maxLength  36
annotation	documentation Die ID muss in 83 - > 84 Austausch erhalten bleiben. Damit können Descriptions eindeutig Identifiziert werden.

element tgDescription/STLBBau

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgSTLBBau
properties	content  complex
children	STLBBauCtlg STLBBauID
annotation	documentation Schluessel STLB-Bau

element tgDescription/StLNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgStLNo
properties	content  complex
facets	Kind  Value  Annotation pattern  [0-9]{0,17}
attributes	Name   Type   Use   Default   Fixed   Annotation Type   derived by: tgNormalizedString
annotation	documentation Standardleistungsnummer (StLB/STLK)

element tgDescription/WICNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Katalognummer (Mutter-LV)

element tgDescription/CompleteText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCompleteText
properties	content  complex
children	ComplTSA ComplTSB DetailTxt OutlineText
annotation	documentation Kurz- und Langtext

element tgDescription/OutlineText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgOutlineText
properties	content  complex
children	OutlTSA OutlTxt
annotation	documentation Kurztext

element tgDescription/SubmissionComment

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMLText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für mehrzeiligen Text textWidth   tgNormalizedString
annotation	documentation Nur in 84P-Dateien

complexType tgDimension

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	UM Height Width Length
used by	element  tgOrderItem/Dimension

element tgDimension/UM

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString3
properties	content  simple
facets	Kind  Value  Annotation maxLength  3
annotation	documentation unit of measure

element tgDimension/Height

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal
properties	minOcc  0 maxOcc  1 content  simple

element tgDimension/Width

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal
properties	minOcc  0 maxOcc  1 content  simple

element tgDimension/Length

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal
properties	minOcc  0 maxOcc  1 content  simple

complexType tgdiv

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	span br
used by	elements  tgFText/div tgMLText/div tgli/div tgth/div tgtd/div
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

attribute tgdiv/@class

type	tgAttClass

attribute tgdiv/@style

type	tgAttStyle

element tgdiv/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgdiv/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

complexType tgdivTC

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	span br TextComplement
used by	elements  tgFTextTC/div tgliTC/div tgtdTC/div
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text mit Textergänzung

attribute tgdivTC/@class

type	tgAttClass

attribute tgdivTC/@style

type	tgAttStyle

element tgdivTC/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgdivTC/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

element tgdivTC/TextComplement

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgTextComplement
properties	content  complex mixed  false
children	ComplCaption ComplBodyDec ComplBodyInt ComplBody ComplTail
attributes	Name   Type   Use   Default   Fixed   Annotation ID   tgGUID   optional         MarkLbl   tgInteger   required         Kind   tgAttKind   required         Empty   tgYes   optional         ArtChrIdent   tgInteger            documentation Identifikator des STLB-Bau Beschreibungsmerkmals
annotation	documentation Textergänzung

complexType tgFText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	p div span ul ol table br page Image
used by	elements  tgCOInfo/COReas tgPrjInfo/Descrip tgMastAgrInfo/Descrip tgAddText/DetailAddText
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für formatierten Text textWidth   tgNormalizedString
annotation	documentation Formatierte Textbeschreibung

attribute tgFText/@style

type	tgAttStyle
annotation	documentation Oberster Style für formatierten Text

attribute tgFText/@textWidth

type	tgNormalizedString

element tgFText/p

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgp
properties	content  complex mixed  false
children	span br image
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Absatz in formatiertem Text

element tgFText/div

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgdiv
properties	content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

element tgFText/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgFText/ul

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgul
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	li
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Aufzählungsliste in formatiertem Text

element tgFText/ol

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgol
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	li
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            start   tgNormalizedString
annotation	documentation Nummerierte Liste in formatiertem Text

element tgFText/table

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgtable
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	tr
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            align   tgAttAlignTable            documentation Ausrichtung border   tgAttBorder            documentation Linien cellpadding   tgAttCellpadding            documentation Zellenabstand frame   tgAttFrame            height   tgAttHeight            width   tgAttWidth            org   tgAttOrg
annotation	documentation Tabelle

element tgFText/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

element tgFText/page

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgpage
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Seitenumbruch

element tgFText/Image

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgImage
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign   optional         documentation Ausrichtung border   tgAttBorder   optional         hspace   tgNormalizedString   optional         vspace   tgNormalizedString   optional         width   tgAttWidth   optional         Type   derived by: tgNormalizedString   required         Name   tgNormalizedString   optional         Encoding   derived by: tgNormalizedString   optional   base64
annotation	documentation einzelnes Bild

complexType tgFTextTC

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	p div span ul ol table br page Image TextComplement
used by	element  tgBoQText/Text
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für formatierten Text textWidth   tgNormalizedString
annotation	documentation Formatierte Textbeschreibung mit Textergänzung

attribute tgFTextTC/@style

type	tgAttStyle
annotation	documentation Oberster Style für formatierten Text

attribute tgFTextTC/@textWidth

type	tgNormalizedString

element tgFTextTC/p

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgpTC
properties	content  complex mixed  false
children	span br image TextComplement
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Absatz in formatiertem Text

element tgFTextTC/div

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgdivTC
properties	content  complex mixed  false
children	span br TextComplement
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

element tgFTextTC/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgFTextTC/ul

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgulTC
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	li
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Aufzählungsliste in formatiertem Text

element tgFTextTC/ol

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgolTC
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	li
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            start   tgNormalizedString
annotation	documentation Nummerierte Liste in formatiertem Text

element tgFTextTC/table

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgtableTC
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	tr
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            align   tgAttAlignTable            documentation Ausrichtung border   tgAttBorder            documentation Linien cellpadding   tgAttCellpadding            documentation Zellenabstand frame   tgAttFrame            height   tgAttHeight            width   tgAttWidth            org   tgAttOrg
annotation	documentation Tabelle

element tgFTextTC/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

element tgFTextTC/page

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgpage
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Seitenumbruch

element tgFTextTC/Image

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgImage
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign   optional         documentation Ausrichtung border   tgAttBorder   optional         hspace   tgNormalizedString   optional         vspace   tgNormalizedString   optional         width   tgAttWidth   optional         Type   derived by: tgNormalizedString   required         Name   tgNormalizedString   optional         Encoding   derived by: tgNormalizedString   optional   base64
annotation	documentation einzelnes Bild

element tgFTextTC/TextComplement

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgTextComplement
properties	content  complex mixed  false
children	ComplCaption ComplBodyDec ComplBodyInt ComplBody ComplTail
attributes	Name   Type   Use   Default   Fixed   Annotation ID   tgGUID   optional         MarkLbl   tgInteger   required         Kind   tgAttKind   required         Empty   tgYes   optional         ArtChrIdent   tgInteger            documentation Identifikator des STLB-Bau Beschreibungsmerkmals
annotation	documentation Textergänzung

complexType tgGAEB

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	GAEBInfo PrjInfo Award Invoice Order AddText
used by	complexType  tgGAEB
annotation	documentation Aufgestellt vom Gemeinsamen Ausschuss Elektronik im Bauwesen (GAEB) © 2002 - 2013 by DIN Deutsches Institut fuer Normung e. V.

element tgGAEB/GAEBInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgGAEBInfo
properties	content  complex
children	Version VersDate Date Time ProgSystem ProgName Certific
annotation	documentation Informationen zum GAEB-Datenaustausch

element tgGAEB/PrjInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgPrjInfo
properties	minOcc  0 maxOcc  1 content  complex
children	NamePrj LblPrj Descrip Cur CurLbl BidCommPerm AlterBidPerm AddText UPFracDig
annotation	documentation Informationen zum Projekt

element tgGAEB/Award

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAward
properties	minOcc  0 maxOcc  1 content  complex
children	DP AwardInfo IndivAgrInfo OWN CnstSite BoQ
annotation	documentation Vergabe In diesem Objekt werden die Informationen des Vergabeverfahrens abgelegt. Das Objekt kann in den Datenaustauschphasen D81-D88 verwendet werden.

element tgGAEB/Invoice

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInvoice
properties	minOcc  0 maxOcc  1 content  complex
children	DP OWN Requester CTR CnstSite NotifSite AddText BoQ InvoiceHeader InvoiceCreator InvoiceRecipient CheckNote BudgetDept BookingNo QuantityDeterminationRemark InvoiceShare Terms PaymentMade InvoiceMadeOut TotalGross
annotation	documentation Rechnung In diesem Objekt werden die detaillierten Informationen zur Rechnung abgelegt.

element tgGAEB/Order

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgOrder
properties	minOcc  0 maxOcc  unbounded content  complex
children	DP OrderInfo SupplierInfo CustomerInfo DeliveryPlaceInfo PlannerInfo InvoiceInfo OrderItem
annotation	documentation Bestellung  Datenphase D9x. Die Wiederholung ist nur im Kontext der Rechnung möglich. Hier wird in der ersten Wiederholung die Rechnung und in den weiteren Wiederholungen die einzelnen Lieferscheine übertragen

element tgGAEB/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

complexType tgGAEBInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Version VersDate Date Time ProgSystem ProgName Certific
used by	complexType  tgGAEBInfo
annotation	documentation Informationen zum GAEB-Datenaustausch

element tgGAEBInfo/Version

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgVersion
properties	content  simple
facets	Kind  Value  Annotation maxLength  10 enumeration  3.2
annotation	documentation Version des GAEB DA XML

element tgGAEBInfo/VersDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgGAEBVersDate
properties	content  simple
facets	Kind  Value  Annotation enumeration  2014-03
annotation	documentation Datum der Ausgabe der GAEB-DA-XML  Schnittstellendefinition

element tgGAEBInfo/Date

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple
annotation	documentation Datum

element tgGAEBInfo/Time

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Erstellungszeit der Datenaustauschdatei

element tgGAEBInfo/ProgSystem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Programmsystem

element tgGAEBInfo/ProgName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Umsetzprogramm

element tgGAEBInfo/Certific

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCertific
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Available
annotation	documentation Pruefzertifikat der benutzten Version GAEB DA XML liegt vor

complexType tgHourItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	MarkupIt Qty PredQty QU UP IT Description
used by	complexType  tgHourItem
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex
annotation	documentation Stundenlohnarbeiten

attribute tgHourItem/@ID

type	xs:ID
properties	use  required

attribute tgHourItem/@RNoPart

type	tgRNoPart
properties	use  required
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,14}
annotation	documentation Teil-OZ

attribute tgHourItem/@RNoIndex

type	tgRNoIndex
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,1}

element tgHourItem/MarkupIt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen fuer zu bezuschlagen

element tgHourItem/Qty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_11_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Menge

element tgHourItem/PredQty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_11_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Voraussichtliche Menge (Prognose)

element tgHourItem/QU

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgQUHour
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  4 enumeration  h
annotation	documentation Mengeneinheit

element tgHourItem/UP

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation Einheitspreis

element tgHourItem/IT

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Gesamtbetrag incl. Nachlass

element tgHourItem/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDescription
properties	minOcc  0 maxOcc  1 content  complex
children	WICNo
annotation	documentation Textorganisation

complexType tgImage

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	extension of tgString
properties	base  tgString
used by	elements  tgFTextTC/Image tgFText/Image tgp/image tgpTC/image
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign   optional         documentation Ausrichtung border   tgAttBorder   optional         hspace   tgNormalizedString   optional         vspace   tgNormalizedString   optional         width   tgAttWidth   optional         Type   derived by: tgNormalizedString   required         Name   tgNormalizedString   optional         Encoding   derived by: tgNormalizedString   optional   base64
annotation	documentation einzelnes Bild

attribute tgImage/@align

type	tgAttAlign
properties	use  optional
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right enumeration  justify
annotation	documentation Ausrichtung

attribute tgImage/@border

type	tgAttBorder
properties	use  optional

attribute tgImage/@hspace

type	tgNormalizedString
properties	use  optional

attribute tgImage/@vspace

type	tgNormalizedString
properties	use  optional

attribute tgImage/@width

type	tgAttWidth
properties	use  optional

attribute tgImage/@Type

type	restriction of tgNormalizedString
properties	use  required
facets	Kind  Value  Annotation enumeration  image/jpeg enumeration  image/gif enumeration  image/png

attribute tgImage/@Name

type	tgNormalizedString
properties	use  optional

attribute tgImage/@Encoding

type	restriction of tgNormalizedString
properties	use  optional default  base64
facets	Kind  Value  Annotation enumeration  base64

complexType tgIndivAgrInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	InfoPerson AttestPerson CnstSiteLoc
used by	element  tgAward/IndivAgrInfo
annotation	documentation Informationen zu Einzelauftrag

element tgIndivAgrInfo/InfoPerson

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString80
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Auskunftserteilung durch

element tgIndivAgrInfo/AttestPerson

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString80
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Bescheinigung von Stundenlohnzetteln durch

element tgIndivAgrInfo/CnstSiteLoc

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMLText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für mehrzeiligen Text textWidth   tgNormalizedString
annotation	documentation Ort der Ausführung des Einzelauftrags

complexType tgInsAs

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	InsAsName InsAsDate InsAsNo
annotation	documentation Informationen zur Berufsgenossenschaft

element tgInsAs/InsAsName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Bezeichnung der Berufsgenossenschaft

element tgInsAs/InsAsDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple
annotation	documentation Mitglied seit

element tgInsAs/InsAsNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Mitgliedsnummer

complexType tgInvoice

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	DP OWN Requester CTR CnstSite NotifSite AddText BoQ InvoiceHeader InvoiceCreator InvoiceRecipient CheckNote BudgetDept BookingNo QuantityDeterminationRemark InvoiceShare Terms PaymentMade InvoiceMadeOut TotalGross

element tgInvoice/DP

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	content  simple
facets	Kind  Value  Annotation enumeration  89 documentation Rechnung
annotation	documentation GAEB-Datenaustauschphase

element tgInvoice/OWN

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgOWN
properties	minOcc  0 maxOcc  1 content  complex
children	AwardNo AcctRecNo
annotation	documentation Informationen zum Auftraggeber

element tgInvoice/Requester

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRequester
properties	minOcc  0 maxOcc  unbounded content  complex
children	Address RequestIDNo RequestName AddText
annotation	documentation Informationen zum Bedarfstraeger

element tgInvoice/CTR

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCTR
properties	minOcc  0 maxOcc  1 content  complex
children	Address
annotation	documentation Informationen zum Auftragnehmer

element tgInvoice/CnstSite

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCnstSite
properties	content  complex
children	Address
annotation	documentation Informationen zum Ausfuehrungsort

element tgInvoice/NotifSite

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNotifSite
properties	minOcc  0 maxOcc  1 content  complex
children	Address NotifSiteIDNo NotifSiteName AddText
annotation	documentation Informationen zum Benachrichtigungsort

element tgInvoice/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

element tgInvoice/BoQ

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQ
properties	minOcc  0 maxOcc  1 content  complex
children	BoQInfo BoQBody
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Leistungsverzeichnis

element tgInvoice/InvoiceHeader

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInvoiceHeader
properties	content  complex
children	InvoiceNo InvoiceDate InvoiceType CreditNote SettlementType SequentialNo ServiceProvisionStartDate ServiceProvisionEndDate
annotation	documentation Rechnungskopf

element tgInvoice/InvoiceCreator

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInvoiceCreator
properties	content  complex
children	Address TaxNo
annotation	documentation Rechnungsersteller

element tgInvoice/InvoiceRecipient

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInvoiceRecipient
properties	content  complex
children	Address TaxNo
annotation	documentation Rechnungsempfänger

element tgInvoice/CheckNote

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCheckNote
properties	minOcc  0 maxOcc  unbounded content  complex
children	State CheckDate Annotation
annotation	documentation Prüfvermerk

element tgInvoice/BudgetDept

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Haushaltsstelle

element tgInvoice/BookingNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Buchungsnummer

element tgInvoice/QuantityDeterminationRemark

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Hinweis zu beiliegender Mengenermittlung als freier Text

element tgInvoice/InvoiceShare

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInvoiceShare
properties	minOcc  1 maxOcc  unbounded content  complex
children	InvoiceShareType Description Total Percent CounterClaim
annotation	documentation Rechnungsanteil

element tgInvoice/Terms

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCashDiscount
properties	minOcc  0 maxOcc  3 content  complex
children	CashDiscDays CashDiscDate DiscountPcnt
annotation	documentation Zahlungsbedingung

element tgInvoice/PaymentMade

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgPaymentMade
properties	minOcc  0 maxOcc  unbounded content  complex
children	TotalVAT DiscountAmt DiscountVATAmt Total PaymentDate InvoiceType InvoiceNo PaymentNo PaymentNote
annotation	documentation geleistete Zahlung

element tgInvoice/InvoiceMadeOut

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInvoiceMadeOut
properties	minOcc  0 maxOcc  unbounded content  complex
children	TotalVAT Total InvoiceDate InvoiceType InvoiceNo
annotation	documentation gestellte Rechnung

element tgInvoice/TotalGross

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Rechnungssumme Brutto

complexType tgInvoiceCreator

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Address TaxNo
used by	element  tgInvoice/InvoiceCreator

element tgInvoiceCreator/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddress
properties	content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Adresse des Rechnungsersteller

element tgInvoiceCreator/TaxNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString80
properties	content  simple
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Steuernummer Rechnungsersteller

complexType tgInvoiceHeader

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	InvoiceNo InvoiceDate InvoiceType CreditNote SettlementType SequentialNo ServiceProvisionStartDate ServiceProvisionEndDate
used by	element  tgInvoice/InvoiceHeader

element tgInvoiceHeader/InvoiceNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString80
properties	content  simple
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Rechnungsnummer

element tgInvoiceHeader/InvoiceDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple
annotation	documentation Datum der Rechnung

element tgInvoiceHeader/InvoiceType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInvoiceType
properties	content  simple
facets	Kind  Value  Annotation enumeration  deduction enumeration  final account enumeration  part final account enumeration  advance payment enumeration  single invoice enumeration  pro forma invoice enumeration  reviewed invoice
annotation	documentation Rechnungsart

element tgInvoiceHeader/CreditNote

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYes
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Gutschrift

element tgInvoiceHeader/SettlementType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  accumulated enumeration  periodic
annotation	documentation Abrechnungsart

element tgInvoiceHeader/SequentialNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInteger
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation laufende Nummer der Abrechung z.b. 3.Abschlagsrechnung

element tgInvoiceHeader/ServiceProvisionStartDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple
annotation	documentation Beginn der Leistungserbringung

element tgInvoiceHeader/ServiceProvisionEndDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple
annotation	documentation Ende der Leistungserbringung

complexType tgInvoiceInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	InvoiceNo InvoiceDate Cur CurLbl StandardText ValutaDate AddText Totals InvoiceTotalsGross CashDiscount
used by	element  tgOrder/InvoiceInfo
annotation	documentation Informationen zur Rechnung Im Kontext der Rechnung Pflicht

element tgInvoiceInfo/InvoiceNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	content  simple
annotation	documentation Rechnungsnummer des Lieferaten

element tgInvoiceInfo/InvoiceDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple
annotation	documentation Rechnungsdatum

element tgInvoiceInfo/Cur

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgISOCur
properties	content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation ISO   tgNormalizedString
annotation	documentation Waehrung

element tgInvoiceInfo/CurLbl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCurLbl
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  50
annotation	documentation Bezeichnung der Waehrung

element tgInvoiceInfo/StandardText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Standardtexte aufgrund gesetzlicher AnforderungenDiese Texte können vom Empfänger überlesen werden und führen nicht zu einer manuellen Bearbeitung der Rechnung beim Empfänger.

element tgInvoiceInfo/ValutaDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Valuta Datum

element tgInvoiceInfo/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusätzlicher Text zum Vorgang

element tgInvoiceInfo/Totals

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgOrderTotals
properties	minOcc  0 maxOcc  unbounded content  complex
children	VATRate ItemTotal
annotation	documentation Infomrationen zur Summe je MwSt-Satz

element tgInvoiceInfo/InvoiceTotalsGross

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Rechnungsbetrag

element tgInvoiceInfo/CashDiscount

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCashDiscount
properties	minOcc  0 maxOcc  unbounded content  complex
children	CashDiscDays CashDiscDate DiscountPcnt
annotation	documentation Skonto Angaben

complexType tgInvoiceMadeOut

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	TotalVAT Total InvoiceDate InvoiceType InvoiceNo
used by	element  tgInvoice/InvoiceMadeOut

element tgInvoiceMadeOut/TotalVAT

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Summe der MwSt.

element tgInvoiceMadeOut/Total

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Rechnungssumme Netto

element tgInvoiceMadeOut/InvoiceDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple
annotation	documentation Datum der Rechnung

element tgInvoiceMadeOut/InvoiceType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInvoiceType
properties	content  simple
facets	Kind  Value  Annotation enumeration  deduction enumeration  final account enumeration  part final account enumeration  advance payment enumeration  single invoice enumeration  pro forma invoice enumeration  reviewed invoice
annotation	documentation Art der Rechnung

element tgInvoiceMadeOut/InvoiceNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	content  simple
annotation	documentation Rechnungsnummer

complexType tgInvoiceRecipient

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Address TaxNo
used by	element  tgInvoice/InvoiceRecipient

element tgInvoiceRecipient/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddress
properties	content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Adresse des Rechnungsempfängers

element tgInvoiceRecipient/TaxNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString80
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Steuernummer Rechnungsempfänger

complexType tgInvoiceShare

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	InvoiceShareType Description Total Percent CounterClaim
used by	element  tgInvoice/InvoiceShare
annotation	documentation Rechnungsanteil

element tgInvoiceShare/InvoiceShareType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInvoiceShareType
properties	content  simple
facets	Kind  Value  Annotation enumeration  basic amount enumeration  security deposit for fulfillment of a contract enumeration  security deposit for requirements off defects enumeration  security deposit enumeration  contract penalty enumeration  construction sign building-blackboard enumeration  power consumed on site enumeration  water enumeration  preparation enumeration  insurance against builder's risk enumeration  construction withholding tax enumeration  other type of discount enumeration  amount payments received enumeration  amount invoices enumeration  outstanding amount enumeration  subtotal enumeration  small contract extra amount enumeration  percentage extra or deduction amount enumeration  discount enumeration  VAT
annotation	documentation Art des Rechnungsanteils

element tgInvoiceShare/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString256
properties	content  simple
facets	Kind  Value  Annotation maxLength  256
annotation	documentation Bezeichnung des Rechnungsanteil

element tgInvoiceShare/Total

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Betrag des Rechnungsanteil

element tgInvoiceShare/Percent

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6
annotation	documentation Prozentwert des Rechnungsanteil

element tgInvoiceShare/CounterClaim

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYes
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Gegenforderung

complexType tgISOCur

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  true
used by	elements  tgOrderInfo/Cur tgInvoiceInfo/Cur tgQuotation/Cur
attributes	Name   Type   Use   Default   Fixed   Annotation ISO   tgNormalizedString
annotation	documentation Waehrung mit ISO Kennzeichen im Attribut

attribute tgISOCur/@ISO

type	tgNormalizedString

complexType tgItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	ALNGroupNo ALNSerNo Accepted Provis ProvisAccpt LumpSumItem NotAppl NotOffered HourIt KeyIt UPBkdn MarkupIt CONo COStatus RefDescr RefRNo RefPerfNo HoldOutType UseDur UseDurLblTime RefBaseItem QtyTBD Qty Qty QtySplit PredQty BillQty QU CtlgAssign UP UP110 UPComp1 UPComp2 UPComp3 UPComp4 UPComp5 UPComp6 DiscountPcnt UPFrom UPAvg UPTo UPWgFrom UPWgAvg UPWgTo IT VAT PriceInfo TimeQu Description BidComm SumDescr SubDescr Product AlterBidStatus CostApproach CheckNote QtyDeterm BidUpDownReq BidUpDownPct
used by	complexType  tgItem
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex
annotation	documentation Position

attribute tgItem/@ID

type	xs:ID
properties	use  required

attribute tgItem/@RNoPart

type	tgRNoPart
properties	use  required
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,14}
annotation	documentation Teil-OZ

attribute tgItem/@RNoIndex

type	tgRNoIndex
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,1}

element tgItem/ALNGroupNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgALNGroupNo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Gruppennummer der Zuordnungszahl zur Kennzeichnung zusammengehoerender Grund- und alternativer Ausfuehrungen.

element tgItem/ALNSerNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgALNSerNo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  9
annotation	documentation Laufende Nummer der Zuordnungszahl

element tgItem/Accepted

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAccepted
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  AltAccept enumeration  BasReject
annotation	documentation Beauftragt

element tgItem/Provis

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgProvis
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  WithoutTotal enumeration  WithTotal
annotation	documentation Bedarfsposition

element tgItem/ProvisAccpt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Bedarfsposition beauftragt

element tgItem/LumpSumItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Pauschalposition

element tgItem/NotAppl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNotAppl
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Position entfaellt

element tgItem/NotOffered

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYes
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Kennzeichen Position nicht angeboten (nur in 84)

element tgItem/HourIt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgHourIt
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Stundenlohnarbeiten

element tgItem/KeyIt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgKeyIt
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Schwerpunktposition

element tgItem/UPBkdn

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen EP-Aufgliederung

element tgItem/MarkupIt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen fuer zu bezuschlagen

element tgItem/CONo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCONo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Nachtragsnummer

element tgItem/COStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCOStatus
properties	content  simple
facets	Kind  Value  Annotation enumeration  Recog documentation erkannt enumeration  Filed documentation angemeldet enumeration  Offered documentation angeboten enumeration  Withdrawn documentation zurückgezogen enumeration  Rejected documentation abgelehnt enumeration  ObjToRecj documentation Widerspruch zur Ablehnun enumeration  FormAckn documentation sachlich anerkannt enumeration  Approved documentation genehmigt
annotation	documentation Status des Nachtrags

element tgItem/RefDescr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRefDescr
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  3 enumeration  Ref enumeration  Rep
annotation	documentation Kennzeichen Bezugs-/ Wiederholungsbeschreibung

element tgItem/RefRNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRefItem
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Bezugsposition

element tgItem/RefPerfNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRefItem
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Ausfuehrungsbeschreibung

element tgItem/HoldOutType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgHoldOutType
properties	content  simple
facets	Kind  Value  Annotation enumeration  BaseUseItem enumeration  ExtUseItem enumeration  RentUseItem
annotation	documentation Art der Vorhalteleistung     BaseUseItem = Grundeinsatzposition,     ExtUseItem = Verlängerungseinsatzposition     RentUseItem = Vermietposition.

element tgItem/UseDur

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Einsatzdauer in Zeiteinheiten

element tgItem/UseDurLblTime

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgUseDurLblTime
properties	content  simple
facets	Kind  Value  Annotation enumeration  minute enumeration  hour enumeration  day enumeration  week enumeration  month
annotation	documentation Bezeichnung der Zeiteinheit der Einsatzdauer

element tgItem/RefBaseItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRefItem
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verbindung zu einer Grundeinsatzposition

element tgItem/QtyTBD

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYes
properties	content  simple
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Kennzeichen Freie Menge

element tgItem/Qty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_11_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Menge

element tgItem/Qty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_11_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Menge

element tgItem/QtySplit

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgQtySplit
properties	minOcc  0 maxOcc  unbounded content  complex
children	QtyPcnt Qty CtlgAssign
annotation	documentation Zuordnung der Teilmengen

element tgItem/PredQty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_11_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Voraussichtliche Menge (Prognose)

element tgItem/BillQty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_11_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Rechnungsmenge

element tgItem/QU

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString4
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Mengeneinheit

element tgItem/CtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCtlgAssign
properties	minOcc  0 maxOcc  unbounded content  complex
children	CtlgID CtlgCode
annotation	documentation Katalogzuordnung

element tgItem/UP

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation Einheitspreis

element tgItem/UP110

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation Einheitspreis bei Mengen >110%

element tgItem/UPComp1

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 1. Einheitspreisanteil

element tgItem/UPComp2

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 2. Einheitspreisanteil

element tgItem/UPComp3

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 3. Einheitspreisanteil

element tgItem/UPComp4

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 4. Einheitspreisanteil

element tgItem/UPComp5

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 5. Einheitspreisanteil

element tgItem/UPComp6

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 6. Einheitspreisanteil

element tgItem/DiscountPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6
annotation	documentation Prozentualer Nachlass

element tgItem/UPFrom

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation "Von" – Einheitspreis, nur bei Katalogdaten

element tgItem/UPAvg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation "Mittel" – Einheitspreis, nur bei Katalogdaten:

element tgItem/UPTo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation "Bis" – Einheitspreis nur bei Katalogdaten

element tgItem/UPWgFrom

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation "Von" – Lohnanteil nur bei Katalogdaten

element tgItem/UPWgAvg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation "Mittel" – Lohnanteil nur bei Katalogdaten

element tgItem/UPWgTo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation "Bis" – Lohnanteil nur bei Katalogdaten

element tgItem/IT

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Gesamtbetrag incl. Nachlass

element tgItem/VAT

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_5_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation Falls dieses Element fehlt, gilt die übergeordnete MwSt.

element tgItem/PriceInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgPriceInfo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  scope enumeration  to enumeration  approx enumeration  lump
annotation	documentation Preisinformation nur bei Instandhaltung

element tgItem/TimeQu

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Zeitansatz in Zeiteinheiten (LblTime siehe tgBoQInfo)

element tgItem/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDescription
properties	minOcc  0 maxOcc  1 content  complex
children	WICNo
annotation	documentation Textorganisation

element tgItem/BidComm

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMLText
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für mehrzeiligen Text textWidth   tgNormalizedString
annotation	documentation Bieter Kommentar

element tgItem/SumDescr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYes
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Kennzeichen Leitbeschreibung

element tgItem/SubDescr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgSubDescr
properties	minOcc  0 maxOcc  unbounded content  complex
children	SubDNo Description QtySpec QtyTBD Qty QU UPSpec UPBkdn UP UPComp1 UPComp2 UPComp3 UPComp4 UPComp5 UPComp6
annotation	documentation Unterbeschreibung

element tgItem/Product

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgProduct
properties	minOcc  0 maxOcc  1 content  complex
children	Address AddText Article
annotation	documentation Produktinformation

element tgItem/AlterBidStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAlterBidStatus
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Identical documentation Gleich enumeration  N/A documentation Entfällt enumeration  Modified documentation Modifiziert enumeration  New documentation Neu
annotation	documentation NebenangebotStatus; Bei new und modified werden die kompletten Positionen übertragen. Bei N/A wird nur die TeilOZ und dieses Kennzeichen übertragen.

element tgItem/CostApproach

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCostApproach
properties	minOcc  0 maxOcc  unbounded content  complex
children	CostApproachQty CostApproachQU Performance Value
attributes	Name   Type   Use   Default   Fixed   Annotation Key   tgNormalizedString   required         documentation Schlüssel der Kostenart
annotation	documentation Kostenansätze

element tgItem/CheckNote

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCheckNote
properties	minOcc  0 maxOcc  unbounded content  complex
children	State CheckDate Annotation
annotation	documentation Prüfvermerk

element tgItem/QtyDeterm

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgQtyDeterm
properties	minOcc  0 maxOcc  1 content  complex
children	Qty QDetermItem
annotation	documentation Mengenermittlung

element tgItem/BidUpDownReq

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Anfoderung Auf-/Abgebot

element tgItem/BidUpDownPct

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBidUpDownPct
properties	content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6
annotation	documentation Auf- oder Abgebot (in %)

complexType tgItemlist

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Remark PerfDescr Item MarkupItem MastAgrItems
used by	complexType  tgItemlist
annotation	documentation Positionsliste

element tgItemlist/Remark

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRemark
properties	content  complex
children	Description CONo AlterBidStatus
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Hinweistext

element tgItemlist/PerfDescr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgPerfDescr
properties	content  complex
children	PerfNo PerfLbl Description CONo AlterBidStatus
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Ausfuehrungsbeschreibung

element tgItemlist/Item

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgItem
properties	content  complex
children	Qty Description
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex
annotation	documentation Position

element tgItemlist/MarkupItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMarkupItem
properties	content  complex
children	ALNGroupNo ALNSerNo Accepted Provis ProvisAccpt NotAppl HourIt KeyIt CONo COStatus RefDescr RefRNo RefPerfNo MarkupType MarkupSubQty ITMarkup Markup DiscountPcnt IT Description CtlgAssign AlterBidStatus CheckNote
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex
annotation	documentation Zuschlagsposition

element tgItemlist/MastAgrItems

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMastAgrItems
properties	content  complex
children	HourItem MaterialItem MarkupItemOWN MarkupItemCTR

complexType tgLblUpComp

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	extension of tgNormalizedString20
properties	base  tgNormalizedString20
facets	Kind  Value  Annotation maxLength  20
attributes	Name   Type   Use   Default   Fixed   Annotation Type   tgUpCompType   required

attribute tgLblUpComp/@Type

type	tgUpCompType
properties	use  required
facets	Kind  Value  Annotation enumeration  Wages enumeration  Materials enumeration  Plant enumeration  Miscellaneous enumeration  Unknown

complexType tgli

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	p div span br ul ol
used by	elements  tgul/li tgol/li
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Listenpunkt in formatiertem Text

attribute tgli/@class

type	tgAttClass

attribute tgli/@style

type	tgAttStyle

element tgli/p

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgp
properties	content  complex mixed  false
children	span br image
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Absatz in formatiertem Text

element tgli/div

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgdiv
properties	content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

element tgli/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgli/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

element tgli/ul

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgul
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	li
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Aufzählungsliste in formatiertem Text

element tgli/ol

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgol
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	li
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            start   tgNormalizedString
annotation	documentation Nummerierte Liste in formatiertem Text

complexType tgliTC

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	p div span br ul ol TextComplement
used by	elements  tgulTC/li tgolTC/li
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Listenpunkt in formatiertem Text mit Textergänzung

attribute tgliTC/@class

type	tgAttClass

attribute tgliTC/@style

type	tgAttStyle

element tgliTC/p

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgpTC
properties	content  complex mixed  false
children	span br image TextComplement
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Absatz in formatiertem Text

element tgliTC/div

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgdivTC
properties	content  complex mixed  false
children	span br TextComplement
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

element tgliTC/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgliTC/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

element tgliTC/ul

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgulTC
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	li
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Aufzählungsliste in formatiertem Text

element tgliTC/ol

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgolTC
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	li
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            start   tgNormalizedString
annotation	documentation Nummerierte Liste in formatiertem Text

element tgliTC/TextComplement

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgTextComplement
properties	content  complex mixed  false
children	ComplCaption ComplBodyDec ComplBodyInt ComplBody ComplTail
attributes	Name   Type   Use   Default   Fixed   Annotation ID   tgGUID   optional         MarkLbl   tgInteger   required         Kind   tgAttKind   required         Empty   tgYes   optional         ArtChrIdent   tgInteger            documentation Identifikator des STLB-Bau Beschreibungsmerkmals
annotation	documentation Textergänzung

complexType tgLotGrp

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	LotGrNo RefLotNo Totals
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Losgruppe

attribute tgLotGrp/@ID

type	xs:ID
properties	use  required

element tgLotGrp/LotGrNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	content  simple
annotation	documentation Nummer der Losgruppe

element tgLotGrp/RefLotNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRefBoQCtgy
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Los

element tgLotGrp/Totals

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgTotals
properties	minOcc  0 maxOcc  1 content  complex
children	Total DiscountPcnt DiscountAmt TotAfterDisc TotalLSUM VAT TotalNet TotalNetUpComp VATPart VATAmount TotalGross
annotation	documentation Losgruppensumme

complexType tgMaintInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	MaintType ProcessType ContrTransDate ContrTransTime ContrLaw Deadline
annotation	documentation Nur bei Instandhaltung: Informationen zur Instandhaltung

element tgMaintInfo/MaintType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	content  simple
facets	Kind  Value  Annotation enumeration  Maint documentation Instandhaltung enumeration  Repair documentation Instandsetzung enumeration  Modern documentation Modernisierung enumeration  Warr documentation Gewaehrleistung enumeration  Cancelorder documentation Stornoauftrag
annotation	documentation Art der Instandhaltung

element tgMaintInfo/ProcessType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	content  simple
facets	Kind  Value  Annotation enumeration  StandCon documentation Normalauftrag enumeration  InsurClaim documentation Versicherungsschaden enumeration  InvoicToTen documentation Abrechnung an Miete enumeration  FinApartInsp documentation Wohnungsabnahme enumeration  ThirdPartyBill documentation Fremdverrechnung
annotation	documentation Art der Behandlung

element tgMaintInfo/ContrTransDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple
annotation	documentation Auftrags-Uebergabe-Datum

element tgMaintInfo/ContrTransTime

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Auftrags-Uebergabe-Uhrzeit

element tgMaintInfo/ContrLaw

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  OwnForOwn enumeration  OwnForThi enumeration  ThiForThi
annotation	documentation Auftragsrecht

element tgMaintInfo/Deadline

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Imm enumeration  Rush enumeration  AsArr
annotation	documentation Terminierung

complexType tgMarkupItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	ALNGroupNo ALNSerNo Accepted Provis ProvisAccpt NotAppl HourIt KeyIt CONo COStatus RefDescr RefRNo RefPerfNo MarkupType MarkupSubQty ITMarkup Markup DiscountPcnt IT Description CtlgAssign AlterBidStatus CheckNote
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex
annotation	documentation Zuschlagsposition

attribute tgMarkupItem/@ID

type	xs:ID
properties	use  required

attribute tgMarkupItem/@RNoPart

type	tgRNoPart
properties	use  required
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,14}
annotation	documentation Teil-OZ

attribute tgMarkupItem/@RNoIndex

type	tgRNoIndex
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,1}

element tgMarkupItem/ALNGroupNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgALNGroupNo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Gruppennummer der Zuordnungszahl zur Kennzeichnung zusammengehoerender Grund- und alternativer Ausfuehrungen.

element tgMarkupItem/ALNSerNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgALNSerNo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  9
annotation	documentation Laufende Nummer der Zuordnungszahl

element tgMarkupItem/Accepted

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAccepted
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  AltAccept enumeration  BasReject
annotation	documentation Beauftragt

element tgMarkupItem/Provis

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgProvis
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  WithoutTotal enumeration  WithTotal
annotation	documentation Bedarfsposition

element tgMarkupItem/ProvisAccpt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Bedarfsposition beauftragt

element tgMarkupItem/NotAppl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNotAppl
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Position entfaellt

element tgMarkupItem/HourIt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgHourIt
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Stundenlohnarbeiten

element tgMarkupItem/KeyIt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgKeyIt
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Schwerpunktposition

element tgMarkupItem/CONo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCONo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Nachtragsnummer

element tgMarkupItem/COStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCOStatus
properties	content  simple
facets	Kind  Value  Annotation enumeration  Recog documentation erkannt enumeration  Filed documentation angemeldet enumeration  Offered documentation angeboten enumeration  Withdrawn documentation zurückgezogen enumeration  Rejected documentation abgelehnt enumeration  ObjToRecj documentation Widerspruch zur Ablehnun enumeration  FormAckn documentation sachlich anerkannt enumeration  Approved documentation genehmigt
annotation	documentation Status des Nachtrags

element tgMarkupItem/RefDescr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRefDescr
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  3 enumeration  Ref enumeration  Rep
annotation	documentation Kennzeichen Bezugs-/ Wiederholungsbeschreibung

element tgMarkupItem/RefRNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRefItem
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Bezugsposition

element tgMarkupItem/RefPerfNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRefItem
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Ausfuehrungsbeschreibung

element tgMarkupItem/MarkupType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMarkupType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  IdentAsMark enumeration  AllInCat enumeration  ListInSubQty
annotation	documentation Zuschlagsart

element tgMarkupItem/MarkupSubQty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMarkupSubQty
properties	minOcc  0 maxOcc  unbounded content  complex
children	RefItem SubQty
annotation	documentation Zu bezuschlagende Teilmengen

element tgMarkupItem/ITMarkup

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Summe der Gesamtbetraege der zu bezuschlagenden Positionen

element tgMarkupItem/Markup

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6
annotation	documentation Zuschlagsprozentsatz

element tgMarkupItem/DiscountPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6
annotation	documentation Prozentualer Nachlass

element tgMarkupItem/IT

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Gesamtbetrag incl. Nachlass

element tgMarkupItem/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDescription
properties	minOcc  0 maxOcc  1 content  complex
children	WICNo
annotation	documentation Textorganisation

element tgMarkupItem/CtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCtlgAssign
properties	minOcc  0 maxOcc  unbounded content  complex
children	CtlgID CtlgCode
annotation	documentation Katalogzuordnung

element tgMarkupItem/AlterBidStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAlterBidStatus
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Identical documentation Gleich enumeration  N/A documentation Entfällt enumeration  Modified documentation Modifiziert enumeration  New documentation Neu
annotation	documentation NebenangebotStatus; Bei new und modified werden die kompletten Positionen übertragen. Bei N/A wird nur die TeilOZ und dieses Kennzeichen übertragen.

element tgMarkupItem/CheckNote

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCheckNote
properties	minOcc  0 maxOcc  unbounded content  complex
children	State CheckDate Annotation
annotation	documentation Prüfvermerk

complexType tgMarkupItemCTR

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	RefItem Markup Description CtlgAssign
used by	complexType  tgMarkupItemCTR
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex
annotation	documentation Zuschlagsposition

attribute tgMarkupItemCTR/@ID

type	xs:ID
properties	use  required

attribute tgMarkupItemCTR/@RNoPart

type	tgRNoPart
properties	use  required
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,14}
annotation	documentation Teil-OZ

attribute tgMarkupItemCTR/@RNoIndex

type	tgRNoIndex
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,1}

element tgMarkupItemCTR/RefItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRefItem
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Position

element tgMarkupItemCTR/Markup

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6
annotation	documentation Zuschlagsprozentsatz

element tgMarkupItemCTR/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDescription
properties	minOcc  0 maxOcc  1 content  complex
children	WICNo
annotation	documentation Textorganisation

element tgMarkupItemCTR/CtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCtlgAssign
properties	minOcc  0 maxOcc  unbounded content  complex
children	CtlgID CtlgCode
annotation	documentation Katalogzuordnung

complexType tgMarkupItemOWN

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	RefItem Markup Description CtlgAssign
used by	complexType  tgMarkupItemOWN
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex
annotation	documentation Zuschlagsposition

attribute tgMarkupItemOWN/@ID

type	xs:ID
properties	use  required

attribute tgMarkupItemOWN/@RNoPart

type	tgRNoPart
properties	use  required
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,14}
annotation	documentation Teil-OZ

attribute tgMarkupItemOWN/@RNoIndex

type	tgRNoIndex
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,1}

element tgMarkupItemOWN/RefItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRefItem
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Position

element tgMarkupItemOWN/Markup

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6
annotation	documentation Zuschlagsprozentsatz

element tgMarkupItemOWN/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDescription
properties	minOcc  0 maxOcc  1 content  complex
children	WICNo
annotation	documentation Textorganisation

element tgMarkupItemOWN/CtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCtlgAssign
properties	minOcc  0 maxOcc  unbounded content  complex
children	CtlgID CtlgCode
annotation	documentation Katalogzuordnung

complexType tgMarkupSubQty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	RefItem SubQty
used by	element  tgMarkupItem/MarkupSubQty
annotation	documentation Zu bezuschlagende Teilmengen

element tgMarkupSubQty/RefItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRefItem
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Position

element tgMarkupSubQty/SubQty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_11_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Teilmenge oder Menge

complexType tgMastAgrInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	BidUpDown MastAgrLbl MastAgrNo Descrip MastAgrBeg MastAgrDur MastAgrEnd MastAgrDate MastAgrVers TotContrVal MinContrVal MinContrAwd MaxContrVal ContrValCode AwardAgencyAdr CostResponsible
annotation	documentation Nur bei Rahmenvertrag: Informationen zum Rahmenvertrag

element tgMastAgrInfo/BidUpDown

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYes
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Auf- und Abgebotsverfahren

element tgMastAgrInfo/MastAgrLbl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMLText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für mehrzeiligen Text textWidth   tgNormalizedString
annotation	documentation Bezeichnung der Bauleistung (Bereich, in welchem die ZV-Arbeiten anfallen)

element tgMastAgrInfo/MastAgrNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Maßnahmennummer

element tgMastAgrInfo/Descrip

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgFText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	p div span ul ol table br page Image
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für formatierten Text textWidth   tgNormalizedString
annotation	documentation Bezeichnung der Leistungsbereiche (n-fach) und Geschätzter Jahreswert getrennt nach Leistungsbereichen

element tgMastAgrInfo/MastAgrBeg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Rahmenvertragsbeginn

element tgMastAgrInfo/MastAgrDur

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgPositiveInteger
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  99
annotation	documentation Rahmenvertragsdauer in Monaten

element tgMastAgrInfo/MastAgrEnd

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple
annotation	documentation Datum Vertragsende

element tgMastAgrInfo/MastAgrDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Datum Vertragsabschluss

element tgMastAgrInfo/MastAgrVers

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Vertragsversion

element tgMastAgrInfo/TotContrVal

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation AuftragsGesamtWert

element tgMastAgrInfo/MinContrVal

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation AuftragsMinWert (Wertgrenze fuer Kleinstauftraege)

element tgMastAgrInfo/MinContrAwd

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_5_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation AuftragsMinZuschlag (fuer Kleinstauftraege)

element tgMastAgrInfo/MaxContrVal

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation AuftragsMaxWert

element tgMastAgrInfo/ContrValCode

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgContrValCode
properties	minOcc  0 maxOcc  1 content  complex
children	Percent Number
annotation	documentation AuftragsWertSchluessel

element tgMastAgrInfo/AwardAgencyAdr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddress
properties	minOcc  0 maxOcc  1 content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Adresse der Vergabestelle

element tgMastAgrInfo/CostResponsible

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMLText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für mehrzeiligen Text textWidth   tgNormalizedString
annotation	documentation Bedarfsträger

complexType tgMastAgrItems

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	HourItem MaterialItem MarkupItemOWN MarkupItemCTR
used by	element  tgItemlist/MastAgrItems
annotation	documentation Erweiterung für Rahmenverträge

element tgMastAgrItems/HourItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgHourItem
properties	content  complex
children	Qty Description
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex
annotation	documentation Stundenlohnarbeiten

element tgMastAgrItems/MaterialItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMaterialItem
properties	content  complex
children	PredIT Description
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex
annotation	documentation Materialposition

element tgMastAgrItems/MarkupItemOWN

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMarkupItemOWN
properties	content  complex
children	RefItem Description
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex
annotation	documentation Zuschlagsposition

element tgMastAgrItems/MarkupItemCTR

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMarkupItemCTR
properties	content  complex
children	RefItem Description
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex
annotation	documentation Zuschlagsposition

complexType tgMaterialItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	PredIT Description BidUpDownPct
used by	complexType  tgMaterialItem
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex
annotation	documentation Materialposition

attribute tgMaterialItem/@ID

type	xs:ID
properties	use  required

attribute tgMaterialItem/@RNoPart

type	tgRNoPart
properties	use  required
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,14}
annotation	documentation Teil-OZ

attribute tgMaterialItem/@RNoIndex

type	tgRNoIndex
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,1}

element tgMaterialItem/PredIT

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Voraussichtlicher Gesamtbetrag

element tgMaterialItem/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDescription
properties	minOcc  0 maxOcc  1 content  complex
children	WICNo
annotation	documentation Textorganisation

element tgMaterialItem/BidUpDownPct

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBidUpDownPct
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6
annotation	documentation Auf- oder Abgebot (in %)

complexType tgMetalResources

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Resource WeigthPartValue WPU BaseValue BU BaseDELQuotation CurDELQuotation
used by	element  tgOrderItem/MetalResources

element tgMetalResources/Resource

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	content  simple
facets	Kind  Value  Annotation enumeration  AL enumeration  PB enumeration  CR enumeration  AU enumeration  CD enumeration  CU enumeration  MG enumeration  NI enumeration  PL enumeration  AG enumeration  W enumeration  ZN enumeration  SN
annotation	documentation Rohstoff AL = Aluminium PB = Blei CR = Chrom AU = Gold CD = Kadmium CU = Kupfer MG = Magnesium NI = Nickel PL = Platin AG = Silber W  = Wolfram ZN = Zink SN = Zinn

element tgMetalResources/WeigthPartValue

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Gewichtsanteilwert

element tgMetalResources/WPU

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	content  simple
annotation	documentation Gewichtanteileinheit

element tgMetalResources/BaseValue

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Basiswert

element tgMetalResources/BU

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	content  simple
annotation	documentation Basiseinheit

element tgMetalResources/BaseDELQuotation

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Basis DEL Notierung

element tgMetalResources/CurDELQuotation

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Aktuelle DEL Notierung

complexType tgMLText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	p div span br
used by	elements  tgArticle/ArtOutline tgOrderItem/BidComm tgIndivAgrInfo/CnstSiteLoc tgTextComplement/ComplBody tgTextComplement/ComplCaption tgTextComplement/ComplTail tgMastAgrInfo/CostResponsible tgMastAgrInfo/MastAgrLbl tgAddText/OutlineAddText tgOutlTxt/TextOutlTxt
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für mehrzeiligen Text textWidth   tgNormalizedString
annotation	documentation Mehrzeilige Textbeschreibung

attribute tgMLText/@style

type	tgAttStyle
annotation	documentation Oberster Style für mehrzeiligen Text

attribute tgMLText/@textWidth

type	tgNormalizedString

element tgMLText/p

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgpMLText
properties	content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Absatz

element tgMLText/div

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgdiv
properties	content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

element tgMLText/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgMLText/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

complexType tgNotifSite

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Address NotifSiteIDNo NotifSiteName AddText
used by	element  tgInvoice/NotifSite
annotation	documentation Informationen zum Benachrichtigungsort

element tgNotifSite/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddress
properties	minOcc  0 maxOcc  1 content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse Benachrichtigungsort

element tgNotifSite/NotifSiteIDNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Identifizierungs-Nummer Benachrichtigungsort

element tgNotifSite/NotifSiteName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Name Benachrichtungsort

element tgNotifSite/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

complexType tgol

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	li
used by	elements  tgFText/ol tgli/ol tgth/ol tgtd/ol
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            start   tgNormalizedString
annotation	documentation Nummerierte Liste in formatiertem Text

attribute tgol/@class

type	tgAttClass

attribute tgol/@style

type	tgAttStyle

attribute tgol/@start

type	tgNormalizedString

element tgol/li

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgli
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	p div span br ul ol
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Listenpunkt in formatiertem Text

complexType tgolTC

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	li
used by	elements  tgFTextTC/ol tgliTC/ol tgtdTC/ol
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            start   tgNormalizedString
annotation	documentation Nummerierte Liste in formatiertem Text mit Textergänzung

attribute tgolTC/@class

type	tgAttClass

attribute tgolTC/@style

type	tgAttStyle

attribute tgolTC/@start

type	tgNormalizedString

element tgolTC/li

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgliTC
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	p div span br ul ol TextComplement
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Listenpunkt in formatiertem Text

complexType tgOrder

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	DP OrderInfo SupplierInfo CustomerInfo DeliveryPlaceInfo PlannerInfo InvoiceInfo OrderItem
annotation	documentation Bestellung

element tgOrder/DP

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of xs:token
properties	content  simple
facets	Kind  Value  Annotation enumeration  93 enumeration  94 enumeration  96 enumeration  97 enumeration  98 enumeration  99
annotation	documentation GAEB-Datenaustauschphase

element tgOrder/OrderInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgOrderInfo
properties	minOcc  0 maxOcc  1 content  complex
children	Inquiry CallOrder RepOrder InquiryNo OfferNo PartNo OrderConfNo TenderDate DeliveryType DeliveryWeek DeliveryDate DeliveryTime FixedPriceDate ModeOfShipment Cur CurLbl AddText OfferFixedPriceDate OfferFixedPriceWeek CustomerBoQBkdn SupplierBoQBkdn PriceModification VAT CashDiscount Quotation SpecialPayTime Ctlg CustomerReferenceNo SupplierReferenceNo DeliveryNo DeliveryNoteVoucherDate TotalWeight UW ProvisionDate
annotation	documentation Informationen zur Bestellung

element tgOrder/SupplierInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgSupplierInfo
properties	minOcc  0 maxOcc  1 content  complex
children	IDNo Address TaxNo RegNo

element tgOrder/CustomerInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCustomerInfo
properties	minOcc  0 maxOcc  1 content  complex
children	IDNo Address

element tgOrder/DeliveryPlaceInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDeliveryPlaceInfo
properties	minOcc  0 maxOcc  1 content  complex
children	IDNo Address

element tgOrder/PlannerInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgPlannerInfo
properties	minOcc  0 maxOcc  1 content  complex
children	IDNo Address

element tgOrder/InvoiceInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInvoiceInfo
properties	minOcc  0 maxOcc  1 content  complex
children	InvoiceNo InvoiceDate Cur CurLbl StandardText ValutaDate AddText Totals InvoiceTotalsGross CashDiscount

element tgOrder/OrderItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgOrderItem
properties	minOcc  0 maxOcc  unbounded content  complex
children	ItemChara ItemType RepOrder RefItems DeliveryChara Service EAN ArtNoID ArtNo SupplierArtNoID SupplierArtNo CustomerArtNo CatalogArtNo CatalogNo Qty QU StorageGoods Description BidComm OfferPrice NetPrice PriceBasis AQU Address ModeOfShipment KindOfDate DeliveryDate DeliveryTime DeliveryWeek PriceModification PriceChara VAT ProvisionDate UserValue Dimension Weight UW TechnClarification OrderPosNo CountryOfOrigin Discountable MetalResources
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required

complexType tgOrderInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Inquiry CallOrder RepOrder InquiryNo OfferNo PartNo OrderConfNo TenderDate DeliveryType DeliveryWeek DeliveryDate DeliveryTime FixedPriceDate ModeOfShipment Cur CurLbl AddText OfferFixedPriceDate OfferFixedPriceWeek CustomerBoQBkdn SupplierBoQBkdn PriceModification VAT CashDiscount Quotation SpecialPayTime Ctlg CustomerReferenceNo SupplierReferenceNo DeliveryNo DeliveryNoteVoucherDate TotalWeight UW ProvisionDate
used by	element  tgOrder/OrderInfo

element tgOrderInfo/Inquiry

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  project-inquires enumeration  immediate needs enumeration  exhibition
annotation	documentation AnfrArt, P = Projektanfrage, S = Sofortbedarf, A = Ausstellung

element tgOrderInfo/CallOrder

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  V enumeration  CO enumeration  COfromCO enumeration  COfromOffer enumeration  CreateCOfromOffer
annotation	documentation Abrufauftrag, V =valid;   zulässig (nur D93 oder D97), CO =call order;  Abrufauftrag, COfromCO =call order for supply from a call order; Abrufauftrag zur Lieferung aus einem Abrufauftrag, COfromOffer =call order for supply from an offer; Abrufauftrag zur Lieferung aus einem Angebeot CreateCOfromOffer=create a call order from an offer; Erstellen eines Abrufauftrages aus einer Angebot

element tgOrderInfo/RepOrder

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15
annotation	documentation Nachbestellung zu Auftragsnummer

element tgOrderInfo/InquiryNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15
annotation	documentation AnfrNrKunde, Anfragenummer (Name aus D93)

element tgOrderInfo/OfferNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15
annotation	documentation AngebNrLief, Angebotsnummer (Name aus D94)

element tgOrderInfo/PartNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15
annotation	documentation BestNr, Bestellnummer (Name aus D96)

element tgOrderInfo/OrderConfNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15
annotation	documentation ABNr, Auftragsbestätigungsnummer (Name aus D97)

element tgOrderInfo/TenderDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation ErDatum, Submissionstermin (Eröffnungsdatum)

element tgOrderInfo/DeliveryType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  fixed enumeration  delivery enumeration  collection enumeration  way
annotation	documentation LieferArt, Bei Bedarf "FIX". Für DA 98 und 99 auch Lieferung, Abholung und Strecke.

element tgOrderInfo/DeliveryWeek

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgWeek
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  53
annotation	documentation Lieferwoche

element tgOrderInfo/DeliveryDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple
annotation	documentation Lieferdatum

element tgOrderInfo/DeliveryTime

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Lieferzeit

element tgOrderInfo/FixedPriceDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Preisbindungsdatum in Angebot

element tgOrderInfo/ModeOfShipment

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString30
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  30
annotation	documentation VersArt, Lieferung / Abholung / Strecke

element tgOrderInfo/Cur

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgISOCur
properties	content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation ISO   tgNormalizedString
annotation	documentation Waehrung

element tgOrderInfo/CurLbl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCurLbl
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  50
annotation	documentation Bezeichnung der Waehrung

element tgOrderInfo/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddText
properties	minOcc  0 maxOcc  1 content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusätzlicher Text zum Vorgang

element tgOrderInfo/OfferFixedPriceDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple
annotation	documentation Rückgabe für Preisanfrage (D93), Preisbindung für Angebot (D94)

element tgOrderInfo/OfferFixedPriceWeek

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgWeek
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  53
annotation	documentation Rückgabe für Preisanfrage (D93), Preisbindung für Angebot (D94)

element tgOrderInfo/CustomerBoQBkdn

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQBkdn
properties	minOcc  0 maxOcc  7 content  complex
children	Type LblBoQBkdn Length Num
annotation	documentation OZ Defintion für die OZ Referenz in OrderItem

element tgOrderInfo/SupplierBoQBkdn

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgBoQBkdn
properties	minOcc  0 maxOcc  7 content  complex
children	Type LblBoQBkdn Length Num
annotation	documentation OZ Defintion für die OZ Referenz in OrderItem

element tgOrderInfo/PriceModification

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgPriceModification
properties	minOcc  0 maxOcc  unbounded content  complex
children	Type SubQty Threshold Name Quotation DiscountPcnt DiscountAbs MarkupPcnt MarkupAbs Multiplicator
annotation	documentation Nachlässe / Zuschläge auf die gesamte Bestellung

element tgOrderInfo/VAT

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_5_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation MwSt in %

element tgOrderInfo/CashDiscount

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCashDiscount
properties	minOcc  0 maxOcc  3 content  complex
children	CashDiscDays CashDiscDate DiscountPcnt
annotation	documentation Skonto

element tgOrderInfo/Quotation

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgQuotation
properties	minOcc  0 maxOcc  unbounded content  complex
children	Kind PriceFrom PriceTo Cur CurLbl ConversionRate Weight UW WeigthPart
annotation	documentation DEL Notierung

element tgOrderInfo/SpecialPayTime

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Sonderzahlungsziel als Beschreibung.

element tgOrderInfo/Ctlg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCtlg
properties	minOcc  0 maxOcc  unbounded content  complex
children	CtlgID CtlgType CtlgName
annotation	documentation Katalog

element tgOrderInfo/CustomerReferenceNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Projekt-, Kommissionsnummer des HW. Kann in RefItems je Artikelüberschrieben werden.

element tgOrderInfo/SupplierReferenceNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Vorgangsnummer des Lieferanten.

element tgOrderInfo/DeliveryNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Lieferscheinnummer des Lieferanten

element tgOrderInfo/DeliveryNoteVoucherDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Lieferscheindatum des Lieferanten

element tgOrderInfo/TotalWeight

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Gesamtgewicht in UW

element tgOrderInfo/UW

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Gewichtseinheit

element tgOrderInfo/ProvisionDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Tatsächliches Lieferdatum

complexType tgOrderItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	ItemChara ItemType RepOrder RefItems DeliveryChara Service EAN ArtNoID ArtNo SupplierArtNoID SupplierArtNo CustomerArtNo CatalogArtNo CatalogNo Qty QU StorageGoods Description BidComm OfferPrice NetPrice PriceBasis AQU Address ModeOfShipment KindOfDate DeliveryDate DeliveryTime DeliveryWeek PriceModification PriceChara VAT ProvisionDate UserValue Dimension Weight UW TechnClarification OrderPosNo CountryOfOrigin Discountable MetalResources
used by	element  tgOrder/OrderItem
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Angebots-/Anfrage-/Bestellposition. Regeln: 1) Das Attribut ID bezieht sich in der Regel auf die ID in einer vorhandenen, vorherigen Datenaustauschphase (i.d.R. D93). 2) LiefKennZ darf nicht in D93 existieren. 3) Wenn AME nicht existiert, beziehen sich die Elemente PrBrutto, PrNetto und PrBasis auf 1 Einheit des Elementes ArtMenge.

attribute tgOrderItem/@ID

type	xs:ID
properties	use  required

element tgOrderItem/ItemChara

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  normal enumeration  alternate enumeration  provis
annotation	documentation PosKennZ, normal = Normalposition, alternate = Alternativposition, provis = Bedarfsposition,

element tgOrderItem/ItemType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  jumbo-main enumeration  jumbo-sub enumeration  articel-main enumeration  lump
annotation	documentation PosKennZ, ´jumbo-main´ = Jumbo-Hauptposition (Stücklisten-Hauptpos.) ´jumbo-sub´= Jumbo-Unterposition `artcel-main`= Reguläre Artikel-Hauptposition 'lump'=Pauschalposition zur Angabe einer pauschalen Menge zum angegebenen Preis

element tgOrderItem/RepOrder

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Nachbestellung zu Position, ID der Position

element tgOrderItem/RefItems

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRefItems
properties	minOcc  0 maxOcc  1 content  complex
children	Customer CustomerSubNo Supplier SupplierSubNo
annotation	documentation OZs, Ordnungszahlen

element tgOrderItem/DeliveryChara

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  no supply enumeration  addition enumeration  change enumeration  alternate enumeration  delivered partly, more follows enumeration  delivered partly, more not applicable
annotation	documentation LiefKennZ, 'no supply' = keine Lieferung, 'addition' = Ergänzung, 'change' = Änderung (D94), 'alternate' = Alternative, 'delivered partly, more follows' = Teilgeliefert, Rest folgt, 'delivered partly, more not applicable' = Teilgeliefert, Rest entfällt.

element tgOrderItem/Service

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Dienstleistung

element tgOrderItem/EAN

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_0
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  0
annotation	documentation EAN/GTIN-Nummer der Position. Element Substitution kann XmlSpy nicht

element tgOrderItem/ArtNoID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString13
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  13
annotation	documentation Kenn-Nummer (z.B. ILN) zu Artikelnummer, falls abweichend von IdNr des Lieferanten

element tgOrderItem/ArtNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15
annotation	documentation Artikelnummer des Lieferanten

element tgOrderItem/SupplierArtNoID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString13
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  13
annotation	documentation LiefArtNrID, ILN-Nummer (z.B. ILN) zu abweichender Artikelnummer des Lieferanten

element tgOrderItem/SupplierArtNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15
annotation	documentation LiefArtNr, Abweichende Artikelnummer des Lieferanten (z.B. Werksnummer)

element tgOrderItem/CustomerArtNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15

element tgOrderItem/CatalogArtNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	content  simple
annotation	documentation Katalog Artikelnummer

element tgOrderItem/CatalogNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Katalog Nummer

element tgOrderItem/Qty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation ArtMenge, Anfrage-, Angebots- oder Bestellmenge (je nach Datenaustauschphase)

element tgOrderItem/QU

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString4
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Mengeneinheit

element tgOrderItem/StorageGoods

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Lagerware

element tgOrderItem/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDescription
properties	minOcc  0 maxOcc  1 content  complex
children	WICNo
annotation	documentation Langtext, Kurztext

element tgOrderItem/BidComm

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMLText
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für mehrzeiligen Text textWidth   tgNormalizedString
annotation	documentation Bieter Kommentar

element tgOrderItem/OfferPrice

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_10_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  10 fractionDigits  2
annotation	documentation PrBrutto, Angebotspreis (Brutto-, Listenpreis)

element tgOrderItem/NetPrice

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_10_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  10 fractionDigits  2
annotation	documentation PrNetto, Nettopreis (Einkaufspreis des Kunden)

element tgOrderItem/PriceBasis

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_10_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  10 fractionDigits  2
annotation	documentation PrBasis, Preis bezieht sich auf "n" Einheiten (BME)

element tgOrderItem/AQU

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation AME, Abrechnungs-Mengeneinheit in Bezug auf PrBasis

element tgOrderItem/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddress
properties	minOcc  0 maxOcc  unbounded content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse für abweichenden, positionsbezogenen Lieferort

element tgOrderItem/ModeOfShipment

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation VersArt, Lieferung/Abholung/Strecke (positionsbezogen)

element tgOrderItem/KindOfDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of xs:token
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  fixed
annotation	documentation TerminArt, Bei Bedarf "FIX" (positionsbezogen)

element tgOrderItem/DeliveryDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple

element tgOrderItem/DeliveryTime

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgTime
properties	minOcc  0 maxOcc  1 content  simple

element tgOrderItem/DeliveryWeek

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgWeek
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  53

element tgOrderItem/PriceModification

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgPriceModification
properties	minOcc  0 maxOcc  unbounded content  complex
children	Type SubQty Threshold Name Quotation DiscountPcnt DiscountAbs MarkupPcnt MarkupAbs Multiplicator

element tgOrderItem/PriceChara

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Preis-Kz. (Dokumentation der Nettopreis-Ermittlung) ´1´ = Listenpreis abzgl. Rabatt 1 oder Rabatt 1 und 2 (Einzelpreis Brutto, Rabatt 1 (oder 1 und 2) und Netto-Positionswert gefüllt) ´2´ = Rabatte können nicht dargestellt werden (Einzelpreis Brutto und Netto-Positionswert gefüllt) ´3´ = Rabatte und Einzelpreis Brutto nicht darstellbar (nur Netto-Positionswert gefüllt)

element tgOrderItem/VAT

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_5_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation MwSt in %

element tgOrderItem/ProvisionDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Tatsächliches Lieferdatum Nur Im Kontext der Rechnung möglich

element tgOrderItem/UserValue

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgUserValue
properties	minOcc  0 maxOcc  unbounded content  complex
children	Name Value

element tgOrderItem/Dimension

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDimension
properties	minOcc  0 maxOcc  1 content  complex
children	UM Height Width Length

element tgOrderItem/Weight

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2

element tgOrderItem/UW

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	content  simple
annotation	documentation Gewichtseinheit, unit weight

element tgOrderItem/TechnClarification

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation technical clarification Vorbehaltlich der technischen Klärung: Yes = Ja No =Nein (kein Vorbehalt) Leer = kein Vorbehalt

element tgOrderItem/OrderPosNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Positionsnummer in der Bestellung Im Kontext des Lieferscheins und der Rechnung Pflicht

element tgOrderItem/CountryOfOrigin

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Ursprungsland

element tgOrderItem/Discountable

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Position ist Skontofähig. Mögliche 'Yes' für Skontofähig   'No' für nicht Skontofähig Nur im Kontext der Rechnung möglich und dort Pflicht

element tgOrderItem/MetalResources

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMetalResources
properties	minOcc  0 maxOcc  unbounded content  complex
children	Resource WeigthPartValue WPU BaseValue BU BaseDELQuotation CurDELQuotation
annotation	documentation Rohstoffanteile

complexType tgOrderTotals

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	VATRate ItemTotal
used by	element  tgInvoiceInfo/Totals
annotation	documentation Informationen zur Summe je MwSt-Satz

element tgOrderTotals/VATRate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_5_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation MwSt-Satz auf den sich die Angabe bezieht

element tgOrderTotals/ItemTotal

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Summe aller Positionswerte zu dem MwSt-Satz

complexType tgOutlineText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	OutlTSA OutlTxt
used by	element  tgCompleteText/OutlineText
annotation	documentation Kurztext

element tgOutlineText/OutlTSA

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Textergaenzung des Ausschreibenden im Kurztext

element tgOutlineText/OutlTxt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgOutlTxt
properties	content  complex mixed  false
children	Style TextOutlTxt TextComplement
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Kurztext

complexType tgOutlTxt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	Style TextOutlTxt TextComplement
used by	element  tgOutlineText/OutlTxt
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Kurztext

attribute tgOutlTxt/@style

type	tgAttStyle

element tgOutlTxt/Style

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgStyle
properties	minOcc  0 maxOcc  1 content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation type   derived by: tgNormalizedString
annotation	documentation Definitionen für styles

element tgOutlTxt/TextOutlTxt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMLText
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für mehrzeiligen Text textWidth   tgNormalizedString
annotation	documentation Textbeschreibung mit Einschraenkungen

element tgOutlTxt/TextComplement

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgTextComplement
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	ComplCaption ComplBodyDec ComplBodyInt ComplBody ComplTail
attributes	Name   Type   Use   Default   Fixed   Annotation ID   tgGUID   optional         MarkLbl   tgInteger   required         Kind   tgAttKind   required         Empty   tgYes   optional         ArtChrIdent   tgInteger            documentation Identifikator des STLB-Bau Beschreibungsmerkmals
annotation	documentation Textergaenzung

complexType tgOWN

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Address DPNo AwardNo AcctRecNo CntryType CntryName AddText
used by	complexType  tgOWN
annotation	documentation Informationen zum Auftraggeber

element tgOWN/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddress
properties	minOcc  0 maxOcc  1 content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des AG

element tgOWN/DPNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation DV-Nummer

element tgOWN/AwardNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Vergabenummer

element tgOWN/AcctRecNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Debitoren-Nummer

element tgOWN/CntryType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCntryType
properties	content  simple
facets	Kind  Value  Annotation enumeration  EEA enumeration  Other
annotation	documentation Art des Staates

element tgOWN/CntryName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCntryName
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  3
annotation	documentation Name des Staates (internationales Kfz-Kennzeichen)

element tgOWN/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

complexType tgp

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	span br image
used by	elements  tgFText/p tgli/p tgth/p tgtd/p
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Absatz in formatiertem Text

attribute tgp/@class

type	tgAttClass

attribute tgp/@style

type	tgAttStyle

element tgp/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgp/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

element tgp/image

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgImage
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign   optional         documentation Ausrichtung border   tgAttBorder   optional         hspace   tgNormalizedString   optional         vspace   tgNormalizedString   optional         width   tgAttWidth   optional         Type   derived by: tgNormalizedString   required         Name   tgNormalizedString   optional         Encoding   derived by: tgNormalizedString   optional   base64

complexType tgPaymentMade

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	TotalVAT DiscountAmt DiscountVATAmt Total PaymentDate InvoiceType InvoiceNo PaymentNo PaymentNote
used by	element  tgInvoice/PaymentMade

element tgPaymentMade/TotalVAT

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Summe der MwSt

element tgPaymentMade/DiscountAmt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Skontosumme

element tgPaymentMade/DiscountVATAmt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Summe der MwSt der Skontosumme

element tgPaymentMade/Total

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Zahlungssumme Netto

element tgPaymentMade/PaymentDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	content  simple
annotation	documentation Zahlungsdatum

element tgPaymentMade/InvoiceType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInvoiceType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  deduction enumeration  final account enumeration  part final account enumeration  advance payment enumeration  single invoice enumeration  pro forma invoice enumeration  reviewed invoice
annotation	documentation Art der betroffenen Rechnung

element tgPaymentMade/InvoiceNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	content  simple
annotation	documentation Rechnungsnummer

element tgPaymentMade/PaymentNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Nummer der Zahlung

element tgPaymentMade/PaymentNote

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Zusatzbeschreibung zur Zahlung

complexType tgPerfDescr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	PerfNo PerfLbl Description CONo AlterBidStatus
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Ausfuehrungsbeschreibung

attribute tgPerfDescr/@ID

type	xs:ID
properties	use  required

element tgPerfDescr/PerfNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgPerfNo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  9999
annotation	documentation Nummer der Ausfuehrungsbeschreibung

element tgPerfDescr/PerfLbl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString55
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  55
annotation	documentation Bezeichnung d. Ausfuehrungsbeschreibung

element tgPerfDescr/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDescription
properties	minOcc  0 maxOcc  unbounded content  complex
children	WICNo
annotation	documentation Textorganisation

element tgPerfDescr/CONo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCONo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Nachtragsnummer

element tgPerfDescr/AlterBidStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAlterBidStatus
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Identical documentation Gleich enumeration  N/A documentation Entfällt enumeration  Modified documentation Modifiziert enumeration  New documentation Neu
annotation	documentation NebenangebotStatus; Bei new und modified werden die kompletten Positionen übertragen. Bei N/A wird nur dieses Kennzeichen übertragen.

complexType tgPlannerInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	IDNo Address
used by	element  tgOrder/PlannerInfo
annotation	documentation Informationen zum Planer (Projektanten)

element tgPlannerInfo/IDNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Planer-Nummer

element tgPlannerInfo/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddress
properties	content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Planers

complexType tgpMLText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	span br
used by	elements  tgCostType/CostDescription tgMLText/p
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Absatz

attribute tgpMLText/@class

type	tgAttClass

attribute tgpMLText/@style

type	tgAttStyle

element tgpMLText/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgpMLText/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

complexType tgPriceModification

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Type SubQty Threshold Name Quotation DiscountPcnt DiscountAbs MarkupPcnt MarkupAbs Multiplicator
used by	elements  tgOrderInfo/PriceModification tgOrderItem/PriceModification

element tgPriceModification/Type

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of xs:token
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  info
annotation	documentation Wenn Modifikation nur Informatorisch dann ist type=info

element tgPriceModification/SubQty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_10_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  10 fractionDigits  2
annotation	documentation Teilmenge

element tgPriceModification/Threshold

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_10_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  10 fractionDigits  2
annotation	documentation Rabattschwelle (Menge) ab der der Rabatt greift

element tgPriceModification/Name

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Name des Zuschlags / Nachlasses

element tgPriceModification/Quotation

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF
annotation	documentation Reference auf Quotation, Notierung

attribute tgPriceModification/Quotation/@IDRef

type

xs:IDREF

element tgPriceModification/DiscountPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6

element tgPriceModification/DiscountAbs

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2

element tgPriceModification/MarkupPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6

element tgPriceModification/MarkupAbs

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2

element tgPriceModification/Multiplicator

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6

complexType tgPrjInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	NamePrj LblPrj Descrip Cur CurLbl BidCommPerm AlterBidPerm AddText UPFracDig
annotation	documentation Informationen zum Projekt

element tgPrjInfo/NamePrj

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Projektname

element tgPrjInfo/LblPrj

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString100
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  100
annotation	documentation Bezeichnung des Projektes

element tgPrjInfo/Descrip

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgFText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	p div span ul ol table br page Image
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für formatierten Text textWidth   tgNormalizedString
annotation	documentation Kurzbeschreibung des Projektes

element tgPrjInfo/Cur

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCur
properties	content  simple
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Waehrung

element tgPrjInfo/CurLbl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCurLbl
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  50
annotation	documentation Bezeichnung der Waehrung

element tgPrjInfo/BidCommPerm

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Bieter Kommentar zugelassen

element tgPrjInfo/AlterBidPerm

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYes
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Nebenangebot zulassen; Bei Nebenangeboten sollten die Elemente AlterBidStatus gesetzt sein

element tgPrjInfo/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

element tgPrjInfo/UPFracDig

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgUPFracDig
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minInclusive  2 maxInclusive  3
annotation	documentation Die Einheitspreise sind mit zwei oder drei Nachkommasstellen zu erstellen bzw. werden so übertragen.

complexType tgProduct

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Address AddText Article
annotation	documentation Produktinformation

element tgProduct/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddress
properties	minOcc  0 maxOcc  1 content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Herstellers

element tgProduct/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

element tgProduct/Article

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgArticle
properties	minOcc  1 maxOcc  unbounded content  complex
children	Brand ArtNo Qty QU ArtOutline AddText
annotation	documentation Informationen zu einem Artikel

complexType tgpTC

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	span br image TextComplement
used by	elements  tgFTextTC/p tgliTC/p tgtdTC/p
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Absatz in formatiertem Text mit Textergänzung

attribute tgpTC/@class

type	tgAttClass

attribute tgpTC/@style

type	tgAttStyle

element tgpTC/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgpTC/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

element tgpTC/image

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgImage
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign   optional         documentation Ausrichtung border   tgAttBorder   optional         hspace   tgNormalizedString   optional         vspace   tgNormalizedString   optional         width   tgAttWidth   optional         Type   derived by: tgNormalizedString   required         Name   tgNormalizedString   optional         Encoding   derived by: tgNormalizedString   optional   base64
annotation	documentation Bild

element tgpTC/TextComplement

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgTextComplement
properties	content  complex mixed  false
children	ComplCaption ComplBodyDec ComplBodyInt ComplBody ComplTail
attributes	Name   Type   Use   Default   Fixed   Annotation ID   tgGUID   optional         MarkLbl   tgInteger   required         Kind   tgAttKind   required         Empty   tgYes   optional         ArtChrIdent   tgInteger            documentation Identifikator des STLB-Bau Beschreibungsmerkmals
annotation	documentation Textergänzung

complexType tgQDetermItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	QTakeoff CtlgAssign
used by	element  tgQtyDeterm/QDetermItem
annotation	documentation Liste der Mengenermittlungszeilen in x80 bis x89

element tgQDetermItem/QTakeoff

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Row   tgQTakeoffRow   required         documentation Aufmasszeile
annotation	documentation Aufmasszeile

attribute tgQDetermItem/QTakeoff/@Row

type	tgQTakeoffRow
properties	use  required
facets	Kind  Value  Annotation pattern  {2,2} {9,9}.{69,69}
annotation	documentation Aufmasszeile

element tgQDetermItem/CtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCtlgAssign
properties	minOcc  0 maxOcc  unbounded content  complex
children	CtlgID CtlgCode
annotation	documentation Katalogzuordnung

complexType tgQtyDeterm

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Qty QDetermItem

element tgQtyDeterm/Qty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_11_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Aufmassmenge

element tgQtyDeterm/QDetermItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgQDetermItem
properties	minOcc  0 maxOcc  unbounded content  complex
children	QTakeoff CtlgAssign
annotation	documentation Liste der Mengenermittlungszeilen

complexType tgQtyDetermInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	MethodDescription OrdDescr ProjDescr ServiceProvisionStartDate ServiceProvisionEndDate Creator Profiler
annotation	documentation Informationen zur Mengenermittlung

element tgQtyDetermInfo/MethodDescription

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	content  simple
facets	Kind  Value  Annotation enumeration  REB23003-1979 documentation REB 23.003 Ausgabe 1979 enumeration  REB23003-2009 documentation REB 23.003 Ausgabe 2009
annotation	documentation REB Verfahrensbeschreibung

element tgQtyDetermInfo/OrdDescr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Bezeichnung des Auftrags (optional)

element tgQtyDetermInfo/ProjDescr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString80
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Bezeichnung der Baumaßnahme, des BA

element tgQtyDetermInfo/ServiceProvisionStartDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Beginn der Leistungserbringung

element tgQtyDetermInfo/ServiceProvisionEndDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Ende der Leistungserbringung

element tgQtyDetermInfo/Creator

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddress
properties	minOcc  0 maxOcc  1 content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Adresse des Erstellers

element tgQtyDetermInfo/Profiler

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddress
properties	minOcc  0 maxOcc  1 content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Adresse des Prüfers

complexType tgQtySplit

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	QtyPcnt Qty CtlgAssign
annotation	documentation Zuordnung der Teilmengen

element tgQtySplit/QtyPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6
annotation	documentation Anteilige Menge in Prozent

element tgQtySplit/Qty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_11_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Teilmenge

element tgQtySplit/CtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCtlgAssign
properties	minOcc  1 maxOcc  unbounded content  complex
children	CtlgID CtlgCode
annotation	documentation Katalogzuordnung

complexType tgQuotation

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Kind PriceFrom PriceTo Cur CurLbl ConversionRate Weight UW WeigthPart
used by	element  tgOrderInfo/Quotation
annotation	documentation Notation

element tgQuotation/Kind

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID
annotation	documentation Z.B. CU=Kupfer

attribute tgQuotation/Kind/@ID

type

xs:ID

element tgQuotation/PriceFrom

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation VON Rohstoff Tagespreis

element tgQuotation/PriceTo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation BIS Rohstoff Tagespreis

element tgQuotation/Cur

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgISOCur
properties	content  complex mixed  true
attributes	Name   Type   Use   Default   Fixed   Annotation ISO   tgNormalizedString
annotation	documentation Waehrung

element tgQuotation/CurLbl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCurLbl
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  50
annotation	documentation Bezeichnung der Waehrung

element tgQuotation/ConversionRate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6
annotation	documentation Umrechnugsfaktor

element tgQuotation/Weight

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2

element tgQuotation/UW

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	content  simple

element tgQuotation/WeigthPart

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgWeightPart
properties	minOcc  0 maxOcc  unbounded content  complex
children	Weight UW Base UnitBase
annotation	documentation Gewichtseinheit, unit weight

complexType tgRefBoQ

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
used by	element  tgWgChange/RefBoQ
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf das LV

attribute tgRefBoQ/@IDRef

type	xs:IDREF
properties	use  required

complexType tgRefBoQCtgy

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
used by	elements  tgLotGrp/RefLotNo tgWgChange/RefLotNo
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf einen LV-Bereich

attribute tgRefBoQCtgy/@IDRef

type	xs:IDREF
properties	use  required

complexType tgRefItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
used by	elements  tgMarkupSubQty/RefItem tgWgChange/RefItem tgMarkupItemCTR/RefItem tgMarkupItemOWN/RefItem tgMarkupItem/RefPerfNo tgMarkupItem/RefRNo
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required

attribute tgRefItem/@IDRef

type	xs:IDREF
properties	use  required

complexType tgRefItems

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Customer CustomerSubNo Supplier SupplierSubNo
used by	element  tgOrderItem/RefItems
annotation	documentation OZs, Ordnungszahlen

element tgRefItems/Customer

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	content  simple
annotation	documentation Positionsnummer des HW Siehe OZ in GAEB 2000 Siehe CustomerBoQBkdn Die OZ darf nicht geändert werden bie D93->D94 und D96->D97. D.h. sie muß genauso wieder zurück kommen.

element tgRefItems/CustomerSubNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Unterpositionsnummer

element tgRefItems/Supplier

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	content  simple
annotation	documentation Positionsnummer des GH Siehe SupplierBoQBkdn

element tgRefItems/SupplierSubNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Unterpositionsnummer

complexType tgRefLotGrp

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
used by	element  tgWgChange/RefLotGrNo
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf eine LosGruppe

attribute tgRefLotGrp/@IDRef

type	xs:IDREF
properties	use  required

complexType tgRemark

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Description CONo AlterBidStatus
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Hinweistext

attribute tgRemark/@ID

type	xs:ID
properties	use  required

element tgRemark/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDescription
properties	minOcc  0 maxOcc  1 content  complex
children	WICNo
annotation	documentation Textorganisation

element tgRemark/CONo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgCONo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Nachtragsnummer

element tgRemark/AlterBidStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAlterBidStatus
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Identical documentation Gleich enumeration  N/A documentation Entfällt enumeration  Modified documentation Modifiziert enumeration  New documentation Neu
annotation	documentation NebenangebotStatus; Bei new und modified werden die kompletten Positionen übertragen. Bei N/A wird nur dieses Kennzeichen übertragen.

complexType tgRequester

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Address RequestIDNo RequestName AddText
used by	element  tgInvoice/Requester
annotation	documentation Informationen zum Bedarfstraeger

element tgRequester/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddress
properties	minOcc  0 maxOcc  1 content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Bedarfstraegers

element tgRequester/RequestIDNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Identifizierungs-Nummer des Bedarfstraegers

element tgRequester/RequestName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Name des Bedarfstraegers

element tgRequester/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

complexType tgspan

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	extension of tgNormalizedString
properties	base  tgNormalizedString mixed  false
used by	elements  tgFTextTC/span tgFText/span tgMLText/span tgp/span tgpTC/span tgpMLText/span tgdiv/span tgdivTC/span tgli/span tgliTC/span tgth/span tgtd/span tgtdTC/span
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

attribute tgspan/@class

type	tgAttClass

attribute tgspan/@style

type	tgAttStyle

complexType tgSTLBBau

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	STLBBauCtlg STLBBauID
annotation	documentation Schluessel STLB-Bau

element tgSTLBBau/STLBBauCtlg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgSTLBBauCtlg
properties	content  complex
children	CtlgName VersDate WCtg Group CostGrp
annotation	documentation Schluessel fuer Katalog und Gruppe der Leistung (STLB-Bau)

element tgSTLBBau/STLBBauID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgSTLBBauID
properties	minOcc  0 maxOcc  unbounded content  complex
children	ArtChrIdent ArtChIdx ChVIdent OutlTextPart
annotation	documentation Schlüssel einer Ausprägung (STLB-Bau Identifier)

complexType tgSTLBBauCtlg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	CtlgName VersDate WCtg Group CostGrp
used by	element  tgSTLBBau/STLBBauCtlg
annotation	documentation Schluessel fuer Katalog und Gruppe der Leistung (STLB-Bau)

element tgSTLBBauCtlg/CtlgName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString10
properties	content  simple
facets	Kind  Value  Annotation maxLength  10
annotation	documentation Name des Katalogs

element tgSTLBBauCtlg/VersDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgVersDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Datum der Version des Katalogs

element tgSTLBBauCtlg/WCtg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  3
annotation	documentation Leistungsbereich

element tgSTLBBauCtlg/Group

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInteger
properties	content  simple
annotation	documentation Identifikator der Gruppe

element tgSTLBBauCtlg/CostGrp

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Kostengruppe

complexType tgSTLBBauID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	ArtChrIdent ArtChIdx ChVIdent OutlTextPart
used by	element  tgSTLBBau/STLBBauID
annotation	documentation Schlüssel einer Ausprägung (STLB-Bau Identifier)

element tgSTLBBauID/ArtChrIdent

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInteger
properties	content  simple
annotation	documentation Identifikator des Beschreibungsmerkmals

element tgSTLBBauID/ArtChIdx

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInteger
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Index zum Beschreibungsmerkmal (entfällt bei Textergaenzungen)

element tgSTLBBauID/ChVIdent

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInteger
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Identifikator der Auspraegung (entfällt bei Textergaenzungen)

element tgSTLBBauID/OutlTextPart

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYes
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Existiert nur, wenn das Beschreibungsmerkmal einen  Teil des Kurztextes liefert.

complexType tgStLNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	extension of tgStLNoText
properties	base  tgStLNoText
facets	Kind  Value  Annotation pattern  [0-9]{0,17}
attributes	Name   Type   Use   Default   Fixed   Annotation Type   derived by: tgNormalizedString

attribute tgStLNo/@Type

type	restriction of tgNormalizedString
facets	Kind  Value  Annotation enumeration  STLB-BauZ enumeration  StLB enumeration  StLK

complexType tgStyle

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	extension of tgString
properties	base  tgString mixed  true
used by	elements  tgOutlTxt/Style tgBoQText/Style
attributes	Name   Type   Use   Default   Fixed   Annotation type   derived by: tgNormalizedString

attribute tgStyle/@type

type	restriction of tgNormalizedString
facets	Kind  Value  Annotation enumeration  text/css

complexType tgSubDescr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	SubDNo Description QtySpec QtyTBD Qty QU UPSpec UPBkdn UP UPComp1 UPComp2 UPComp3 UPComp4 UPComp5 UPComp6
annotation	documentation Unterbeschreibung

element tgSubDescr/SubDNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgSubDNo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  99
annotation	documentation Nummer der Unterbeschreibung

element tgSubDescr/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDescription
properties	minOcc  0 maxOcc  1 content  complex
children	WICNo
annotation	documentation Textorganisation

element tgSubDescr/QtySpec

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYes
properties	content  simple
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Angabe der Menge erforderlich

element tgSubDescr/QtyTBD

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYes
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Kennzeichen Freie Menge

element tgSubDescr/Qty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_11_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Menge

element tgSubDescr/QU

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString4
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Mengeneinheit

element tgSubDescr/UPSpec

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Angabe des Einheitspreises erforderlich

element tgSubDescr/UPBkdn

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Aufforderung zur EP-Aufgliederung

element tgSubDescr/UP

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation Einheitspreis

element tgSubDescr/UPComp1

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 1. Einheitspreisanteil

element tgSubDescr/UPComp2

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 2. Einheitspreisanteil

element tgSubDescr/UPComp3

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 3. Einheitspreisanteil

element tgSubDescr/UPComp4

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 4. Einheitspreisanteil

element tgSubDescr/UPComp5

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 5. Einheitspreisanteil

element tgSubDescr/UPComp6

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 6. Einheitspreisanteil

complexType tgSupplierInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	IDNo Address TaxNo RegNo
used by	element  tgOrder/SupplierInfo
annotation	documentation Informationen zum Lieferanten

element tgSupplierInfo/IDNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Lieferanten-Nummer

element tgSupplierInfo/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgAddress
properties	content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Lieferanten

element tgSupplierInfo/TaxNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString80
properties	content  simple
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Steuernummer

element tgSupplierInfo/RegNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	content  simple
annotation	documentation Unternehmens / Ortsregistrierungsnummer WEEE Registrierungsnummer

complexType tgtable

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	tr
used by	elements  tgFText/table tgth/table tgtd/table
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            align   tgAttAlignTable            documentation Ausrichtung border   tgAttBorder            documentation Linien cellpadding   tgAttCellpadding            documentation Zellenabstand frame   tgAttFrame            height   tgAttHeight            width   tgAttWidth            org   tgAttOrg
annotation	documentation Tabelle

attribute tgtable/@class

type	tgAttClass

attribute tgtable/@style

type	tgAttStyle

attribute tgtable/@align

type	tgAttAlignTable
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right
annotation	documentation Ausrichtung

attribute tgtable/@border

type	tgAttBorder
annotation	documentation Linien

attribute tgtable/@cellpadding

type	tgAttCellpadding
annotation	documentation Zellenabstand

attribute tgtable/@frame

type	tgAttFrame
facets	Kind  Value  Annotation enumeration  box enumeration  hsides enumeration  void enumeration  vsides

attribute tgtable/@height

type	tgAttHeight

attribute tgtable/@width

type	tgAttWidth

attribute tgtable/@org

type	tgAttOrg
facets	Kind  Value  Annotation enumeration  TAB

element tgtable/tr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgtr
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	th td
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            align   tgAttAlign            documentation Ausrichtung valign   tgAttValign
annotation	documentation Tabellenzeile

complexType tgtableTC

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	tr
used by	elements  tgFTextTC/table tgtdTC/table
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            align   tgAttAlignTable            documentation Ausrichtung border   tgAttBorder            documentation Linien cellpadding   tgAttCellpadding            documentation Zellenabstand frame   tgAttFrame            height   tgAttHeight            width   tgAttWidth            org   tgAttOrg
annotation	documentation Tabelle mit Textergänzung

attribute tgtableTC/@class

type	tgAttClass

attribute tgtableTC/@style

type	tgAttStyle

attribute tgtableTC/@align

type	tgAttAlignTable
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right
annotation	documentation Ausrichtung

attribute tgtableTC/@border

type	tgAttBorder
annotation	documentation Linien

attribute tgtableTC/@cellpadding

type	tgAttCellpadding
annotation	documentation Zellenabstand

attribute tgtableTC/@frame

type	tgAttFrame
facets	Kind  Value  Annotation enumeration  box enumeration  hsides enumeration  void enumeration  vsides

attribute tgtableTC/@height

type	tgAttHeight

attribute tgtableTC/@width

type	tgAttWidth

attribute tgtableTC/@org

type	tgAttOrg
facets	Kind  Value  Annotation enumeration  TAB

element tgtableTC/tr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgtrTC
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	th td
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            align   tgAttAlign            documentation Ausrichtung valign   tgAttValign
annotation	documentation Tabellenzeile

complexType tgtd

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	p div span br table ol ul
used by	element  tgtr/td
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            align   tgAttAlign            documentation Ausrichtung colspan   tgAttColspan            documentation Spaltenzusammenfassung rowspan   tgAttRowspan            valign   tgAttValign
annotation	documentation Zelle einer Tabelle

attribute tgtd/@class

type	tgAttClass

attribute tgtd/@style

type	tgAttStyle

attribute tgtd/@align

type	tgAttAlign
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right enumeration  justify
annotation	documentation Ausrichtung

attribute tgtd/@colspan

type	tgAttColspan
annotation	documentation Spaltenzusammenfassung

attribute tgtd/@rowspan

type	tgAttRowspan

attribute tgtd/@valign

type	tgAttValign
facets	Kind  Value  Annotation enumeration  bottom enumeration  middle enumeration  top

element tgtd/p

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgp
properties	content  complex mixed  false
children	span br image
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Absatz in formatiertem Text

element tgtd/div

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgdiv
properties	content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

element tgtd/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgtd/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

element tgtd/table

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgtable
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	tr
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            align   tgAttAlignTable            documentation Ausrichtung border   tgAttBorder            documentation Linien cellpadding   tgAttCellpadding            documentation Zellenabstand frame   tgAttFrame            height   tgAttHeight            width   tgAttWidth            org   tgAttOrg
annotation	documentation Tabelle

element tgtd/ol

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgol
properties	content  complex mixed  false
children	li
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            start   tgNormalizedString
annotation	documentation Nummerierte Liste

element tgtd/ul

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgul
properties	content  complex mixed  false
children	li
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Aufzählungsliste

complexType tgtdTC

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	p div span br table ol ul TextComplement
used by	element  tgtrTC/td
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            align   tgAttAlign            documentation Ausrichtung colspan   tgAttColspan            documentation Spaltenzusammenfassung rowspan   tgAttRowspan            valign   tgAttValign
annotation	documentation Zelle einer Tabelle mit Textergänzung

attribute tgtdTC/@class

type	tgAttClass

attribute tgtdTC/@style

type	tgAttStyle

attribute tgtdTC/@align

type	tgAttAlign
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right enumeration  justify
annotation	documentation Ausrichtung

attribute tgtdTC/@colspan

type	tgAttColspan
annotation	documentation Spaltenzusammenfassung

attribute tgtdTC/@rowspan

type	tgAttRowspan

attribute tgtdTC/@valign

type	tgAttValign
facets	Kind  Value  Annotation enumeration  bottom enumeration  middle enumeration  top

element tgtdTC/p

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgpTC
properties	content  complex mixed  false
children	span br image TextComplement
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Absatz in formatiertem Text

element tgtdTC/div

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgdivTC
properties	content  complex mixed  false
children	span br TextComplement
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

element tgtdTC/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgtdTC/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

element tgtdTC/table

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgtableTC
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	tr
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            align   tgAttAlignTable            documentation Ausrichtung border   tgAttBorder            documentation Linien cellpadding   tgAttCellpadding            documentation Zellenabstand frame   tgAttFrame            height   tgAttHeight            width   tgAttWidth            org   tgAttOrg
annotation	documentation Tabelle

element tgtdTC/ol

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgolTC
properties	content  complex mixed  false
children	li
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            start   tgNormalizedString
annotation	documentation Nummerierte Liste

element tgtdTC/ul

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgulTC
properties	content  complex mixed  false
children	li
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Aufzählungsliste

element tgtdTC/TextComplement

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgTextComplement
properties	content  complex mixed  false
children	ComplCaption ComplBodyDec ComplBodyInt ComplBody ComplTail
attributes	Name   Type   Use   Default   Fixed   Annotation ID   tgGUID   optional         MarkLbl   tgInteger   required         Kind   tgAttKind   required         Empty   tgYes   optional         ArtChrIdent   tgInteger            documentation Identifikator des STLB-Bau Beschreibungsmerkmals
annotation	documentation Textergänzung

complexType tgTextComplement

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	ComplCaption ComplBodyDec ComplBodyInt ComplBody ComplTail
used by	elements  tgOutlTxt/TextComplement tgBoQText/TextComplement tgFTextTC/TextComplement tgpTC/TextComplement tgdivTC/TextComplement tgliTC/TextComplement tgtdTC/TextComplement
attributes	Name   Type   Use   Default   Fixed   Annotation ID   tgGUID   optional         MarkLbl   tgInteger   required         Kind   tgAttKind   required         Empty   tgYes   optional         ArtChrIdent   tgInteger            documentation Identifikator des STLB-Bau Beschreibungsmerkmals
annotation	documentation Textergaenzung

attribute tgTextComplement/@ID

type	tgGUID
properties	use  optional
facets	Kind  Value  Annotation maxLength  36

attribute tgTextComplement/@MarkLbl

type	tgInteger
properties	use  required

attribute tgTextComplement/@Kind

type	tgAttKind
properties	use  required
facets	Kind  Value  Annotation enumeration  Bidder enumeration  Owner

attribute tgTextComplement/@Empty

type	tgYes
properties	use  optional
facets	Kind  Value  Annotation enumeration  Yes

attribute tgTextComplement/@ArtChrIdent

type	tgInteger
annotation	documentation Identifikator des STLB-Bau Beschreibungsmerkmals

element tgTextComplement/ComplCaption

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMLText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für mehrzeiligen Text textWidth   tgNormalizedString
annotation	documentation Textergaenzung Anfang

element tgTextComplement/ComplBodyDec

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgComplBodyDec
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Value   tgDecimal
annotation	documentation In ComplBody wird der Inhalt wiederholt

element tgTextComplement/ComplBodyInt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgComplBodyInt
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Value   tgInteger
annotation	documentation In ComplBody wird der Inhalt wiederholt

element tgTextComplement/ComplBody

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMLText
properties	content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für mehrzeiligen Text textWidth   tgNormalizedString
annotation	documentation Textergaenzung Hauptteil

element tgTextComplement/ComplTail

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgMLText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle            documentation Oberster Style für mehrzeiligen Text textWidth   tgNormalizedString
annotation	documentation Textergaenzung Ende

complexType tgth

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	p div span br table ul ol
used by	elements  tgtr/th tgtrTC/th
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            align   tgAttAlign            documentation Ausrichtung valign   tgAttValign
annotation	documentation Tabellenkopf

attribute tgth/@class

type	tgAttClass

attribute tgth/@style

type	tgAttStyle

attribute tgth/@align

type	tgAttAlign
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right enumeration  justify
annotation	documentation Ausrichtung

attribute tgth/@valign

type	tgAttValign
facets	Kind  Value  Annotation enumeration  bottom enumeration  middle enumeration  top

element tgth/p

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgp
properties	content  complex mixed  false
children	span br image
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Absatz in formatiertem Text

element tgth/div

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgdiv
properties	content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

element tgth/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgth/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

element tgth/table

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgtable
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	tr
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            align   tgAttAlignTable            documentation Ausrichtung border   tgAttBorder            documentation Linien cellpadding   tgAttCellpadding            documentation Zellenabstand frame   tgAttFrame            height   tgAttHeight            width   tgAttWidth            org   tgAttOrg
annotation	documentation Tabelle

element tgth/ul

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgul
properties	content  complex mixed  false
children	li
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Aufzählungsliste

element tgth/ol

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgol
properties	content  complex mixed  false
children	li
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            start   tgNormalizedString
annotation	documentation Nummerierte Liste

complexType tgTotalNetUpComp

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	UpComp1 UpComp2 UpComp3 UpComp4 UpComp5 UpComp6
used by	element  tgTotals/TotalNetUpComp
annotation	documentation Bruttobeträge der Einheitspreisanteile

element tgTotalNetUpComp/UpComp1

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Nettobetrag des 1. EP-Anteils

element tgTotalNetUpComp/UpComp2

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Nettobetrag des 2. EP-Anteils

element tgTotalNetUpComp/UpComp3

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Nettobetrag des 3. EP-Anteils

element tgTotalNetUpComp/UpComp4

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Nettobetrag des 4. EP-Anteils

element tgTotalNetUpComp/UpComp5

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Nettobetrag des 5. EP-Anteils

element tgTotalNetUpComp/UpComp6

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Nettobetrag des 6. EP-Anteils

complexType tgTotals

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Total DiscountPcnt DiscountAmt TotAfterDisc TotalLSUM VAT TotalNet TotalNetUpComp VATPart VATAmount TotalGross
used by	element  tgLotGrp/Totals
annotation	documentation Summen

element tgTotals/Total

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Summe

element tgTotals/DiscountPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6
annotation	documentation Prozentualer Nachlass

element tgTotals/DiscountAmt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Absoluter Nachlass

element tgTotals/TotAfterDisc

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Summe nach Nachlass

element tgTotals/TotalLSUM

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Pauschalsumme

element tgTotals/VAT

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_5_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation Umsatzsteuersatz in %

element tgTotals/TotalNet

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Netto-Summe mit Berücksichtigung von Nachlässen

element tgTotals/TotalNetUpComp

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgTotalNetUpComp
properties	minOcc  0 maxOcc  1 content  complex
children	UpComp1 UpComp2 UpComp3 UpComp4 UpComp5 UpComp6
annotation	documentation Nettobeträge der Einheitspreisanteile

element tgTotals/VATPart

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgVATPart
properties	minOcc  0 maxOcc  unbounded content  complex
children	TotalNetPart VATAmount
attributes	Name   Type   Use   Default   Fixed   Annotation VATPcnt   tgDecimal_5_2            documentation Umsatzsteuersatz in %
annotation	documentation Umsatzsteuersatz

element tgTotals/VATAmount

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Umsatzsteuerbetrag

element tgTotals/TotalGross

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Summe mit Beruecksichtigung von Nachlaessen und Umsatzsteuer

complexType tgtr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	th td
used by	element  tgtable/tr
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            align   tgAttAlign            documentation Ausrichtung valign   tgAttValign
annotation	documentation Tabellenzeile

attribute tgtr/@class

type	tgAttClass

attribute tgtr/@style

type	tgAttStyle

attribute tgtr/@align

type	tgAttAlign
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right enumeration  justify
annotation	documentation Ausrichtung

attribute tgtr/@valign

type	tgAttValign
facets	Kind  Value  Annotation enumeration  bottom enumeration  middle enumeration  top

element tgtr/th

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgth
properties	minOcc  0 maxOcc  unbounded content  complex
children	p div span br table ul ol
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            align   tgAttAlign            documentation Ausrichtung valign   tgAttValign
annotation	documentation Tabellenkopf

element tgtr/td

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgtd
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	p div span br table ol ul
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            align   tgAttAlign            documentation Ausrichtung colspan   tgAttColspan            documentation Spaltenzusammenfassung rowspan   tgAttRowspan            valign   tgAttValign
annotation	documentation Zelle einer Tabelle

complexType tgtrTC

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	th td
used by	element  tgtableTC/tr
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            align   tgAttAlign            documentation Ausrichtung valign   tgAttValign
annotation	documentation Tabellenzeile mit Textergänzung

attribute tgtrTC/@class

type	tgAttClass

attribute tgtrTC/@style

type	tgAttStyle

attribute tgtrTC/@align

type	tgAttAlign
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right enumeration  justify
annotation	documentation Ausrichtung

attribute tgtrTC/@valign

type	tgAttValign
facets	Kind  Value  Annotation enumeration  bottom enumeration  middle enumeration  top

element tgtrTC/th

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgth
properties	minOcc  0 maxOcc  unbounded content  complex
children	p div span br table ul ol
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            align   tgAttAlign            documentation Ausrichtung valign   tgAttValign
annotation	documentation Tabellenkopf

element tgtrTC/td

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgtdTC
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	p div span br table ol ul TextComplement
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle            align   tgAttAlign            documentation Ausrichtung colspan   tgAttColspan            documentation Spaltenzusammenfassung rowspan   tgAttRowspan            valign   tgAttValign
annotation	documentation Zelle einer Tabelle

complexType tgul

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	li
used by	elements  tgFText/ul tgli/ul tgth/ul tgtd/ul
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Aufzählungsliste in formatiertem Text

attribute tgul/@class

type	tgAttClass

attribute tgul/@style

type	tgAttStyle

element tgul/li

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgli
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	p div span br ul ol
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Listenpunkt in formatiertem Text

complexType tgulTC

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
properties	mixed  false
children	li
used by	elements  tgFTextTC/ul tgliTC/ul tgtdTC/ul
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Aufzählungsliste in formatiertem Text mit Textergänzung

attribute tgulTC/@class

type	tgAttClass

attribute tgulTC/@style

type	tgAttStyle

element tgulTC/li

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgliTC
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	p div span br ul ol TextComplement
attributes	Name   Type   Use   Default   Fixed   Annotation class   tgAttClass            style   tgAttStyle
annotation	documentation Listenpunkt in formatiertem Text

complexType tgUserValue

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Name Value
used by	element  tgOrderItem/UserValue

element tgUserValue/Name

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	content  simple

element tgUserValue/Value

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple

complexType tgVATPart

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	TotalNetPart VATAmount
used by	element  tgTotals/VATPart
attributes	Name   Type   Use   Default   Fixed   Annotation VATPcnt   tgDecimal_5_2            documentation Umsatzsteuersatz in %
annotation	documentation Umsatzsatzsteuersatz mit Anteil

attribute tgVATPart/@VATPcnt

type	tgDecimal_5_2
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation Umsatzsteuersatz in %

element tgVATPart/TotalNetPart

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Netto-Summe aller Elemente mit den Umsatzsteuersatz VATPcnt. Hinweis: Falls Nachlässe auf Elemente mit unterschiedlichen Umsatzsteuersätzen wirken, dann ist der jeweilige Nachlassbetrag auf die Teilsummen zu verteilen. Das Verteilungsgewicht ist das Verhältnis des Teilbetrages zur Summe der jeweiliegen Gruppenstufe/LV. Ein Rundungsrest ist der größten Teilsumme, bei mehreren größten der mit dem höreren Steuersatz, zuzuschlagen.

element tgVATPart/VATAmount

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Umsatzsteuerbetrag für den Umsatzsteuersatz VATPcnt

complexType tgWeightPart

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	Weight UW Base UnitBase
used by	element  tgQuotation/WeigthPart
annotation	documentation Gewichtseinheit, unit weight

element tgWeightPart/Weight

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Gewicht

element tgWeightPart/UW

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	content  simple
annotation	documentation Gewichtseinheit

element tgWeightPart/Base

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Basis

element tgWeightPart/UnitBase

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Basiseinheit

complexType tgWgChange

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
children	LblRefWage RedPriceComp RefBoQ RefLotNo RefLotGrNo RefItem WgChangeRate
annotation	documentation Lohnaenderung

element tgWgChange/LblRefWage

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString120
properties	content  simple
facets	Kind  Value  Annotation maxLength  120
annotation	documentation Bezeichnung massgebender Lohn

element tgWgChange/RedPriceComp

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6
annotation	documentation Minderung der Preise in Prozent

element tgWgChange/RefBoQ

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRefBoQ
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf das LV

element tgWgChange/RefLotNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRefBoQCtgy
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Los

element tgWgChange/RefLotGrNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRefLotGrp
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Losgruppe

element tgWgChange/RefItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgRefItem
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Position

element tgWgChange/WgChangeRate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_6_4
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  6 fractionDigits  4
annotation	documentation Faktor der Lohnaenderung

simpleType tgAccepted

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgMarkupItem/Accepted
facets	Kind  Value  Annotation enumeration  AltAccept enumeration  BasReject
annotation	documentation Beauftragt

simpleType tgALNGroupNo

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNonNegativeInteger
properties	base  tgNonNegativeInteger
used by	element  tgMarkupItem/ALNGroupNo
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Gruppennummer der Zuordnungszahl zur Kennzeichnung zusammengehoerender Grund- und alternativer Ausfuehrungen.

simpleType tgALNSerNo

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNonNegativeInteger
properties	base  tgNonNegativeInteger
used by	element  tgMarkupItem/ALNSerNo
facets	Kind  Value  Annotation maxInclusive  9
annotation	documentation Laufende Nummer der Zuordnungszahl

simpleType tgAlterBidStatus

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgRemark/AlterBidStatus tgPerfDescr/AlterBidStatus tgMarkupItem/AlterBidStatus
facets	Kind  Value  Annotation enumeration  Identical documentation Gleich enumeration  N/A documentation Entfällt enumeration  Modified documentation Modifiziert enumeration  New documentation Neu
annotation	documentation NebenangebotStatus; Bei new und modified werden die kompletten Positionen übertragen. Bei N/A wird nur die TeilOZ und dieses Kennzeichen übertragen.

simpleType tgAttAlign

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	attributes  tgtr/@align tgtrTC/@align tgth/@align tgtd/@align tgtdTC/@align tgImage/@align
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right enumeration  justify
annotation	documentation Attribut fuer Ausrichtung

simpleType tgAttAlignTable

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	attributes  tgtable/@align tgtableTC/@align
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right
annotation	documentation Attribut fuer Ausrichtung

simpleType tgAttBorder

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInteger
properties	base  tgInteger
used by	attributes  tgtable/@border tgtableTC/@border tgImage/@border
annotation	documentation Attribut fuer Linien

simpleType tgAttCellpadding

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	base  tgNormalizedString
used by	attributes  tgtable/@cellpadding tgtableTC/@cellpadding
annotation	documentation Attribut für Zellenabstand

simpleType tgAttClass

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	base  tgNormalizedString
used by	attributes  tgp/@class tgpTC/@class tgpMLText/@class tgspan/@class tgdiv/@class tgdivTC/@class tgul/@class tgulTC/@class tgol/@class tgolTC/@class tgli/@class tgliTC/@class tgtable/@class tgtableTC/@class tgtr/@class tgtrTC/@class tgth/@class tgtd/@class tgtdTC/@class
annotation	documentation Der Wertevorrat des Class Attributes wird in der Dokumentation erklaert

simpleType tgAttColspan

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInteger
properties	base  tgInteger
used by	attributes  tgtd/@colspan tgtdTC/@colspan
annotation	documentation Attribut für Spaltenzusammenfassung

simpleType tgAttFrame

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	attributes  tgtable/@frame tgtableTC/@frame
facets	Kind  Value  Annotation enumeration  box enumeration  hsides enumeration  void enumeration  vsides
annotation	documentation Attribut für Rahmen

simpleType tgAttHeight

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	base  tgNormalizedString
used by	attributes  tgtable/@height tgtableTC/@height
annotation	documentation Attribut für Höhe

simpleType tgAttKind

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	attribute  tgTextComplement/@Kind
facets	Kind  Value  Annotation enumeration  Bidder enumeration  Owner
annotation	documentation Attribut fuer Textergaenzung

simpleType tgAttOrg

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of xs:normalizedString
properties	base  xs:normalizedString
used by	attributes  tgtable/@org tgtableTC/@org
facets	Kind  Value  Annotation enumeration  TAB

simpleType tgAttRowspan

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgInteger
properties	base  tgInteger
used by	attributes  tgtd/@rowspan tgtdTC/@rowspan
annotation	documentation Attribut für Zeilenzusammenfassung

simpleType tgAttStyle

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	base  tgNormalizedString
used by	attributes  tgOutlTxt/@style tgBoQText/@style tgFTextTC/@style tgFText/@style tgMLText/@style tgp/@style tgpTC/@style tgpMLText/@style tgspan/@style tgdiv/@style tgdivTC/@style tgul/@style tgulTC/@style tgol/@style tgolTC/@style tgli/@style tgliTC/@style tgtable/@style tgtableTC/@style tgtr/@style tgtrTC/@style tgth/@style tgtd/@style tgtdTC/@style
annotation	documentation Der Wertevorrat des Style Attributes wird in der Dokumentation erklaert

simpleType tgAttValign

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	attributes  tgtr/@valign tgtrTC/@valign tgth/@valign tgtd/@valign tgtdTC/@valign
facets	Kind  Value  Annotation enumeration  bottom enumeration  middle enumeration  top
annotation	documentation Attribut für vertikale Ausrichtung

simpleType tgAttWidth

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString
properties	base  tgNormalizedString
used by	attributes  tgtable/@width tgtableTC/@width tgImage/@width
annotation	documentation Attribut für Breite

simpleType tgBidUpDownPct

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgDecimal_9_6
properties	base  tgDecimal_9_6
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6

simpleType tgBoQBkdnLength

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgPositiveInteger
properties	base  tgPositiveInteger
used by	element  tgBoQBkdn/Length
facets	Kind  Value  Annotation maxInclusive  14

simpleType tgBoQBkdnType

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	simpleType  tgBoQBkdnType
facets	Kind  Value  Annotation enumeration  Lot enumeration  BoQLevel enumeration  Item enumeration  Index

simpleType tgbr

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgFTextTC/br tgFText/br tgMLText/br tgp/br tgpTC/br tgpMLText/br tgdiv/br tgdivTC/br tgli/br tgliTC/br tgth/br tgtd/br tgtdTC/br
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

simpleType tgCat

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation enumeration  OpenProc documentation Offenes Verfahren enumeration  ClosedProc documentation Nichtoffenes Verfahren enumeration  NegProc documentation Verhandlungsverfahren documentation Neu: Verhandlungsverfahren ohne Vergabebekanntmachung enumeration  OpenCall documentation Oeffentliche Ausschreibung enumeration  SelectCall documentation Beschraenkte Ausschreibung documentation Neu: Beschränkte Ausschreibung ohne öffentlichen Teilnahmewettbewerb enumeration  NegCont documentation Freihaendige Vergabe enumeration  IntNATO documentation Internationale NATO-Ausschreibung enumeration  SelectCallPostOpen documentation Beschränkte Ausschreibung nach öffentlichen Teilnahmewettbewerb enumeration  NegProcOpen documentation Verhandlungsverfahren mit Vergabebekanntmachung enumeration  CompetDialog documentation Wettbewerblicher Dialog
annotation	documentation Vergabeart

simpleType tgCertific

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgGAEBInfo/Certific
facets	Kind  Value  Annotation enumeration  Available

simpleType tgCheckNoteState

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgCheckNote/State
facets	Kind  Value  Annotation enumeration  approved enumeration  partially approved enumeration  unapproved
annotation	documentation Satus des Prüfvermerk

simpleType tgCntryName

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation maxLength  3
annotation	documentation Name des Staates (internationales Kfz-Kennzeichen)

simpleType tgCntryType

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation enumeration  EEA enumeration  Other
annotation	documentation Art des Staates

simpleType tgCONo

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNonNegativeInteger
properties	base  tgNonNegativeInteger
used by	elements  tgCOInfo/CONo tgRemark/CONo tgPerfDescr/CONo tgMarkupItem/CONo
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Nachtragsnummer [0] - Hauptauftrag [1] - 1. Nachtrag [2] - 2. Nachtrag [999] - kompletter Auftragsbestand

simpleType tgCOPhase

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgCOInfo/COPhase
facets	Kind  Value  Annotation enumeration  CallChangOrder enumeration  SupplBid enumeration  SupplAgree
annotation	documentation Datenaustauschphase bei Nachtraegen

simpleType tgCOStatus

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgCOInfo/COStatus tgMarkupItem/COStatus
facets	Kind  Value  Annotation enumeration  Recog documentation erkannt enumeration  Filed documentation angemeldet enumeration  Offered documentation angeboten enumeration  Withdrawn documentation zurückgezogen enumeration  Rejected documentation abgelehnt enumeration  ObjToRecj documentation Widerspruch zur Ablehnun enumeration  FormAckn documentation sachlich anerkannt enumeration  Approved documentation genehmigt
annotation	documentation Status des Nachtrags

simpleType tgCtlgID

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString100
properties	base  tgNormalizedString100
used by	element  tgCtlg/CtlgID
facets	Kind  Value  Annotation maxLength  100

simpleType tgCtlgName

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgNormalizedString80
properties	base  tgNormalizedString80
used by	element  tgCtlg/CtlgName
facets	Kind  Value  Annotation maxLength  80

simpleType tgCtlgType

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgCtlg/CtlgType
facets	Kind  Value  Annotation enumeration  cost group DIN 276-81 enumeration  cost group DIN 276-93 enumeration  cost group DIN 276-06 enumeration  cost group DIN 276-1 2008-12 enumeration  locality enumeration  work category enumeration  cost unit enumeration  miscellaneous

simpleType tgCur

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgPrjInfo/Cur
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Waehrung

simpleType tgCurLbl

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgPrjInfo/CurLbl tgOrderInfo/CurLbl tgInvoiceInfo/CurLbl tgQuotation/CurLbl
facets	Kind  Value  Annotation maxLength  50
annotation	documentation Bezeichnung der Waehrung

simpleType tgDate

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	xs:date
properties	base  xs:date
used by	elements  tgCashDiscount/CashDiscDate tgCheckNote/CheckDate tgAwardInfo/CnstEnd tgAwardInfo/CnstStart tgCOInfo/CODate tgAwardInfo/ContrDate tgMaintInfo/ContrTransDate tgBoQInfo/Date tgGAEBInfo/Date tgOrderInfo/DeliveryDate tgOrderItem/DeliveryDate tgOrderInfo/FixedPriceDate tgInsAs/InsAsDate tgInvoiceInfo/InvoiceDate tgInvoiceMadeOut/InvoiceDate tgInvoiceHeader/InvoiceDate tgMastAgrInfo/MastAgrBeg tgMastAgrInfo/MastAgrDate tgMastAgrInfo/MastAgrEnd tgOrderInfo/OfferFixedPriceDate tgPaymentMade/PaymentDate tgOrderInfo/ProvisionDate tgOrderItem/ProvisionDate tgQtyDetermInfo/ServiceProvisionEndDate tgInvoiceHeader/ServiceProvisionEndDate tgQtyDetermInfo/ServiceProvisionStartDate tgInvoiceHeader/ServiceProvisionStartDate tgOrderInfo/TenderDate tgInvoiceInfo/ValutaDate
annotation	documentation Datum

simpleType tgDecimal

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	xs:decimal
properties	base  xs:decimal
used by	elements  tgDimension/Height tgDimension/Length tgDimension/Width attribute  tgComplBodyDec/@Value

simpleType tgDecimal_10_2

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of xs:decimal
properties	base  xs:decimal
used by	elements  tgOrderItem/NetPrice tgOrderItem/OfferPrice tgOrderItem/PriceBasis tgPriceModification/SubQty tgPriceModification/Threshold
facets	Kind  Value  Annotation totalDigits  10 fractionDigits  2

simpleType tgDecimal_11_3

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of xs:decimal
properties	base  xs:decimal
used by	elements  tgQtySplit/Qty tgSubDescr/Qty tgArticle/Qty tgQtyDeterm/Qty tgHourItem/Qty tgItem/Qty tgMarkupSubQty/SubQty
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Dezimalwert mit insgesamt 11 Stellen, davon 3 nach dem Komma

simpleType tgDecimal_13_0

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of xs:decimal
properties	base  xs:decimal
used by	element  tgOrderItem/EAN
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  0

simpleType tgDecimal_13_2

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of xs:decimal
properties	base  xs:decimal
used by	elements  tgWeightPart/Base tgMetalResources/BaseDELQuotation tgMetalResources/BaseValue tgMetalResources/CurDELQuotation tgPriceModification/DiscountAbs tgTotals/DiscountAmt tgPaymentMade/DiscountAmt tgPaymentMade/DiscountVATAmt tgInvoiceInfo/InvoiceTotalsGross tgMarkupItem/IT tgOrderTotals/ItemTotal tgMarkupItem/ITMarkup tgPriceModification/MarkupAbs tgMastAgrInfo/MaxContrVal tgMastAgrInfo/MinContrVal tgMaterialItem/PredIT tgQuotation/PriceFrom tgQuotation/PriceTo tgOrderItem/Qty tgTotals/TotAfterDisc tgTotals/Total tgInvoiceMadeOut/Total tgInvoiceShare/Total tgPaymentMade/Total tgTotals/TotalGross tgInvoice/TotalGross tgTotals/TotalLSUM tgTotals/TotalNet tgVATPart/TotalNetPart tgPaymentMade/TotalVAT tgInvoiceMadeOut/TotalVAT tgOrderInfo/TotalWeight tgMastAgrInfo/TotContrVal tgTotalNetUpComp/UpComp1 tgTotalNetUpComp/UpComp2 tgTotalNetUpComp/UpComp3 tgTotalNetUpComp/UpComp4 tgTotalNetUpComp/UpComp5 tgTotalNetUpComp/UpComp6 tgVATPart/VATAmount tgTotals/VATAmount tgOrderItem/Weight tgQuotation/Weight tgWeightPart/Weight tgMetalResources/WeigthPartValue
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Dezimalwert mit insgesamt 13 Stellen, davon 2 nach dem Komma

simpleType tgDecimal_13_3

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of xs:decimal
properties	base  xs:decimal
used by	elements  tgCostApproach/CostApproachQty tgCostApproach/Performance tgSubDescr/UP tgSubDescr/UPComp1 tgSubDescr/UPComp2 tgSubDescr/UPComp3 tgSubDescr/UPComp4 tgSubDescr/UPComp5 tgSubDescr/UPComp6 tgCostApproach/Value
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation Dezimalwert mit insgesamt 13 Stellen, davon 3 nach dem Komma

simpleType tgDecimal_5_2

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of xs:decimal
properties	base  xs:decimal
used by	elements  tgMastAgrInfo/MinContrAwd tgTotals/VAT tgOrderInfo/VAT tgOrderItem/VAT tgOrderTotals/VATRate attribute  tgVATPart/@VATPcnt
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation Dezimalwert mit insgesamt 5 Stellen, davon 2 nach dem Komma

simpleType tgDecimal_6_4

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of xs:decimal
properties	base  xs:decimal
used by	element  tgWgChange/WgChangeRate
facets	Kind  Value  Annotation totalDigits  6 fractionDigits  4
annotation	documentation Dezimalwert mit insgesamt 6 Stellen, davon 4 nach dem Komma

simpleType tgDecimal_9_6

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of xs:decimal
properties	base  xs:decimal
used by	elements  tgQuotation/ConversionRate tgTotals/DiscountPcnt tgMarkupItem/DiscountPcnt tgCashDiscount/DiscountPcnt tgPriceModification/DiscountPcnt tgCostType/Markup tgMarkupItem/Markup tgPriceModification/MarkupPcnt tgPriceModification/Multiplicator tgContrValCode/Percent tgInvoiceShare/Percent tgQtySplit/QtyPcnt tgWgChange/RedPriceComp simpleType  tgBidUpDownPct
facets	Kind  Value  Annotation totalDigits  9 fractionDigits  6
annotation	documentation Dezimalwert (Prozent) mit insgesamt 9 Stellen, davon 6 nach dem Komma

simpleType tgDP

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	simpleType  tgDP
facets	Kind  Value  Annotation enumeration  31 documentation Mengenermittlung enumeration  52 documentation Kalkulationsdaten enumeration  80 documentation LV Katalog enumeration  81 documentation Leistungsbeschreibung enumeration  82 documentation Kostenanschlag enumeration  83 documentation Angebotsaufforderung enumeration  83Z documentation Angebotsaufforderung (Zeitvertragsarbeiten) enumeration  84 documentation Angebotsabgabe enumeration  84Z documentation Angebotsabgabe (Auf- und Abgebotsverfahren) (Zeitvertragsarbeiten) enumeration  85 documentation Nebenangebot enumeration  86 documentation Auftragserteilung enumeration  86ZR documentation Rahmenauftrag (Zeitvertragsarbeiten) enumeration  86ZE documentation Einzelauftrag (Zeitvertragsarbeiten) enumeration  87 documentation Auftragsbestätigung enumeration  89 documentation Rechnung enumeration  93 documentation Preisanfrage enumeration  94 documentation Preisangebot enumeration  96 documentation Bestellung enumeration  97 documentation Auftragsbestätigung enumeration  98 documentation Lieferschein enumeration  99 documentation Rechnung

simpleType tgGAEBVersDate

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of xs:gYearMonth
properties	base  xs:gYearMonth
used by	element  tgGAEBInfo/VersDate
facets	Kind  Value  Annotation enumeration  2014-03
annotation	documentation GAEB Versionsdatum

simpleType tgGUID

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	attribute  tgTextComplement/@ID
facets	Kind  Value  Annotation maxLength  36
annotation	documentation Globally Unique Identifier ( 36 Stellen mit '-' ala Windows und ohne '-' 32 )

simpleType tgHoldOutType

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation enumeration  BaseUseItem enumeration  ExtUseItem enumeration  RentUseItem

simpleType tgHourIt

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	base  tgYesNo
used by	element  tgMarkupItem/HourIt
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Stundenlohnarbeiten

simpleType tgIBAN

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgBank/IBAN
facets	Kind  Value  Annotation maxLength  34 pattern  [a-zA-Z0-9]*
annotation	documentation International Bank Account Number

simpleType tgInteger

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	xs:integer
properties	base  xs:integer
used by	elements  tgSTLBBauID/ArtChIdx tgSTLBBauID/ArtChrIdent tgSTLBBauID/ChVIdent tgSTLBBauCtlg/Group tgInvoiceHeader/SequentialNo simpleTypes  tgAttBorder tgAttColspan tgAttRowspan tgUPFracDig attributes  tgTextComplement/@ArtChrIdent tgTextComplement/@MarkLbl tgComplBodyInt/@Value

simpleType tgInvoiceShareType

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgInvoiceShare/InvoiceShareType
facets	Kind  Value  Annotation enumeration  basic amount enumeration  security deposit for fulfillment of a contract enumeration  security deposit for requirements off defects enumeration  security deposit enumeration  contract penalty enumeration  construction sign building-blackboard enumeration  power consumed on site enumeration  water enumeration  preparation enumeration  insurance against builder's risk enumeration  construction withholding tax enumeration  other type of discount enumeration  amount payments received enumeration  amount invoices enumeration  outstanding amount enumeration  subtotal enumeration  small contract extra amount enumeration  percentage extra or deduction amount enumeration  discount enumeration  VAT
annotation	documentation Art des Rechnungsanteil : , Grundbetrag  --> basic amount , SicherheitseinbehaltVertragserfüllung --> security deposit for fulfillment of a contract , SicherheitseinbehaltMängelansprüche --> security deposit for requirements off defects , Sicherheitsleistung -->  security deposit , Vertragsstrafe -->  contract penalty , Bautafel --> construction sign building-blackboard , Baustrom --> power consumed on site , Wasser --> water , Reinigung --> preparation , Bauwesenversicherung  -->  insurance against builder's risk , Bauabzugssteuer --> construction withholding tax , SonstigerAbzug --> other type of discount , SummebishergeleisteteZahlungen --> amount payments received , SummebisherigeRechnungen --> amount invoices , SummeoffeneBeträge --> outstanding amount , Zwischensumme --> subtotal , KleinstauftragszuschlagSTLBauZ --> small contract extra amount , ProzentualeZuAbschlagSTLBauZ --> percentage extra or deduction amount , Nachlass  --> discount , Umsatzsteuer --> VAT

simpleType tgInvoiceType

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgPaymentMade/InvoiceType tgInvoiceMadeOut/InvoiceType tgInvoiceHeader/InvoiceType
facets	Kind  Value  Annotation enumeration  deduction enumeration  final account enumeration  part final account enumeration  advance payment enumeration  single invoice enumeration  pro forma invoice enumeration  reviewed invoice
annotation	documentation Rechnungsart : Abschlag  --->  deduction,  Schluss ---> final account, Teilschluss ---> part final account, Vorauszahlung   --->  advance payment, Einzelrechnung ---> single invoice, Entwurf_Prüfrechnung --->  pro forma invoice, GeprüfteRechnungvonAGanAN ---> reviewed invoice

simpleType tgKeyIt

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	base  tgYesNo
used by	element  tgMarkupItem/KeyIt
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Schwerpunktposition

simpleType tgLeftRight

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation enumeration  left enumeration  right
annotation	documentation left/right

simpleType tgMarkupType

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgMarkupItem/MarkupType
facets	Kind  Value  Annotation enumeration  IdentAsMark enumeration  AllInCat enumeration  ListInSubQty

simpleType tgNonNegativeInteger

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	xs:nonNegativeInteger
properties	base  xs:nonNegativeInteger
used by	simpleTypes  tgALNGroupNo tgALNSerNo tgCONo tgPerfNo tgWarrDur
annotation	documentation Integerwert, der nicht negativ ist

simpleType tgNormalizedString

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	xs:normalizedString
properties	base  xs:normalizedString
used by	elements  tgOrderItem/AQU tgBoQText/attachment tgInvoice/BookingNo tgMetalResources/BU tgInvoice/BudgetDept tgOrderInfo/CallOrder tgOrderItem/CatalogArtNo tgOrderItem/CatalogNo tgCOInfo/COInit tgMaintInfo/ContrLaw tgOrderItem/CountryOfOrigin tgRefItems/Customer tgOrderInfo/CustomerReferenceNo tgRefItems/CustomerSubNo tgMaintInfo/Deadline tgOrderItem/DeliveryChara tgOrderInfo/DeliveryNo tgOrderInfo/DeliveryNoteVoucherDate tgOrderInfo/DeliveryType tgInvoice/DP tgOrderInfo/Inquiry tgInvoiceInfo/InvoiceNo tgPaymentMade/InvoiceNo tgInvoiceMadeOut/InvoiceNo tgOrderItem/ItemChara tgOrderItem/ItemType tgLotGrp/LotGrNo tgMaintInfo/MaintType tgQtyDetermInfo/MethodDescription tgOrderItem/ModeOfShipment tgPriceModification/Name tgUserValue/Name tgOrderItem/OrderPosNo tgPaymentMade/PaymentNo tgPaymentMade/PaymentNote tgOrderItem/PriceChara tgMaintInfo/ProcessType tgInvoice/QuantityDeterminationRemark tgSupplierInfo/RegNo tgOrderItem/RepOrder tgMetalResources/Resource tgInvoiceHeader/SettlementType tgOrderInfo/SpecialPayTime tgInvoiceInfo/StandardText tgRefItems/Supplier tgOrderInfo/SupplierReferenceNo tgRefItems/SupplierSubNo tgWeightPart/UnitBase tgOrderInfo/UW tgOrderItem/UW tgWeightPart/UW tgQuotation/UW tgUserValue/Value tgMetalResources/WPU complexType  tgspan simpleTypes  tgAccepted tgAlterBidStatus tgAttAlign tgAttAlignTable tgAttCellpadding tgAttClass tgAttFrame tgAttHeight tgAttKind tgAttStyle tgAttValign tgAttWidth tgbr tgCat tgCertific tgCheckNoteState tgCntryName tgCntryType tgCOPhase tgCOStatus tgCtlgType tgCur tgCurLbl tgGUID tgHoldOutType tgIBAN tgInvoiceShareType tgInvoiceType tgLeftRight tgMarkupType tgNormalizedString10 tgNormalizedString100 tgNormalizedString12 tgNormalizedString120 tgNormalizedString13 tgNormalizedString15 tgNormalizedString20 tgNormalizedString256 tgNormalizedString3 tgNormalizedString30 tgNormalizedString4 tgNormalizedString40 tgNormalizedString5 tgNormalizedString55 tgNormalizedString60 tgNormalizedString8 tgNormalizedString80 tgNoUPComps tgOutlCompl tgpage tgPrefBidType tgPriceInfo tgProvis tgSCType tgSectorType tgSpecialType tgStLNoText tgUpCompType tgUseDurLblTime tgWarrUnit tgYesNo attributes  tgImage/@Encoding tgImage/@hspace tgISOCur/@ISO tgCostType/@Key tgCostApproach/@Key tgImage/@Name tgol/@start tgolTC/@start tgFTextTC/@textWidth tgFText/@textWidth tgMLText/@textWidth tgStLNo/@Type tgImage/@Type tgStyle/@type tgCashDiscDays/@TypeOfDays tgImage/@vspace
annotation	documentation Einzeilige Zeichenkette ohne Längenbegrenzung

simpleType tgNormalizedString10

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgSTLBBauCtlg/CtlgName simpleType  tgVersion
facets	Kind  Value  Annotation maxLength  10
annotation	documentation Einzeilige Zeichenkette der max. Länge 10

simpleType tgNormalizedString100

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgCPVCode/CPVText tgCtlgAssign/CtlgCode tgCtlgAssign/CtlgID tgPrjInfo/LblPrj simpleType  tgCtlgID
facets	Kind  Value  Annotation maxLength  100
annotation	documentation Einzeilige Zeichenkette der max. Länge 100

simpleType tgNormalizedString12

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgBank/BIC tgCPVCode/CPVNo
facets	Kind  Value  Annotation maxLength  12
annotation	documentation Einzeilige Zeichenkette der max. Länge 12

simpleType tgNormalizedString120

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgWgChange/LblRefWage
facets	Kind  Value  Annotation maxLength  120
annotation	documentation Einzeilige Zeichenkette der max. Länge 120

simpleType tgNormalizedString13

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgOrderItem/ArtNoID tgOrderItem/SupplierArtNoID
facets	Kind  Value  Annotation maxLength  13

simpleType tgNormalizedString15

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgArticle/ArtNo tgOrderItem/ArtNo tgOrderItem/CustomerArtNo tgOrderInfo/InquiryNo tgOrderInfo/OfferNo tgOrderInfo/OrderConfNo tgOrderInfo/PartNo tgOrderInfo/RepOrder tgOrderItem/SupplierArtNo
facets	Kind  Value  Annotation maxLength  15
annotation	documentation Einzeilige Zeichenkette der max. Länge 15

simpleType tgNormalizedString20

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgBank/AcctNo tgOWN/AcctRecNo tgAwardInfo/ContrNo tgSTLBBauCtlg/CostGrp tgAddress/Fax tgSupplierInfo/IDNo tgCustomerInfo/IDNo tgDeliveryPlaceInfo/IDNo tgPlannerInfo/IDNo tgAddress/ILN tgInsAs/InsAsNo tgMastAgrInfo/MastAgrVers tgBoQInfo/Name tgNotifSite/NotifSiteIDNo tgAddress/PCode tgAddress/Phone tgRequester/RequestIDNo complexType  tgLblUpComp
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Einzeilige Zeichenkette der max. Länge 20

simpleType tgNormalizedString256

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgCheckNote/Annotation tgInvoiceShare/Description tgAddress/Email
facets	Kind  Value  Annotation maxLength  256
annotation	documentation Einzeilige Zeichenkette der max. Länge 256

simpleType tgNormalizedString3

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgDimension/UM tgSTLBBauCtlg/WCtg simpleType  tgRefDescr
facets	Kind  Value  Annotation maxLength  3
annotation	documentation Einzeilige Zeichenkette der max. Länge 3

simpleType tgNormalizedString30

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgBank/BRNo tgOrderInfo/ModeOfShipment
facets	Kind  Value  Annotation maxLength  30
annotation	documentation Einzeilige Zeichenkette der max. Länge 30

simpleType tgNormalizedString4

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgCostApproach/CostApproachQU tgCostType/CostTypeUnit tgSubDescr/QU tgArticle/QU tgOrderItem/QU simpleType  tgQUHour
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Einzeilige Zeichenkette der max. Länge 4

simpleType tgNormalizedString40

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgAddress/City tgAddress/Contact tgAddress/Country tgBoQBkdn/LblBoQBkdn tgAddress/Name1 tgAddress/Name2 tgAddress/Name3 tgAddress/Name4 tgQtyDetermInfo/OrdDescr tgAddress/Street tgDescription/WICNo
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Einzeilige Zeichenkette der max. Länge 40

simpleType tgNormalizedString5

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation maxLength  5
annotation	documentation Einzeilige Zeichenkette der max. Länge 5

simpleType tgNormalizedString55

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgPerfDescr/PerfLbl
facets	Kind  Value  Annotation maxLength  55
annotation	documentation Einzeilige Zeichenkette der max. Länge 55

simpleType tgNormalizedString60

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgOWN/AwardNo tgArticle/Brand tgInsAs/InsAsName tgBoQInfo/LblBoQ tgMastAgrInfo/MastAgrNo tgPrjInfo/NamePrj tgNotifSite/NotifSiteName tgGAEBInfo/ProgName tgGAEBInfo/ProgSystem tgCOInfo/RefBoQCOInfo tgRequester/RequestName
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Einzeilige Zeichenkette der max. Länge 60

simpleType tgNormalizedString8

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation maxLength  8
annotation	documentation Einzeilige Zeichenkette der max. Länge 8

simpleType tgNormalizedString80

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgIndivAgrInfo/AttestPerson tgIndivAgrInfo/InfoPerson tgInvoiceHeader/InvoiceNo tgBank/LblBank tgQtyDetermInfo/ProjDescr tgSupplierInfo/TaxNo tgInvoiceCreator/TaxNo tgInvoiceRecipient/TaxNo tgAddress/VATID simpleType  tgCtlgName
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Einzeilige Zeichenkette der max. Länge 80

simpleType tgNotAppl

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	tgYesNo
properties	base  tgYesNo
used by	element  tgMarkupItem/NotAppl
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Position oder Bereich entfaellt

simpleType tgNoUPComps

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation enumeration  0 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6

simpleType tgOutlCompl

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation enumeration  AllTxt enumeration  OutTxt enumeration  DetailTxt

simpleType tgpage

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgFTextTC/page tgFText/page
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Seitenumbruch

simpleType tgPerfNo

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNonNegativeInteger
properties	base  tgNonNegativeInteger
used by	element  tgPerfDescr/PerfNo
facets	Kind  Value  Annotation maxInclusive  9999

simpleType tgPositiveInteger

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	xs:positiveInteger
properties	base  xs:positiveInteger
used by	elements  tgMastAgrInfo/MastAgrDur tgContrValCode/Number simpleTypes  tgBoQBkdnLength tgSubDNo tgWeek attribute  tgCashDiscDays/@Days

simpleType tgPrefBidType

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation enumeration  DisplPers enumeration  Refugee enumeration  Persecutee enumeration  WrkShopForDis enumeration  WrkShopForBli enumeration  Other
annotation	documentation Bevorzugter Bewerber

simpleType tgPriceInfo

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation enumeration  scope enumeration  to enumeration  approx enumeration  lump

simpleType tgProvis

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgMarkupItem/Provis
facets	Kind  Value  Annotation enumeration  WithoutTotal enumeration  WithTotal
annotation	documentation Bedarfsposition

simpleType tgQTakeoffRow

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of xs:normalizedString
properties	base  xs:normalizedString
used by	attribute  tgQDetermItem/QTakeoff/@Row
facets	Kind  Value  Annotation pattern  {2,2} {9,9}.{69,69}
annotation	documentation Aufmasszeile

simpleType tgQUHour

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString4
properties	base  tgNormalizedString4
facets	Kind  Value  Annotation maxLength  4 enumeration  h

simpleType tgRefDescr

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString3
properties	base  tgNormalizedString3
used by	element  tgMarkupItem/RefDescr
facets	Kind  Value  Annotation maxLength  3 enumeration  Ref enumeration  Rep

simpleType tgRNoIndex

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of xs:token
properties	base  xs:token
used by	attribute  tgMarkupItem/@RNoIndex
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,1}

simpleType tgRNoPart

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of xs:token
properties	base  xs:token
used by	attribute  tgMarkupItem/@RNoPart
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,14}
annotation	documentation Teil-OZ

simpleType tgSCType

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation enumeration  InHouseWrk enumeration  DespInHouseCap enumeration  LackOfInHouseCap
annotation	documentation Art der Leistung

simpleType tgSectorType

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation enumeration  Crafts enumeration  Industry enumeration  Dealer enumeration  UtilityComp enumeration  Other
annotation	documentation Branche

simpleType tgSpecialType

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation enumeration  Maint documentation Instandhaltung enumeration  MastAgree documentation Rahmenvertrag enumeration  MastMaintAgree documentation Rahmenvertrag fuer Instandhaltung
annotation	documentation Besondere Vergabeart

simpleType tgStLNoText

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	complexType  tgStLNo
facets	Kind  Value  Annotation pattern  [0-9]{0,17}
annotation	documentation Standardleistungsnummer (StLB/STLK)

simpleType tgString

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	xs:string
properties	base  xs:string
used by	complexTypes  tgImage tgStyle

simpleType tgSubDNo

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgPositiveInteger
properties	base  tgPositiveInteger
used by	element  tgSubDescr/SubDNo
facets	Kind  Value  Annotation maxInclusive  99

simpleType tgTime

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	xs:time
properties	base  xs:time
used by	elements  tgMaintInfo/ContrTransTime tgOrderInfo/DeliveryTime tgOrderItem/DeliveryTime tgGAEBInfo/Time
annotation	documentation Zeit

simpleType tgUpCompType

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	attribute  tgLblUpComp/@Type
facets	Kind  Value  Annotation enumeration  Wages enumeration  Materials enumeration  Plant enumeration  Miscellaneous enumeration  Unknown
annotation	documentation Löhne=Wages, Stoffe=Materials, Geräte=Plant, Sonstiges=Miscellaneous, Unbekannt=Unknown

simpleType tgUPFracDig

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgInteger
properties	base  tgInteger
used by	element  tgPrjInfo/UPFracDig
facets	Kind  Value  Annotation minInclusive  2 maxInclusive  3
annotation	documentation Aufforderung, in der Angebotsphase die Einheitspreise mit zwei oder drei Nachkommasstellen anzubieten.

simpleType tgUseDurLblTime

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation enumeration  minute enumeration  hour enumeration  day enumeration  week enumeration  month

simpleType tgVersDate

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	xs:gYearMonth
properties	base  xs:gYearMonth
used by	element  tgSTLBBauCtlg/VersDate
annotation	documentation Versionsdatum

simpleType tgVersion

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString10
properties	base  tgNormalizedString10
used by	element  tgGAEBInfo/Version
facets	Kind  Value  Annotation maxLength  10 enumeration  3.2

simpleType tgWarrDur

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNonNegativeInteger
properties	base  tgNonNegativeInteger
facets	Kind  Value  Annotation maxInclusive  99
annotation	documentation Dauer der Gewaehrleistung

simpleType tgWarrUnit

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation enumeration  Years enumeration  Months
annotation	documentation Einheit der Gewaehrleistung

simpleType tgWeek

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgPositiveInteger
properties	base  tgPositiveInteger
used by	elements  tgOrderInfo/DeliveryWeek tgOrderItem/DeliveryWeek tgOrderInfo/OfferFixedPriceWeek
facets	Kind  Value  Annotation maxInclusive  53

simpleType tgYes

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgYesNo
properties	base  tgYesNo
used by	elements  tgPrjInfo/AlterBidPerm tgMastAgrInfo/BidUpDown tgInvoiceShare/CounterClaim tgInvoiceHeader/CreditNote tgBoQBkdn/Num tgSTLBBauID/OutlTextPart tgSubDescr/QtySpec tgSubDescr/QtyTBD attribute  tgTextComplement/@Empty
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Yes

simpleType tgYesNo

namespace	http://www.gaeb.de/GAEB_DA_XML/DA86ZE/3.2
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgPrjInfo/BidCommPerm tgCompleteText/ComplTSA tgCompleteText/ComplTSB tgOrderItem/Discountable tgOutlineText/OutlTSA tgMarkupItem/ProvisAccpt tgOrderItem/Service tgOrderItem/StorageGoods tgOrderItem/TechnClarification tgSubDescr/UPBkdn tgSubDescr/UPSpec simpleTypes  tgHourIt tgKeyIt tgNotAppl tgYes
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Yes / No

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
