Schema GAEB_DA_XML.xsd

schema location:	..\GAEB_DA_XML.xsd
attributeFormDefault:	unqualified
elementFormDefault:	qualified
targetNamespace:	http://www.gaeb.de/GAEB_DA_XML/200407

Elements	Complex types	Simple types
GAEB	tgAddress	tgAccepted
	tgAddText	tgALNGroupNo
	tgArticle	tgALNSerNo
	tgAward	tgAlterBidStatus
	tgAwardInfo	tgAttAlign
	tgBank	tgAttAlignTable
	tgBoQ	tgAttBorder
	tgBoQBkdn	tgAttCellpadding
	tgBoQBody	tgAttColspan
	tgBoQCtgy	tgAttFrame
	tgBoQInfo	tgAttHeight
	tgBoQText	tgAttOrg
	tgCashDiscDays	tgAttRowspan
	tgCashDiscount	tgAttStyle
	tgCnstSite	tgAttValign
	tgCOInfo	tgAttWidth
	tgCommunication	tgbr
	tgComplBodyDec	tgCntryName
	tgComplBodyInt	tgCntryType
	tgCompleteText	tgCONo
	tgContrValCode	tgCOPhase
	tgCPVCode	tgCOStatus
	tgCtlg	tgCtlgID
	tgCtlgAssign	tgCtlgName
	tgCTR	tgCtlgType
	tgDescription	tgCur

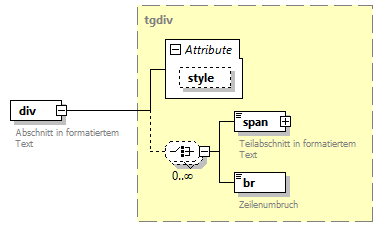

	tgdiv	tgCurLbl
	tgFText	tgDate
	tgGAEB	tgDecimal
	tgGAEBInfo	tgDecimal_11_3
	tgImage	tgDecimal_13_2
	tgInsAs	tgDecimal_13_3
	tgItem	tgDecimal_5_2
	tgItemlist	tgDecimal_6_4
	tgli	tgHourIt
	tgLotGrp	tgInteger
	tgMaintInfo	tgKeyIt
	tgMarkupItem	tgLeftRight
	tgMarkupSubQty	tgNonNegativeInteger

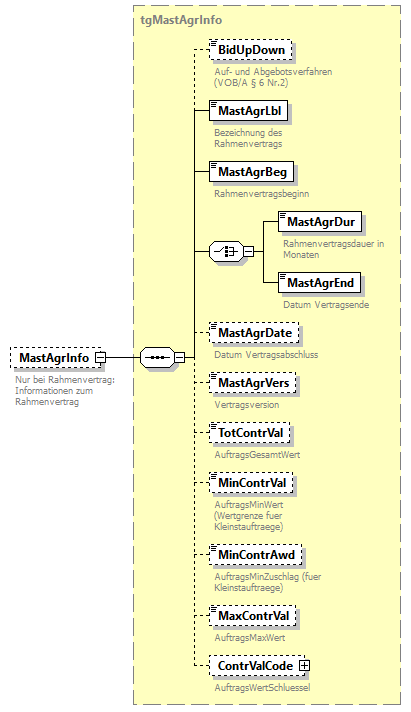

	tgMastAgrInfo	tgNormalizedString
	tgMLText	tgNormalizedString10
	tgNotifSite	tgNormalizedString100
	tgol	tgNormalizedString12
	tgOutlineText	tgNormalizedString120
	tgOutlTxt	tgNormalizedString15
	tgOWN	tgNormalizedString20
	tgp	tgNormalizedString256
	tgPerfDescr	tgNormalizedString3
	tgpMLText	tgNormalizedString30
	tgPrjInfo	tgNormalizedString4
	tgProduct	tgNormalizedString40
	tgQtySplit	tgNormalizedString5
	tgRefBoQ	tgNormalizedString55
	tgRefBoQCtgy	tgNormalizedString60
	tgRefItem	tgNormalizedString8
	tgRefLotGrp	tgNormalizedString80
	tgRemark	tgNotAppl
	tgRequester	tgpage
	tgspan	tgPositiveInteger
	tgSTLBBau	tgProvis
	tgSTLBBauCtlg	tgRefDescr
	tgSTLBBauID	tgRNoIndex
	tgStLNo	tgRNoPart
	tgSubDescr	tgStLNoText
	tgtable	tgString
	tgtd	tgTime
	tgTextComplement	tgVersDate
	tgth	tgYes
	tgTotals	tgYesNo
	tgtr
	tgul
	tgWgChange

schema location:	..\xmldsig-core-schema.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	http://www.w3.org/2000/09/xmldsig#

Elements	Complex types	Simple types
CanonicalizationMethod	CanonicalizationMethodType	CryptoBinary
DigestMethod	DigestMethodType	DigestValueType
DigestValue	DSAKeyValueType	HMACOutputLengthType
DSAKeyValue	KeyInfoType
KeyInfo	KeyValueType
KeyName	ManifestType
KeyValue	ObjectType
Manifest	PGPDataType
MgmtData	ReferenceType
Object	RetrievalMethodType
PGPData	RSAKeyValueType
Reference	SignatureMethodType
RetrievalMethod	SignaturePropertiesType
RSAKeyValue	SignaturePropertyType
Signature	SignatureType
SignatureMethod	SignatureValueType
SignatureProperties	SignedInfoType
SignatureProperty	SPKIDataType
SignatureValue	TransformsType
SignedInfo	TransformType
SPKIData	X509DataType
Transform	X509IssuerSerialType
Transforms
X509Data

schema location:	..\xml.xsd
attributeFormDefault:
elementFormDefault:
targetNamespace:	http://www.w3.org/XML/1998/namespace

Attributes	Attr. groups
base	specialAttrs
id
lang
space

element GAEB

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgGAEB
properties	content  complex
children	GAEBInfo PrjInfo Award AddText ds:Signature
attributes	Name   Type   Use   Default   Fixed   Annotation xml:space   derived by: xs:NCName      preserve      documentation <div> <h3>space (as an attribute name)</h3> <p>        denotes an attribute whose        value is a keyword indicating what whitespace processing        discipline is intended for the content of the element; its        value is inherited.  This name is reserved by virtue of its        definition in the XML specification.</p> </div>

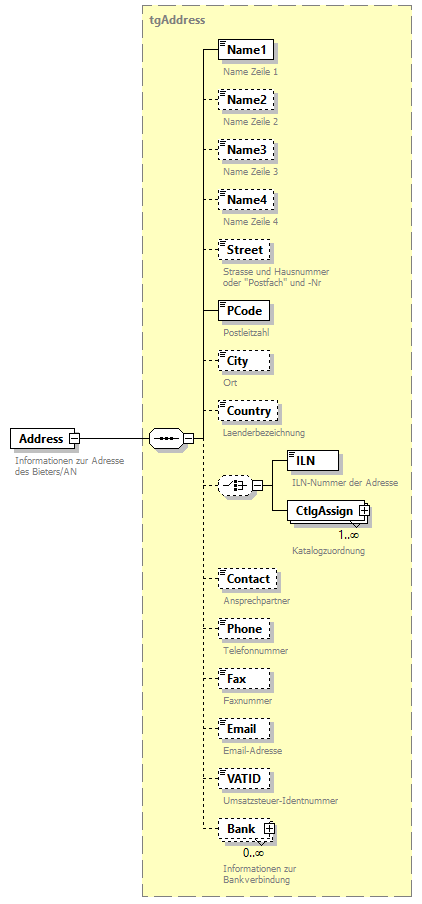

complexType tgAddress

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
used by	elements  tgOWN/Address tgRequester/Address tgCTR/Address tgCnstSite/Address tgNotifSite/Address tgProduct/Address
annotation	documentation Informationen zur Adresse

element tgAddress/Name1

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString40
properties	content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Name Zeile 1

element tgAddress/Name2

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Name Zeile 2

element tgAddress/Name3

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Name Zeile 3

element tgAddress/Name4

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Name Zeile 4

element tgAddress/Street

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Strasse und Hausnummer oder "Postfach" und -Nr

element tgAddress/PCode

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Postleitzahl

element tgAddress/City

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Ort

element tgAddress/Country

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Laenderbezeichnung

element tgAddress/ILN

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation ILN-Nummer der Adresse

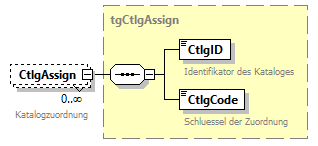

element tgAddress/CtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCtlgAssign
properties	minOcc  1 maxOcc  unbounded content  complex
children	CtlgID CtlgCode
annotation	documentation Katalogzuordnung

element tgAddress/Contact

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Ansprechpartner

element tgAddress/Phone

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Telefonnummer

element tgAddress/Fax

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Faxnummer

element tgAddress/Email

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString256
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  256
annotation	documentation Email-Adresse

element tgAddress/VATID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString80
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Umsatzsteuer-Identnummer

element tgAddress/Bank

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgBank
properties	minOcc  0 maxOcc  unbounded content  complex
children	LblBank BRNo AcctNo
annotation	documentation Informationen zur Bankverbindung

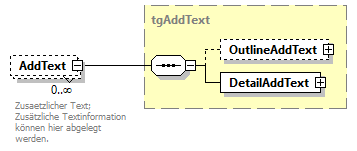

complexType tgAddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	OutlineAddText DetailAddText
used by	elements  tgGAEB/AddText tgPrjInfo/AddText tgAward/AddText tgOWN/AddText tgRequester/AddText tgCTR/AddText tgCnstSite/AddText tgNotifSite/AddText tgProduct/AddText tgArticle/AddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

element tgAddText/OutlineAddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgMLText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString

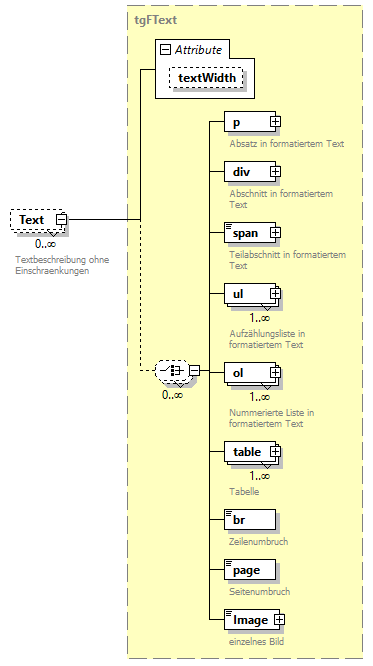

element tgAddText/DetailAddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgFText
properties	content  complex mixed  false
children	p div span ul ol table br page Image
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString

complexType tgArticle

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	Brand ArtNo Qty QU ArtOutline AddText
used by	element  tgProduct/Article
annotation	documentation Informationen zu einem Artikel

element tgArticle/Brand

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Markenname des Produktes bzw. Markenbezeichnung von Serien

element tgArticle/ArtNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15
annotation	documentation Artikelnummer

element tgArticle/Qty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_11_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Menge

element tgArticle/QU

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString4
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Mengeneinheit

element tgArticle/ArtOutline

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgMLText
properties	content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Kurzbeschreibung des Artikels

element tgArticle/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

complexType tgAward

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	DP AwardInfo OWN Requester CTR CnstSite NotifSite AddText BoQ WgChange
used by	element  tgGAEB/Award
annotation	documentation Vergabe

element tgAward/DP

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	content  simple
facets	Kind  Value  Annotation enumeration  81 documentation Leistungsbeschreibung enumeration  82 documentation Kostenanschlag enumeration  83 documentation Angebotsaufforderung enumeration  84 documentation Angebotsabgabe enumeration  85 documentation Nebenangebot enumeration  86 documentation Auftragserteilung enumeration  88 documentation Nachtrag
annotation	documentation GAEB-Datenaustauschphase

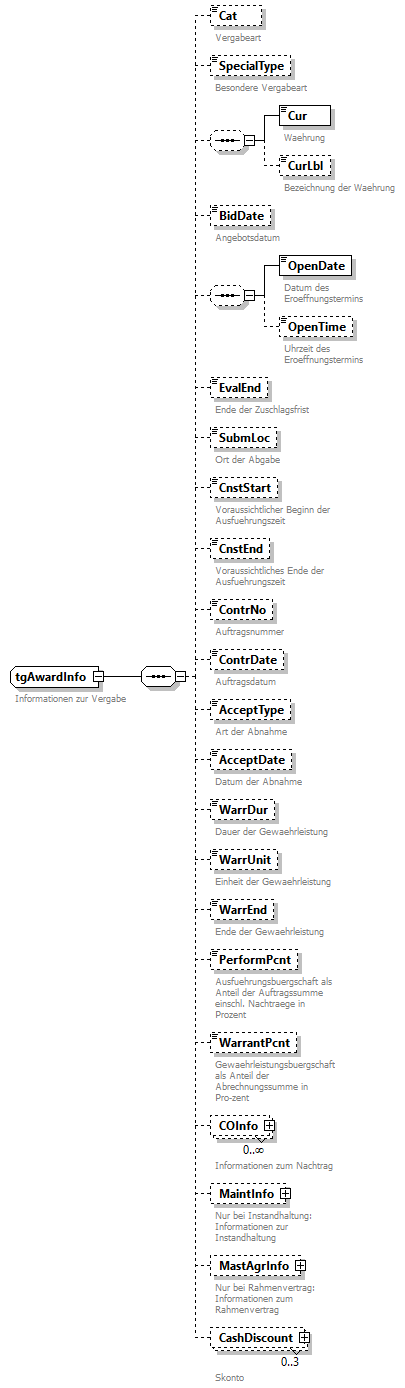

element tgAward/AwardInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAwardInfo
properties	minOcc  0 maxOcc  1 content  complex
children	Cat SpecialType Cur CurLbl BidDate OpenDate OpenTime EvalEnd SubmLoc CnstStart CnstEnd ContrNo ContrDate AcceptType AcceptDate WarrDur WarrUnit WarrEnd PerformPcnt WarrantPcnt COInfo MaintInfo MastAgrInfo CashDiscount
annotation	documentation Informationen zur Vergabe

element tgAward/OWN

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgOWN
properties	minOcc  0 maxOcc  1 content  complex
children	Address DPNo AwardNo AcctRecNo CntryType CntryName AddText
annotation	documentation Informationen zum Auftraggeber

element tgAward/Requester

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgRequester
properties	minOcc  0 maxOcc  unbounded content  complex
children	Address RequestIDNo RequestName AddText
annotation	documentation Informationen zum Bedarfstraeger

element tgAward/CTR

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCTR
properties	minOcc  0 maxOcc  1 content  complex
children	Address DPNo AwardNo AcctsPayNo BidderNo CntryType CntryName SectorType PrefBidType SCType InsAs AddText
annotation	documentation Informationen zum Bieter/Auftragnehmer

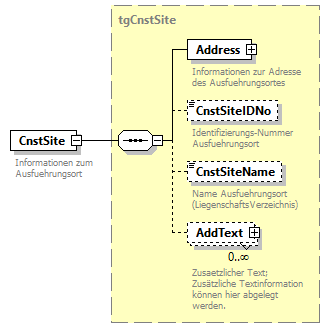

element tgAward/CnstSite

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCnstSite
properties	content  complex
children	Address CnstSiteIDNo CnstSiteName AddText
annotation	documentation Informationen zum Ausfuehrungsort

element tgAward/NotifSite

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNotifSite
properties	minOcc  0 maxOcc  1 content  complex
children	Address NotifSiteIDNo NotifSiteName AddText
annotation	documentation Informationen zum Benachrichtigungsort

element tgAward/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

element tgAward/BoQ

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgBoQ
properties	content  complex
children	BoQInfo BoQBody LotGrp
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Leistungsverzeichnis

element tgAward/WgChange

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgWgChange
properties	minOcc  0 maxOcc  1 content  complex
children	LblRefWage RedPriceComp RefBoQ RefLotNo RefLotGrNo RefItem WgChangeRate
annotation	documentation Lohnaenderung

complexType tgAwardInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	Cat SpecialType Cur CurLbl BidDate OpenDate OpenTime EvalEnd SubmLoc CnstStart CnstEnd ContrNo ContrDate AcceptType AcceptDate WarrDur WarrUnit WarrEnd PerformPcnt WarrantPcnt COInfo MaintInfo MastAgrInfo CashDiscount
used by	element  tgAward/AwardInfo
annotation	documentation Informationen zur Vergabe

element tgAwardInfo/Cat

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  OpenProc documentation Offenes Verfahren enumeration  ClosedProc documentation Nichtoffenes Verfahren enumeration  NegProc documentation Verhandlungsverfahren enumeration  OpenCall documentation Oeffentliche Ausschreibung enumeration  SelectCall documentation Beschraenkte Ausschreibung enumeration  NegCont documentation Freihaendige Vergabe enumeration  IntNATO documentation Internationale NATO-Ausschreibung
annotation	documentation Vergabeart

element tgAwardInfo/SpecialType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Maint documentation Instandhaltung enumeration  MastAgree documentation Rahmenvertrag enumeration  MastMaintAgree documentation Rahmenvertrag fuer Instandhaltung
annotation	documentation Besondere Vergabeart

element tgAwardInfo/Cur

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCur
properties	content  simple
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Waehrung

element tgAwardInfo/CurLbl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCurLbl
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  50
annotation	documentation Bezeichnung der Waehrung

element tgAwardInfo/BidDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Angebotsdatum

element tgAwardInfo/OpenDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDate
properties	content  simple
annotation	documentation Datum des Eroeffnungstermins

element tgAwardInfo/OpenTime

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Uhrzeit des Eroeffnungstermins

element tgAwardInfo/EvalEnd

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Ende der Zuschlagsfrist

element tgAwardInfo/SubmLoc

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Ort der Abgabe

element tgAwardInfo/CnstStart

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Voraussichtlicher Beginn der Ausfuehrungszeit

element tgAwardInfo/CnstEnd

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Voraussichtliches Ende der Ausfuehrungszeit

element tgAwardInfo/ContrNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Auftragsnummer

element tgAwardInfo/ContrDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Auftragsdatum

element tgAwardInfo/AcceptType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Art der Abnahme

element tgAwardInfo/AcceptDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Datum der Abnahme

element tgAwardInfo/WarrDur

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNonNegativeInteger
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxInclusive  99
annotation	documentation Dauer der Gewaehrleistung

element tgAwardInfo/WarrUnit

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Years enumeration  Months
annotation	documentation Einheit der Gewaehrleistung

element tgAwardInfo/WarrEnd

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Ende der Gewaehrleistung

element tgAwardInfo/PerformPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_5_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation Ausfuehrungsbuergschaft als Anteil der Auftragssumme einschl. Nachtraege in Prozent

element tgAwardInfo/WarrantPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_5_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation Gewaehrleistungsbuergschaft als Anteil der Abrechnungssumme in Pro-zent

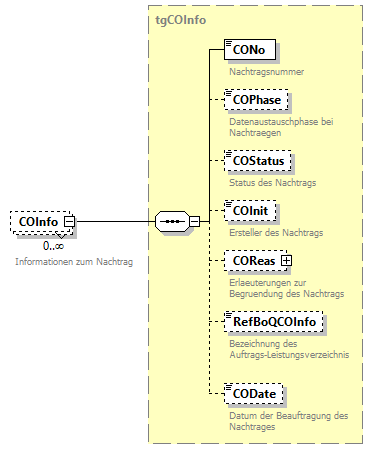

element tgAwardInfo/COInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCOInfo
properties	minOcc  0 maxOcc  unbounded content  complex
children	CONo COPhase COStatus COInit COReas RefBoQCOInfo CODate
annotation	documentation Informationen zum Nachtrag

element tgAwardInfo/MaintInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgMaintInfo
properties	minOcc  0 maxOcc  1 content  complex
children	MaintType ProcessType ContrTransDate ContrTransTime ContrLaw Deadline
annotation	documentation Nur bei Instandhaltung: Informationen zur Instandhaltung

element tgAwardInfo/MastAgrInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgMastAgrInfo
properties	minOcc  0 maxOcc  1 content  complex
children	BidUpDown MastAgrLbl MastAgrBeg MastAgrDur MastAgrEnd MastAgrDate MastAgrVers TotContrVal MinContrVal MinContrAwd MaxContrVal ContrValCode
annotation	documentation Nur bei Rahmenvertrag: Informationen zum Rahmenvertrag

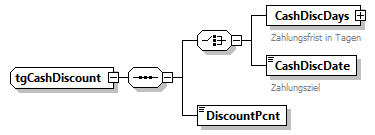

element tgAwardInfo/CashDiscount

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCashDiscount
properties	minOcc  0 maxOcc  3 content  complex
children	CashDiscDays CashDiscDate DiscountPcnt
annotation	documentation Skonto

complexType tgBank

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	LblBank BRNo AcctNo
used by	element  tgAddress/Bank
annotation	documentation Informationen zur Bankverbindung

element tgBank/LblBank

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString80
properties	content  simple
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Bezeichnung des Geldinstituts

element tgBank/BRNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString30
properties	content  simple
facets	Kind  Value  Annotation maxLength  30
annotation	documentation Bankleitzahl des Geldinstituts

element tgBank/AcctNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Kontonummer

complexType tgBoQ

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	BoQInfo BoQBody LotGrp
used by	element  tgAward/BoQ
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Leistungsverzeichnis

attribute tgBoQ/@ID

type	xs:ID
properties	use  required

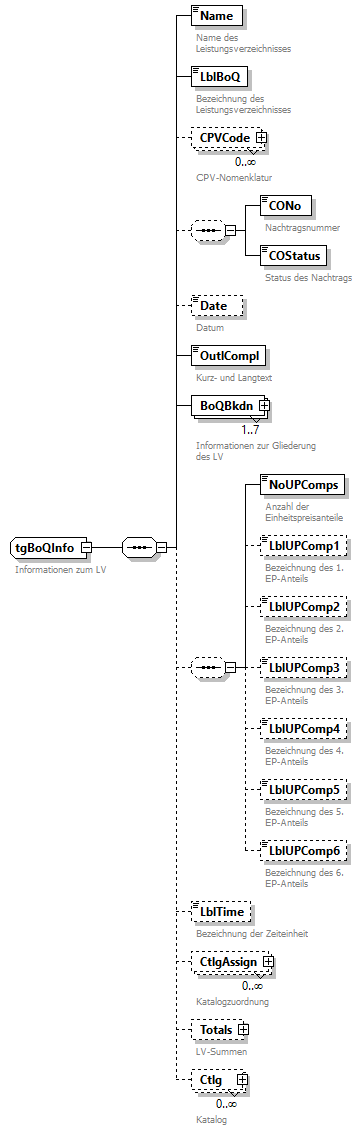

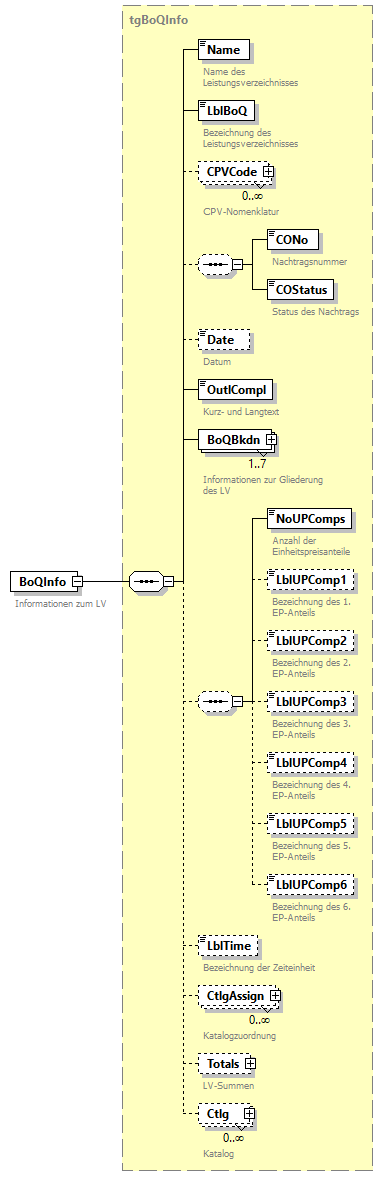

element tgBoQ/BoQInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgBoQInfo
properties	content  complex
children	Name LblBoQ CPVCode CONo COStatus Date OutlCompl BoQBkdn NoUPComps LblUPComp1 LblUPComp2 LblUPComp3 LblUPComp4 LblUPComp5 LblUPComp6 LblTime CtlgAssign Totals Ctlg
annotation	documentation Informationen zum LV

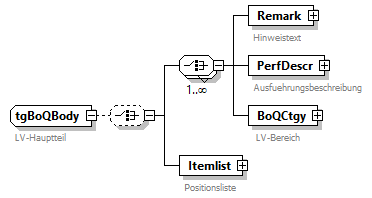

element tgBoQ/BoQBody

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgBoQBody
properties	content  complex
children	Remark PerfDescr BoQCtgy Itemlist
annotation	documentation LV-Hauptteil

element tgBoQ/LotGrp

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgLotGrp
properties	minOcc  0 maxOcc  unbounded content  complex
children	LotGrNo RefLotNo Totals
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Losgruppe

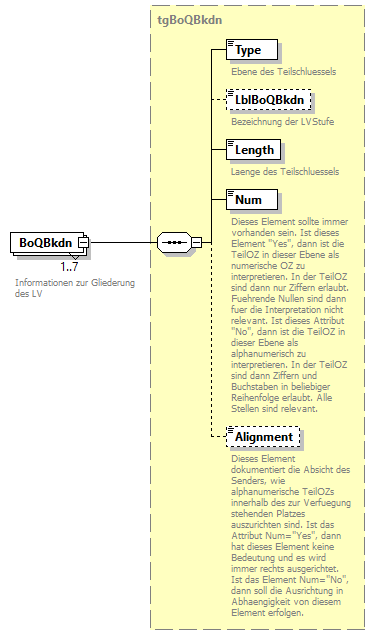

complexType tgBoQBkdn

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	Type LblBoQBkdn Length Num Alignment
used by	element  tgBoQInfo/BoQBkdn
annotation	documentation Informationen zur Gliederung des LV

element tgBoQBkdn/Type

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	content  simple
facets	Kind  Value  Annotation enumeration  Lot enumeration  BoQLevel enumeration  Item enumeration  Index
annotation	documentation Ebene des Teilschluessels

element tgBoQBkdn/LblBoQBkdn

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Bezeichnung der LVStufe

element tgBoQBkdn/Length

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgPositiveInteger
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  14
annotation	documentation Laenge des Teilschluessels

element tgBoQBkdn/Num

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYesNo
properties	content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Dieses Element sollte immer vorhanden sein. Ist dieses Element "Yes", dann ist die TeilOZ in dieser Ebene als numerische OZ zu interpretieren. In der TeilOZ sind dann nur Ziffern erlaubt. Fuehrende Nullen sind dann fuer die Interpretation nicht relevant. Ist dieses Attribut "No", dann ist die TeilOZ in dieser Ebene als alphanumerisch zu interpretieren. In der TeilOZ sind dann Ziffern und Buchstaben in beliebiger Reihenfolge erlaubt. Alle Stellen sind relevant.

element tgBoQBkdn/Alignment

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgLeftRight
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  left enumeration  right
annotation	documentation Dieses Element dokumentiert die Absicht des Senders, wie alphanumerische TeilOZs innerhalb des zur Verfuegung stehenden Platzes auszurichten sind. Ist das Attribut Num="Yes", dann hat dieses Element keine Bedeutung und es wird immer rechts ausgerichtet. Ist das Element Num="No", dann soll die Ausrichtung in Abhaengigkeit von diesem Element erfolgen.

complexType tgBoQBody

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	Remark PerfDescr BoQCtgy Itemlist
used by	elements  tgBoQ/BoQBody tgBoQCtgy/BoQBody
annotation	documentation LV-Hauptteil

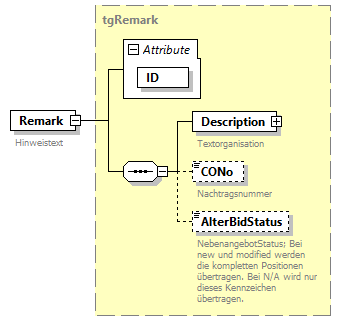

element tgBoQBody/Remark

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgRemark
properties	content  complex
children	Description CONo AlterBidStatus
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Hinweistext

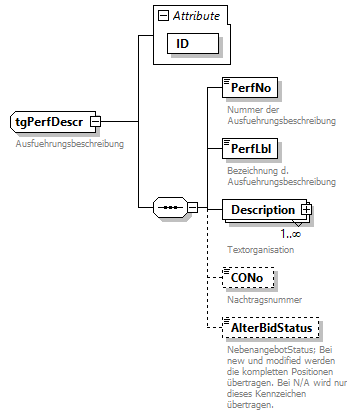

element tgBoQBody/PerfDescr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgPerfDescr
properties	content  complex
children	PerfNo PerfLbl Description CONo AlterBidStatus
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Ausfuehrungsbeschreibung

element tgBoQBody/BoQCtgy

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgBoQCtgy
properties	content  complex
children	LblTx CPVCode CONo COStatus ALNBGroupNo ALNBSerNo Accepted NotApplBoQ CtlgAssign BoQBody Totals AlterBidStatus
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ
annotation	documentation LV-Bereich

element tgBoQBody/Itemlist

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgItemlist
properties	content  complex
children	Remark PerfDescr Item MarkupItem
annotation	documentation Positionsliste

complexType tgBoQCtgy

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	LblTx CPVCode CONo COStatus ALNBGroupNo ALNBSerNo Accepted NotApplBoQ CtlgAssign BoQBody Totals AlterBidStatus
used by	element  tgBoQBody/BoQCtgy
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ
annotation	documentation LV-Bereich

attribute tgBoQCtgy/@ID

type	xs:ID
properties	use  required

attribute tgBoQCtgy/@RNoPart

type	tgRNoPart
properties	use  required
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,14}
annotation	documentation Teil-OZ

element tgBoQCtgy/LblTx

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgMLText
properties	content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Bezeichnung des LV-Bereichs

element tgBoQCtgy/CPVCode

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCPVCode
properties	minOcc  0 maxOcc  unbounded content  complex
children	CPVNo CPVText
annotation	documentation CPV-Nomenklatur

element tgBoQCtgy/CONo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCONo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Nachtragsnummer

element tgBoQCtgy/COStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCOStatus
properties	content  simple
facets	Kind  Value  Annotation enumeration  Recog documentation erkannt enumeration  Filed documentation angemeldet enumeration  Offered documentation angeboten enumeration  Withdrawn documentation zurückgezogen enumeration  Rejected documentation abgelehnt enumeration  ObjToRecj documentation Widerspruch zur Ablehnun enumeration  FormAckn documentation sachlich anerkannt enumeration  Approved documentation genehmigt
annotation	documentation Status des Nachtrags

element tgBoQCtgy/ALNBGroupNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgALNGroupNo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Gruppennummer der Zuordnungszahl zur Kennzeichnung zusammengehoerender Grund- und alternativer Ausfuehrungen

element tgBoQCtgy/ALNBSerNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgALNSerNo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  9
annotation	documentation Laufende Nummer der Zuordnungszahl

element tgBoQCtgy/Accepted

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAccepted
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  AltAccept enumeration  BasReject
annotation	documentation Beauftragt

element tgBoQCtgy/NotApplBoQ

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNotAppl
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation LV-Bereich entfaellt

element tgBoQCtgy/CtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCtlgAssign
properties	minOcc  0 maxOcc  unbounded content  complex
children	CtlgID CtlgCode
annotation	documentation Katalogzuordnung

element tgBoQCtgy/BoQBody

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgBoQBody
properties	minOcc  0 maxOcc  1 content  complex
children	Remark PerfDescr BoQCtgy Itemlist
annotation	documentation LV-Hauptteil

element tgBoQCtgy/Totals

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgTotals
properties	minOcc  0 maxOcc  1 content  complex
children	Total DiscountPcnt DiscountAmt TotAfterDisc TotalLSUM VAT TotalGross
annotation	documentation LV-Bereich-Summen

element tgBoQCtgy/AlterBidStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAlterBidStatus
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Identical documentation Gleich enumeration  N/A documentation Entfällt enumeration  Modified documentation Modifiziert enumeration  New documentation Neu
annotation	documentation NebenangebotStatus; Bei new und modified werden die kompletten Positionen übertragen. Bei N/A wird nur die TeilOZ und dieses Kennzeichen übertragen.

complexType tgBoQInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	Name LblBoQ CPVCode CONo COStatus Date OutlCompl BoQBkdn NoUPComps LblUPComp1 LblUPComp2 LblUPComp3 LblUPComp4 LblUPComp5 LblUPComp6 LblTime CtlgAssign Totals Ctlg
used by	element  tgBoQ/BoQInfo
annotation	documentation Informationen zum LV

element tgBoQInfo/Name

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Name des Leistungsverzeichnisses

element tgBoQInfo/LblBoQ

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString60
properties	content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Bezeichnung des Leistungsverzeichnisses

element tgBoQInfo/CPVCode

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCPVCode
properties	minOcc  0 maxOcc  unbounded content  complex
children	CPVNo CPVText
annotation	documentation CPV-Nomenklatur

element tgBoQInfo/CONo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCONo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Nachtragsnummer

element tgBoQInfo/COStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCOStatus
properties	content  simple
facets	Kind  Value  Annotation enumeration  Recog documentation erkannt enumeration  Filed documentation angemeldet enumeration  Offered documentation angeboten enumeration  Withdrawn documentation zurückgezogen enumeration  Rejected documentation abgelehnt enumeration  ObjToRecj documentation Widerspruch zur Ablehnun enumeration  FormAckn documentation sachlich anerkannt enumeration  Approved documentation genehmigt
annotation	documentation Status des Nachtrags

element tgBoQInfo/Date

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Datum

element tgBoQInfo/OutlCompl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	content  simple
facets	Kind  Value  Annotation enumeration  AllTxt enumeration  OutTxt enumeration  DetailTxt
annotation	documentation Kurz- und Langtext

element tgBoQInfo/BoQBkdn

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgBoQBkdn
properties	minOcc  1 maxOcc  7 content  complex
children	Type LblBoQBkdn Length Num Alignment
annotation	documentation Informationen zur Gliederung des LV

element tgBoQInfo/NoUPComps

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	content  simple
facets	Kind  Value  Annotation enumeration  0 enumeration  2 enumeration  3 enumeration  4 enumeration  5 enumeration  6
annotation	documentation Anzahl der Einheitspreisanteile

element tgBoQInfo/LblUPComp1

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Bezeichnung des 1. EP-Anteils

element tgBoQInfo/LblUPComp2

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Bezeichnung des 2. EP-Anteils

element tgBoQInfo/LblUPComp3

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Bezeichnung des 3. EP-Anteils

element tgBoQInfo/LblUPComp4

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Bezeichnung des 4. EP-Anteils

element tgBoQInfo/LblUPComp5

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Bezeichnung des 5. EP-Anteils

element tgBoQInfo/LblUPComp6

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Bezeichnung des 6. EP-Anteils

element tgBoQInfo/LblTime

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Bezeichnung der Zeiteinheit

element tgBoQInfo/CtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCtlgAssign
properties	minOcc  0 maxOcc  unbounded content  complex
children	CtlgID CtlgCode
annotation	documentation Katalogzuordnung

element tgBoQInfo/Totals

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgTotals
properties	minOcc  0 maxOcc  1 content  complex
children	Total DiscountPcnt DiscountAmt TotAfterDisc TotalLSUM VAT TotalGross
annotation	documentation LV-Summen

element tgBoQInfo/Ctlg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCtlg
properties	minOcc  0 maxOcc  unbounded content  complex
children	CtlgID CtlgType CtlgName
annotation	documentation Katalog

complexType tgBoQText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
properties	mixed  false
children	Text TextComplement attachment
used by	element  tgCompleteText/DetailTxt

element tgBoQText/Text

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgFText
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	p div span ul ol table br page Image
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Textbeschreibung ohne Einschraenkungen

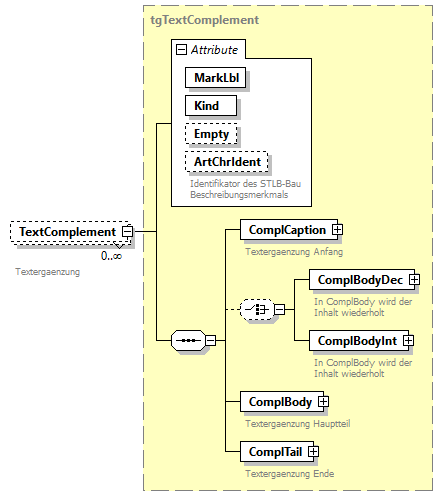

element tgBoQText/TextComplement

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgTextComplement
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	ComplCaption ComplBodyDec ComplBodyInt ComplBody ComplTail
attributes	Name   Type   Use   Default   Fixed   Annotation MarkLbl   tgInteger   required         Kind   derived by: tgNormalizedString   required         Empty   tgYes   optional         ArtChrIdent   tgInteger            documentation Identifikator des STLB-Bau Beschreibungsmerkmals
annotation	documentation Textergaenzung

element tgBoQText/attachment

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString
properties	minOcc  0 maxOcc  unbounded content  simple

complexType tgCashDiscDays

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
used by	element  tgCashDiscount/CashDiscDays
attributes	Name   Type   Use   Default   Fixed   Annotation TypeOfDays   derived by: tgNormalizedString            Days   tgPositiveInteger

attribute tgCashDiscDays/@TypeOfDays

type	restriction of tgNormalizedString
facets	Kind  Value  Annotation enumeration  work days documentation Werktage enumeration  week days documentation Wochentage enumeration  calendar days documentation Kalendertage

attribute tgCashDiscDays/@Days

type	tgPositiveInteger

complexType tgCashDiscount

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	CashDiscDays CashDiscDate DiscountPcnt
used by	element  tgAwardInfo/CashDiscount

element tgCashDiscount/CashDiscDays

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	extension of tgCashDiscDays
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation TypeOfDays   derived by: tgNormalizedString            Days   tgPositiveInteger
annotation	documentation Zahlungsfrist in Tagen

element tgCashDiscount/CashDiscDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDate
properties	content  simple
annotation	documentation Zahlungsziel

element tgCashDiscount/DiscountPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_5_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2

complexType tgCnstSite

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	Address CnstSiteIDNo CnstSiteName AddText
used by	element  tgAward/CnstSite
annotation	documentation Informationen zum Ausfuehrungsort

element tgCnstSite/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAddress
properties	content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Ausfuehrungsortes

element tgCnstSite/CnstSiteIDNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Identifizierungs-Nummer Ausfuehrungsort

element tgCnstSite/CnstSiteName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Name Ausfuehrungsort (LiegenschaftsVerzeichnis)

element tgCnstSite/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

complexType tgCOInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	CONo COPhase COStatus COInit COReas RefBoQCOInfo CODate
used by	element  tgAwardInfo/COInfo
annotation	documentation Informationen zum Nachtrag

element tgCOInfo/CONo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCONo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Nachtragsnummer

element tgCOInfo/COPhase

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCOPhase
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  CallChangOrder enumeration  SupplBid enumeration  SupplAgree
annotation	documentation Datenaustauschphase bei Nachtraegen

element tgCOInfo/COStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCOStatus
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Recog documentation erkannt enumeration  Filed documentation angemeldet enumeration  Offered documentation angeboten enumeration  Withdrawn documentation zurückgezogen enumeration  Rejected documentation abgelehnt enumeration  ObjToRecj documentation Widerspruch zur Ablehnun enumeration  FormAckn documentation sachlich anerkannt enumeration  Approved documentation genehmigt
annotation	documentation Status des Nachtrags

element tgCOInfo/COInit

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Owner documentation Auftraggeber enumeration  Contractor documentation Auftragnehmer
annotation	documentation Ersteller des Nachtrags

element tgCOInfo/COReas

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgFText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	p div span ul ol table br page Image
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Erlaeuterungen zur Begruendung des Nachtrags

element tgCOInfo/RefBoQCOInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Bezeichnung des Auftrags-Leistungsverzeichnisses

element tgCOInfo/CODate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Datum der Beauftragung des Nachtrages

complexType tgCommunication

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	Question Response
used by	element  tgPrjInfo/Communication
annotation	documentation Kommunikation In diesem Objekt werden Fragen und Antworten der Austauschpartner abgelegt.

element tgCommunication/Question

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString80
properties	content  simple
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Frage eines Austauschpartners

element tgCommunication/Response

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString80
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Antwort des anderen Austauschpartners

complexType tgComplBodyDec

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
used by	element  tgTextComplement/ComplBodyDec
attributes	Name   Type   Use   Default   Fixed   Annotation Value   tgDecimal

attribute tgComplBodyDec/@Value

type

tgDecimal

complexType tgComplBodyInt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
used by	element  tgTextComplement/ComplBodyInt
attributes	Name   Type   Use   Default   Fixed   Annotation Value   tgInteger

attribute tgComplBodyInt/@Value

type

tgInteger

complexType tgCompleteText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	ComplTSA ComplTSB DetailTxt OutlineText
used by	element  tgDescription/CompleteText
annotation	documentation Kurz- und Langtext

element tgCompleteText/ComplTSA

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Textergaenzung des Ausschreibenden im Langtext

element tgCompleteText/ComplTSB

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Textergaenzung des Bieters im Langtext

element tgCompleteText/DetailTxt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgBoQText
properties	content  complex mixed  false
children	Text TextComplement attachment
annotation	documentation Langtext

element tgCompleteText/OutlineText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgOutlineText
properties	minOcc  0 maxOcc  1 content  complex
children	OutlTSA OutlTxt
annotation	documentation Kurztext

complexType tgContrValCode

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	Percent Number
used by	element  tgMastAgrInfo/ContrValCode
annotation	documentation AuftragsWertSchluessel

element tgContrValCode/Percent

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_5_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation Auftragsanteil je Rahmenvertrag in Prozent

element tgContrValCode/Number

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgPositiveInteger
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  99999
annotation	documentation Anzahl

complexType tgCPVCode

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	CPVNo CPVText
used by	elements  tgBoQInfo/CPVCode tgBoQCtgy/CPVCode
annotation	documentation CPV-Nomenklatur

element tgCPVCode/CPVNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString12
properties	content  simple
facets	Kind  Value  Annotation maxLength  12
annotation	documentation Schluesselnummer der CPV-Nomenklatur

element tgCPVCode/CPVText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString100
properties	content  simple
facets	Kind  Value  Annotation maxLength  100
annotation	documentation Text der CPV-Nomenklatur

complexType tgCtlg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	CtlgID CtlgType CtlgName
used by	element  tgBoQInfo/Ctlg

element tgCtlg/CtlgID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCtlgID
properties	content  simple
facets	Kind  Value  Annotation maxLength  20

element tgCtlg/CtlgType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCtlgType
properties	content  simple
facets	Kind  Value  Annotation enumeration  cost group DIN 276-81 enumeration  cost group DIN 276-93 enumeration  cost group DIN 276-06 enumeration  locality enumeration  work category enumeration  cost unit enumeration  miscellaneous

element tgCtlg/CtlgName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCtlgName
properties	content  simple
facets	Kind  Value  Annotation maxLength  80

complexType tgCtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	CtlgID CtlgCode
used by	elements  tgAddress/CtlgAssign tgBoQInfo/CtlgAssign tgBoQCtgy/CtlgAssign tgItem/CtlgAssign tgQtySplit/CtlgAssign tgMarkupItem/CtlgAssign
annotation	documentation Katalogzuordnung

element tgCtlgAssign/CtlgID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString100
properties	content  simple
facets	Kind  Value  Annotation maxLength  100
annotation	documentation Identifikator des Kataloges

element tgCtlgAssign/CtlgCode

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString100
properties	content  simple
facets	Kind  Value  Annotation maxLength  100
annotation	documentation Schluessel der Zuordnung

complexType tgCTR

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	Address DPNo AwardNo AcctsPayNo BidderNo CntryType CntryName SectorType PrefBidType SCType InsAs AddText
used by	element  tgAward/CTR
annotation	documentation Informationen zum Bieter/Auftragnehmer

element tgCTR/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAddress
properties	content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Bieters/AN

element tgCTR/DPNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString8
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  8
annotation	documentation DV-Nummer

element tgCTR/AwardNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15
annotation	documentation Vergabenummer

element tgCTR/AcctsPayNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Kreditoren-Nummer

element tgCTR/BidderNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString8
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  8
annotation	documentation Bieternummer

element tgCTR/CntryType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCntryType
properties	content  simple
facets	Kind  Value  Annotation enumeration  EEA enumeration  Other
annotation	documentation Art des Staates

element tgCTR/CntryName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCntryName
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  3
annotation	documentation Name des Staates (internationales Kfz-Kennzeichen)

element tgCTR/SectorType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Crafts enumeration  Industry enumeration  Dealer enumeration  UtilityComp enumeration  Other
annotation	documentation Branche

element tgCTR/PrefBidType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  DisplPers enumeration  Refugee enumeration  Persecutee enumeration  WrkShopForDis enumeration  WrkShopForBli enumeration  Other
annotation	documentation Bevorzugter Bewerber

element tgCTR/SCType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  InHouseWrk enumeration  DespInHouseCap enumeration  LackOfInHouseCap
annotation	documentation Art der Leistung

element tgCTR/InsAs

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgInsAs
properties	minOcc  0 maxOcc  1 content  complex
children	InsAsName InsAsDate InsAsNo
annotation	documentation Informationen zur Berufsgenossenschaft

element tgCTR/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

complexType tgDescription

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	STLBBau StLNo WICNo CompleteText OutlineText
used by	elements  tgRemark/Description tgPerfDescr/Description tgItem/Description tgSubDescr/Description tgMarkupItem/Description
annotation	documentation Textorganisation

element tgDescription/STLBBau

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgSTLBBau
properties	content  complex
children	STLBBauCtlg STLBBauID
annotation	documentation Schluessel STLB-Bau

element tgDescription/StLNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgStLNo
properties	content  complex
facets	Kind  Value  Annotation pattern  [0-9]{0,17}
attributes	Name   Type   Use   Default   Fixed   Annotation Type   derived by: tgNormalizedString
annotation	documentation Standardleistungsnummer (StLB/STLK)

element tgDescription/WICNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Katalognummer (Mutter-LV)

element tgDescription/CompleteText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCompleteText
properties	content  complex
children	ComplTSA ComplTSB DetailTxt OutlineText
annotation	documentation Kurz- und Langtext

element tgDescription/OutlineText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgOutlineText
properties	content  complex
children	OutlTSA OutlTxt
annotation	documentation Kurztext

complexType tgdiv

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
properties	mixed  false
children	span br
used by	elements  tgFText/div tgMLText/div tgli/div tgth/div tgtd/div
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

attribute tgdiv/@style

type	tgAttStyle

element tgdiv/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgdiv/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

complexType tgFText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
properties	mixed  false
children	p div span ul ol table br page Image
used by	elements  tgCOInfo/COReas tgPrjInfo/Descrip tgAddText/DetailAddText tgBoQText/Text
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Formatierte Textbeschreibung

attribute tgFText/@textWidth

type	tgNormalizedString

element tgFText/p

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgp
properties	content  complex mixed  false
children	span br image
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Absatz in formatiertem Text

element tgFText/div

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgdiv
properties	content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

element tgFText/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgFText/ul

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgul
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	li ul ol
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Aufzählungsliste in formatiertem Text

element tgFText/ol

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgol
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	li ul ol
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Nummerierte Liste in formatiertem Text

element tgFText/table

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgtable
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	tr
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlignTable            documentation Ausrichtung border   tgAttBorder            documentation Linien cellpadding   tgAttCellpadding            documentation Zellenabstand frame   tgAttFrame            height   tgAttHeight            style   tgAttStyle            width   tgAttWidth            org   tgAttOrg
annotation	documentation Tabelle

element tgFText/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

element tgFText/page

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgpage
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Seitenumbruch

element tgFText/Image

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgImage
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign   optional         documentation Ausrichtung border   tgAttBorder   optional         hspace   tgNormalizedString   optional         vspace   tgNormalizedString   optional         width   tgAttWidth   optional         Type   derived by: tgNormalizedString   required         Name   tgNormalizedString   optional         Encoding   derived by: tgNormalizedString   optional   base64
annotation	documentation einzelnes Bild

complexType tgGAEB

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	GAEBInfo PrjInfo Award AddText ds:Signature
used by	element  GAEB
attributes	Name   Type   Use   Default   Fixed   Annotation xml:space   derived by: xs:NCName      preserve      documentation <div> <h3>space (as an attribute name)</h3> <p>        denotes an attribute whose        value is a keyword indicating what whitespace processing        discipline is intended for the content of the element; its        value is inherited.  This name is reserved by virtue of its        definition in the XML specification.</p> </div>
annotation	documentation Aufgestellt vom Gemeinsamen Ausschuss Elektronik im Bauwesen (GAEB) © 2002 - 2007by DIN Deutsches Institut fuer Normung e. V.

element tgGAEB/GAEBInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgGAEBInfo
properties	content  complex
children	Version VersDate Date Time ProgSystem ProgName Certific
annotation	documentation Informationen zum GAEB-Datenaustausch

element tgGAEB/PrjInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgPrjInfo
properties	minOcc  0 maxOcc  1 content  complex
children	NamePrj LblPrj Descrip Cur CurLbl BidCommPerm AlterBidPerm Communication AddText UPFracDig
annotation	documentation Informationen zum Projekt

element tgGAEB/Award

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAward
properties	content  complex
children	DP AwardInfo OWN Requester CTR CnstSite NotifSite AddText BoQ WgChange
annotation	documentation Vergabe In diesem Objekt werden die Informationen des Vergabeverfahrens abgelegt. Das Objekt kann in den Datenaustauschphasen D81-D88 verwendet werden.

element tgGAEB/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

complexType tgGAEBInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	Version VersDate Date Time ProgSystem ProgName Certific
used by	element  tgGAEB/GAEBInfo
annotation	documentation Informationen zum GAEB-Datenaustausch

element tgGAEBInfo/Version

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString10
properties	content  simple
facets	Kind  Value  Annotation maxLength  10 enumeration  3.1
annotation	documentation Version des GAEB DA XML

element tgGAEBInfo/VersDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgVersDate
properties	content  simple
annotation	documentation Datum der Version des Katalogs

element tgGAEBInfo/Date

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDate
properties	content  simple
annotation	documentation Datum

element tgGAEBInfo/Time

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Erstellungszeit der Datenaustauschdatei

element tgGAEBInfo/ProgSystem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Programmsystem

element tgGAEBInfo/ProgName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Umsetzprogramm

element tgGAEBInfo/Certific

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Available
annotation	documentation Pruefzertifikat der benutzten Version GAEB DA XML liegt vor

complexType tgImage

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	extension of tgString
properties	base  tgString
used by	elements  tgFText/Image tgp/image
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign   optional         documentation Ausrichtung border   tgAttBorder   optional         hspace   tgNormalizedString   optional         vspace   tgNormalizedString   optional         width   tgAttWidth   optional         Type   derived by: tgNormalizedString   required         Name   tgNormalizedString   optional         Encoding   derived by: tgNormalizedString   optional   base64
annotation	documentation einzelnes Bild

attribute tgImage/@align

type	tgAttAlign
properties	use  optional
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right enumeration  justify
annotation	documentation Ausrichtung

attribute tgImage/@border

type	tgAttBorder
properties	use  optional

attribute tgImage/@hspace

type	tgNormalizedString
properties	use  optional

attribute tgImage/@vspace

type	tgNormalizedString
properties	use  optional

attribute tgImage/@width

type	tgAttWidth
properties	use  optional

attribute tgImage/@Type

type	restriction of tgNormalizedString
properties	use  required
facets	Kind  Value  Annotation enumeration  image/jpeg enumeration  image/gif enumeration  image/png

attribute tgImage/@Name

type	tgNormalizedString
properties	use  optional

attribute tgImage/@Encoding

type	restriction of tgNormalizedString
properties	use  optional default  base64
facets	Kind  Value  Annotation enumeration  base64

complexType tgInsAs

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	InsAsName InsAsDate InsAsNo
used by	element  tgCTR/InsAs
annotation	documentation Informationen zur Berufsgenossenschaft

element tgInsAs/InsAsName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString60
properties	content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Bezeichnung der Berufsgenossenschaft

element tgInsAs/InsAsDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDate
properties	content  simple
annotation	documentation Mitglied seit

element tgInsAs/InsAsNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Mitgliedsnummer

complexType tgItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	ALNGroupNo ALNSerNo Accepted Provis ProvisAccpt LumpSumItem NotAppl HourIt KeyIt UPBkdn MarkupIt CONo COStatus RefDescr RefRNo RefPerfNo QtyTBD Qty Qty QtySplit PredQty BillQty QU CtlgAssign UP UP110 UPComp1 UPComp2 UPComp3 UPComp4 UPComp5 UPComp6 DiscountPcnt UPFrom UPAvg UPTo UPWgFrom UPWgAvg UPWgTo IT VAT PriceInfo TimeQu Description BidComm SumDescr SubDescr Product AlterBidStatus
used by	element  tgItemlist/Item
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex
annotation	documentation Position

attribute tgItem/@ID

type	xs:ID
properties	use  required

attribute tgItem/@RNoPart

type	tgRNoPart
properties	use  required
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,14}
annotation	documentation Teil-OZ

attribute tgItem/@RNoIndex

type	tgRNoIndex
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,1}

element tgItem/ALNGroupNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgALNGroupNo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Gruppennummer der Zuordnungszahl zur Kennzeichnung zusammengehoerender Grund- und alternativer Ausfuehrungen.

element tgItem/ALNSerNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgALNSerNo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  9
annotation	documentation Laufende Nummer der Zuordnungszahl

element tgItem/Accepted

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAccepted
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  AltAccept enumeration  BasReject
annotation	documentation Beauftragt

element tgItem/Provis

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgProvis
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  WithoutTotal enumeration  WithTotal
annotation	documentation Bedarfsposition

element tgItem/ProvisAccpt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Bedarfsposition beauftragt

element tgItem/LumpSumItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Pauschalposition

element tgItem/NotAppl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNotAppl
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Position entfaellt

element tgItem/HourIt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgHourIt
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Stundenlohnarbeiten

element tgItem/KeyIt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgKeyIt
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Schwerpunktposition

element tgItem/UPBkdn

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Aufforderung zur EP-Aufgliederung

element tgItem/MarkupIt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen fuer zu bezuschlagen

element tgItem/CONo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCONo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Nachtragsnummer

element tgItem/COStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCOStatus
properties	content  simple
facets	Kind  Value  Annotation enumeration  Recog documentation erkannt enumeration  Filed documentation angemeldet enumeration  Offered documentation angeboten enumeration  Withdrawn documentation zurückgezogen enumeration  Rejected documentation abgelehnt enumeration  ObjToRecj documentation Widerspruch zur Ablehnun enumeration  FormAckn documentation sachlich anerkannt enumeration  Approved documentation genehmigt
annotation	documentation Status des Nachtrags

element tgItem/RefDescr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Ref enumeration  Rep
annotation	documentation Kennzeichen Bezugs-/ Wiederholungsbeschreibung

element tgItem/RefRNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgRefItem
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Bezugsposition

element tgItem/RefPerfNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgRefItem
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Ausfuehrungsbeschreibung

element tgItem/QtyTBD

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYes
properties	content  simple
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Kennzeichen Freie Menge

element tgItem/Qty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_11_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Menge

element tgItem/Qty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_11_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Menge

element tgItem/QtySplit

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgQtySplit
properties	minOcc  0 maxOcc  unbounded content  complex
children	QtyPcnt Qty CtlgAssign
annotation	documentation Zuordnung der Teilmengen

element tgItem/PredQty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_11_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Voraussichtliche Menge (Prognose)

element tgItem/BillQty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_11_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Rechnungsmenge (nur D88)

element tgItem/QU

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString4
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Mengeneinheit

element tgItem/CtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCtlgAssign
properties	minOcc  0 maxOcc  unbounded content  complex
children	CtlgID CtlgCode
annotation	documentation Katalogzuordnung

element tgItem/UP

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation Einheitspreis

element tgItem/UP110

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation Einheitspreis bei Mengen >110%

element tgItem/UPComp1

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 1. Einheitspreisanteil

element tgItem/UPComp2

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 2. Einheitspreisanteil

element tgItem/UPComp3

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 3. Einheitspreisanteil

element tgItem/UPComp4

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 4. Einheitspreisanteil

element tgItem/UPComp5

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 5. Einheitspreisanteil

element tgItem/UPComp6

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 6. Einheitspreisanteil

element tgItem/DiscountPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_5_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation Prozentualer Nachlass

element tgItem/UPFrom

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation "Von" – Einheitspreis, nur bei Katalogdaten

element tgItem/UPAvg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation "Mittel" – Einheitspreis, nur bei Katalogdaten:

element tgItem/UPTo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation "Bis" – Einheitspreis nur bei Katalogdaten

element tgItem/UPWgFrom

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation "Von" – Lohnanteil nur bei Katalogdaten

element tgItem/UPWgAvg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation "Mittel" – Lohnanteil nur bei Katalogdaten

element tgItem/UPWgTo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation "Bis" – Lohnanteil nur bei Katalogdaten

element tgItem/IT

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Gesamtbetrag incl. Nachlass

element tgItem/VAT

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_5_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation Falls dieses Element fehlt, gilt die übergeordnete MwSt.

element tgItem/PriceInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  scope enumeration  to enumeration  approx enumeration  lump
annotation	documentation Preisinformation nur bei Instandhaltung

element tgItem/TimeQu

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Zeitansatz in Zeiteinheiten (BezZeit siehe LVInfo)

element tgItem/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDescription
properties	minOcc  0 maxOcc  1 content  complex
children	STLBBau StLNo WICNo CompleteText OutlineText
annotation	documentation Textorganisation

element tgItem/BidComm

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgMLText
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Bieter Kommentar

element tgItem/SumDescr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYes
properties	content  simple
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Kennzeichen Leitbeschreibung

element tgItem/SubDescr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgSubDescr
properties	minOcc  0 maxOcc  unbounded content  complex
children	SubDNo Description QtySpec QtyTBD Qty QU UPSpec UPBkdn UP UPComp1 UPComp2 UPComp3 UPComp4 UPComp5 UPComp6
annotation	documentation Unterbeschreibung

element tgItem/Product

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgProduct
properties	minOcc  0 maxOcc  1 content  complex
children	Address AddText Article
annotation	documentation Produktinformation

element tgItem/AlterBidStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAlterBidStatus
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Identical documentation Gleich enumeration  N/A documentation Entfällt enumeration  Modified documentation Modifiziert enumeration  New documentation Neu
annotation	documentation NebenangebotStatus; Bei new und modified werden die kompletten Positionen übertragen. Bei N/A wird nur die TeilOZ und dieses Kennzeichen übertragen.

complexType tgItemlist

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	Remark PerfDescr Item MarkupItem
used by	element  tgBoQBody/Itemlist
annotation	documentation Positionsliste

element tgItemlist/Remark

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgRemark
properties	content  complex
children	Description CONo AlterBidStatus
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Hinweistext

element tgItemlist/PerfDescr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgPerfDescr
properties	content  complex
children	PerfNo PerfLbl Description CONo AlterBidStatus
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Ausfuehrungsbeschreibung

element tgItemlist/Item

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgItem
properties	content  complex
children	ALNGroupNo ALNSerNo Accepted Provis ProvisAccpt LumpSumItem NotAppl HourIt KeyIt UPBkdn MarkupIt CONo COStatus RefDescr RefRNo RefPerfNo QtyTBD Qty Qty QtySplit PredQty BillQty QU CtlgAssign UP UP110 UPComp1 UPComp2 UPComp3 UPComp4 UPComp5 UPComp6 DiscountPcnt UPFrom UPAvg UPTo UPWgFrom UPWgAvg UPWgTo IT VAT PriceInfo TimeQu Description BidComm SumDescr SubDescr Product AlterBidStatus
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex
annotation	documentation Position

element tgItemlist/MarkupItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgMarkupItem
properties	content  complex
children	ALNGroupNo ALNSerNo Accepted Provis ProvisAccpt NotAppl HourIt KeyIt CONo COStatus RefDescr RefRNo RefPerfNo MarkupType MarkupSubQty ITMarkup Markup DiscountPcnt IT Description CtlgAssign AlterBidStatus
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex
annotation	documentation Zuschlagsposition

complexType tgli

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
properties	mixed  false
children	p div span br
used by	elements  tgul/li tgol/li
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Listenpunkt in formatiertem Text

attribute tgli/@style

type	tgAttStyle

element tgli/p

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgp
properties	content  complex mixed  false
children	span br image
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Absatz in formatiertem Text

element tgli/div

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgdiv
properties	content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

element tgli/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgli/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

complexType tgLotGrp

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	LotGrNo RefLotNo Totals
used by	element  tgBoQ/LotGrp
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Losgruppe

attribute tgLotGrp/@ID

type	xs:ID
properties	use  required

element tgLotGrp/LotGrNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString
properties	content  simple
annotation	documentation Nummer der Losgruppe

element tgLotGrp/RefLotNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgRefBoQCtgy
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Los

element tgLotGrp/Totals

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgTotals
properties	minOcc  0 maxOcc  1 content  complex
children	Total DiscountPcnt DiscountAmt TotAfterDisc TotalLSUM VAT TotalGross
annotation	documentation Losgruppensumme

complexType tgMaintInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	MaintType ProcessType ContrTransDate ContrTransTime ContrLaw Deadline
used by	element  tgAwardInfo/MaintInfo
annotation	documentation Nur bei Instandhaltung: Informationen zur Instandhaltung

element tgMaintInfo/MaintType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	content  simple
facets	Kind  Value  Annotation enumeration  Maint documentation Instandhaltung enumeration  Repair documentation Instandsetzung enumeration  Modern documentation Modernisierung enumeration  Warr documentation Gewaehrleistung enumeration  Cancelorder documentation Stornoauftrag
annotation	documentation Art der Instadhaltung

element tgMaintInfo/ProcessType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	content  simple
facets	Kind  Value  Annotation enumeration  StandCon documentation Normalauftrag enumeration  InsurClaim documentation Versicherungsschaden enumeration  InvoicToTen documentation Abrechnung an Miete enumeration  FinApartInsp documentation Wohnungsabnahme enumeration  ThirdPartyBill documentation Fremdverrechnung
annotation	documentation Art der Behandlung

element tgMaintInfo/ContrTransDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDate
properties	content  simple
annotation	documentation Auftrags-Uebergabe-Datum

element tgMaintInfo/ContrTransTime

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Auftrags-Uebergabe-Uhrzeit

element tgMaintInfo/ContrLaw

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  OwnForOwn enumeration  OwnForThi enumeration  ThiForThi
annotation	documentation Auftragsrecht

element tgMaintInfo/Deadline

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Imm enumeration  Rush enumeration  AsArr
annotation	documentation Terminierung

complexType tgMarkupItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	ALNGroupNo ALNSerNo Accepted Provis ProvisAccpt NotAppl HourIt KeyIt CONo COStatus RefDescr RefRNo RefPerfNo MarkupType MarkupSubQty ITMarkup Markup DiscountPcnt IT Description CtlgAssign AlterBidStatus
used by	element  tgItemlist/MarkupItem
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required         RNoPart   tgRNoPart   required         documentation Teil-OZ RNoIndex   tgRNoIndex
annotation	documentation Zuschlagsposition

attribute tgMarkupItem/@ID

type	xs:ID
properties	use  required

attribute tgMarkupItem/@RNoPart

type	tgRNoPart
properties	use  required
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,14}
annotation	documentation Teil-OZ

attribute tgMarkupItem/@RNoIndex

type	tgRNoIndex
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,1}

element tgMarkupItem/ALNGroupNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgALNGroupNo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Gruppennummer der Zuordnungszahl zur Kennzeichnung zusammengehoerender Grund- und alternativer Ausfuehrungen.

element tgMarkupItem/ALNSerNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgALNSerNo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  9
annotation	documentation Laufende Nummer der Zuordnungszahl

element tgMarkupItem/Accepted

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAccepted
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  AltAccept enumeration  BasReject
annotation	documentation Beauftragt

element tgMarkupItem/Provis

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgProvis
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  WithoutTotal enumeration  WithTotal
annotation	documentation Bedarfsposition

element tgMarkupItem/ProvisAccpt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Bedarfsposition beauftragt

element tgMarkupItem/NotAppl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNotAppl
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Position entfaellt

element tgMarkupItem/HourIt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgHourIt
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Stundenlohnarbeiten

element tgMarkupItem/KeyIt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgKeyIt
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Schwerpunktposition

element tgMarkupItem/CONo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCONo
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Nachtragsnummer

element tgMarkupItem/COStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCOStatus
properties	content  simple
facets	Kind  Value  Annotation enumeration  Recog documentation erkannt enumeration  Filed documentation angemeldet enumeration  Offered documentation angeboten enumeration  Withdrawn documentation zurückgezogen enumeration  Rejected documentation abgelehnt enumeration  ObjToRecj documentation Widerspruch zur Ablehnun enumeration  FormAckn documentation sachlich anerkannt enumeration  Approved documentation genehmigt
annotation	documentation Status des Nachtrags

element tgMarkupItem/RefDescr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgRefDescr
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  3 enumeration  Ref enumeration  Rep

element tgMarkupItem/RefRNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgRefItem
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Bezugsposition

element tgMarkupItem/RefPerfNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgRefItem
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Ausfuehrungsbeschreibung

element tgMarkupItem/MarkupType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	content  simple
facets	Kind  Value  Annotation enumeration  IdentAsMark enumeration  AllInCat enumeration  ListInSubQty
annotation	documentation Zuschlagsart

element tgMarkupItem/MarkupSubQty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgMarkupSubQty
properties	minOcc  0 maxOcc  unbounded content  complex
children	RefItem SubQty
annotation	documentation Zu bezuschlagende Teilmengen

element tgMarkupItem/ITMarkup

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Summe der Gesamtbetraege der zu bezuschlagenden Positionen

element tgMarkupItem/Markup

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_5_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation Zuschlagsprozentsatz

element tgMarkupItem/DiscountPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_5_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation Prozentualer Nachlass

element tgMarkupItem/IT

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Gesamtbetrag incl. Nachlass

element tgMarkupItem/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDescription
properties	content  complex
children	STLBBau StLNo WICNo CompleteText OutlineText
annotation	documentation Textorganisation

element tgMarkupItem/CtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCtlgAssign
properties	minOcc  0 maxOcc  unbounded content  complex
children	CtlgID CtlgCode
annotation	documentation Katalogzuordnung

element tgMarkupItem/AlterBidStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAlterBidStatus
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Identical documentation Gleich enumeration  N/A documentation Entfällt enumeration  Modified documentation Modifiziert enumeration  New documentation Neu
annotation	documentation NebenangebotStatus; Bei new und modified werden die kompletten Positionen übertragen. Bei N/A wird nur die TeilOZ und dieses Kennzeichen übertragen.

complexType tgMarkupSubQty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	RefItem SubQty
used by	element  tgMarkupItem/MarkupSubQty
annotation	documentation Zu bezuschlagende Teilmengen

element tgMarkupSubQty/RefItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgRefItem
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Position

element tgMarkupSubQty/SubQty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_11_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Teilmenge oder Menge

complexType tgMastAgrInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	BidUpDown MastAgrLbl MastAgrBeg MastAgrDur MastAgrEnd MastAgrDate MastAgrVers TotContrVal MinContrVal MinContrAwd MaxContrVal ContrValCode
used by	element  tgAwardInfo/MastAgrInfo
annotation	documentation Nur bei Rahmenvertrag: Informationen zum Rahmenvertrag

element tgMastAgrInfo/BidUpDown

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Auf- und Abgebotsverfahren (VOB/A § 6 Nr.2)

element tgMastAgrInfo/MastAgrLbl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Bezeichnung des Rahmenvertrags

element tgMastAgrInfo/MastAgrBeg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDate
properties	content  simple
annotation	documentation Rahmenvertragsbeginn

element tgMastAgrInfo/MastAgrDur

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgPositiveInteger
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  99
annotation	documentation Rahmenvertragsdauer in Monaten

element tgMastAgrInfo/MastAgrEnd

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDate
properties	content  simple
annotation	documentation Datum Vertragsende

element tgMastAgrInfo/MastAgrDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Datum Vertragsabschluss

element tgMastAgrInfo/MastAgrVers

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Vertragsversion

element tgMastAgrInfo/TotContrVal

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation AuftragsGesamtWert

element tgMastAgrInfo/MinContrVal

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation AuftragsMinWert (Wertgrenze fuer Kleinstauftraege)

element tgMastAgrInfo/MinContrAwd

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_5_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation AuftragsMinZuschlag (fuer Kleinstauftraege)

element tgMastAgrInfo/MaxContrVal

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation AuftragsMaxWert

element tgMastAgrInfo/ContrValCode

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgContrValCode
properties	minOcc  0 maxOcc  1 content  complex
children	Percent Number
annotation	documentation AuftragsWertSchluessel

complexType tgMLText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
properties	mixed  false
children	p div span br
used by	elements  tgArticle/ArtOutline tgItem/BidComm tgTextComplement/ComplBody tgTextComplement/ComplCaption tgTextComplement/ComplTail tgBoQCtgy/LblTx tgAddText/OutlineAddText tgOutlTxt/TextOutlTxt
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Mehrzeilige Textbeschreibung

attribute tgMLText/@textWidth

type	tgNormalizedString

element tgMLText/p

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgpMLText
properties	content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Absatz

element tgMLText/div

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgdiv
properties	content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

element tgMLText/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgMLText/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

complexType tgNotifSite

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	Address NotifSiteIDNo NotifSiteName AddText
used by	element  tgAward/NotifSite
annotation	documentation Informationen zum Benachrichtigungsort

element tgNotifSite/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAddress
properties	content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse Benachrichtigungsort

element tgNotifSite/NotifSiteIDNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Identifizierungs-Nummer Benachrichtigungsort

element tgNotifSite/NotifSiteName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Name Benachrichtungsort

element tgNotifSite/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

complexType tgol

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
properties	mixed  false
children	li ul ol
used by	elements  tgFText/ol tgul/ol tgol/ol
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Nummerierte Liste in formatiertem Text

attribute tgol/@style

type	tgAttStyle

element tgol/li

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgli
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Listenpunkt in formatiertem Text

element tgol/ul

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgul
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	li ul ol
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Aufzählungsliste in formatiertem Text

element tgol/ol

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgol
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	li ul ol
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Nummerierte Liste in formatiertem Text

complexType tgOutlineText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	OutlTSA OutlTxt
used by	elements  tgDescription/OutlineText tgCompleteText/OutlineText
annotation	documentation Kurztext

element tgOutlineText/OutlTSA

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Textergaenzung des Ausschreibenden im Kurztext

element tgOutlineText/OutlTxt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgOutlTxt
properties	content  complex mixed  false
children	TextOutlTxt TextComplement
annotation	documentation Kurztext

complexType tgOutlTxt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
properties	mixed  false
children	TextOutlTxt TextComplement
used by	element  tgOutlineText/OutlTxt
annotation	documentation Kurztext

element tgOutlTxt/TextOutlTxt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgMLText
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Textbeschreibung mit Einschraenkungen

element tgOutlTxt/TextComplement

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgTextComplement
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	ComplCaption ComplBodyDec ComplBodyInt ComplBody ComplTail
attributes	Name   Type   Use   Default   Fixed   Annotation MarkLbl   tgInteger   required         Kind   derived by: tgNormalizedString   required         Empty   tgYes   optional         ArtChrIdent   tgInteger            documentation Identifikator des STLB-Bau Beschreibungsmerkmals
annotation	documentation Textergaenzung

complexType tgOWN

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	Address DPNo AwardNo AcctRecNo CntryType CntryName AddText
used by	element  tgAward/OWN
annotation	documentation Informationen zum Auftraggeber

element tgOWN/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAddress
properties	content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des AG

element tgOWN/DPNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString8
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  8
annotation	documentation DV-Nummer

element tgOWN/AwardNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15
annotation	documentation Vergabenummer

element tgOWN/AcctRecNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Debitoren-Nummer

element tgOWN/CntryType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCntryType
properties	content  simple
facets	Kind  Value  Annotation enumeration  EEA enumeration  Other
annotation	documentation Art des Staates

element tgOWN/CntryName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCntryName
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  3
annotation	documentation Name des Staates (internationales Kfz-Kennzeichen)

element tgOWN/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

complexType tgp

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
properties	mixed  false
children	span br image
used by	elements  tgFText/p tgli/p tgth/p tgtd/p
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Absatz in formatiertem Text

attribute tgp/@style

type	tgAttStyle

element tgp/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgp/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

element tgp/image

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgImage
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign   optional         documentation Ausrichtung border   tgAttBorder   optional         hspace   tgNormalizedString   optional         vspace   tgNormalizedString   optional         width   tgAttWidth   optional         Type   derived by: tgNormalizedString   required         Name   tgNormalizedString   optional         Encoding   derived by: tgNormalizedString   optional   base64

complexType tgPerfDescr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	PerfNo PerfLbl Description CONo AlterBidStatus
used by	elements  tgBoQBody/PerfDescr tgItemlist/PerfDescr
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Ausfuehrungsbeschreibung

attribute tgPerfDescr/@ID

type	xs:ID
properties	use  required

element tgPerfDescr/PerfNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNonNegativeInteger
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  9999
annotation	documentation Nummer der Ausfuehrungsbeschreibung

element tgPerfDescr/PerfLbl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString55
properties	content  simple
facets	Kind  Value  Annotation maxLength  55
annotation	documentation Bezeichnung d. Ausfuehrungsbeschreibung

element tgPerfDescr/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDescription
properties	minOcc  1 maxOcc  unbounded content  complex
children	STLBBau StLNo WICNo CompleteText OutlineText
annotation	documentation Textorganisation

element tgPerfDescr/CONo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCONo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Nachtragsnummer

element tgPerfDescr/AlterBidStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAlterBidStatus
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Identical documentation Gleich enumeration  N/A documentation Entfällt enumeration  Modified documentation Modifiziert enumeration  New documentation Neu
annotation	documentation NebenangebotStatus; Bei new und modified werden die kompletten Positionen übertragen. Bei N/A wird nur dieses Kennzeichen übertragen.

complexType tgpMLText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
properties	mixed  false
children	span br
used by	element  tgMLText/p
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Absatz

attribute tgpMLText/@style

type	tgAttStyle

element tgpMLText/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgpMLText/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

complexType tgPrjInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	NamePrj LblPrj Descrip Cur CurLbl BidCommPerm AlterBidPerm Communication AddText UPFracDig
used by	element  tgGAEB/PrjInfo
annotation	documentation Informationen zum Projekt

element tgPrjInfo/NamePrj

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Projektname

element tgPrjInfo/LblPrj

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Bezeichnung des Projektes

element tgPrjInfo/Descrip

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgFText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	p div span ul ol table br page Image
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Kurzbeschreibung des Projektes

element tgPrjInfo/Cur

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCur
properties	content  simple
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Waehrung

element tgPrjInfo/CurLbl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCurLbl
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  50
annotation	documentation Bezeichnung der Waehrung

element tgPrjInfo/BidCommPerm

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Bieter Kommentar zugelassen

element tgPrjInfo/AlterBidPerm

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYes
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Nebenangebot zulassen; Bei Nebenangeboten sollten die Elemente AlterBidStatus gesetzt sein

element tgPrjInfo/Communication

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCommunication
properties	minOcc  0 maxOcc  unbounded content  complex
children	Question Response
annotation	documentation Kommunikation In diesem Objekt werden Fragen und Antworten der Austauschpartner abgelegt.

element tgPrjInfo/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

element tgPrjInfo/UPFracDig

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgInteger
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minInclusive  2 maxInclusive  3
annotation	documentation Aufforderung, in der Angebotsphase die Einheitspreise mit zwei oder drei Nachkommasstellen anzubieten.

complexType tgProduct

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	Address AddText Article
used by	element  tgItem/Product
annotation	documentation Produktinformation

element tgProduct/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAddress
properties	minOcc  0 maxOcc  1 content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Herstellers

element tgProduct/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

element tgProduct/Article

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgArticle
properties	minOcc  1 maxOcc  unbounded content  complex
children	Brand ArtNo Qty QU ArtOutline AddText
annotation	documentation Informationen zu einem Artikel

complexType tgQtySplit

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	QtyPcnt Qty CtlgAssign
used by	element  tgItem/QtySplit
annotation	documentation Zuordnung der Teilmengen

element tgQtySplit/QtyPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_5_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation Anteilige Menge in Prozent

element tgQtySplit/Qty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_11_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Teilmenge

element tgQtySplit/CtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCtlgAssign
properties	minOcc  1 maxOcc  unbounded content  complex
children	CtlgID CtlgCode
annotation	documentation Katalogzuordnung

complexType tgRefBoQ

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
used by	element  tgWgChange/RefBoQ
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf das LV

attribute tgRefBoQ/@IDRef

type	xs:IDREF
properties	use  required

complexType tgRefBoQCtgy

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
used by	elements  tgLotGrp/RefLotNo tgWgChange/RefLotNo
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf einen LV-Bereich

attribute tgRefBoQCtgy/@IDRef

type	xs:IDREF
properties	use  required

complexType tgRefItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
used by	elements  tgMarkupSubQty/RefItem tgWgChange/RefItem tgItem/RefPerfNo tgMarkupItem/RefPerfNo tgItem/RefRNo tgMarkupItem/RefRNo
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required

attribute tgRefItem/@IDRef

type	xs:IDREF
properties	use  required

complexType tgRefLotGrp

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
used by	element  tgWgChange/RefLotGrNo
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf eine LosGruppe

attribute tgRefLotGrp/@IDRef

type	xs:IDREF
properties	use  required

complexType tgRemark

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	Description CONo AlterBidStatus
used by	elements  tgBoQBody/Remark tgItemlist/Remark
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Hinweistext

attribute tgRemark/@ID

type	xs:ID
properties	use  required

element tgRemark/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDescription
properties	content  complex
children	STLBBau StLNo WICNo CompleteText OutlineText
annotation	documentation Textorganisation

element tgRemark/CONo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgCONo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Nachtragsnummer

element tgRemark/AlterBidStatus

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAlterBidStatus
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Identical documentation Gleich enumeration  N/A documentation Entfällt enumeration  Modified documentation Modifiziert enumeration  New documentation Neu
annotation	documentation NebenangebotStatus; Bei new und modified werden die kompletten Positionen übertragen. Bei N/A wird nur dieses Kennzeichen übertragen.

complexType tgRequester

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	Address RequestIDNo RequestName AddText
used by	element  tgAward/Requester
annotation	documentation Informationen zum Bedarfstraeger

element tgRequester/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAddress
properties	content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Bedarfstraegers

element tgRequester/RequestIDNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Identifizierungs-Nummer des Bedarfstraegers

element tgRequester/RequestName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Name des Bedarfstraegers

element tgRequester/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

complexType tgspan

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	extension of tgNormalizedString
properties	base  tgNormalizedString mixed  false
used by	elements  tgFText/span tgMLText/span tgp/span tgpMLText/span tgdiv/span tgli/span tgth/span tgtd/span
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

attribute tgspan/@style

type	tgAttStyle

complexType tgSTLBBau

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	STLBBauCtlg STLBBauID
used by	element  tgDescription/STLBBau
annotation	documentation Schluessel STLB-Bau

element tgSTLBBau/STLBBauCtlg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgSTLBBauCtlg
properties	content  complex
children	CtlgName VersDate WCtg Group CostGrp
annotation	documentation Schluessel fuer Katalog und Gruppe der Leistung (STLB-Bau)

element tgSTLBBau/STLBBauID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgSTLBBauID
properties	minOcc  0 maxOcc  unbounded content  complex
children	ArtChrIdent ArtChIdx ChVIdent OutlTextPart
annotation	documentation Schlüssel einer Ausprägung (STLB-Bau Identifier)

complexType tgSTLBBauCtlg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	CtlgName VersDate WCtg Group CostGrp
used by	element  tgSTLBBau/STLBBauCtlg
annotation	documentation Schluessel fuer Katalog und Gruppe der Leistung (STLB-Bau)

element tgSTLBBauCtlg/CtlgName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString10
properties	content  simple
facets	Kind  Value  Annotation maxLength  10
annotation	documentation Name des Katalogs

element tgSTLBBauCtlg/VersDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgVersDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Datum der Version des Katalogs

element tgSTLBBauCtlg/WCtg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  3
annotation	documentation Leistungsbereich

element tgSTLBBauCtlg/Group

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgInteger
properties	content  simple
annotation	documentation Identifikator der Gruppe

element tgSTLBBauCtlg/CostGrp

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Kostengruppe

complexType tgSTLBBauID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	ArtChrIdent ArtChIdx ChVIdent OutlTextPart
used by	element  tgSTLBBau/STLBBauID
annotation	documentation Schlüssel einer Ausprägung (STLB-Bau Identifier)

element tgSTLBBauID/ArtChrIdent

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgInteger
properties	content  simple
annotation	documentation Identifikator des Beschreibungsmerkmals

element tgSTLBBauID/ArtChIdx

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgInteger
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Index zum Beschreibungsmerkmal (entfällt bei Textergaenzungen)

element tgSTLBBauID/ChVIdent

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgInteger
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Identifikator der Auspraegung (entfällt bei Textergaenzungen)

element tgSTLBBauID/OutlTextPart

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYes
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Existiert nur, wenn das Beschreibungsmerkmal einen  Teil des Kurztextes liefert.

complexType tgStLNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	extension of tgStLNoText
properties	base  tgStLNoText
used by	element  tgDescription/StLNo
facets	Kind  Value  Annotation pattern  [0-9]{0,17}
attributes	Name   Type   Use   Default   Fixed   Annotation Type   derived by: tgNormalizedString

attribute tgStLNo/@Type

type	restriction of tgNormalizedString
facets	Kind  Value  Annotation enumeration  STLB-BauZ enumeration  StLB enumeration  StLK

complexType tgSubDescr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	SubDNo Description QtySpec QtyTBD Qty QU UPSpec UPBkdn UP UPComp1 UPComp2 UPComp3 UPComp4 UPComp5 UPComp6
used by	element  tgItem/SubDescr
annotation	documentation Unterbeschreibung

element tgSubDescr/SubDNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgPositiveInteger
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  99
annotation	documentation Nummer der Unterbeschreibung

element tgSubDescr/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDescription
properties	content  complex
children	STLBBau StLNo WICNo CompleteText OutlineText
annotation	documentation Textorganisation

element tgSubDescr/QtySpec

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYes
properties	content  simple
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Angabe der Menge erforderlich

element tgSubDescr/QtyTBD

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYes
properties	content  simple
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Kennzeichen Freie Menge

element tgSubDescr/Qty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_11_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Menge

element tgSubDescr/QU

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString4
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Mengeneinheit

element tgSubDescr/UPSpec

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Angabe des Einheitspreises erforderlich

element tgSubDescr/UPBkdn

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Aufforderung zur EP-Aufgliederung

element tgSubDescr/UP

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation Einheitspreis

element tgSubDescr/UPComp1

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 1. Einheitspreisanteil

element tgSubDescr/UPComp2

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 2. Einheitspreisanteil

element tgSubDescr/UPComp3

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 3. Einheitspreisanteil

element tgSubDescr/UPComp4

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 4. Einheitspreisanteil

element tgSubDescr/UPComp5

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 5. Einheitspreisanteil

element tgSubDescr/UPComp6

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation 6. Einheitspreisanteil

complexType tgtable

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
properties	mixed  false
children	tr
used by	elements  tgFText/table tgth/table tgtd/table
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlignTable            documentation Ausrichtung border   tgAttBorder            documentation Linien cellpadding   tgAttCellpadding            documentation Zellenabstand frame   tgAttFrame            height   tgAttHeight            style   tgAttStyle            width   tgAttWidth            org   tgAttOrg
annotation	documentation Tabelle

attribute tgtable/@align

type	tgAttAlignTable
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right
annotation	documentation Ausrichtung

attribute tgtable/@border

type	tgAttBorder
annotation	documentation Linien

attribute tgtable/@cellpadding

type	tgAttCellpadding
annotation	documentation Zellenabstand

attribute tgtable/@frame

type	tgAttFrame
facets	Kind  Value  Annotation enumeration  box enumeration  hsides enumeration  void enumeration  vsides

attribute tgtable/@height

type	tgAttHeight

attribute tgtable/@style

type	tgAttStyle

attribute tgtable/@width

type	tgAttWidth

attribute tgtable/@org

type	tgAttOrg
facets	Kind  Value  Annotation enumeration  TAB

element tgtable/tr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgtr
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	th td
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign            documentation Ausrichtung style   tgAttStyle            valign   tgAttValign
annotation	documentation Tabellenzeile

complexType tgtd

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
properties	mixed  false
children	p div span br table
used by	element  tgtr/td
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign            documentation Ausrichtung colspan   tgAttColspan            documentation Spaltenzusammenfassung rowspan   tgAttRowspan            style   tgAttStyle            valign   tgAttValign
annotation	documentation Zelle einer Tabelle

attribute tgtd/@align

type	tgAttAlign
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right enumeration  justify
annotation	documentation Ausrichtung

attribute tgtd/@colspan

type	tgAttColspan
annotation	documentation Spaltenzusammenfassung

attribute tgtd/@rowspan

type	tgAttRowspan

attribute tgtd/@style

type	tgAttStyle

attribute tgtd/@valign

type	tgAttValign
facets	Kind  Value  Annotation enumeration  bottom enumeration  middle enumeration  top

element tgtd/p

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgp
properties	content  complex mixed  false
children	span br image
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Absatz in formatiertem Text

element tgtd/div

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgdiv
properties	content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

element tgtd/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgtd/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

element tgtd/table

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgtable
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	tr
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlignTable            documentation Ausrichtung border   tgAttBorder            documentation Linien cellpadding   tgAttCellpadding            documentation Zellenabstand frame   tgAttFrame            height   tgAttHeight            style   tgAttStyle            width   tgAttWidth            org   tgAttOrg
annotation	documentation Tabelle

complexType tgTextComplement

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
properties	mixed  false
children	ComplCaption ComplBodyDec ComplBodyInt ComplBody ComplTail
used by	elements  tgOutlTxt/TextComplement tgBoQText/TextComplement
attributes	Name   Type   Use   Default   Fixed   Annotation MarkLbl   tgInteger   required         Kind   derived by: tgNormalizedString   required         Empty   tgYes   optional         ArtChrIdent   tgInteger            documentation Identifikator des STLB-Bau Beschreibungsmerkmals
annotation	documentation Textergaenzung

attribute tgTextComplement/@MarkLbl

type	tgInteger
properties	use  required

attribute tgTextComplement/@Kind

type	restriction of tgNormalizedString
properties	use  required
facets	Kind  Value  Annotation enumeration  Bidder enumeration  Owner

attribute tgTextComplement/@Empty

type	tgYes
properties	use  optional
facets	Kind  Value  Annotation enumeration  Yes

attribute tgTextComplement/@ArtChrIdent

type	tgInteger
annotation	documentation Identifikator des STLB-Bau Beschreibungsmerkmals

element tgTextComplement/ComplCaption

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgMLText
properties	content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Textergaenzung Anfang

element tgTextComplement/ComplBodyDec

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgComplBodyDec
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Value   tgDecimal
annotation	documentation In ComplBody wird der Inhalt wiederholt

element tgTextComplement/ComplBodyInt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgComplBodyInt
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Value   tgInteger
annotation	documentation In ComplBody wird der Inhalt wiederholt

element tgTextComplement/ComplBody

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgMLText
properties	content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Textergaenzung Hauptteil

element tgTextComplement/ComplTail

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgMLText
properties	content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Textergaenzung Ende

complexType tgth

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	p div span br table
used by	element  tgtr/th
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign            documentation Ausrichtung style   tgAttStyle            valign   tgAttValign
annotation	documentation Tabellenkopf

attribute tgth/@align

type	tgAttAlign
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right enumeration  justify
annotation	documentation Ausrichtung

attribute tgth/@style

type	tgAttStyle

attribute tgth/@valign

type	tgAttValign
facets	Kind  Value  Annotation enumeration  bottom enumeration  middle enumeration  top

element tgth/p

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgp
properties	content  complex mixed  false
children	span br image
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Absatz in formatiertem Text

element tgth/div

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgdiv
properties	content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

element tgth/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgth/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

element tgth/table

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgtable
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	tr
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlignTable            documentation Ausrichtung border   tgAttBorder            documentation Linien cellpadding   tgAttCellpadding            documentation Zellenabstand frame   tgAttFrame            height   tgAttHeight            style   tgAttStyle            width   tgAttWidth            org   tgAttOrg
annotation	documentation Tabelle

complexType tgTotals

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	Total DiscountPcnt DiscountAmt TotAfterDisc TotalLSUM VAT TotalGross
used by	elements  tgBoQInfo/Totals tgBoQCtgy/Totals tgLotGrp/Totals
annotation	documentation Summen

element tgTotals/Total

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Summe

element tgTotals/DiscountPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_5_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation Prozentualer Nachlass

element tgTotals/DiscountAmt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Absoluter Nachlass

element tgTotals/TotAfterDisc

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Summe nach Nachlass

element tgTotals/TotalLSUM

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Pauschalsumme

element tgTotals/VAT

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_5_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation Umsatzsteuersatz in %

element tgTotals/TotalGross

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Summe mit Beruecksichtigung von Nachlaessen und Umsatzsteuer

complexType tgtr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
properties	mixed  false
children	th td
used by	element  tgtable/tr
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign            documentation Ausrichtung style   tgAttStyle            valign   tgAttValign
annotation	documentation Tabellenzeile

attribute tgtr/@align

type	tgAttAlign
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right enumeration  justify
annotation	documentation Ausrichtung

attribute tgtr/@style

type	tgAttStyle

attribute tgtr/@valign

type	tgAttValign
facets	Kind  Value  Annotation enumeration  bottom enumeration  middle enumeration  top

element tgtr/th

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgth
properties	minOcc  0 maxOcc  unbounded content  complex
children	p div span br table
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign            documentation Ausrichtung style   tgAttStyle            valign   tgAttValign
annotation	documentation Tabellenkopf

element tgtr/td

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgtd
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	p div span br table
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign            documentation Ausrichtung colspan   tgAttColspan            documentation Spaltenzusammenfassung rowspan   tgAttRowspan            style   tgAttStyle            valign   tgAttValign
annotation	documentation Zelle einer Tabelle

complexType tgul

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
properties	mixed  false
children	li ul ol
used by	elements  tgFText/ul tgul/ul tgol/ul
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Aufzählungsliste in formatiertem Text

attribute tgul/@style

type	tgAttStyle

element tgul/li

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgli
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Listenpunkt in formatiertem Text

element tgul/ul

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgul
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	li ul ol
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Aufzählungsliste in formatiertem Text

element tgul/ol

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgol
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	li ul ol
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Nummerierte Liste in formatiertem Text

complexType tgWgChange

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
children	LblRefWage RedPriceComp RefBoQ RefLotNo RefLotGrNo RefItem WgChangeRate
used by	element  tgAward/WgChange
annotation	documentation Lohnaenderung

element tgWgChange/LblRefWage

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString120
properties	content  simple
facets	Kind  Value  Annotation maxLength  120
annotation	documentation Bezeichnung massgebender Lohn

element tgWgChange/RedPriceComp

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_5_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation Minderung der Preise in Prozent

element tgWgChange/RefBoQ

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgRefBoQ
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf das LV

element tgWgChange/RefLotNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgRefBoQCtgy
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Los

element tgWgChange/RefLotGrNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgRefLotGrp
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Losgruppe

element tgWgChange/RefItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgRefItem
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation IDRef   xs:IDREF   required
annotation	documentation Verweis auf Position

element tgWgChange/WgChangeRate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgDecimal_6_4
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  6 fractionDigits  4
annotation	documentation Faktor der Lohnaenderung

simpleType tgAccepted

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgBoQCtgy/Accepted tgItem/Accepted tgMarkupItem/Accepted
facets	Kind  Value  Annotation enumeration  AltAccept enumeration  BasReject
annotation	documentation Beauftragt

simpleType tgALNGroupNo

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNonNegativeInteger
properties	base  tgNonNegativeInteger
used by	elements  tgBoQCtgy/ALNBGroupNo tgItem/ALNGroupNo tgMarkupItem/ALNGroupNo
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Gruppennummer der Zuordnungszahl zur Kennzeichnung zusammengehoerender Grund- und alternativer Ausfuehrungen.

simpleType tgALNSerNo

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNonNegativeInteger
properties	base  tgNonNegativeInteger
used by	elements  tgBoQCtgy/ALNBSerNo tgItem/ALNSerNo tgMarkupItem/ALNSerNo
facets	Kind  Value  Annotation maxInclusive  9
annotation	documentation Laufende Nummer der Zuordnungszahl

simpleType tgAlterBidStatus

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgRemark/AlterBidStatus tgPerfDescr/AlterBidStatus tgBoQCtgy/AlterBidStatus tgItem/AlterBidStatus tgMarkupItem/AlterBidStatus
facets	Kind  Value  Annotation enumeration  Identical documentation Gleich enumeration  N/A documentation Entfällt enumeration  Modified documentation Modifiziert enumeration  New documentation Neu
annotation	documentation NebenangebotStatus; Bei new und modified werden die kompletten Positionen übertragen. Bei N/A wird nur die TeilOZ und dieses Kennzeichen übertragen.

simpleType tgAttAlign

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	attributes  tgtr/@align tgth/@align tgtd/@align tgImage/@align
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right enumeration  justify
annotation	documentation Attribut fuer Ausrichtung

simpleType tgAttAlignTable

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	attribute  tgtable/@align
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right
annotation	documentation Attribut fuer Ausrichtung

simpleType tgAttBorder

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgInteger
properties	base  tgInteger
used by	attributes  tgtable/@border tgImage/@border
annotation	documentation Attribut fuer Linien

simpleType tgAttCellpadding

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString
properties	base  tgNormalizedString
used by	attribute  tgtable/@cellpadding
annotation	documentation Attribut für Zellenabstand

simpleType tgAttColspan

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgInteger
properties	base  tgInteger
used by	attribute  tgtd/@colspan
annotation	documentation Attribut für Spaltenzusammenfassung

simpleType tgAttFrame

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	attribute  tgtable/@frame
facets	Kind  Value  Annotation enumeration  box enumeration  hsides enumeration  void enumeration  vsides
annotation	documentation Attribut für Rahmen

simpleType tgAttHeight

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString
properties	base  tgNormalizedString
used by	attribute  tgtable/@height
annotation	documentation Attribut für Höhe

simpleType tgAttOrg

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of xs:normalizedString
properties	base  xs:normalizedString
used by	attribute  tgtable/@org
facets	Kind  Value  Annotation enumeration  TAB

simpleType tgAttRowspan

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgInteger
properties	base  tgInteger
used by	attribute  tgtd/@rowspan
annotation	documentation Attribut für Zeilenzusammenfassung

simpleType tgAttStyle

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString
properties	base  tgNormalizedString
used by	attributes  tgp/@style tgpMLText/@style tgspan/@style tgdiv/@style tgul/@style tgli/@style tgol/@style tgtable/@style tgtr/@style tgth/@style tgtd/@style
annotation	documentation Der Wertevorrat des Style Attributes wird in der Dokumentation erklaert

simpleType tgAttValign

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	attributes  tgtr/@valign tgth/@valign tgtd/@valign
facets	Kind  Value  Annotation enumeration  bottom enumeration  middle enumeration  top
annotation	documentation Attribut für vertikale Ausrichtung

simpleType tgAttWidth

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString
properties	base  tgNormalizedString
used by	attributes  tgtable/@width tgImage/@width
annotation	documentation Attribut für Breite

simpleType tgbr

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgFText/br tgMLText/br tgp/br tgpMLText/br tgdiv/br tgli/br tgth/br tgtd/br
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

simpleType tgCntryName

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgOWN/CntryName tgCTR/CntryName
facets	Kind  Value  Annotation maxLength  3
annotation	documentation Name des Staates (internationales Kfz-Kennzeichen)

simpleType tgCntryType

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgOWN/CntryType tgCTR/CntryType
facets	Kind  Value  Annotation enumeration  EEA enumeration  Other
annotation	documentation Art des Staates

simpleType tgCONo

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNonNegativeInteger
properties	base  tgNonNegativeInteger
used by	elements  tgCOInfo/CONo tgBoQInfo/CONo tgRemark/CONo tgPerfDescr/CONo tgBoQCtgy/CONo tgItem/CONo tgMarkupItem/CONo
facets	Kind  Value  Annotation maxInclusive  999
annotation	documentation Nachtragsnummer [0] - Hauptauftrag [1] - 1. Nachtrag [2] - 2. Nachtrag [999] - kompletter Auftragsbestand

simpleType tgCOPhase

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgCOInfo/COPhase
facets	Kind  Value  Annotation enumeration  CallChangOrder enumeration  SupplBid enumeration  SupplAgree
annotation	documentation Datenaustauschphase bei Nachtraegen

simpleType tgCOStatus

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgCOInfo/COStatus tgBoQInfo/COStatus tgBoQCtgy/COStatus tgItem/COStatus tgMarkupItem/COStatus
facets	Kind  Value  Annotation enumeration  Recog documentation erkannt enumeration  Filed documentation angemeldet enumeration  Offered documentation angeboten enumeration  Withdrawn documentation zurückgezogen enumeration  Rejected documentation abgelehnt enumeration  ObjToRecj documentation Widerspruch zur Ablehnun enumeration  FormAckn documentation sachlich anerkannt enumeration  Approved documentation genehmigt
annotation	documentation Status des Nachtrags

simpleType tgCtlgID

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString20
properties	base  tgNormalizedString20
used by	element  tgCtlg/CtlgID
facets	Kind  Value  Annotation maxLength  20

simpleType tgCtlgName

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgNormalizedString80
properties	base  tgNormalizedString80
used by	element  tgCtlg/CtlgName
facets	Kind  Value  Annotation maxLength  80

simpleType tgCtlgType

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgCtlg/CtlgType
facets	Kind  Value  Annotation enumeration  cost group DIN 276-81 enumeration  cost group DIN 276-93 enumeration  cost group DIN 276-06 enumeration  locality enumeration  work category enumeration  cost unit enumeration  miscellaneous

simpleType tgCur

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgPrjInfo/Cur tgAwardInfo/Cur
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Waehrung

simpleType tgCurLbl

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgPrjInfo/CurLbl tgAwardInfo/CurLbl
facets	Kind  Value  Annotation maxLength  50
annotation	documentation Bezeichnung der Waehrung

simpleType tgDate

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	xs:date
properties	base  xs:date
used by	elements  tgAwardInfo/AcceptDate tgAwardInfo/BidDate tgCashDiscount/CashDiscDate tgAwardInfo/CnstEnd tgAwardInfo/CnstStart tgCOInfo/CODate tgAwardInfo/ContrDate tgMaintInfo/ContrTransDate tgGAEBInfo/Date tgBoQInfo/Date tgAwardInfo/EvalEnd tgInsAs/InsAsDate tgMastAgrInfo/MastAgrBeg tgMastAgrInfo/MastAgrDate tgMastAgrInfo/MastAgrEnd tgAwardInfo/OpenDate tgAwardInfo/WarrEnd
annotation	documentation Datum

simpleType tgDecimal

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	xs:decimal
properties	base  xs:decimal
used by	attribute  tgComplBodyDec/@Value

simpleType tgDecimal_11_3

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of xs:decimal
properties	base  xs:decimal
used by	elements  tgItem/BillQty tgItem/PredQty tgItem/Qty tgItem/Qty tgQtySplit/Qty tgSubDescr/Qty tgArticle/Qty tgMarkupSubQty/SubQty
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Dezimalwert mit insgesamt 11 Stellen, davon 3 nach dem Komma

simpleType tgDecimal_13_2

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of xs:decimal
properties	base  xs:decimal
used by	elements  tgTotals/DiscountAmt tgItem/IT tgMarkupItem/IT tgMarkupItem/ITMarkup tgMastAgrInfo/MaxContrVal tgMastAgrInfo/MinContrVal tgItem/TimeQu tgTotals/TotAfterDisc tgTotals/Total tgTotals/TotalGross tgTotals/TotalLSUM tgMastAgrInfo/TotContrVal
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Dezimalwert mit insgesamt 13 Stellen, davon 2 nach dem Komma

simpleType tgDecimal_13_3

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of xs:decimal
properties	base  xs:decimal
used by	elements  tgItem/UP tgSubDescr/UP tgItem/UP110 tgItem/UPAvg tgItem/UPComp1 tgSubDescr/UPComp1 tgItem/UPComp2 tgSubDescr/UPComp2 tgItem/UPComp3 tgSubDescr/UPComp3 tgItem/UPComp4 tgSubDescr/UPComp4 tgItem/UPComp5 tgSubDescr/UPComp5 tgItem/UPComp6 tgSubDescr/UPComp6 tgItem/UPFrom tgItem/UPTo tgItem/UPWgAvg tgItem/UPWgFrom tgItem/UPWgTo
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation Dezimalwert mit insgesamt 13 Stellen, davon 3 nach dem Komma

simpleType tgDecimal_5_2

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of xs:decimal
properties	base  xs:decimal
used by	elements  tgTotals/DiscountPcnt tgItem/DiscountPcnt tgMarkupItem/DiscountPcnt tgCashDiscount/DiscountPcnt tgMarkupItem/Markup tgMastAgrInfo/MinContrAwd tgContrValCode/Percent tgAwardInfo/PerformPcnt tgQtySplit/QtyPcnt tgWgChange/RedPriceComp tgTotals/VAT tgItem/VAT tgAwardInfo/WarrantPcnt
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation Dezimalwert mit insgesamt 5 Stellen, davon 2 nach dem Komma

simpleType tgDecimal_6_4

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of xs:decimal
properties	base  xs:decimal
used by	element  tgWgChange/WgChangeRate
facets	Kind  Value  Annotation totalDigits  6 fractionDigits  4
annotation	documentation Dezimalwert mit insgesamt 6 Stellen, davon 4 nach dem Komma

simpleType tgHourIt

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYesNo
properties	base  tgYesNo
used by	elements  tgItem/HourIt tgMarkupItem/HourIt
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Stundenlohnarbeiten

simpleType tgInteger

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	xs:integer
properties	base  xs:integer
used by	elements  tgSTLBBauID/ArtChIdx tgSTLBBauID/ArtChrIdent tgSTLBBauID/ChVIdent tgSTLBBauCtlg/Group tgPrjInfo/UPFracDig simpleTypes  tgAttBorder tgAttColspan tgAttRowspan attributes  tgTextComplement/@ArtChrIdent tgTextComplement/@MarkLbl tgComplBodyInt/@Value

simpleType tgKeyIt

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYesNo
properties	base  tgYesNo
used by	elements  tgItem/KeyIt tgMarkupItem/KeyIt
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Schwerpunktposition

simpleType tgLeftRight

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgBoQBkdn/Alignment
facets	Kind  Value  Annotation enumeration  left enumeration  right
annotation	documentation left/right

simpleType tgNonNegativeInteger

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	xs:nonNegativeInteger
properties	base  xs:nonNegativeInteger
used by	elements  tgPerfDescr/PerfNo tgAwardInfo/WarrDur simpleTypes  tgALNGroupNo tgALNSerNo tgCONo
annotation	documentation Integerwert, der nicht negativ ist

simpleType tgNormalizedString

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	xs:normalizedString
properties	base  xs:normalizedString
used by	elements  tgBoQText/attachment tgAwardInfo/Cat tgGAEBInfo/Certific tgCOInfo/COInit tgMaintInfo/ContrLaw tgMaintInfo/Deadline tgAward/DP tgLotGrp/LotGrNo tgMaintInfo/MaintType tgMarkupItem/MarkupType tgMastAgrInfo/MastAgrLbl tgBoQInfo/NoUPComps tgBoQInfo/OutlCompl tgCTR/PrefBidType tgItem/PriceInfo tgMaintInfo/ProcessType tgItem/RefDescr tgCTR/SCType tgCTR/SectorType tgAwardInfo/SpecialType tgBoQBkdn/Type tgAwardInfo/WarrUnit complexType  tgspan simpleTypes  tgAccepted tgAlterBidStatus tgAttAlign tgAttAlignTable tgAttCellpadding tgAttFrame tgAttHeight tgAttStyle tgAttValign tgAttWidth tgbr tgCntryName tgCntryType tgCOPhase tgCOStatus tgCtlgType tgCur tgCurLbl tgLeftRight tgNormalizedString10 tgNormalizedString100 tgNormalizedString12 tgNormalizedString120 tgNormalizedString15 tgNormalizedString20 tgNormalizedString256 tgNormalizedString3 tgNormalizedString30 tgNormalizedString4 tgNormalizedString40 tgNormalizedString5 tgNormalizedString55 tgNormalizedString60 tgNormalizedString8 tgNormalizedString80 tgpage tgProvis tgStLNoText tgYes tgYesNo attributes  tgImage/@Encoding tgImage/@hspace tgTextComplement/@Kind tgImage/@Name tgFText/@textWidth tgMLText/@textWidth tgStLNo/@Type tgImage/@Type tgCashDiscDays/@TypeOfDays tgImage/@vspace
annotation	documentation Einzeilige Zeichenkette ohne Längenbegrenzung

simpleType tgNormalizedString10

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgSTLBBauCtlg/CtlgName tgGAEBInfo/Version
facets	Kind  Value  Annotation maxLength  10
annotation	documentation Einzeilige Zeichenkette der max. Länge 10

simpleType tgNormalizedString100

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgCPVCode/CPVText tgCtlgAssign/CtlgCode tgCtlgAssign/CtlgID
facets	Kind  Value  Annotation maxLength  100
annotation	documentation Einzeilige Zeichenkette der max. Länge 100

simpleType tgNormalizedString12

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgCPVCode/CPVNo
facets	Kind  Value  Annotation maxLength  12
annotation	documentation Einzeilige Zeichenkette der max. Länge 12

simpleType tgNormalizedString120

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgWgChange/LblRefWage
facets	Kind  Value  Annotation maxLength  120
annotation	documentation Einzeilige Zeichenkette der max. Länge 120

simpleType tgNormalizedString15

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgArticle/ArtNo tgOWN/AwardNo tgCTR/AwardNo
facets	Kind  Value  Annotation maxLength  15
annotation	documentation Einzeilige Zeichenkette der max. Länge 15

simpleType tgNormalizedString20

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgBank/AcctNo tgOWN/AcctRecNo tgCTR/AcctsPayNo tgCnstSite/CnstSiteIDNo tgAwardInfo/ContrNo tgSTLBBauCtlg/CostGrp tgAddress/Fax tgAddress/ILN tgInsAs/InsAsNo tgBoQInfo/LblTime tgBoQInfo/LblUPComp1 tgBoQInfo/LblUPComp2 tgBoQInfo/LblUPComp3 tgBoQInfo/LblUPComp4 tgBoQInfo/LblUPComp5 tgBoQInfo/LblUPComp6 tgMastAgrInfo/MastAgrVers tgBoQInfo/Name tgPrjInfo/NamePrj tgNotifSite/NotifSiteIDNo tgAddress/PCode tgAddress/Phone tgRequester/RequestIDNo simpleType  tgCtlgID
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Einzeilige Zeichenkette der max. Länge 20

simpleType tgNormalizedString256

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgAddress/Email
facets	Kind  Value  Annotation maxLength  256
annotation	documentation Einzeilige Zeichenkette der max. Länge 256

simpleType tgNormalizedString3

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgSTLBBauCtlg/WCtg simpleType  tgRefDescr
facets	Kind  Value  Annotation maxLength  3
annotation	documentation Einzeilige Zeichenkette der max. Länge 3

simpleType tgNormalizedString30

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgBank/BRNo
facets	Kind  Value  Annotation maxLength  30
annotation	documentation Einzeilige Zeichenkette der max. Länge 30

simpleType tgNormalizedString4

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgItem/QU tgSubDescr/QU tgArticle/QU
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Einzeilige Zeichenkette der max. Länge 4

simpleType tgNormalizedString40

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgAddress/City tgAddress/Contact tgAddress/Country tgBoQBkdn/LblBoQBkdn tgAddress/Name1 tgAddress/Name2 tgAddress/Name3 tgAddress/Name4 tgAddress/Street tgDescription/WICNo
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Einzeilige Zeichenkette der max. Länge 40

simpleType tgNormalizedString5

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation maxLength  5
annotation	documentation Einzeilige Zeichenkette der max. Länge 5

simpleType tgNormalizedString55

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgPerfDescr/PerfLbl
facets	Kind  Value  Annotation maxLength  55
annotation	documentation Einzeilige Zeichenkette der max. Länge 55

simpleType tgNormalizedString60

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgAwardInfo/AcceptType tgArticle/Brand tgCnstSite/CnstSiteName tgInsAs/InsAsName tgBoQInfo/LblBoQ tgPrjInfo/LblPrj tgNotifSite/NotifSiteName tgGAEBInfo/ProgName tgGAEBInfo/ProgSystem tgCOInfo/RefBoQCOInfo tgRequester/RequestName tgAwardInfo/SubmLoc
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Einzeilige Zeichenkette der max. Länge 60

simpleType tgNormalizedString8

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgCTR/BidderNo tgOWN/DPNo tgCTR/DPNo
facets	Kind  Value  Annotation maxLength  8
annotation	documentation Einzeilige Zeichenkette der max. Länge 8

simpleType tgNormalizedString80

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgBank/LblBank tgCommunication/Question tgCommunication/Response tgAddress/VATID simpleType  tgCtlgName
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Einzeilige Zeichenkette der max. Länge 80

simpleType tgNotAppl

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	tgYesNo
properties	base  tgYesNo
used by	elements  tgItem/NotAppl tgMarkupItem/NotAppl tgBoQCtgy/NotApplBoQ
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Position oder Bereich entfaellt

simpleType tgpage

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgFText/page
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Seitenumbruch

simpleType tgPositiveInteger

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	xs:positiveInteger
properties	base  xs:positiveInteger
used by	elements  tgBoQBkdn/Length tgMastAgrInfo/MastAgrDur tgContrValCode/Number tgSubDescr/SubDNo attribute  tgCashDiscDays/@Days

simpleType tgProvis

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgItem/Provis tgMarkupItem/Provis
facets	Kind  Value  Annotation enumeration  WithoutTotal enumeration  WithTotal
annotation	documentation Bedarfsposition

simpleType tgRefDescr

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString3
properties	base  tgNormalizedString3
used by	element  tgMarkupItem/RefDescr
facets	Kind  Value  Annotation maxLength  3 enumeration  Ref enumeration  Rep

simpleType tgRNoIndex

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of xs:token
properties	base  xs:token
used by	attributes  tgItem/@RNoIndex tgMarkupItem/@RNoIndex
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,1}

simpleType tgRNoPart

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of xs:token
properties	base  xs:token
used by	attributes  tgBoQCtgy/@RNoPart tgItem/@RNoPart tgMarkupItem/@RNoPart
facets	Kind  Value  Annotation pattern  (_|[0-9]|[A-Z]|[a-z]){1,14}
annotation	documentation Teil-OZ

simpleType tgStLNoText

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	complexType  tgStLNo
facets	Kind  Value  Annotation pattern  [0-9]{0,17}
annotation	documentation Standardleistungsnummer (StLB/STLK)

simpleType tgString

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	xs:string
properties	base  xs:string
used by	complexType  tgImage

simpleType tgTime

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	xs:time
properties	base  xs:time
used by	elements  tgMaintInfo/ContrTransTime tgAwardInfo/OpenTime tgGAEBInfo/Time
annotation	documentation Zeit

simpleType tgVersDate

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	xs:gYearMonth
properties	base  xs:gYearMonth
used by	elements  tgGAEBInfo/VersDate tgSTLBBauCtlg/VersDate
annotation	documentation Versionsdatum

simpleType tgYes

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgPrjInfo/AlterBidPerm tgSTLBBauID/OutlTextPart tgSubDescr/QtySpec tgItem/QtyTBD tgSubDescr/QtyTBD tgItem/SumDescr attribute  tgTextComplement/@Empty
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Yes

simpleType tgYesNo

namespace	http://www.gaeb.de/GAEB_DA_XML/200407
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgPrjInfo/BidCommPerm tgMastAgrInfo/BidUpDown tgCompleteText/ComplTSA tgCompleteText/ComplTSB tgItem/LumpSumItem tgItem/MarkupIt tgBoQBkdn/Num tgOutlineText/OutlTSA tgItem/ProvisAccpt tgMarkupItem/ProvisAccpt tgItem/UPBkdn tgSubDescr/UPBkdn tgSubDescr/UPSpec simpleTypes  tgHourIt tgKeyIt tgNotAppl
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Yes / No

element CanonicalizationMethod

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CanonicalizationMethodType
properties	content  complex mixed  true
used by	complexType  SignedInfoType
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required

element DigestMethod

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:DigestMethodType
properties	content  complex mixed  true
used by	complexType  ReferenceType
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required

element DigestValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:DigestValueType
properties	content  simple
used by	complexType  ReferenceType

element DSAKeyValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:DSAKeyValueType
properties	content  complex
children	ds:P ds:Q ds:G ds:Y ds:J ds:Seed ds:PgenCounter
used by	complexType  KeyValueType

element KeyInfo

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:KeyInfoType
properties	content  complex mixed  true
children	ds:KeyName ds:KeyValue ds:RetrievalMethod ds:X509Data ds:PGPData ds:SPKIData ds:MgmtData
used by	complexType  SignatureType
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

element KeyName

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
properties	content  simple
used by	complexType  KeyInfoType

element KeyValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:KeyValueType
properties	content  complex mixed  true
children	ds:DSAKeyValue ds:RSAKeyValue
used by	complexType  KeyInfoType

element Manifest

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:ManifestType
properties	content  complex
children	ds:Reference
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

element MgmtData

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
properties	content  simple
used by	complexType  KeyInfoType

element Object

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:ObjectType
properties	content  complex mixed  true
used by	complexType  SignatureType
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional         MimeType   xs:string   optional         Encoding   xs:anyURI   optional

element PGPData

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:PGPDataType
properties	content  complex
children	ds:PGPKeyID ds:PGPKeyPacket ds:PGPKeyPacket
used by	complexType  KeyInfoType

element Reference

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:ReferenceType
properties	content  complex
children	ds:Transforms ds:DigestMethod ds:DigestValue
used by	complexTypes  ManifestType SignedInfoType
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional         URI   xs:anyURI   optional         Type   xs:anyURI   optional

element RetrievalMethod

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:RetrievalMethodType
properties	content  complex
children	ds:Transforms
used by	complexType  KeyInfoType
attributes	Name   Type   Use   Default   Fixed   Annotation URI   xs:anyURI            Type   xs:anyURI   optional

element RSAKeyValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:RSAKeyValueType
properties	content  complex
children	ds:Modulus ds:Exponent
used by	complexType  KeyValueType

element Signature

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignatureType
properties	content  complex
children	ds:SignedInfo ds:SignatureValue ds:KeyInfo ds:Object
used by	complexType  tgGAEB
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

element SignatureMethod

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignatureMethodType
properties	content  complex mixed  true
children	ds:HMACOutputLength
used by	complexType  SignedInfoType
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required

element SignatureProperties

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignaturePropertiesType
properties	content  complex
children	ds:SignatureProperty
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

element SignatureProperty

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignaturePropertyType
properties	content  complex mixed  true
used by	complexType  SignaturePropertiesType
attributes	Name   Type   Use   Default   Fixed   Annotation Target   xs:anyURI   required         Id   xs:ID   optional

element SignatureValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignatureValueType
properties	content  complex
used by	complexType  SignatureType
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

element SignedInfo

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignedInfoType
properties	content  complex
children	ds:CanonicalizationMethod ds:SignatureMethod ds:Reference
used by	complexType  SignatureType
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

element SPKIData

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SPKIDataType
properties	content  complex
children	ds:SPKISexp
used by	complexType  KeyInfoType

element Transform

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:TransformType
properties	content  complex mixed  true
children	ds:XPath
used by	complexType  TransformsType
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required

element Transforms

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:TransformsType
properties	content  complex
children	ds:Transform
used by	complexTypes  ReferenceType RetrievalMethodType

element X509Data

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:X509DataType
properties	content  complex
children	ds:X509IssuerSerial ds:X509SKI ds:X509SubjectName ds:X509Certificate ds:X509CRL
used by	complexType  KeyInfoType

complexType CanonicalizationMethodType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
used by	element  CanonicalizationMethod
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required

attribute CanonicalizationMethodType/@Algorithm

type	xs:anyURI
properties	use  required

complexType DigestMethodType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
used by	element  DigestMethod
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required

attribute DigestMethodType/@Algorithm

type	xs:anyURI
properties	use  required

complexType DSAKeyValueType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:P ds:Q ds:G ds:Y ds:J ds:Seed ds:PgenCounter
used by	element  DSAKeyValue

element DSAKeyValueType/P

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple

element DSAKeyValueType/Q

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple

element DSAKeyValueType/G

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	minOcc  0 maxOcc  1 content  simple

element DSAKeyValueType/Y

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple

element DSAKeyValueType/J

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	minOcc  0 maxOcc  1 content  simple

element DSAKeyValueType/Seed

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple

element DSAKeyValueType/PgenCounter

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple

complexType KeyInfoType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
children	ds:KeyName ds:KeyValue ds:RetrievalMethod ds:X509Data ds:PGPData ds:SPKIData ds:MgmtData
used by	element  KeyInfo
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

attribute KeyInfoType/@Id

type	xs:ID
properties	use  optional

complexType KeyValueType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
children	ds:DSAKeyValue ds:RSAKeyValue
used by	element  KeyValue

complexType ManifestType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:Reference
used by	element  Manifest
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

attribute ManifestType/@Id

type	xs:ID
properties	use  optional

complexType ObjectType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
used by	element  Object
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional         MimeType   xs:string   optional         Encoding   xs:anyURI   optional

attribute ObjectType/@Id

type	xs:ID
properties	use  optional

attribute ObjectType/@MimeType

type	xs:string
properties	use  optional

attribute ObjectType/@Encoding

type	xs:anyURI
properties	use  optional

complexType PGPDataType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:PGPKeyID ds:PGPKeyPacket ds:PGPKeyPacket
used by	element  PGPData

element PGPDataType/PGPKeyID

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	content  simple

element PGPDataType/PGPKeyPacket

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	minOcc  0 maxOcc  1 content  simple

element PGPDataType/PGPKeyPacket

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	content  simple

complexType ReferenceType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:Transforms ds:DigestMethod ds:DigestValue
used by	element  Reference
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional         URI   xs:anyURI   optional         Type   xs:anyURI   optional

attribute ReferenceType/@Id

type	xs:ID
properties	use  optional

attribute ReferenceType/@URI

type	xs:anyURI
properties	use  optional

attribute ReferenceType/@Type

type	xs:anyURI
properties	use  optional

complexType RetrievalMethodType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:Transforms
used by	element  RetrievalMethod
attributes	Name   Type   Use   Default   Fixed   Annotation URI   xs:anyURI            Type   xs:anyURI   optional

attribute RetrievalMethodType/@URI

type

xs:anyURI

attribute RetrievalMethodType/@Type

type	xs:anyURI
properties	use  optional

complexType RSAKeyValueType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:Modulus ds:Exponent
used by	element  RSAKeyValue

element RSAKeyValueType/Modulus

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple

element RSAKeyValueType/Exponent

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple

complexType SignatureMethodType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
children	ds:HMACOutputLength
used by	element  SignatureMethod
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required

attribute SignatureMethodType/@Algorithm

type	xs:anyURI
properties	use  required

element SignatureMethodType/HMACOutputLength

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:HMACOutputLengthType
properties	minOcc  0 maxOcc  1 content  simple

complexType SignaturePropertiesType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:SignatureProperty
used by	element  SignatureProperties
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

attribute SignaturePropertiesType/@Id

type	xs:ID
properties	use  optional

complexType SignaturePropertyType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
used by	element  SignatureProperty
attributes	Name   Type   Use   Default   Fixed   Annotation Target   xs:anyURI   required         Id   xs:ID   optional

attribute SignaturePropertyType/@Target

type	xs:anyURI
properties	use  required

attribute SignaturePropertyType/@Id

type	xs:ID
properties	use  optional

complexType SignatureType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:SignedInfo ds:SignatureValue ds:KeyInfo ds:Object
used by	element  Signature
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

attribute SignatureType/@Id

type	xs:ID
properties	use  optional

complexType SignatureValueType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	extension of xs:base64Binary
properties	base  base64Binary
used by	element  SignatureValue
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

attribute SignatureValueType/@Id

type	xs:ID
properties	use  optional

complexType SignedInfoType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:CanonicalizationMethod ds:SignatureMethod ds:Reference
used by	element  SignedInfo
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

attribute SignedInfoType/@Id

type	xs:ID
properties	use  optional

complexType SPKIDataType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:SPKISexp
used by	element  SPKIData

element SPKIDataType/SPKISexp

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	content  simple

complexType TransformsType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:Transform
used by	element  Transforms

complexType TransformType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
children	ds:XPath
used by	element  Transform
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required

attribute TransformType/@Algorithm

type	xs:anyURI
properties	use  required

element TransformType/XPath

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
properties	content  simple

complexType X509DataType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:X509IssuerSerial ds:X509SKI ds:X509SubjectName ds:X509Certificate ds:X509CRL
used by	element  X509Data

element X509DataType/X509IssuerSerial

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:X509IssuerSerialType
properties	content  complex
children	ds:X509IssuerName ds:X509SerialNumber

element X509DataType/X509SKI

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	content  simple

element X509DataType/X509SubjectName

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
properties	content  simple

element X509DataType/X509Certificate

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	content  simple

element X509DataType/X509CRL

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	content  simple

complexType X509IssuerSerialType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:X509IssuerName ds:X509SerialNumber
used by	element  X509DataType/X509IssuerSerial

element X509IssuerSerialType/X509IssuerName

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
properties	content  simple

element X509IssuerSerialType/X509SerialNumber

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:integer
properties	content  simple

simpleType CryptoBinary

namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	base  base64Binary
used by	elements  RSAKeyValueType/Exponent DSAKeyValueType/G DSAKeyValueType/J RSAKeyValueType/Modulus DSAKeyValueType/P DSAKeyValueType/PgenCounter DSAKeyValueType/Q DSAKeyValueType/Seed DSAKeyValueType/Y

simpleType DigestValueType

namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	base  base64Binary
used by	element  DigestValue

simpleType HMACOutputLengthType

namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:integer
properties	base  integer
used by	element  SignatureMethodType/HMACOutputLength

attribute base

namespace	http://www.w3.org/XML/1998/namespace
type	xs:anyURI
used by	attributeGroup  specialAttrs
annotation	documentation <div> <h3>base (as an attribute name)</h3> <p>        denotes an attribute whose value        provides a URI to be used as the base for interpreting any        relative URIs in the scope of the element on which it        appears; its value is inherited.  This name is reserved        by virtue of its definition in the XML Base specification.</p> <p>       See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>       for information about this attribute.      </p> </div>

attribute id

namespace	http://www.w3.org/XML/1998/namespace
type	xs:ID
used by	attributeGroup  specialAttrs
annotation	documentation <div> <h3>id (as an attribute name)</h3> <p>        denotes an attribute whose value        should be interpreted as if declared to be of type ID.        This name is reserved by virtue of its definition in the        xml:id specification.</p> <p>       See <a href="http://www.w3.org/TR/xml-id/">http://www.w3.org/TR/xml-id/</a>       for information about this attribute.      </p> </div>

attribute lang

namespace	http://www.w3.org/XML/1998/namespace
type	union of (xs:language, restriction of xs:string)
used by	attributeGroup  specialAttrs
annotation	documentation <div> <h3>lang (as an attribute name)</h3> <p>        denotes an attribute whose value        is a language code for the natural language of the content of        any element; its value is inherited.  This name is reserved        by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>       Attempting to install the relevant ISO 2- and 3-letter       codes as the enumerated possible values is probably never       going to be a realistic possibility.       </p> <p>       See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">        http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>       and the IANA language subtag registry at       <a href="http://www.iana.org/assignments/language-subtag-registry">        http://www.iana.org/assignments/language-subtag-registry</a>       for further information.      </p> <p>       The union allows for the 'un-declaration' of xml:lang with       the empty string.      </p> </div>

attribute space

namespace	http://www.w3.org/XML/1998/namespace
type	restriction of xs:NCName
used by	complexType  tgGAEB attributeGroup  specialAttrs
facets	Kind  Value  Annotation enumeration  default enumeration  preserve
annotation	documentation <div> <h3>space (as an attribute name)</h3> <p>        denotes an attribute whose        value is a keyword indicating what whitespace processing        discipline is intended for the content of the element; its        value is inherited.  This name is reserved by virtue of its        definition in the XML specification.</p> </div>

attributeGroup specialAttrs

namespace

http://www.w3.org/XML/1998/namespace

attributes

Name   Type   Use   Default   Fixed   Annotation xml:base   xs:anyURI            documentation <div> <h3>base (as an attribute name)</h3> <p>        denotes an attribute whose value        provides a URI to be used as the base for interpreting any        relative URIs in the scope of the element on which it        appears; its value is inherited.  This name is reserved        by virtue of its definition in the XML Base specification.</p> <p>       See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>       for information about this attribute.      </p> </div> xml:lang   derived by: xs:language            documentation <div> <h3>lang (as an attribute name)</h3> <p>        denotes an attribute whose value        is a language code for the natural language of the content of        any element; its value is inherited.  This name is reserved        by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>       Attempting to install the relevant ISO 2- and 3-letter       codes as the enumerated possible values is probably never       going to be a realistic possibility.       </p> <p>       See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">        http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>       and the IANA language subtag registry at       <a href="http://www.iana.org/assignments/language-subtag-registry">        http://www.iana.org/assignments/language-subtag-registry</a>       for further information.      </p> <p>       The union allows for the 'un-declaration' of xml:lang with       the empty string.      </p> </div> xml:space   derived by: xs:NCName            documentation <div> <h3>space (as an attribute name)</h3> <p>        denotes an attribute whose        value is a keyword indicating what whitespace processing        discipline is intended for the content of the element; its        value is inherited.  This name is reserved by virtue of its        definition in the XML specification.</p> </div> xml:id   xs:ID            documentation <div> <h3>id (as an attribute name)</h3> <p>        denotes an attribute whose value        should be interpreted as if declared to be of type ID.        This name is reserved by virtue of its definition in the        xml:id specification.</p> <p>       See <a href="http://www.w3.org/TR/xml-id/">http://www.w3.org/TR/xml-id/</a>       for information about this attribute.      </p> </div>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
