Schema GAEB_DA_XML_Order.xsd

schema location:	..\GAEB_DA_XML_Order.xsd
attributeFormDefault:	unqualified
elementFormDefault:	qualified
targetNamespace:	http://www.gaeb.de/GAEB_DA_XML/200706

Elements	Complex types	Simple types
GAEB	tgAddress	tgAttAlign
	tgAddText	tgAttAlignTable
	tgBank	tgAttBorder
	tgBoQBkdn	tgAttCellpadding
	tgBoQText	tgAttColspan
	tgCashDiscDays	tgAttFrame
	tgCashDiscount	tgAttHeight
	tgCommunication	tgAttOrg
	tgComplBodyDec	tgAttRowspan
	tgComplBodyInt	tgAttStyle
	tgCompleteText	tgAttValign
	tgCtlg	tgAttWidth
	tgCtlgAssign	tgbr
	tgCustomerInfo	tgCtlgID
	tgDeliveryPlaceInfo	tgCtlgName
	tgDescription	tgCtlgType
	tgDimension	tgCur
	tgdiv	tgCurLbl
	tgFText	tgDate
	tgGAEB	tgDecimal
	tgGAEBInfo	tgDecimal_10_2
	tgImage	tgDecimal_11_3
	tgInvoiceInfo	tgDecimal_13_0
	tgISOCur	tgDecimal_13_2
	tgli	tgDecimal_13_3
	tgMLText	tgDecimal_5_2
	tgol	tgDecimal_6_4
	tgOrder	tgInteger
	tgOrderInfo	tgLeftRight
	tgOrderItem	tgNonNegativeInteger
	tgOutlineText	tgNormalizedString
	tgOutlTxt	tgNormalizedString10

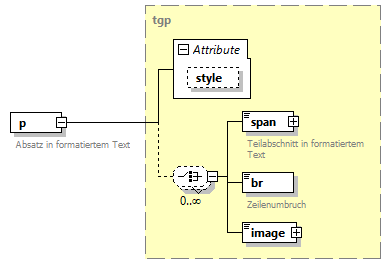

	tgp	tgNormalizedString100
	tgPlannerInfo	tgNormalizedString12
	tgpMLText	tgNormalizedString120
	tgPriceModification	tgNormalizedString13
	tgPrjInfo	tgNormalizedString15
	tgQuotation	tgNormalizedString20
	tgRefItems	tgNormalizedString256
	tgspan	tgNormalizedString3
	tgSTLBBau	tgNormalizedString30
	tgSTLBBauCtlg	tgNormalizedString4

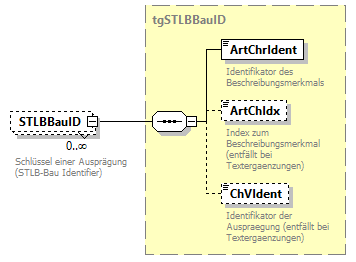

	tgSTLBBauID	tgNormalizedString40
	tgSupplierInfo	tgNormalizedString5

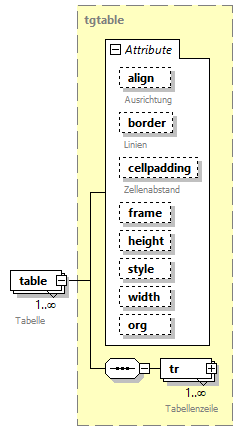

	tgtable	tgNormalizedString55
	tgtd	tgNormalizedString60
	tgTextComplement	tgNormalizedString8

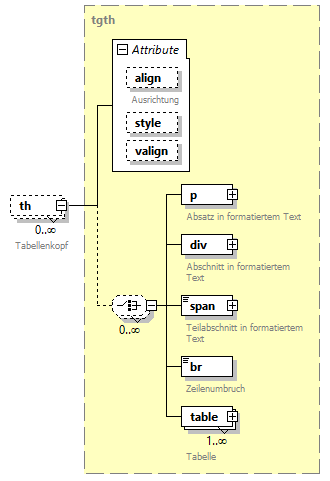

	tgth	tgNormalizedString80
	tgtr	tgpage
	tgul	tgPositiveInteger
	tgUserValue	tgStLNo
		tgString
		tgTime
		tgVersDate
		tgWeek
		tgYes
		tgYesNo

schema location:	..\xmldsig-core-schema.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	http://www.w3.org/2000/09/xmldsig#

Elements	Complex types	Simple types

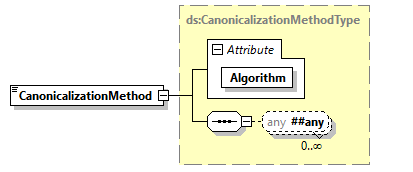

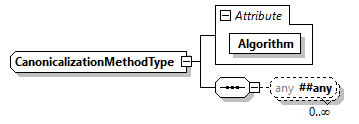

CanonicalizationMethod	CanonicalizationMethodType	CryptoBinary

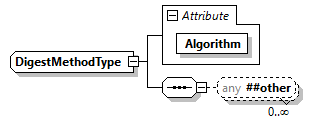

DigestMethod	DigestMethodType	DigestValueType
DigestValue	DSAKeyValueType	HMACOutputLengthType

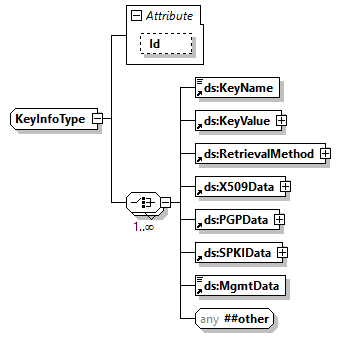

DSAKeyValue	KeyInfoType
KeyInfo	KeyValueType
KeyName	ManifestType
KeyValue	ObjectType

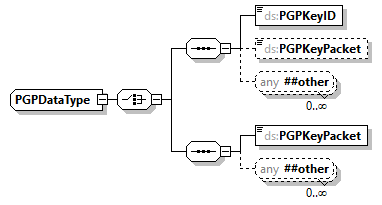

Manifest	PGPDataType
MgmtData	ReferenceType
Object	RetrievalMethodType
PGPData	RSAKeyValueType
Reference	SignatureMethodType

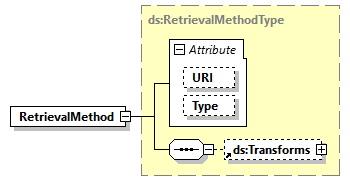

RetrievalMethod	SignaturePropertiesType
RSAKeyValue	SignaturePropertyType
Signature	SignatureType
SignatureMethod	SignatureValueType
SignatureProperties	SignedInfoType
SignatureProperty	SPKIDataType
SignatureValue	TransformsType
SignedInfo	TransformType
SPKIData	X509DataType
Transform	X509IssuerSerialType
Transforms
X509Data

schema location:	..\xml.xsd
attributeFormDefault:
elementFormDefault:
targetNamespace:	http://www.w3.org/XML/1998/namespace

Attributes	Attr. groups
base	specialAttrs
id
lang
space

element GAEB

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgGAEB
properties	content  complex
children	GAEBInfo PrjInfo Order AddText ds:Signature
attributes	Name   Type   Use   Default   Fixed   Annotation xml:space   derived by: xs:NCName      preserve      documentation <div> <h3>space (as an attribute name)</h3> <p>        denotes an attribute whose        value is a keyword indicating what whitespace processing        discipline is intended for the content of the element; its        value is inherited.  This name is reserved by virtue of its        definition in the XML specification.</p> </div>

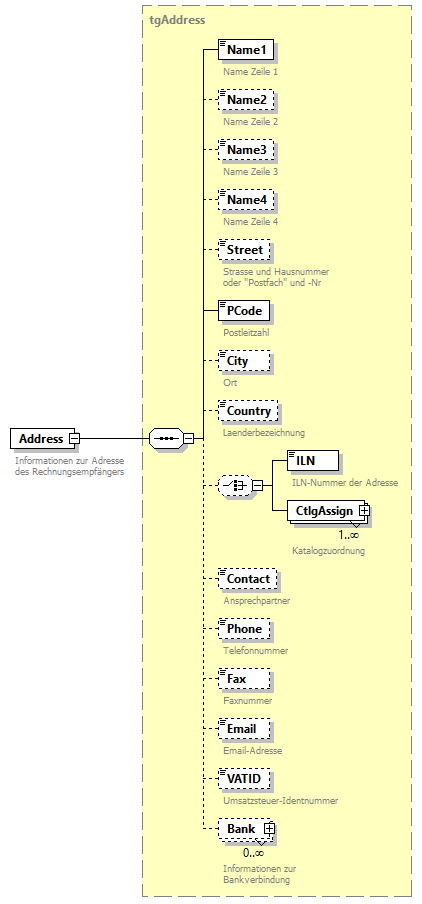

complexType tgAddress

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
used by	elements  tgSupplierInfo/Address tgCustomerInfo/Address tgDeliveryPlaceInfo/Address tgPlannerInfo/Address tgInvoiceInfo/Address tgOrderItem/Address
annotation	documentation Informationen zur Adresse

element tgAddress/Name1

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString40
properties	content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Name Zeile 1

element tgAddress/Name2

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Name Zeile 2

element tgAddress/Name3

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Name Zeile 3

element tgAddress/Name4

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Name Zeile 4

element tgAddress/Street

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Strasse und Hausnummer oder "Postfach" und -Nr

element tgAddress/PCode

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString20
properties	content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Postleitzahl

element tgAddress/City

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Ort

element tgAddress/Country

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Laenderbezeichnung

element tgAddress/ILN

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString20
properties	content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation ILN-Nummer der Adresse

element tgAddress/CtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgCtlgAssign
properties	minOcc  1 maxOcc  unbounded content  complex
children	CtlgID CtlgCode
annotation	documentation Katalogzuordnung

element tgAddress/Contact

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Ansprechpartner

element tgAddress/Phone

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Telefonnummer

element tgAddress/Fax

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Faxnummer

element tgAddress/Email

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString256
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  256
annotation	documentation Email-Adresse

element tgAddress/VATID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString80
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Umsatzsteuer-Identnummer

element tgAddress/Bank

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgBank
properties	minOcc  0 maxOcc  unbounded content  complex
children	LblBank BRNo AcctNo
annotation	documentation Informationen zur Bankverbindung

complexType tgAddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	OutlineAddText DetailAddText
used by	elements  tgGAEB/AddText tgPrjInfo/AddText tgOrderInfo/AddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

element tgAddText/OutlineAddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgMLText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString

element tgAddText/DetailAddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgFText
properties	content  complex mixed  false
children	p div span ul ol table br page Image
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString

complexType tgBank

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	LblBank BRNo AcctNo
used by	element  tgAddress/Bank
annotation	documentation Informationen zur Bankverbindung

element tgBank/LblBank

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString80
properties	content  simple
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Bezeichnung des Geldinstituts

element tgBank/BRNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString30
properties	content  simple
facets	Kind  Value  Annotation maxLength  30
annotation	documentation Bankleitzahl des Geldinstituts

element tgBank/AcctNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString20
properties	content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Kontonummer

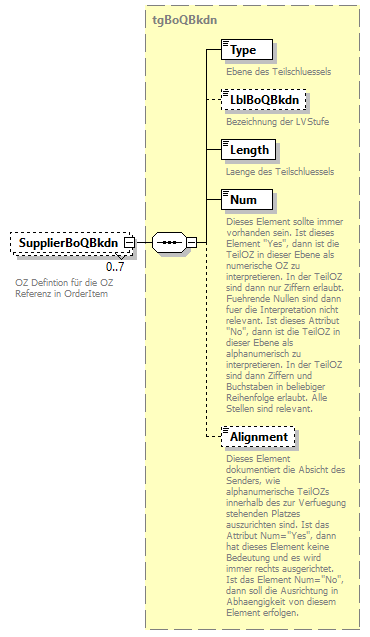

complexType tgBoQBkdn

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	Type LblBoQBkdn Length Num Alignment

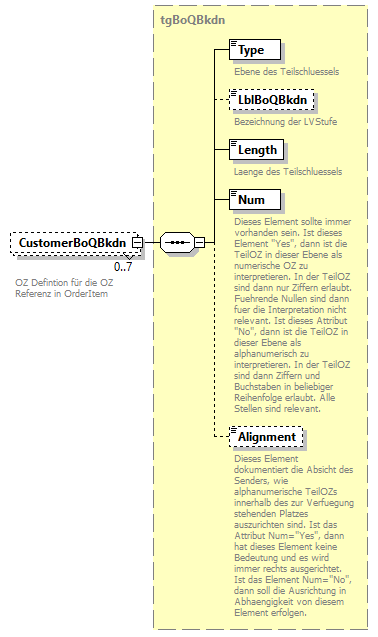

used by	elements  tgOrderInfo/CustomerBoQBkdn tgOrderInfo/SupplierBoQBkdn
annotation	documentation Informationen zur Gliederung des LV

element tgBoQBkdn/Type

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	content  simple
facets	Kind  Value  Annotation enumeration  Lot enumeration  BoQLevel enumeration  Item enumeration  Index
annotation	documentation Ebene des Teilschluessels

element tgBoQBkdn/LblBoQBkdn

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Bezeichnung der LVStufe

element tgBoQBkdn/Length

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgPositiveInteger
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  14
annotation	documentation Laenge des Teilschluessels

element tgBoQBkdn/Num

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgYesNo
properties	content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Dieses Element sollte immer vorhanden sein. Ist dieses Element "Yes", dann ist die TeilOZ in dieser Ebene als numerische OZ zu interpretieren. In der TeilOZ sind dann nur Ziffern erlaubt. Fuehrende Nullen sind dann fuer die Interpretation nicht relevant. Ist dieses Attribut "No", dann ist die TeilOZ in dieser Ebene als alphanumerisch zu interpretieren. In der TeilOZ sind dann Ziffern und Buchstaben in beliebiger Reihenfolge erlaubt. Alle Stellen sind relevant.

element tgBoQBkdn/Alignment

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgLeftRight
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  left enumeration  right
annotation	documentation Dieses Element dokumentiert die Absicht des Senders, wie alphanumerische TeilOZs innerhalb des zur Verfuegung stehenden Platzes auszurichten sind. Ist das Attribut Num="Yes", dann hat dieses Element keine Bedeutung und es wird immer rechts ausgerichtet. Ist das Element Num="No", dann soll die Ausrichtung in Abhaengigkeit von diesem Element erfolgen.

complexType tgBoQText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
properties	mixed  false
children	Text TextComplement attachment
used by	element  tgCompleteText/DetailTxt

element tgBoQText/Text

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgFText
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	p div span ul ol table br page Image
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Textbeschreibung ohne Einschraenkungen

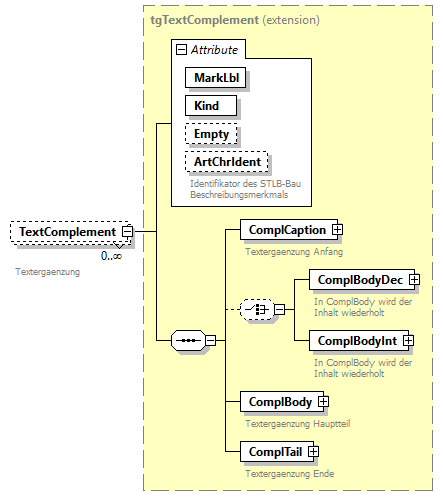

element tgBoQText/TextComplement

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	extension of tgTextComplement
properties	minOcc  0 maxOcc  unbounded content  complex
children	ComplCaption ComplBodyDec ComplBodyInt ComplBody ComplTail
attributes	Name   Type   Use   Default   Fixed   Annotation MarkLbl   tgInteger   required         Kind   derived by: tgNormalizedString   required         Empty   tgYes   optional         ArtChrIdent   tgInteger            documentation Identifikator des STLB-Bau Beschreibungsmerkmals
annotation	documentation Textergaenzung

element tgBoQText/attachment

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	minOcc  0 maxOcc  unbounded content  simple

complexType tgCashDiscDays

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
used by	element  tgCashDiscount/CashDiscDays
attributes	Name   Type   Use   Default   Fixed   Annotation TypeOfDays   derived by: tgNormalizedString            Days   tgPositiveInteger

attribute tgCashDiscDays/@TypeOfDays

type	restriction of tgNormalizedString
facets	Kind  Value  Annotation enumeration  work days enumeration  week days enumeration  calendar days

attribute tgCashDiscDays/@Days

type	tgPositiveInteger

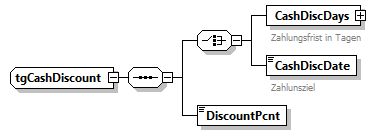

complexType tgCashDiscount

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	CashDiscDays CashDiscDate DiscountPcnt
used by	element  tgOrderInfo/CashDiscount

element tgCashDiscount/CashDiscDays

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgCashDiscDays
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation TypeOfDays   derived by: tgNormalizedString            Days   tgPositiveInteger
annotation	documentation Zahlungsfrist in Tagen

element tgCashDiscount/CashDiscDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDate
properties	content  simple
annotation	documentation Zahlunsziel

element tgCashDiscount/DiscountPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal_5_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2

complexType tgCommunication

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	Question Response
used by	element  tgPrjInfo/Communication
annotation	documentation Kommunikation In diesem Objekt werden Fragen und Antworten der Austauschpartner abgelegt.

element tgCommunication/Question

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString80
properties	content  simple
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Frage eines Austauschpartners

element tgCommunication/Response

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString80
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Antwort des anderen Austauschpartners

complexType tgComplBodyDec

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
used by	element  tgTextComplement/ComplBodyDec
attributes	Name   Type   Use   Default   Fixed   Annotation Value   tgDecimal

attribute tgComplBodyDec/@Value

type

tgDecimal

complexType tgComplBodyInt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
used by	element  tgTextComplement/ComplBodyInt
attributes	Name   Type   Use   Default   Fixed   Annotation Value   tgInteger

attribute tgComplBodyInt/@Value

type

tgInteger

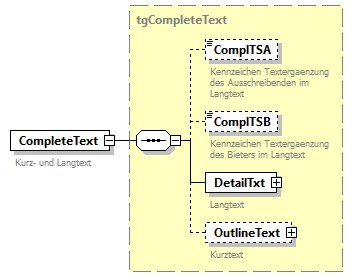

complexType tgCompleteText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	ComplTSA ComplTSB DetailTxt OutlineText
used by	element  tgDescription/CompleteText
annotation	documentation Kurz- und Langtext

element tgCompleteText/ComplTSA

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Textergaenzung des Ausschreibenden im Langtext

element tgCompleteText/ComplTSB

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Textergaenzung des Bieters im Langtext

element tgCompleteText/DetailTxt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgBoQText
properties	content  complex mixed  false
children	Text TextComplement attachment
annotation	documentation Langtext

element tgCompleteText/OutlineText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgOutlineText
properties	minOcc  0 maxOcc  1 content  complex
children	OutlTSA OutlTxt
annotation	documentation Kurztext

complexType tgCtlg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	CtlgID CtlgType CtlgName
used by	element  tgOrderInfo/Ctlg

element tgCtlg/CtlgID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgCtlgID
properties	content  simple
facets	Kind  Value  Annotation maxLength  20

element tgCtlg/CtlgType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgCtlgType
properties	content  simple
facets	Kind  Value  Annotation enumeration  cost group DIN 276-81 enumeration  cost group DIN 276-93 enumeration  cost group DIN 276-06 enumeration  locality enumeration  work category enumeration  cost unit enumeration  miscellaneous

element tgCtlg/CtlgName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgCtlgName
properties	content  simple
facets	Kind  Value  Annotation maxLength  80

complexType tgCtlgAssign

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	CtlgID CtlgCode
used by	element  tgAddress/CtlgAssign
annotation	documentation Katalogzuordnung

element tgCtlgAssign/CtlgID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString100
properties	content  simple
facets	Kind  Value  Annotation maxLength  100
annotation	documentation Identifikator des Kataloges

element tgCtlgAssign/CtlgCode

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString100
properties	content  simple
facets	Kind  Value  Annotation maxLength  100
annotation	documentation Schluessel der Zuordnung

complexType tgCustomerInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	IDNo Address
used by	element  tgOrder/CostumerInfo
annotation	documentation Informationen zum Besteller (Kunden)

element tgCustomerInfo/IDNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Kunden-Nummer beim Lieferanten

element tgCustomerInfo/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgAddress
properties	content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Kunden

complexType tgDeliveryPlaceInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	IDNo Address
used by	element  tgOrder/DeliveryPlaceInfo
annotation	documentation Informationen zum Lieferort

element tgDeliveryPlaceInfo/IDNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation ID-Nummer für Lieferort

element tgDeliveryPlaceInfo/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgAddress
properties	content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Lieferort

complexType tgDescription

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	STLBBau StLNo WICNo CompleteText OutlineText
used by	element  tgOrderItem/Description
annotation	documentation Textorganisation

element tgDescription/STLBBau

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgSTLBBau
properties	content  complex
children	STLBBauCtlg STLBBauID
annotation	documentation Schluessel STLB-Bau

element tgDescription/StLNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	extension of tgStLNo
properties	content  complex
facets	Kind  Value  Annotation pattern  [0-9]{0,17}
attributes	Name   Type   Use   Default   Fixed   Annotation Type   derived by: tgNormalizedString
annotation	documentation Standardleistungsnummer (StLB/STLK)

attribute tgDescription/StLNo/@Type

type	restriction of tgNormalizedString
facets	Kind  Value  Annotation enumeration  STLB-BauZ enumeration  StLB enumeration  StLK

element tgDescription/WICNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString40
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Katalognummer (Mutter-LV)

element tgDescription/CompleteText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgCompleteText
properties	content  complex
children	ComplTSA ComplTSB DetailTxt OutlineText
annotation	documentation Kurz- und Langtext

element tgDescription/OutlineText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgOutlineText
properties	content  complex
children	OutlTSA OutlTxt
annotation	documentation Kurztext

complexType tgDimension

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	UM Height Width Length
used by	element  tgOrderItem/Dimension

element tgDimension/UM

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString3
properties	content  simple
facets	Kind  Value  Annotation maxLength  3
annotation	documentation unit of measure

element tgDimension/Height

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal
properties	minOcc  0 maxOcc  1 content  simple

element tgDimension/Width

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal
properties	minOcc  0 maxOcc  1 content  simple

element tgDimension/Length

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal
properties	minOcc  0 maxOcc  1 content  simple

complexType tgdiv

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
properties	mixed  false
children	span br
used by	elements  tgFText/div tgMLText/div tgli/div tgth/div tgtd/div
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

attribute tgdiv/@style

type	tgAttStyle

element tgdiv/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgdiv/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

complexType tgFText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
properties	mixed  false
children	p div span ul ol table br page Image
used by	elements  tgPrjInfo/Descrip tgAddText/DetailAddText tgBoQText/Text
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Formatierte Textbeschreibung

attribute tgFText/@textWidth

type	tgNormalizedString

element tgFText/p

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgp
properties	content  complex mixed  false
children	span br image
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Absatz in formatiertem Text

element tgFText/div

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgdiv
properties	content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

element tgFText/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

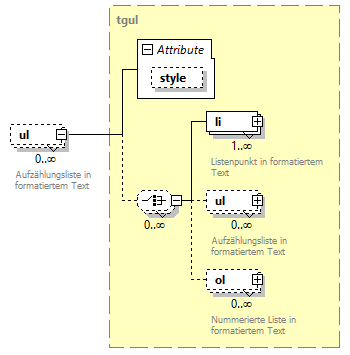

element tgFText/ul

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgul
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	li ul ol
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Aufzählungsliste in formatiertem Text

element tgFText/ol

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgol
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	li ul ol
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Nummerierte Liste in formatiertem Text

element tgFText/table

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgtable
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	tr
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlignTable            documentation Ausrichtung border   tgAttBorder            documentation Linien cellpadding   tgAttCellpadding            documentation Zellenabstand frame   tgAttFrame            height   tgAttHeight            style   tgAttStyle            width   tgAttWidth            org   tgAttOrg
annotation	documentation Tabelle

element tgFText/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

element tgFText/page

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgpage
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Seitenumbruch

element tgFText/Image

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgImage
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign   optional         documentation Ausrichtung border   tgAttBorder   optional         hspace   tgNormalizedString   optional         vspace   tgNormalizedString   optional         width   tgAttWidth   optional         Type   derived by: tgNormalizedString   required         Name   tgNormalizedString   optional         Encoding   derived by: tgNormalizedString   optional   base64
annotation	documentation einzelnes Bild

complexType tgGAEB

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	GAEBInfo PrjInfo Order AddText ds:Signature
used by	element  GAEB
attributes	Name   Type   Use   Default   Fixed   Annotation xml:space   derived by: xs:NCName      preserve      documentation <div> <h3>space (as an attribute name)</h3> <p>        denotes an attribute whose        value is a keyword indicating what whitespace processing        discipline is intended for the content of the element; its        value is inherited.  This name is reserved by virtue of its        definition in the XML specification.</p> </div>
annotation	documentation Aufgestellt vom Gemeinsamen Ausschuss Elektronik im Bauwesen (GAEB) © 2002 bis 2007 by DIN Deutsches Institut fuer Normung e. V.

element tgGAEB/GAEBInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgGAEBInfo
properties	content  complex
children	Version VersDate Date Time ProgSystem ProgName Certific
annotation	documentation Informationen zum GAEB-Datenaustausch

element tgGAEB/PrjInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgPrjInfo
properties	minOcc  0 maxOcc  1 content  complex
children	NamePrj LblPrj Descrip Cur CurLbl BidCommPerm AlterBidPerm Communication AddText UPFracDig
annotation	documentation Informationen zum Projekt

element tgGAEB/Order

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgOrder
properties	content  complex
children	DP OrderInfo SupplierInfo CostumerInfo DeliveryPlaceInfo PlannerInfo InvoiceInfo OrderItem
annotation	documentation Bestellung In diesem Objekt werden die Informationen des Bestellverfahrens abgelegt. Das Objekt kann in den Datenaustauschphasen D93,D94,D96 und D97 verwendet werden.

element tgGAEB/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

complexType tgGAEBInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	Version VersDate Date Time ProgSystem ProgName Certific
used by	element  tgGAEB/GAEBInfo
annotation	documentation Informationen zum GAEB-Datenaustausch

element tgGAEBInfo/Version

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString10
properties	content  simple
facets	Kind  Value  Annotation maxLength  10 enumeration  3.1
annotation	documentation Version des GAEB DA XML

element tgGAEBInfo/VersDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgVersDate
properties	content  simple
annotation	documentation Datum der Version des Katalogs

element tgGAEBInfo/Date

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDate
properties	content  simple
annotation	documentation Datum

element tgGAEBInfo/Time

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Erstellungszeit der Datenaustauschdatei

element tgGAEBInfo/ProgSystem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Programmsystem

element tgGAEBInfo/ProgName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Umsetzprogramm

element tgGAEBInfo/Certific

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Available
annotation	documentation Pruefzertifikat der benutzten Version GAEB DA XML liegt vor

complexType tgImage

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	extension of tgString
properties	base  tgString
used by	elements  tgFText/Image tgp/image
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign   optional         documentation Ausrichtung border   tgAttBorder   optional         hspace   tgNormalizedString   optional         vspace   tgNormalizedString   optional         width   tgAttWidth   optional         Type   derived by: tgNormalizedString   required         Name   tgNormalizedString   optional         Encoding   derived by: tgNormalizedString   optional   base64
annotation	documentation einzelnes Bild

attribute tgImage/@align

type	tgAttAlign
properties	use  optional
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right enumeration  justify
annotation	documentation Ausrichtung

attribute tgImage/@border

type	tgAttBorder
properties	use  optional

attribute tgImage/@hspace

type	tgNormalizedString
properties	use  optional

attribute tgImage/@vspace

type	tgNormalizedString
properties	use  optional

attribute tgImage/@width

type	tgAttWidth
properties	use  optional

attribute tgImage/@Type

type	restriction of tgNormalizedString
properties	use  required
facets	Kind  Value  Annotation enumeration  image/jpeg enumeration  image/gif enumeration  image/png

attribute tgImage/@Name

type	tgNormalizedString
properties	use  optional

attribute tgImage/@Encoding

type	restriction of tgNormalizedString
properties	use  optional default  base64
facets	Kind  Value  Annotation enumeration  base64

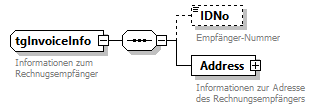

complexType tgInvoiceInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	IDNo Address
used by	element  tgOrder/InvoiceInfo
annotation	documentation Informationen zum Rechnugsempfänger

element tgInvoiceInfo/IDNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Empfänger-Nummer

element tgInvoiceInfo/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgAddress
properties	content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Rechnungsempfängers

complexType tgISOCur

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
used by	elements  tgOrderInfo/Cur tgQuotation/Cur
attributes	Name   Type   Use   Default   Fixed   Annotation ISO   tgNormalizedString
annotation	documentation Waehrung mit ISO Kennzeichen im Attribut

attribute tgISOCur/@ISO

type	tgNormalizedString

complexType tgli

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
properties	mixed  false
children	p div span br
used by	elements  tgul/li tgol/li
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Listenpunkt in formatiertem Text

attribute tgli/@style

type	tgAttStyle

element tgli/p

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgp
properties	content  complex mixed  false
children	span br image
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Absatz in formatiertem Text

element tgli/div

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgdiv
properties	content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

element tgli/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgli/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

complexType tgMLText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
properties	mixed  false
children	p div span br
used by	elements  tgOrderItem/BidComm tgTextComplement/ComplBody tgTextComplement/ComplCaption tgTextComplement/ComplTail tgAddText/OutlineAddText tgOutlTxt/TextOutlTxt
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Mehrzeilige Textbeschreibung

attribute tgMLText/@textWidth

type	tgNormalizedString

element tgMLText/p

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgpMLText
properties	content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Absatz

element tgMLText/div

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgdiv
properties	content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

element tgMLText/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgMLText/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

complexType tgol

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
properties	mixed  false
children	li ul ol
used by	elements  tgFText/ol tgul/ol tgol/ol
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Nummerierte Liste in formatiertem Text

attribute tgol/@style

type	tgAttStyle

element tgol/li

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgli
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Listenpunkt in formatiertem Text

element tgol/ul

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgul
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	li ul ol
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Aufzählungsliste in formatiertem Text

element tgol/ol

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgol
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	li ul ol
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Nummerierte Liste in formatiertem Text

complexType tgOrder

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	DP OrderInfo SupplierInfo CostumerInfo DeliveryPlaceInfo PlannerInfo InvoiceInfo OrderItem
used by	element  tgGAEB/Order
annotation	documentation Bestellung

element tgOrder/DP

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of xs:token
properties	content  simple
facets	Kind  Value  Annotation enumeration  93 enumeration  94 enumeration  96 enumeration  97
annotation	documentation GAEB-Datenaustauschphase

element tgOrder/OrderInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgOrderInfo
properties	minOcc  0 maxOcc  1 content  complex
children	Inquiry CallOrder RepOrder InquiryNo OfferNo PartNo OrderConfNo TenderDate DeliveryType DeliveryWeek DeliveryDate DeliveryTime FixedPriceDate ModeOfShipment Cur CurLbl AddText OfferFixedPriceDate OfferFixedPriceWeek CustomerBoQBkdn SupplierBoQBkdn PriceModification VAT CashDiscount Quotation SpecialPayTime Ctlg
annotation	documentation Informationen zur Bestellung

element tgOrder/SupplierInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgSupplierInfo
properties	minOcc  0 maxOcc  1 content  complex
children	IDNo Address

element tgOrder/CostumerInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgCustomerInfo
properties	minOcc  0 maxOcc  1 content  complex
children	IDNo Address

element tgOrder/DeliveryPlaceInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDeliveryPlaceInfo
properties	minOcc  0 maxOcc  1 content  complex
children	IDNo Address

element tgOrder/PlannerInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgPlannerInfo
properties	minOcc  0 maxOcc  1 content  complex
children	IDNo Address

element tgOrder/InvoiceInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgInvoiceInfo
properties	minOcc  0 maxOcc  1 content  complex
children	IDNo Address

element tgOrder/OrderItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgOrderItem
properties	minOcc  0 maxOcc  unbounded content  complex
children	ItemChara ItemType RepOrder RefItems DeliveryChara EAN ArtNoID ArtNo SupplierArtNoID SupplierArtNo CustumerArtNo CatalogArtNo CatalogNo Qty QU StorageGoods Description BidComm OfferPrice NetPrice PriceBasis AQU Address ModeOfShipment KindOfDate DeliveryDate DeliveryTime DeliveryWeek PriceModification PriceChara VAT UserValue Dimension Weight UW TechnClarification
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required

complexType tgOrderInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	Inquiry CallOrder RepOrder InquiryNo OfferNo PartNo OrderConfNo TenderDate DeliveryType DeliveryWeek DeliveryDate DeliveryTime FixedPriceDate ModeOfShipment Cur CurLbl AddText OfferFixedPriceDate OfferFixedPriceWeek CustomerBoQBkdn SupplierBoQBkdn PriceModification VAT CashDiscount Quotation SpecialPayTime Ctlg
used by	element  tgOrder/OrderInfo

element tgOrderInfo/Inquiry

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	content  simple
facets	Kind  Value  Annotation enumeration  project-inquires enumeration  immediate needs enumeration  exhibition
annotation	documentation AnfrArt, P = Projektanfrage, S = Sofortbedarf, A = Ausstellung

element tgOrderInfo/CallOrder

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  V enumeration  CO enumeration  COfromCO enumeration  COfromOffer enumeration  CreateCOfromOffer
annotation	documentation Abrufauftrag, Z=zulässig (nur D93 oder D97), A=Abrufauftrag, ALT= Abrufauftrag zur Lieferung aus einem Abrufauftrag, ALA=Abrufauftrag zur Lieferung aus einem Angebeot EAA=Erstellen eines Abrufauftrages aus einer Angebot V =valid, CO =call order, COfromCO =call order for supply from a call order, COfromOffer =call order for supply from an offer, CreateCOfromOffer=create a call order from an offer

element tgOrderInfo/RepOrder

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15
annotation	documentation Nachbestellung zu Auftragsnummer

element tgOrderInfo/InquiryNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15
annotation	documentation AnfrNrKunde, Anfragenummer (Name aus D93)

element tgOrderInfo/OfferNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15
annotation	documentation AngebNrLief, Angebotsnummer (Name aus D94)

element tgOrderInfo/PartNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15
annotation	documentation BestNr, Bestellnummer (Name aus D96)

element tgOrderInfo/OrderConfNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15
annotation	documentation ABNr, Auftragsbestätigungsnummer (Name aus D97)

element tgOrderInfo/TenderDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation ErDatum, Submissionstermin (Eröffnungsdatum)

element tgOrderInfo/DeliveryType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  fixed
annotation	documentation LieferArt, Bei Bedarf "FIX"

element tgOrderInfo/DeliveryWeek

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgWeek
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  53
annotation	documentation Lieferwoche

element tgOrderInfo/DeliveryDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDate
properties	content  simple
annotation	documentation Lieferdatum

element tgOrderInfo/DeliveryTime

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgTime
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Lieferzeit

element tgOrderInfo/FixedPriceDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Preisbindungsdatum in Angebot

element tgOrderInfo/ModeOfShipment

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString30
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  30
annotation	documentation VersArt, Lieferung / Abholung / Strecke

element tgOrderInfo/Cur

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgISOCur
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ISO   tgNormalizedString
annotation	documentation Waehrung

element tgOrderInfo/CurLbl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgCurLbl
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  50
annotation	documentation Bezeichnung der Waehrung

element tgOrderInfo/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgAddText
properties	minOcc  0 maxOcc  1 content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusätzlicher Text zum Vorgang

element tgOrderInfo/OfferFixedPriceDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDate
properties	content  simple
annotation	documentation Rückgabe für Preisanfrage (D93), Preisbindung für Angebot (D94)

element tgOrderInfo/OfferFixedPriceWeek

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgWeek
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  53
annotation	documentation Rückgabe für Preisanfrage (D93), Preisbindung für Angebot (D94)

element tgOrderInfo/CustomerBoQBkdn

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgBoQBkdn
properties	minOcc  0 maxOcc  7 content  complex
children	Type LblBoQBkdn Length Num Alignment
annotation	documentation OZ Defintion für die OZ Referenz in OrderItem

element tgOrderInfo/SupplierBoQBkdn

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgBoQBkdn
properties	minOcc  0 maxOcc  7 content  complex
children	Type LblBoQBkdn Length Num Alignment
annotation	documentation OZ Defintion für die OZ Referenz in OrderItem

element tgOrderInfo/PriceModification

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgPriceModification
properties	minOcc  0 maxOcc  unbounded content  complex
children	Type SubQty Threshold Name Quotation DiscountPcnt DiscountAbs MarkupPcnt MarkupAbs Multiplicator
annotation	documentation Nachlässe / Zuschläge auf die gesamte Bestellung

element tgOrderInfo/VAT

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal_5_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation MwSt in %

element tgOrderInfo/CashDiscount

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgCashDiscount
properties	minOcc  0 maxOcc  3 content  complex
children	CashDiscDays CashDiscDate DiscountPcnt
annotation	documentation Skonto

element tgOrderInfo/Quotation

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgQuotation
properties	minOcc  0 maxOcc  unbounded content  complex
children	Kind PriceFrom PriceTo Cur CurLbl ConversionRate Weight UW
annotation	documentation DEL Notierung

element tgOrderInfo/SpecialPayTime

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Sonderzahlungsziel als Beschreibung.

element tgOrderInfo/Ctlg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgCtlg
properties	minOcc  0 maxOcc  unbounded content  complex
children	CtlgID CtlgType CtlgName
annotation	documentation Katalog

complexType tgOrderItem

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	ItemChara ItemType RepOrder RefItems DeliveryChara EAN ArtNoID ArtNo SupplierArtNoID SupplierArtNo CustumerArtNo CatalogArtNo CatalogNo Qty QU StorageGoods Description BidComm OfferPrice NetPrice PriceBasis AQU Address ModeOfShipment KindOfDate DeliveryDate DeliveryTime DeliveryWeek PriceModification PriceChara VAT UserValue Dimension Weight UW TechnClarification
used by	element  tgOrder/OrderItem
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID   required
annotation	documentation Angebots-/Anfrage-/Bestellposition. Regeln: 1) Das Attribut ID bezieht sich in der Regel auf die ID in einer vorhandenen, vorherigen Datenaustauschphase (i.d.R. D93). 2) LiefKennZ darf nicht in D93 existieren. 3) Wenn AME nicht existiert, beziehen sich die Elemente PrBrutto, PrNetto und PrBasis auf 1 Einheit des Elementes ArtMenge.

attribute tgOrderItem/@ID

type	xs:ID
properties	use  required

element tgOrderItem/ItemChara

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  normal enumeration  alternate enumeration  provis
annotation	documentation PosKennZ, N = Normalposition, A = Alternativposition, M = Bedarfsposition,

element tgOrderItem/ItemType

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  jumbo-main enumeration  jumbo-sub enumeration  articel-main
annotation	documentation PosKennZ, ´J´ = Jumbo-Hauptposition (Stücklisten-Hauptpos.) ´U´= Jumbo-Unterposition `H`= Reguläre Artikel-Hauptposition

element tgOrderItem/RepOrder

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Nachbestellung zu Position, ID der Position

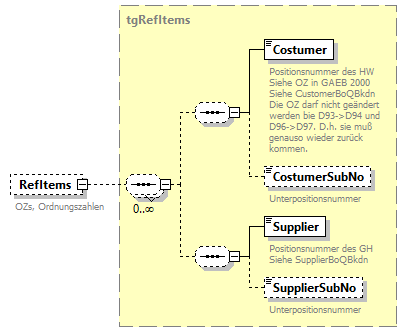

element tgOrderItem/RefItems

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgRefItems
properties	minOcc  0 maxOcc  1 content  complex
children	Costumer CostumerSubNo Supplier SupplierSubNo
annotation	documentation OZs, Ordnungszahlen

element tgOrderItem/DeliveryChara

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  no supply enumeration  addition enumeration  change enumeration  alternate
annotation	documentation LiefKennZ, X = keine Lieferung, Z = Ergänzung G = Änderung (D94), A = Alternative

element tgOrderItem/EAN

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal_13_0
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  0
annotation	documentation EAN-Nummer der Position

element tgOrderItem/ArtNoID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString13
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  13
annotation	documentation Kenn-Nummer (z.B. ILN) zu Artikelnummer, falls abweichend von IdNr des Lieferanten

element tgOrderItem/ArtNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15
annotation	documentation Artikelnummer des Lieferanten

element tgOrderItem/SupplierArtNoID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString13
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  13
annotation	documentation LiefArtNrID, ILN-Nummer (z.B. ILN) zu abweichender Artikelnummer des Lieferanten

element tgOrderItem/SupplierArtNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15
annotation	documentation LiefArtNr, Abweichende Artikelnummer des Lieferanten (z.B. Werksnummer)

element tgOrderItem/CustumerArtNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString15
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  15

element tgOrderItem/CatalogArtNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	content  simple
annotation	documentation Katalog Artikelnummer

element tgOrderItem/CatalogNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Katalog Nummer

element tgOrderItem/Qty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	extension of tgDecimal_13_2
properties	content  complex
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation ArtMenge, Anfrage-, Angebots- oder Bestellmenge (je nach Datenaustauschphase)

element tgOrderItem/QU

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	extension of tgNormalizedString4
properties	content  complex
facets	Kind  Value  Annotation maxLength  4
attributes	Name   Type   Use   Default   Fixed   Annotation ISO   tgNormalizedString   optional
annotation	documentation Mengeneinheit

attribute tgOrderItem/QU/@ISO

type	tgNormalizedString
properties	use  optional

element tgOrderItem/StorageGoods

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Lagerware

element tgOrderItem/Description

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDescription
properties	minOcc  0 maxOcc  1 content  complex
children	STLBBau StLNo WICNo CompleteText OutlineText
annotation	documentation Langtext, Kurztext

element tgOrderItem/BidComm

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgMLText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Bieter Kommentar

element tgOrderItem/OfferPrice

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal_10_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  10 fractionDigits  2
annotation	documentation PrBrutto, Angebotspreis (Brutto-, Listenpreis)

element tgOrderItem/NetPrice

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal_10_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  10 fractionDigits  2
annotation	documentation PrNetto, Nettopreis (Einkaufspreis des Kunden)

element tgOrderItem/PriceBasis

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal_10_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  10 fractionDigits  2
annotation	documentation PrBasis, Preis bezieht sich auf "n" Einheiten (BME)

element tgOrderItem/AQU

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation AME, Abrechnungs-Mengeneinheit in Bezug auf PrBasis

element tgOrderItem/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgAddress
properties	minOcc  0 maxOcc  1 content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse für abweichenden, positionsbezogenen Lieferort

element tgOrderItem/ModeOfShipment

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation VersArt, Lieferung/Abholung/Strecke (positionsbezogen)

element tgOrderItem/KindOfDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of xs:token
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  fixed
annotation	documentation TerminArt, Bei Bedarf "FIX" (positionsbezogen)

element tgOrderItem/DeliveryDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDate
properties	content  simple

element tgOrderItem/DeliveryTime

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgTime
properties	minOcc  0 maxOcc  1 content  simple

element tgOrderItem/DeliveryWeek

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgWeek
properties	content  simple
facets	Kind  Value  Annotation maxInclusive  53

element tgOrderItem/PriceModification

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgPriceModification
properties	minOcc  0 maxOcc  unbounded content  complex
children	Type SubQty Threshold Name Quotation DiscountPcnt DiscountAbs MarkupPcnt MarkupAbs Multiplicator

element tgOrderItem/PriceChara

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Preis-Kz. (Dokumentation der Nettopreis-Ermittlung) ´1´ = Listenpreis abzgl. Rabatt 1 oder Rabatt 1 und 2 (Einzelpreis Brutto, Rabatt 1 (oder 1 und 2) und Netto-Positionswert gefüllt) ´2´ = Rabatte können nicht dargestellt werden (Einzelpreis Brutto und Netto-Positionswert gefüllt) ´3´ = Rabatte und Einzelpreis Brutto nicht darstellbar (nur Netto-Positionswert gefüllt)

element tgOrderItem/VAT

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal_5_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation MwSt in %

element tgOrderItem/UserValue

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgUserValue
properties	minOcc  0 maxOcc  unbounded content  complex
children	Name Value

element tgOrderItem/Dimension

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDimension
properties	minOcc  0 maxOcc  1 content  complex
children	UM Height Width Length

element tgOrderItem/Weight

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2

element tgOrderItem/UW

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	content  simple
annotation	documentation Gewichtseinheit, unit weight

element tgOrderItem/TechnClarification

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation technical clarification Vorbehaltlich der technischen Klärung: J = Ja N=Nein (kein Vorbehalt) Leer = kein Vorbehalt

complexType tgOutlineText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	OutlTSA OutlTxt
used by	elements  tgDescription/OutlineText tgCompleteText/OutlineText
annotation	documentation Kurztext

element tgOutlineText/OutlTSA

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Kennzeichen Textergaenzung des Ausschreibenden im Kurztext

element tgOutlineText/OutlTxt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgOutlTxt
properties	content  complex mixed  false
children	TextOutlTxt TextComplement
annotation	documentation Kurztext

complexType tgOutlTxt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
properties	mixed  false
children	TextOutlTxt TextComplement
used by	element  tgOutlineText/OutlTxt
annotation	documentation Kurztext

element tgOutlTxt/TextOutlTxt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgMLText
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Textbeschreibung mit Einschraenkungen

element tgOutlTxt/TextComplement

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgTextComplement
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	ComplCaption ComplBodyDec ComplBodyInt ComplBody ComplTail
attributes	Name   Type   Use   Default   Fixed   Annotation MarkLbl   tgInteger   required         Kind   derived by: tgNormalizedString   required         Empty   tgYes   optional         ArtChrIdent   tgInteger            documentation Identifikator des STLB-Bau Beschreibungsmerkmals
annotation	documentation Textergaenzung

complexType tgp

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
properties	mixed  false
children	span br image
used by	elements  tgFText/p tgli/p tgth/p tgtd/p
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Absatz in formatiertem Text

attribute tgp/@style

type	tgAttStyle

element tgp/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgp/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

element tgp/image

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgImage
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign   optional         documentation Ausrichtung border   tgAttBorder   optional         hspace   tgNormalizedString   optional         vspace   tgNormalizedString   optional         width   tgAttWidth   optional         Type   derived by: tgNormalizedString   required         Name   tgNormalizedString   optional         Encoding   derived by: tgNormalizedString   optional   base64

complexType tgPlannerInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	IDNo Address
used by	element  tgOrder/PlannerInfo
annotation	documentation Informationen zum Planer (Projektanten)

element tgPlannerInfo/IDNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Planer-Nummer

element tgPlannerInfo/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgAddress
properties	content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Planers

complexType tgpMLText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
properties	mixed  false
children	span br
used by	element  tgMLText/p
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Absatz

attribute tgpMLText/@style

type	tgAttStyle

element tgpMLText/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgpMLText/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

complexType tgPriceModification

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	Type SubQty Threshold Name Quotation DiscountPcnt DiscountAbs MarkupPcnt MarkupAbs Multiplicator
used by	elements  tgOrderInfo/PriceModification tgOrderItem/PriceModification

element tgPriceModification/Type

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of xs:token
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  info
annotation	documentation Wenn Modifikation nur Informatorisch dann ist type=info

element tgPriceModification/SubQty

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal_10_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  10 fractionDigits  2
annotation	documentation Teilmenge

element tgPriceModification/Threshold

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal_10_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  10 fractionDigits  2
annotation	documentation Rabattschwelle (Menge) ab der der Rabatt greift

element tgPriceModification/Name

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Name des Zuschlags / Nachlasses

element tgPriceModification/Quotation

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID
annotation	documentation Reference auf Quotation, Notierung

attribute tgPriceModification/Quotation/@ID

type

xs:ID

element tgPriceModification/DiscountPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal_5_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2

element tgPriceModification/DiscountAbs

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2

element tgPriceModification/MarkupPcnt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal_5_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2

element tgPriceModification/MarkupAbs

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2

element tgPriceModification/Multiplicator

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706

complexType tgPrjInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	NamePrj LblPrj Descrip Cur CurLbl BidCommPerm AlterBidPerm Communication AddText UPFracDig
used by	element  tgGAEB/PrjInfo
annotation	documentation Informationen zum Projekt

element tgPrjInfo/NamePrj

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString8
properties	content  simple
facets	Kind  Value  Annotation maxLength  8
annotation	documentation Projektname

element tgPrjInfo/LblPrj

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString60
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Bezeichnung des Projektes

element tgPrjInfo/Descrip

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgFText
properties	minOcc  0 maxOcc  1 content  complex mixed  false
children	p div span ul ol table br page Image
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Kurzbeschreibung des Projektes

element tgPrjInfo/Cur

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgCur
properties	content  simple
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Waehrung

element tgPrjInfo/CurLbl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgCurLbl
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  50
annotation	documentation Bezeichnung der Waehrung

element tgPrjInfo/BidCommPerm

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgYesNo
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Bieter Kommentar zugelassen

element tgPrjInfo/AlterBidPerm

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgYes
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Nebenangebot zulassen; Bei Nebenangeboten sollten die Elemente AlterBidStatus gesetzt sein

element tgPrjInfo/Communication

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgCommunication
properties	minOcc  0 maxOcc  unbounded content  complex
children	Question Response
annotation	documentation Kommunikation In diesem Objekt werden Fragen und Antworten der Austauschpartner abgelegt.

element tgPrjInfo/AddText

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgAddText
properties	minOcc  0 maxOcc  unbounded content  complex
children	OutlineAddText DetailAddText
annotation	documentation Zusaetzlicher Text; Zusätzliche Textinformation können hier abgelegt werden.

element tgPrjInfo/UPFracDig

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgInteger
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minInclusive  2 maxInclusive  3
annotation	documentation Aufforderung, in der Angebotsphase die Einheitspreise mit zwei oder drei Nachkommasstellen anzubieten.

complexType tgQuotation

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	Kind PriceFrom PriceTo Cur CurLbl ConversionRate Weight UW
used by	element  tgOrderInfo/Quotation
annotation	documentation Notation

element tgQuotation/Kind

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:ID
annotation	documentation Z.B. CU=Kupfer

attribute tgQuotation/Kind/@ID

type

xs:ID

element tgQuotation/PriceFrom

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation VON Rohstoff Tagespreis

element tgQuotation/PriceTo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal_13_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation BIS Rohstoff Tagespreis

element tgQuotation/Cur

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgISOCur
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ISO   tgNormalizedString
annotation	documentation Waehrung

element tgQuotation/CurLbl

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgCurLbl
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  50
annotation	documentation Bezeichnung der Waehrung

element tgQuotation/ConversionRate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal_5_2
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation Umrechnugsfaktor

element tgQuotation/Weight

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgDecimal_13_2
properties	content  simple
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2

element tgQuotation/UW

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	content  simple
annotation	documentation Gewichtseinheit, unit weight

complexType tgRefItems

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	Costumer CostumerSubNo Supplier SupplierSubNo
used by	element  tgOrderItem/RefItems
annotation	documentation OZs, Ordnungszahlen

element tgRefItems/Costumer

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	content  simple
annotation	documentation Positionsnummer des HW Siehe OZ in GAEB 2000 Siehe CustomerBoQBkdn Die OZ darf nicht geändert werden bie D93->D94 und D96->D97. D.h. sie muß genauso wieder zurück kommen.

element tgRefItems/CostumerSubNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Unterpositionsnummer

element tgRefItems/Supplier

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	content  simple
annotation	documentation Positionsnummer des GH Siehe SupplierBoQBkdn

element tgRefItems/SupplierSubNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Unterpositionsnummer

complexType tgspan

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	extension of tgNormalizedString
properties	base  tgNormalizedString mixed  false
used by	elements  tgFText/span tgMLText/span tgp/span tgpMLText/span tgdiv/span tgli/span tgth/span tgtd/span
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

attribute tgspan/@style

type	tgAttStyle

complexType tgSTLBBau

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	STLBBauCtlg STLBBauID
used by	element  tgDescription/STLBBau
annotation	documentation Schluessel STLB-Bau

element tgSTLBBau/STLBBauCtlg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgSTLBBauCtlg
properties	content  complex
children	CtlgName VersDate WCtg Group CostGrp
annotation	documentation Schluessel fuer Katalog und Gruppe der Leistung (STLB-Bau)

element tgSTLBBau/STLBBauID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgSTLBBauID
properties	minOcc  0 maxOcc  unbounded content  complex
children	ArtChrIdent ArtChIdx ChVIdent
annotation	documentation Schlüssel einer Ausprägung (STLB-Bau Identifier)

complexType tgSTLBBauCtlg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	CtlgName VersDate WCtg Group CostGrp
used by	element  tgSTLBBau/STLBBauCtlg
annotation	documentation Schluessel fuer Katalog und Gruppe der Leistung (STLB-Bau)

element tgSTLBBauCtlg/CtlgName

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString10
properties	content  simple
facets	Kind  Value  Annotation maxLength  10
annotation	documentation Name des Katalogs

element tgSTLBBauCtlg/VersDate

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgVersDate
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Datum der Version des Katalogs

element tgSTLBBauCtlg/WCtg

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString3
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  3
annotation	documentation Leistungsbereich

element tgSTLBBauCtlg/Group

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgInteger
properties	content  simple
annotation	documentation Identifikator der Gruppe

element tgSTLBBauCtlg/CostGrp

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Kostengruppe

complexType tgSTLBBauID

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	ArtChrIdent ArtChIdx ChVIdent
used by	element  tgSTLBBau/STLBBauID
annotation	documentation Schlüssel einer Ausprägung (STLB-Bau Identifier)

element tgSTLBBauID/ArtChrIdent

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgInteger
properties	content  simple
annotation	documentation Identifikator des Beschreibungsmerkmals

element tgSTLBBauID/ArtChIdx

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgInteger
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Index zum Beschreibungsmerkmal (entfällt bei Textergaenzungen)

element tgSTLBBauID/ChVIdent

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgInteger
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation Identifikator der Auspraegung (entfällt bei Textergaenzungen)

complexType tgSupplierInfo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	IDNo Address
used by	element  tgOrder/SupplierInfo
annotation	documentation Informationen zum Lieferanten

element tgSupplierInfo/IDNo

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString20
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Lieferanten-Nummer

element tgSupplierInfo/Address

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgAddress
properties	content  complex
children	Name1 Name2 Name3 Name4 Street PCode City Country ILN CtlgAssign Contact Phone Fax Email VATID Bank
annotation	documentation Informationen zur Adresse des Lieferanten

complexType tgtable

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
properties	mixed  false
children	tr
used by	elements  tgFText/table tgth/table tgtd/table
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlignTable            documentation Ausrichtung border   tgAttBorder            documentation Linien cellpadding   tgAttCellpadding            documentation Zellenabstand frame   tgAttFrame            height   tgAttHeight            style   tgAttStyle            width   tgAttWidth            org   tgAttOrg
annotation	documentation Tabelle

attribute tgtable/@align

type	tgAttAlignTable
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right
annotation	documentation Ausrichtung

attribute tgtable/@border

type	tgAttBorder
annotation	documentation Linien

attribute tgtable/@cellpadding

type	tgAttCellpadding
annotation	documentation Zellenabstand

attribute tgtable/@frame

type	tgAttFrame
facets	Kind  Value  Annotation enumeration  box enumeration  hsides enumeration  void enumeration  vsides

attribute tgtable/@height

type	tgAttHeight

attribute tgtable/@style

type	tgAttStyle

attribute tgtable/@width

type	tgAttWidth

attribute tgtable/@org

type	tgAttOrg
facets	Kind  Value  Annotation enumeration  TAB

element tgtable/tr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgtr
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	th td
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign            documentation Ausrichtung style   tgAttStyle            valign   tgAttValign
annotation	documentation Tabellenzeile

complexType tgtd

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
properties	mixed  false
children	p div span br table
used by	element  tgtr/td
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign            documentation Ausrichtung colspan   tgAttColspan            documentation Spaltenzusammenfassung rowspan   tgAttRowspan            style   tgAttStyle            valign   tgAttValign
annotation	documentation Zelle einer Tabelle

attribute tgtd/@align

type	tgAttAlign
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right enumeration  justify
annotation	documentation Ausrichtung

attribute tgtd/@colspan

type	tgAttColspan
annotation	documentation Spaltenzusammenfassung

attribute tgtd/@rowspan

type	tgAttRowspan

attribute tgtd/@style

type	tgAttStyle

attribute tgtd/@valign

type	tgAttValign
facets	Kind  Value  Annotation enumeration  bottom enumeration  middle enumeration  top

element tgtd/p

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgp
properties	content  complex mixed  false
children	span br image
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Absatz in formatiertem Text

element tgtd/div

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgdiv
properties	content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

element tgtd/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgtd/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

element tgtd/table

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgtable
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	tr
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlignTable            documentation Ausrichtung border   tgAttBorder            documentation Linien cellpadding   tgAttCellpadding            documentation Zellenabstand frame   tgAttFrame            height   tgAttHeight            style   tgAttStyle            width   tgAttWidth            org   tgAttOrg
annotation	documentation Tabelle

complexType tgTextComplement

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
properties	mixed  false
children	ComplCaption ComplBodyDec ComplBodyInt ComplBody ComplTail
used by	elements  tgOutlTxt/TextComplement tgBoQText/TextComplement
attributes	Name   Type   Use   Default   Fixed   Annotation MarkLbl   tgInteger   required         Kind   derived by: tgNormalizedString   required         Empty   tgYes   optional         ArtChrIdent   tgInteger            documentation Identifikator des STLB-Bau Beschreibungsmerkmals
annotation	documentation Textergaenzung

attribute tgTextComplement/@MarkLbl

type	tgInteger
properties	use  required

attribute tgTextComplement/@Kind

type	restriction of tgNormalizedString
properties	use  required
facets	Kind  Value  Annotation enumeration  Bidder enumeration  Owner

attribute tgTextComplement/@Empty

type	tgYes
properties	use  optional
facets	Kind  Value  Annotation enumeration  Yes

attribute tgTextComplement/@ArtChrIdent

type	tgInteger
annotation	documentation Identifikator des STLB-Bau Beschreibungsmerkmals

element tgTextComplement/ComplCaption

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgMLText
properties	content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Textergaenzung Anfang

element tgTextComplement/ComplBodyDec

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgComplBodyDec
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Value   tgDecimal
annotation	documentation In ComplBody wird der Inhalt wiederholt

element tgTextComplement/ComplBodyInt

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgComplBodyInt
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Value   tgInteger
annotation	documentation In ComplBody wird der Inhalt wiederholt

element tgTextComplement/ComplBody

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgMLText
properties	content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Textergaenzung Hauptteil

element tgTextComplement/ComplTail

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgMLText
properties	content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation textWidth   tgNormalizedString
annotation	documentation Textergaenzung Ende

complexType tgth

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	p div span br table
used by	element  tgtr/th
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign            documentation Ausrichtung style   tgAttStyle            valign   tgAttValign
annotation	documentation Tabellenkopf

attribute tgth/@align

type	tgAttAlign
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right enumeration  justify
annotation	documentation Ausrichtung

attribute tgth/@style

type	tgAttStyle

attribute tgth/@valign

type	tgAttValign
facets	Kind  Value  Annotation enumeration  bottom enumeration  middle enumeration  top

element tgth/p

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgp
properties	content  complex mixed  false
children	span br image
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Absatz in formatiertem Text

element tgth/div

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgdiv
properties	content  complex mixed  false
children	span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Abschnitt in formatiertem Text

element tgth/span

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgspan
properties	content  complex mixed  false
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Teilabschnitt in formatiertem Text

element tgth/br

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgbr
properties	content  simple
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

element tgth/table

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgtable
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	tr
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlignTable            documentation Ausrichtung border   tgAttBorder            documentation Linien cellpadding   tgAttCellpadding            documentation Zellenabstand frame   tgAttFrame            height   tgAttHeight            style   tgAttStyle            width   tgAttWidth            org   tgAttOrg
annotation	documentation Tabelle

complexType tgtr

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
properties	mixed  false
children	th td
used by	element  tgtable/tr
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign            documentation Ausrichtung style   tgAttStyle            valign   tgAttValign
annotation	documentation Tabellenzeile

attribute tgtr/@align

type	tgAttAlign
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right enumeration  justify
annotation	documentation Ausrichtung

attribute tgtr/@style

type	tgAttStyle

attribute tgtr/@valign

type	tgAttValign
facets	Kind  Value  Annotation enumeration  bottom enumeration  middle enumeration  top

element tgtr/th

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgth
properties	minOcc  0 maxOcc  unbounded content  complex
children	p div span br table
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign            documentation Ausrichtung style   tgAttStyle            valign   tgAttValign
annotation	documentation Tabellenkopf

element tgtr/td

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgtd
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	p div span br table
attributes	Name   Type   Use   Default   Fixed   Annotation align   tgAttAlign            documentation Ausrichtung colspan   tgAttColspan            documentation Spaltenzusammenfassung rowspan   tgAttRowspan            style   tgAttStyle            valign   tgAttValign
annotation	documentation Zelle einer Tabelle

complexType tgul

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
properties	mixed  false
children	li ul ol
used by	elements  tgFText/ul tgul/ul tgol/ul
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Aufzählungsliste in formatiertem Text

attribute tgul/@style

type	tgAttStyle

element tgul/li

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgli
properties	minOcc  1 maxOcc  unbounded content  complex mixed  false
children	p div span br
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Listenpunkt in formatiertem Text

element tgul/ul

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgul
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	li ul ol
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Aufzählungsliste in formatiertem Text

element tgul/ol

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgol
properties	minOcc  0 maxOcc  unbounded content  complex mixed  false
children	li ul ol
attributes	Name   Type   Use   Default   Fixed   Annotation style   tgAttStyle
annotation	documentation Nummerierte Liste in formatiertem Text

complexType tgUserValue

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
children	Name Value
used by	element  tgOrderItem/UserValue

element tgUserValue/Name

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	content  simple

element tgUserValue/Value

diagram
namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	minOcc  0 maxOcc  1 content  simple

simpleType tgAttAlign

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	attributes  tgtr/@align tgth/@align tgtd/@align tgImage/@align
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right enumeration  justify
annotation	documentation Attribut fuer Ausrichtung

simpleType tgAttAlignTable

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	attribute  tgtable/@align
facets	Kind  Value  Annotation enumeration  left enumeration  center enumeration  right
annotation	documentation Attribut fuer Ausrichtung

simpleType tgAttBorder

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgInteger
properties	base  tgInteger
used by	attributes  tgtable/@border tgImage/@border
annotation	documentation Attribut fuer Linien

simpleType tgAttCellpadding

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	base  tgNormalizedString
used by	attribute  tgtable/@cellpadding
annotation	documentation Attribut für Zellenabstand

simpleType tgAttColspan

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgInteger
properties	base  tgInteger
used by	attribute  tgtd/@colspan
annotation	documentation Attribut für Spaltenzusammenfassung

simpleType tgAttFrame

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	attribute  tgtable/@frame
facets	Kind  Value  Annotation enumeration  box enumeration  hsides enumeration  void enumeration  vsides
annotation	documentation Attribut für Rahmen

simpleType tgAttHeight

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	base  tgNormalizedString
used by	attribute  tgtable/@height
annotation	documentation Attribut für Höhe

simpleType tgAttOrg

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of xs:normalizedString
properties	base  xs:normalizedString
used by	attribute  tgtable/@org
facets	Kind  Value  Annotation enumeration  TAB

simpleType tgAttRowspan

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgInteger
properties	base  tgInteger
used by	attribute  tgtd/@rowspan
annotation	documentation Attribut für Zeilenzusammenfassung

simpleType tgAttStyle

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	base  tgNormalizedString
used by	attributes  tgp/@style tgpMLText/@style tgspan/@style tgdiv/@style tgul/@style tgli/@style tgol/@style tgtable/@style tgtr/@style tgth/@style tgtd/@style
annotation	documentation Der Wertevorrat des Style Attributes wird in der Dokumentation erklaert

simpleType tgAttValign

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	attributes  tgtr/@valign tgth/@valign tgtd/@valign
facets	Kind  Value  Annotation enumeration  bottom enumeration  middle enumeration  top
annotation	documentation Attribut für vertikale Ausrichtung

simpleType tgAttWidth

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString
properties	base  tgNormalizedString
used by	attributes  tgtable/@width tgImage/@width
annotation	documentation Attribut für Breite

simpleType tgbr

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgFText/br tgMLText/br tgp/br tgpMLText/br tgdiv/br tgli/br tgth/br tgtd/br
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Zeilenumbruch

simpleType tgCtlgID

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString20
properties	base  tgNormalizedString20
used by	element  tgCtlg/CtlgID
facets	Kind  Value  Annotation maxLength  20

simpleType tgCtlgName

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	tgNormalizedString80
properties	base  tgNormalizedString80
used by	element  tgCtlg/CtlgName
facets	Kind  Value  Annotation maxLength  80

simpleType tgCtlgType

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgCtlg/CtlgType
facets	Kind  Value  Annotation enumeration  cost group DIN 276-81 enumeration  cost group DIN 276-93 enumeration  cost group DIN 276-06 enumeration  locality enumeration  work category enumeration  cost unit enumeration  miscellaneous

simpleType tgCur

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgPrjInfo/Cur
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Waehrung

simpleType tgCurLbl

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgPrjInfo/CurLbl tgOrderInfo/CurLbl tgQuotation/CurLbl
facets	Kind  Value  Annotation maxLength  50
annotation	documentation Bezeichnung der Waehrung

simpleType tgDate

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	xs:date
properties	base  xs:date
used by	elements  tgCashDiscount/CashDiscDate tgGAEBInfo/Date tgOrderInfo/DeliveryDate tgOrderItem/DeliveryDate tgOrderInfo/FixedPriceDate tgOrderInfo/OfferFixedPriceDate tgOrderInfo/TenderDate
annotation	documentation Datum

simpleType tgDecimal

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	xs:decimal
properties	base  xs:decimal
used by	elements  tgDimension/Height tgDimension/Length tgDimension/Width attribute  tgComplBodyDec/@Value

simpleType tgDecimal_10_2

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of xs:decimal
properties	base  xs:decimal
used by	elements  tgOrderItem/NetPrice tgOrderItem/OfferPrice tgOrderItem/PriceBasis tgPriceModification/SubQty tgPriceModification/Threshold
facets	Kind  Value  Annotation totalDigits  10 fractionDigits  2

simpleType tgDecimal_11_3

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of xs:decimal
properties	base  xs:decimal
facets	Kind  Value  Annotation totalDigits  11 fractionDigits  3
annotation	documentation Dezimalwert mit insgesamt 11 Stellen, davon 3 nach dem Komma

simpleType tgDecimal_13_0

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of xs:decimal
properties	base  xs:decimal
used by	element  tgOrderItem/EAN
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  0

simpleType tgDecimal_13_2

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of xs:decimal
properties	base  xs:decimal
used by	elements  tgPriceModification/DiscountAbs tgPriceModification/MarkupAbs tgQuotation/PriceFrom tgQuotation/PriceTo tgOrderItem/Qty tgQuotation/Weight tgOrderItem/Weight
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  2
annotation	documentation Dezimalwert mit insgesamt 13 Stellen, davon 2 nach dem Komma

simpleType tgDecimal_13_3

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of xs:decimal
properties	base  xs:decimal
facets	Kind  Value  Annotation totalDigits  13 fractionDigits  3
annotation	documentation Dezimalwert mit insgesamt 13 Stellen, davon 3 nach dem Komma

simpleType tgDecimal_5_2

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of xs:decimal
properties	base  xs:decimal
used by	elements  tgQuotation/ConversionRate tgCashDiscount/DiscountPcnt tgPriceModification/DiscountPcnt tgPriceModification/MarkupPcnt tgOrderInfo/VAT tgOrderItem/VAT
facets	Kind  Value  Annotation totalDigits  5 fractionDigits  2
annotation	documentation Dezimalwert mit insgesamt 5 Stellen, davon 2 nach dem Komma

simpleType tgDecimal_6_4

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of xs:decimal
properties	base  xs:decimal
facets	Kind  Value  Annotation totalDigits  6 fractionDigits  4
annotation	documentation Dezimalwert mit insgesamt 6 Stellen, davon 4 nach dem Komma

simpleType tgInteger

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	xs:integer
properties	base  xs:integer
used by	elements  tgSTLBBauID/ArtChIdx tgSTLBBauID/ArtChrIdent tgSTLBBauID/ChVIdent tgSTLBBauCtlg/Group tgPrjInfo/UPFracDig simpleTypes  tgAttBorder tgAttColspan tgAttRowspan attributes  tgTextComplement/@ArtChrIdent tgTextComplement/@MarkLbl tgComplBodyInt/@Value

simpleType tgLeftRight

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgBoQBkdn/Alignment
facets	Kind  Value  Annotation enumeration  left enumeration  right
annotation	documentation left/right

simpleType tgNonNegativeInteger

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	xs:nonNegativeInteger
properties	base  xs:nonNegativeInteger
annotation	documentation Integerwert, der nicht negativ ist

simpleType tgNormalizedString

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	xs:normalizedString
properties	base  xs:normalizedString
used by	elements  tgOrderItem/AQU tgBoQText/attachment tgOrderInfo/CallOrder tgOrderItem/CatalogArtNo tgOrderItem/CatalogNo tgGAEBInfo/Certific tgRefItems/Costumer tgRefItems/CostumerSubNo tgOrderItem/DeliveryChara tgOrderInfo/DeliveryType tgOrderInfo/Inquiry tgOrderItem/ItemChara tgOrderItem/ItemType tgOrderItem/ModeOfShipment tgPriceModification/Name tgUserValue/Name tgOrderItem/PriceChara tgOrderItem/RepOrder tgOrderInfo/SpecialPayTime tgRefItems/Supplier tgRefItems/SupplierSubNo tgBoQBkdn/Type tgQuotation/UW tgOrderItem/UW tgUserValue/Value complexType  tgspan simpleTypes  tgAttAlign tgAttAlignTable tgAttCellpadding tgAttFrame tgAttHeight tgAttStyle tgAttValign tgAttWidth tgbr tgCtlgType tgCur tgCurLbl tgLeftRight tgNormalizedString10 tgNormalizedString100 tgNormalizedString12 tgNormalizedString120 tgNormalizedString13 tgNormalizedString15 tgNormalizedString20 tgNormalizedString256 tgNormalizedString3 tgNormalizedString30 tgNormalizedString4 tgNormalizedString40 tgNormalizedString5 tgNormalizedString55 tgNormalizedString60 tgNormalizedString8 tgNormalizedString80 tgpage tgStLNo tgYes tgYesNo attributes  tgImage/@Encoding tgImage/@hspace tgISOCur/@ISO tgOrderItem/QU/@ISO tgTextComplement/@Kind tgImage/@Name tgFText/@textWidth tgMLText/@textWidth tgDescription/StLNo/@Type tgImage/@Type tgCashDiscDays/@TypeOfDays tgImage/@vspace
annotation	documentation Einzeilige Zeichenkette ohne Längenbegrenzung

simpleType tgNormalizedString10

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgSTLBBauCtlg/CtlgName tgGAEBInfo/Version
facets	Kind  Value  Annotation maxLength  10
annotation	documentation Einzeilige Zeichenkette der max. Länge 10

simpleType tgNormalizedString100

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgCtlgAssign/CtlgCode tgCtlgAssign/CtlgID
facets	Kind  Value  Annotation maxLength  100
annotation	documentation Einzeilige Zeichenkette der max. Länge 100

simpleType tgNormalizedString12

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation maxLength  12
annotation	documentation Einzeilige Zeichenkette der max. Länge 12

simpleType tgNormalizedString120

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation maxLength  120
annotation	documentation Einzeilige Zeichenkette der max. Länge 120

simpleType tgNormalizedString13

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgOrderItem/ArtNoID tgOrderItem/SupplierArtNoID
facets	Kind  Value  Annotation maxLength  13

simpleType tgNormalizedString15

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgOrderItem/ArtNo tgOrderItem/CustumerArtNo tgOrderInfo/InquiryNo tgOrderInfo/OfferNo tgOrderInfo/OrderConfNo tgOrderInfo/PartNo tgOrderInfo/RepOrder tgOrderItem/SupplierArtNo
facets	Kind  Value  Annotation maxLength  15
annotation	documentation Einzeilige Zeichenkette der max. Länge 15

simpleType tgNormalizedString20

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgBank/AcctNo tgSTLBBauCtlg/CostGrp tgAddress/Fax tgSupplierInfo/IDNo tgCustomerInfo/IDNo tgDeliveryPlaceInfo/IDNo tgPlannerInfo/IDNo tgInvoiceInfo/IDNo tgAddress/ILN tgAddress/PCode tgAddress/Phone simpleType  tgCtlgID
facets	Kind  Value  Annotation maxLength  20
annotation	documentation Einzeilige Zeichenkette der max. Länge 20

simpleType tgNormalizedString256

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgAddress/Email
facets	Kind  Value  Annotation maxLength  256
annotation	documentation Einzeilige Zeichenkette der max. Länge 256

simpleType tgNormalizedString3

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgDimension/UM tgSTLBBauCtlg/WCtg
facets	Kind  Value  Annotation maxLength  3
annotation	documentation Einzeilige Zeichenkette der max. Länge 3

simpleType tgNormalizedString30

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgBank/BRNo tgOrderInfo/ModeOfShipment
facets	Kind  Value  Annotation maxLength  30
annotation	documentation Einzeilige Zeichenkette der max. Länge 30

simpleType tgNormalizedString4

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgOrderItem/QU
facets	Kind  Value  Annotation maxLength  4
annotation	documentation Einzeilige Zeichenkette der max. Länge 4

simpleType tgNormalizedString40

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgAddress/City tgAddress/Contact tgAddress/Country tgBoQBkdn/LblBoQBkdn tgAddress/Name1 tgAddress/Name2 tgAddress/Name3 tgAddress/Name4 tgAddress/Street tgDescription/WICNo
facets	Kind  Value  Annotation maxLength  40
annotation	documentation Einzeilige Zeichenkette der max. Länge 40

simpleType tgNormalizedString5

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation maxLength  5
annotation	documentation Einzeilige Zeichenkette der max. Länge 5

simpleType tgNormalizedString55

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
facets	Kind  Value  Annotation maxLength  55
annotation	documentation Einzeilige Zeichenkette der max. Länge 55

simpleType tgNormalizedString60

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgPrjInfo/LblPrj tgGAEBInfo/ProgName tgGAEBInfo/ProgSystem
facets	Kind  Value  Annotation maxLength  60
annotation	documentation Einzeilige Zeichenkette der max. Länge 60

simpleType tgNormalizedString8

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgPrjInfo/NamePrj
facets	Kind  Value  Annotation maxLength  8
annotation	documentation Einzeilige Zeichenkette der max. Länge 8

simpleType tgNormalizedString80

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgBank/LblBank tgCommunication/Question tgCommunication/Response tgAddress/VATID simpleType  tgCtlgName
facets	Kind  Value  Annotation maxLength  80
annotation	documentation Einzeilige Zeichenkette der max. Länge 80

simpleType tgpage

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgFText/page
facets	Kind  Value  Annotation maxLength  0
annotation	documentation Seitenumbruch

simpleType tgPositiveInteger

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	xs:positiveInteger
properties	base  xs:positiveInteger
used by	element  tgBoQBkdn/Length simpleType  tgWeek attribute  tgCashDiscDays/@Days

simpleType tgStLNo

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgDescription/StLNo
facets	Kind  Value  Annotation pattern  [0-9]{0,17}
annotation	documentation Standardleistungsnummer (StLB/STLK)

simpleType tgString

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	xs:string
properties	base  xs:string
used by	complexType  tgImage

simpleType tgTime

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	xs:time
properties	base  xs:time
used by	elements  tgOrderInfo/DeliveryTime tgOrderItem/DeliveryTime tgGAEBInfo/Time
annotation	documentation Zeit

simpleType tgVersDate

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	xs:gYearMonth
properties	base  xs:gYearMonth
used by	elements  tgGAEBInfo/VersDate tgSTLBBauCtlg/VersDate
annotation	documentation Versionsdatum

simpleType tgWeek

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgPositiveInteger
properties	base  tgPositiveInteger
used by	elements  tgOrderInfo/DeliveryWeek tgOrderItem/DeliveryWeek tgOrderInfo/OfferFixedPriceWeek
facets	Kind  Value  Annotation maxInclusive  53

simpleType tgYes

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	element  tgPrjInfo/AlterBidPerm attribute  tgTextComplement/@Empty
facets	Kind  Value  Annotation enumeration  Yes
annotation	documentation Yes

simpleType tgYesNo

namespace	http://www.gaeb.de/GAEB_DA_XML/200706
type	restriction of tgNormalizedString
properties	base  tgNormalizedString
used by	elements  tgPrjInfo/BidCommPerm tgCompleteText/ComplTSA tgCompleteText/ComplTSB tgBoQBkdn/Num tgOutlineText/OutlTSA tgOrderItem/StorageGoods tgOrderItem/TechnClarification
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
annotation	documentation Yes / No

element CanonicalizationMethod

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CanonicalizationMethodType
properties	content  complex mixed  true
used by	complexType  SignedInfoType
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required

element DigestMethod

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:DigestMethodType
properties	content  complex mixed  true
used by	complexType  ReferenceType
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required

element DigestValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:DigestValueType
properties	content  simple
used by	complexType  ReferenceType

element DSAKeyValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:DSAKeyValueType
properties	content  complex
children	ds:P ds:Q ds:G ds:Y ds:J ds:Seed ds:PgenCounter
used by	complexType  KeyValueType

element KeyInfo

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:KeyInfoType
properties	content  complex mixed  true
children	ds:KeyName ds:KeyValue ds:RetrievalMethod ds:X509Data ds:PGPData ds:SPKIData ds:MgmtData
used by	complexType  SignatureType
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

element KeyName

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
properties	content  simple
used by	complexType  KeyInfoType

element KeyValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:KeyValueType
properties	content  complex mixed  true
children	ds:DSAKeyValue ds:RSAKeyValue
used by	complexType  KeyInfoType

element Manifest

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:ManifestType
properties	content  complex
children	ds:Reference
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

element MgmtData

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
properties	content  simple
used by	complexType  KeyInfoType

element Object

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:ObjectType
properties	content  complex mixed  true
used by	complexType  SignatureType
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional         MimeType   xs:string   optional         Encoding   xs:anyURI   optional

element PGPData

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:PGPDataType
properties	content  complex
children	ds:PGPKeyID ds:PGPKeyPacket ds:PGPKeyPacket
used by	complexType  KeyInfoType

element Reference

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:ReferenceType
properties	content  complex
children	ds:Transforms ds:DigestMethod ds:DigestValue
used by	complexTypes  ManifestType SignedInfoType
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional         URI   xs:anyURI   optional         Type   xs:anyURI   optional

element RetrievalMethod

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:RetrievalMethodType
properties	content  complex
children	ds:Transforms
used by	complexType  KeyInfoType
attributes	Name   Type   Use   Default   Fixed   Annotation URI   xs:anyURI            Type   xs:anyURI   optional

element RSAKeyValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:RSAKeyValueType
properties	content  complex
children	ds:Modulus ds:Exponent
used by	complexType  KeyValueType

element Signature

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignatureType
properties	content  complex
children	ds:SignedInfo ds:SignatureValue ds:KeyInfo ds:Object
used by	complexType  tgGAEB
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

element SignatureMethod

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignatureMethodType
properties	content  complex mixed  true
children	ds:HMACOutputLength
used by	complexType  SignedInfoType
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required

element SignatureProperties

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignaturePropertiesType
properties	content  complex
children	ds:SignatureProperty
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

element SignatureProperty

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignaturePropertyType
properties	content  complex mixed  true
used by	complexType  SignaturePropertiesType
attributes	Name   Type   Use   Default   Fixed   Annotation Target   xs:anyURI   required         Id   xs:ID   optional

element SignatureValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignatureValueType
properties	content  complex
used by	complexType  SignatureType
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

element SignedInfo

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignedInfoType
properties	content  complex
children	ds:CanonicalizationMethod ds:SignatureMethod ds:Reference
used by	complexType  SignatureType
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

element SPKIData

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SPKIDataType
properties	content  complex
children	ds:SPKISexp
used by	complexType  KeyInfoType

element Transform

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:TransformType
properties	content  complex mixed  true
children	ds:XPath
used by	complexType  TransformsType
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required

element Transforms

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:TransformsType
properties	content  complex
children	ds:Transform
used by	complexTypes  ReferenceType RetrievalMethodType

element X509Data

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:X509DataType
properties	content  complex
children	ds:X509IssuerSerial ds:X509SKI ds:X509SubjectName ds:X509Certificate ds:X509CRL
used by	complexType  KeyInfoType

complexType CanonicalizationMethodType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
used by	element  CanonicalizationMethod
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required

attribute CanonicalizationMethodType/@Algorithm

type	xs:anyURI
properties	use  required

complexType DigestMethodType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
used by	element  DigestMethod
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required

attribute DigestMethodType/@Algorithm

type	xs:anyURI
properties	use  required

complexType DSAKeyValueType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:P ds:Q ds:G ds:Y ds:J ds:Seed ds:PgenCounter
used by	element  DSAKeyValue

element DSAKeyValueType/P

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple

element DSAKeyValueType/Q

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple

element DSAKeyValueType/G

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	minOcc  0 maxOcc  1 content  simple

element DSAKeyValueType/Y

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple

element DSAKeyValueType/J

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	minOcc  0 maxOcc  1 content  simple

element DSAKeyValueType/Seed

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple

element DSAKeyValueType/PgenCounter

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple

complexType KeyInfoType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
children	ds:KeyName ds:KeyValue ds:RetrievalMethod ds:X509Data ds:PGPData ds:SPKIData ds:MgmtData
used by	element  KeyInfo
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

attribute KeyInfoType/@Id

type	xs:ID
properties	use  optional

complexType KeyValueType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
children	ds:DSAKeyValue ds:RSAKeyValue
used by	element  KeyValue

complexType ManifestType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:Reference
used by	element  Manifest
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

attribute ManifestType/@Id

type	xs:ID
properties	use  optional

complexType ObjectType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
used by	element  Object
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional         MimeType   xs:string   optional         Encoding   xs:anyURI   optional

attribute ObjectType/@Id

type	xs:ID
properties	use  optional

attribute ObjectType/@MimeType

type	xs:string
properties	use  optional

attribute ObjectType/@Encoding

type	xs:anyURI
properties	use  optional

complexType PGPDataType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:PGPKeyID ds:PGPKeyPacket ds:PGPKeyPacket
used by	element  PGPData

element PGPDataType/PGPKeyID

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	content  simple

element PGPDataType/PGPKeyPacket

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	minOcc  0 maxOcc  1 content  simple

element PGPDataType/PGPKeyPacket

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	content  simple

complexType ReferenceType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:Transforms ds:DigestMethod ds:DigestValue
used by	element  Reference
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional         URI   xs:anyURI   optional         Type   xs:anyURI   optional

attribute ReferenceType/@Id

type	xs:ID
properties	use  optional

attribute ReferenceType/@URI

type	xs:anyURI
properties	use  optional

attribute ReferenceType/@Type

type	xs:anyURI
properties	use  optional

complexType RetrievalMethodType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:Transforms
used by	element  RetrievalMethod
attributes	Name   Type   Use   Default   Fixed   Annotation URI   xs:anyURI            Type   xs:anyURI   optional

attribute RetrievalMethodType/@URI

type

xs:anyURI

attribute RetrievalMethodType/@Type

type	xs:anyURI
properties	use  optional

complexType RSAKeyValueType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:Modulus ds:Exponent
used by	element  RSAKeyValue

element RSAKeyValueType/Modulus

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple

element RSAKeyValueType/Exponent

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple

complexType SignatureMethodType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
children	ds:HMACOutputLength
used by	element  SignatureMethod
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required

attribute SignatureMethodType/@Algorithm

type	xs:anyURI
properties	use  required

element SignatureMethodType/HMACOutputLength

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:HMACOutputLengthType
properties	minOcc  0 maxOcc  1 content  simple

complexType SignaturePropertiesType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:SignatureProperty
used by	element  SignatureProperties
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

attribute SignaturePropertiesType/@Id

type	xs:ID
properties	use  optional

complexType SignaturePropertyType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
used by	element  SignatureProperty
attributes	Name   Type   Use   Default   Fixed   Annotation Target   xs:anyURI   required         Id   xs:ID   optional

attribute SignaturePropertyType/@Target

type	xs:anyURI
properties	use  required

attribute SignaturePropertyType/@Id

type	xs:ID
properties	use  optional

complexType SignatureType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:SignedInfo ds:SignatureValue ds:KeyInfo ds:Object
used by	element  Signature
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

attribute SignatureType/@Id

type	xs:ID
properties	use  optional

complexType SignatureValueType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	extension of xs:base64Binary
properties	base  base64Binary
used by	element  SignatureValue
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

attribute SignatureValueType/@Id

type	xs:ID
properties	use  optional

complexType SignedInfoType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:CanonicalizationMethod ds:SignatureMethod ds:Reference
used by	element  SignedInfo
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional

attribute SignedInfoType/@Id

type	xs:ID
properties	use  optional

complexType SPKIDataType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:SPKISexp
used by	element  SPKIData

element SPKIDataType/SPKISexp

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	content  simple

complexType TransformsType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:Transform
used by	element  Transforms

complexType TransformType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
children	ds:XPath
used by	element  Transform
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required

attribute TransformType/@Algorithm

type	xs:anyURI
properties	use  required

element TransformType/XPath

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
properties	content  simple

complexType X509DataType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:X509IssuerSerial ds:X509SKI ds:X509SubjectName ds:X509Certificate ds:X509CRL
used by	element  X509Data

element X509DataType/X509IssuerSerial

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:X509IssuerSerialType
properties	content  complex
children	ds:X509IssuerName ds:X509SerialNumber

element X509DataType/X509SKI

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	content  simple

element X509DataType/X509SubjectName

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
properties	content  simple

element X509DataType/X509Certificate

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	content  simple

element X509DataType/X509CRL

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	content  simple

complexType X509IssuerSerialType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:X509IssuerName ds:X509SerialNumber
used by	element  X509DataType/X509IssuerSerial

element X509IssuerSerialType/X509IssuerName

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
properties	content  simple

element X509IssuerSerialType/X509SerialNumber

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:integer
properties	content  simple

simpleType CryptoBinary

namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	base  base64Binary
used by	elements  RSAKeyValueType/Exponent DSAKeyValueType/G DSAKeyValueType/J RSAKeyValueType/Modulus DSAKeyValueType/P DSAKeyValueType/PgenCounter DSAKeyValueType/Q DSAKeyValueType/Seed DSAKeyValueType/Y

simpleType DigestValueType

namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	base  base64Binary
used by	element  DigestValue

simpleType HMACOutputLengthType

namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:integer
properties	base  integer
used by	element  SignatureMethodType/HMACOutputLength

attribute base

namespace	http://www.w3.org/XML/1998/namespace
type	xs:anyURI
used by	attributeGroup  specialAttrs
annotation	documentation <div> <h3>base (as an attribute name)</h3> <p>        denotes an attribute whose value        provides a URI to be used as the base for interpreting any        relative URIs in the scope of the element on which it        appears; its value is inherited.  This name is reserved        by virtue of its definition in the XML Base specification.</p> <p>       See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>       for information about this attribute.      </p> </div>

attribute id

namespace	http://www.w3.org/XML/1998/namespace
type	xs:ID
used by	attributeGroup  specialAttrs
annotation	documentation <div> <h3>id (as an attribute name)</h3> <p>        denotes an attribute whose value        should be interpreted as if declared to be of type ID.        This name is reserved by virtue of its definition in the        xml:id specification.</p> <p>       See <a href="http://www.w3.org/TR/xml-id/">http://www.w3.org/TR/xml-id/</a>       for information about this attribute.      </p> </div>

attribute lang

namespace	http://www.w3.org/XML/1998/namespace
type	union of (xs:language, restriction of xs:string)
used by	attributeGroup  specialAttrs
annotation	documentation <div> <h3>lang (as an attribute name)</h3> <p>        denotes an attribute whose value        is a language code for the natural language of the content of        any element; its value is inherited.  This name is reserved        by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>       Attempting to install the relevant ISO 2- and 3-letter       codes as the enumerated possible values is probably never       going to be a realistic possibility.       </p> <p>       See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">        http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>       and the IANA language subtag registry at       <a href="http://www.iana.org/assignments/language-subtag-registry">        http://www.iana.org/assignments/language-subtag-registry</a>       for further information.      </p> <p>       The union allows for the 'un-declaration' of xml:lang with       the empty string.      </p> </div>

attribute space

namespace	http://www.w3.org/XML/1998/namespace
type	restriction of xs:NCName
used by	complexType  tgGAEB attributeGroup  specialAttrs
facets	Kind  Value  Annotation enumeration  default enumeration  preserve
annotation	documentation <div> <h3>space (as an attribute name)</h3> <p>        denotes an attribute whose        value is a keyword indicating what whitespace processing        discipline is intended for the content of the element; its        value is inherited.  This name is reserved by virtue of its        definition in the XML specification.</p> </div>

attributeGroup specialAttrs

namespace

http://www.w3.org/XML/1998/namespace

attributes

Name   Type   Use   Default   Fixed   Annotation xml:base   xs:anyURI            documentation <div> <h3>base (as an attribute name)</h3> <p>        denotes an attribute whose value        provides a URI to be used as the base for interpreting any        relative URIs in the scope of the element on which it        appears; its value is inherited.  This name is reserved        by virtue of its definition in the XML Base specification.</p> <p>       See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>       for information about this attribute.      </p> </div> xml:lang   derived by: xs:language            documentation <div> <h3>lang (as an attribute name)</h3> <p>        denotes an attribute whose value        is a language code for the natural language of the content of        any element; its value is inherited.  This name is reserved        by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>       Attempting to install the relevant ISO 2- and 3-letter       codes as the enumerated possible values is probably never       going to be a realistic possibility.       </p> <p>       See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">        http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>       and the IANA language subtag registry at       <a href="http://www.iana.org/assignments/language-subtag-registry">        http://www.iana.org/assignments/language-subtag-registry</a>       for further information.      </p> <p>       The union allows for the 'un-declaration' of xml:lang with       the empty string.      </p> </div> xml:space   derived by: xs:NCName            documentation <div> <h3>space (as an attribute name)</h3> <p>        denotes an attribute whose        value is a keyword indicating what whitespace processing        discipline is intended for the content of the element; its        value is inherited.  This name is reserved by virtue of its        definition in the XML specification.</p> </div> xml:id   xs:ID            documentation <div> <h3>id (as an attribute name)</h3> <p>        denotes an attribute whose value        should be interpreted as if declared to be of type ID.        This name is reserved by virtue of its definition in the        xml:id specification.</p> <p>       See <a href="http://www.w3.org/TR/xml-id/">http://www.w3.org/TR/xml-id/</a>       for information about this attribute.      </p> </div>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
